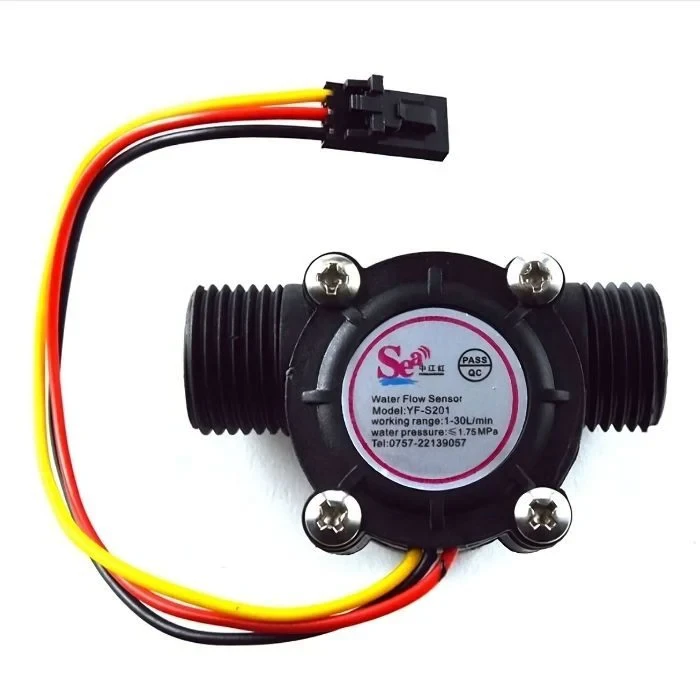

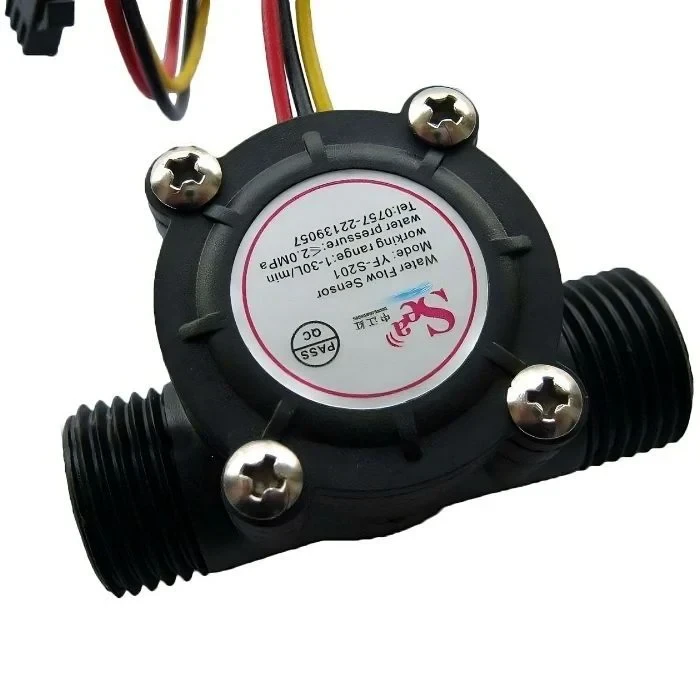

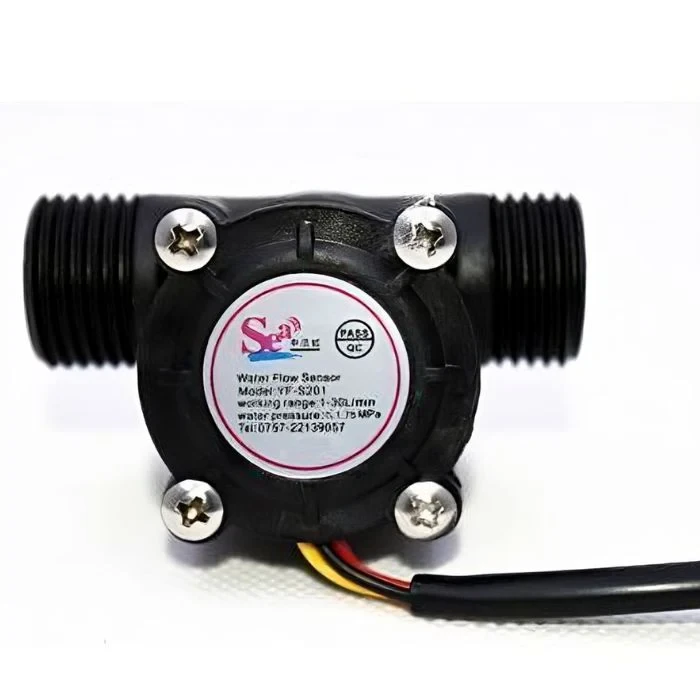

YF-S201- 1/2 Half Inch Water Flow Sensor

In Stock

SKU: YFS201-R2-B-11

YF-S201- 1/2 Half Inch Water Flow Sensor

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹164.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The YF-S201 Water Flow Measurement Sensor is designed to accurately measure water flow in a range of 1-30 liters per minute. Ideal for basic flow measurement tasks, this sensor integrates a pinwheel sensor with a Hall effect sensor to track liquid movement. Every time the pinwheel makes a revolution, the Hall effect sensor generates a pulse, making it easy to calculate the water flow rate by counting these pulses.

Each pulse represents approximately 2.25 milliliters of water, and by calculating pulse frequency, you can determine the flow rate in liters per minute or liters per hour. This sensor is perfect for basic monitoring and control in systems like irrigation, home appliances, or water management projects.

Features:

Flow Rate Range: Measures water flow between 1-30L/min, suitable for a variety of applications.
Hall Effect Sensor: Provides reliable pulse output for easy flow rate calculation.
Simple to Install: The compact design allows for easy integration into your water system.
High Sealing Performance: The Hall effect sensor is sealed from the water, keeping the electronics safe and dry.
Affordable & Practical: While not highly precise, it is great for basic flow monitoring and can be calibrated for more accurate measurements if necessary.

Specifications:

Flow Rate Range: 1-30L/min
Pulse per Revolution: Each pulse equals 2.25 milliliters
Signal Output: PWM (Pulse Width Modulation)

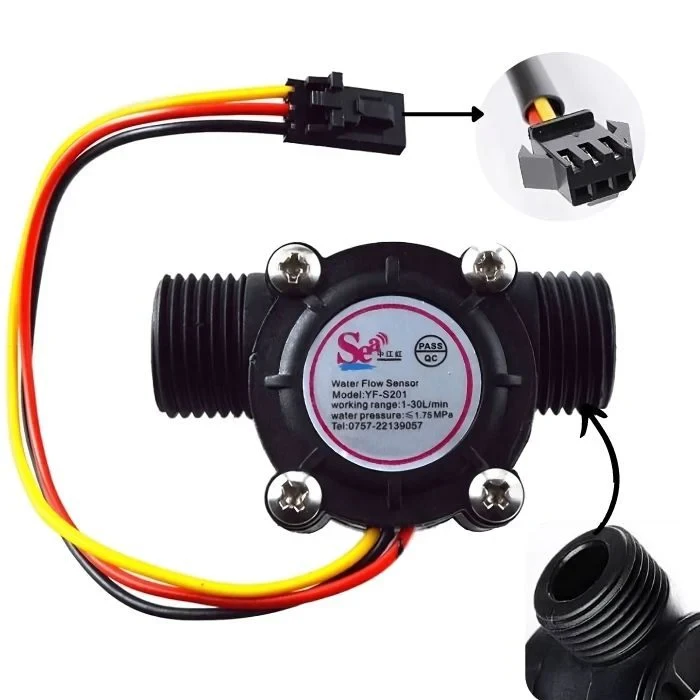

Wiring:
- Red wire: +5V
- Black wire: GND
- Yellow wire: PWM output
Orientation: Pulse rate may vary with orientation, fluid pressure, and flow rate.
Calibration: Needs careful calibration for precise measurements (±10% precision).

Applications:

Irrigation Systems: Monitor water usage in agriculture and garden irrigation.
Water Management Projects: Measure flow rates for water distribution systems.
Home Appliances: Track water consumption in dishwashers, washing machines, etc.
Aquariums or Pools: Monitor and control water flow to maintain optimal levels.
