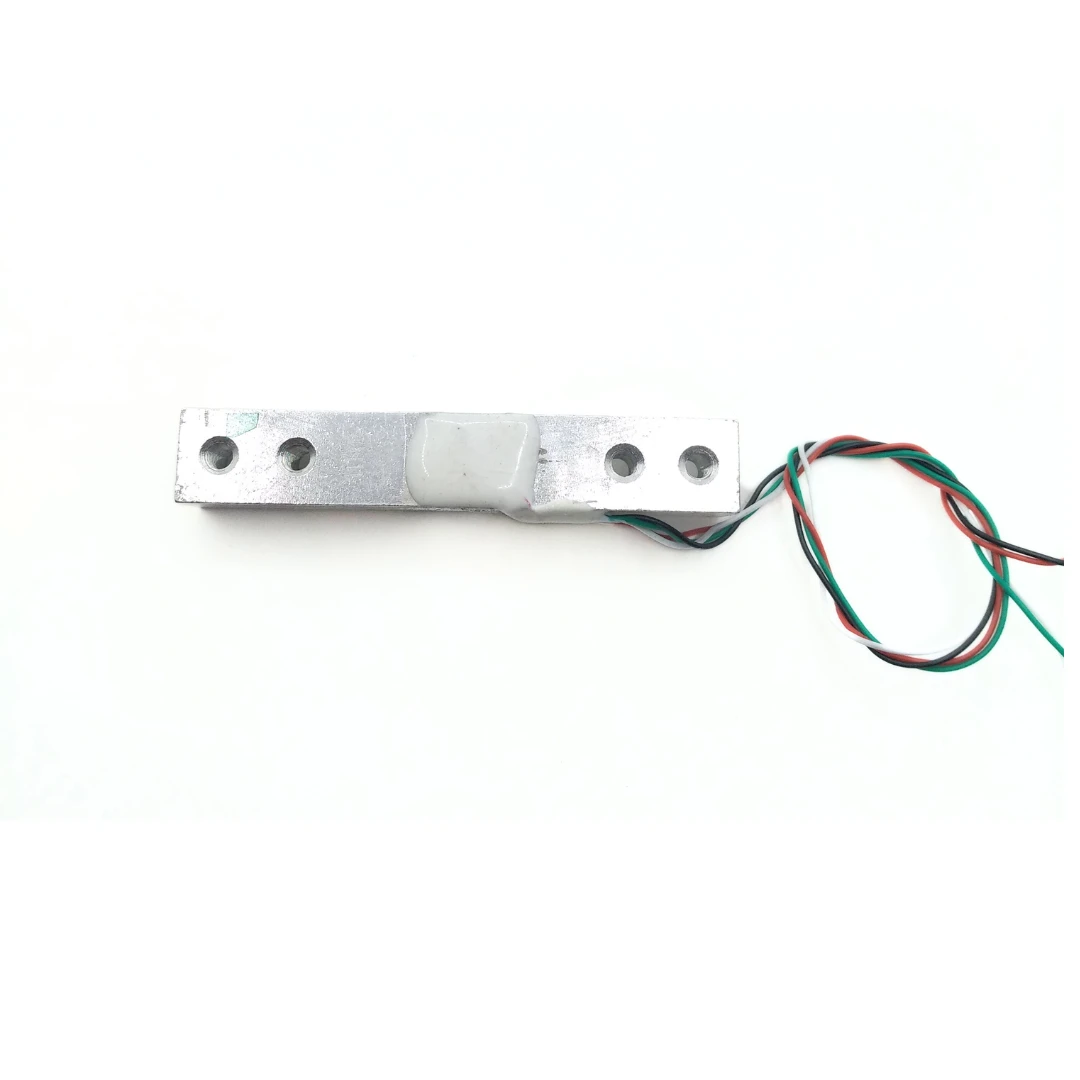

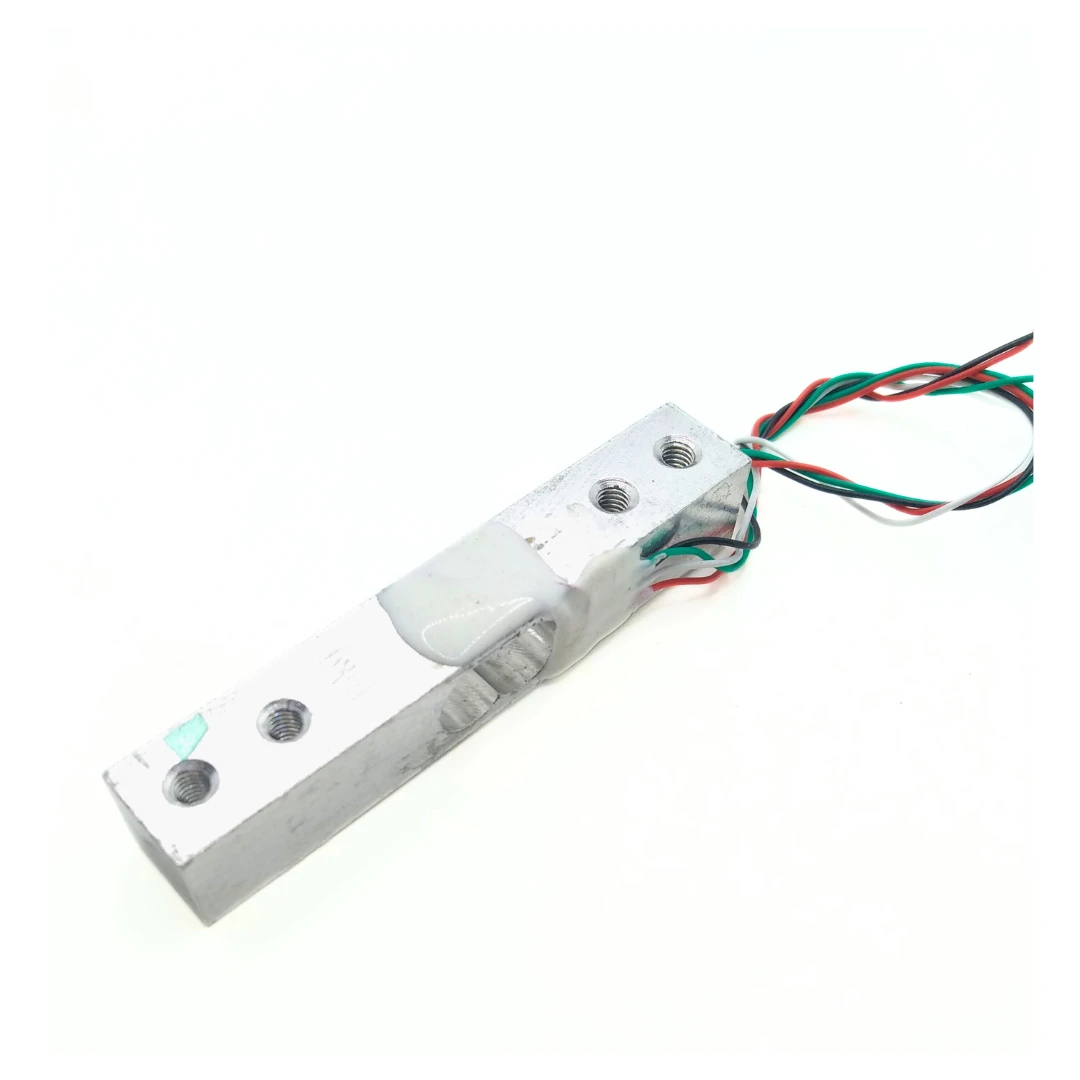

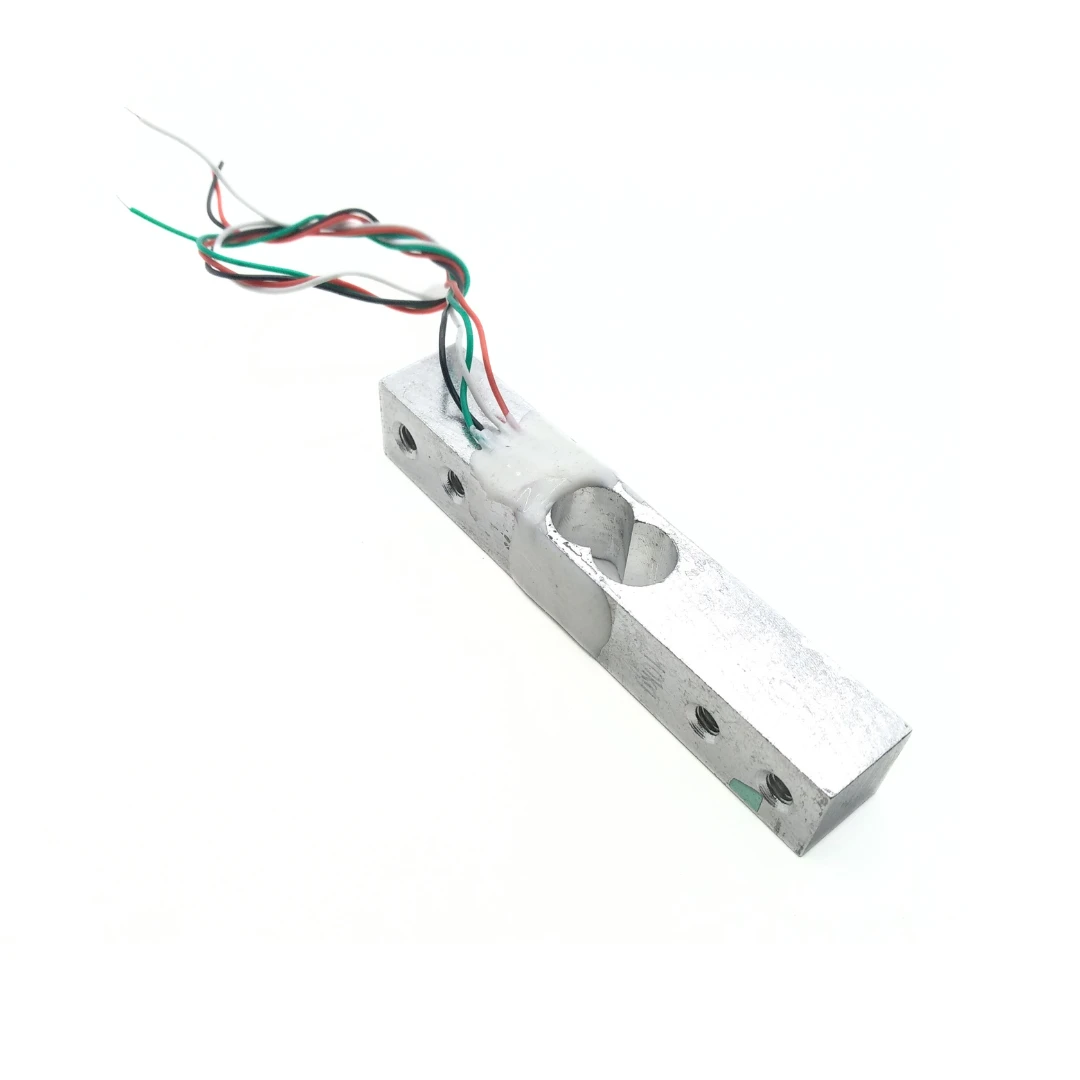

10kg Load Cell Electronic Weighing Scale Sensor

In Stock

SKU: 10KG_SNR_R2-D-2-1

10kg Load Cell Electronic Weighing Scale Sensor

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹96.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:

The 10kg Load Cell is a high-precision sensor designed for weight measurement up to 10 kg. It works by converting force or weight applied to it into an electrical signal, which can be read by a microcontroller with the help of an ADC or instrumentation amplifier. This load cell is commonly used in weighing systems, material testing, and other applications requiring accurate force measurements.

Features:

Accurate weight measurement with a combined error of <±0.030% RO
Aluminium construction ensures durability and reliability
Wide temperature tolerance from -35°C to +80°C for versatile applications
Output in millivolts, requiring an ADC or instrumentation amplifier to interface with microcontrollers
Ideal for use in industrial and automation systems for weight-based control

Product Specifications:

Capacity: 10kg
Rated Output (MV/V): 2.0 ± 0.15
Accuracy Class: C2
Combined Error (%RO): < ± 0.030
Creep (%RO/30min): 0.03
Temperature Effect on Sensitivity (%RO/°C): 0.0016
Temperature Effect on Zero (%RO/°C): 0.003
Zero Balance (%RO): 1.0
Input Resistance (Ω): 402 ± 6
Output Resistance (Ω): 350 ± 3
Insulation Resistance (MΩ<50V): 5000
Recommended Excitation Voltage (V): 10-15
Compensated Temperature Range (°C): -10°C ~ +40°C
Operating Temperature Range (°C): -35°C ~ +80°C
Safe Overload (%RO): 150
Ultimate Overload (%RO): 200
Load Cell Material: Aluminium
Connecting Cable: ø4.2x350mm
Method of Connecting Wire: Red (+), Black (-), Green (+), White (-)

Application:

Used in electronic weighing scales for accurate weight measurement (up to 10kg)
Ideal for force measurement in industrial machinery
Can be used in material testing applications requiring precise load detection
Commonly integrated into automated systems where weight-based control is needed

Disclaimer:
Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
