Description:

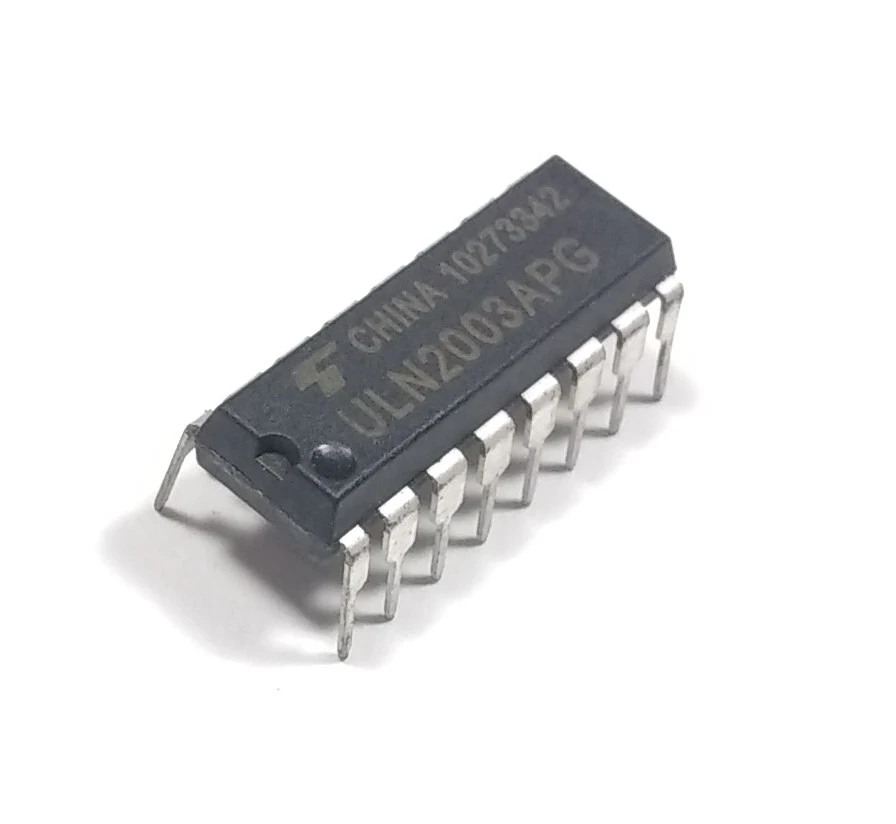

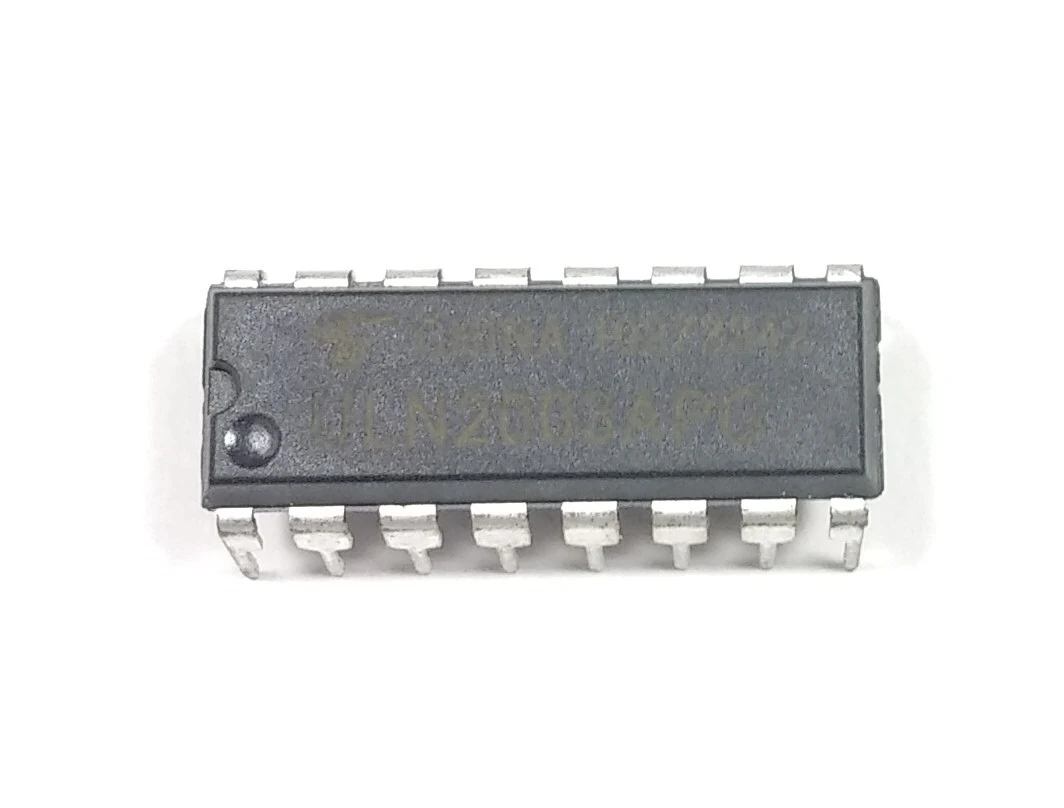

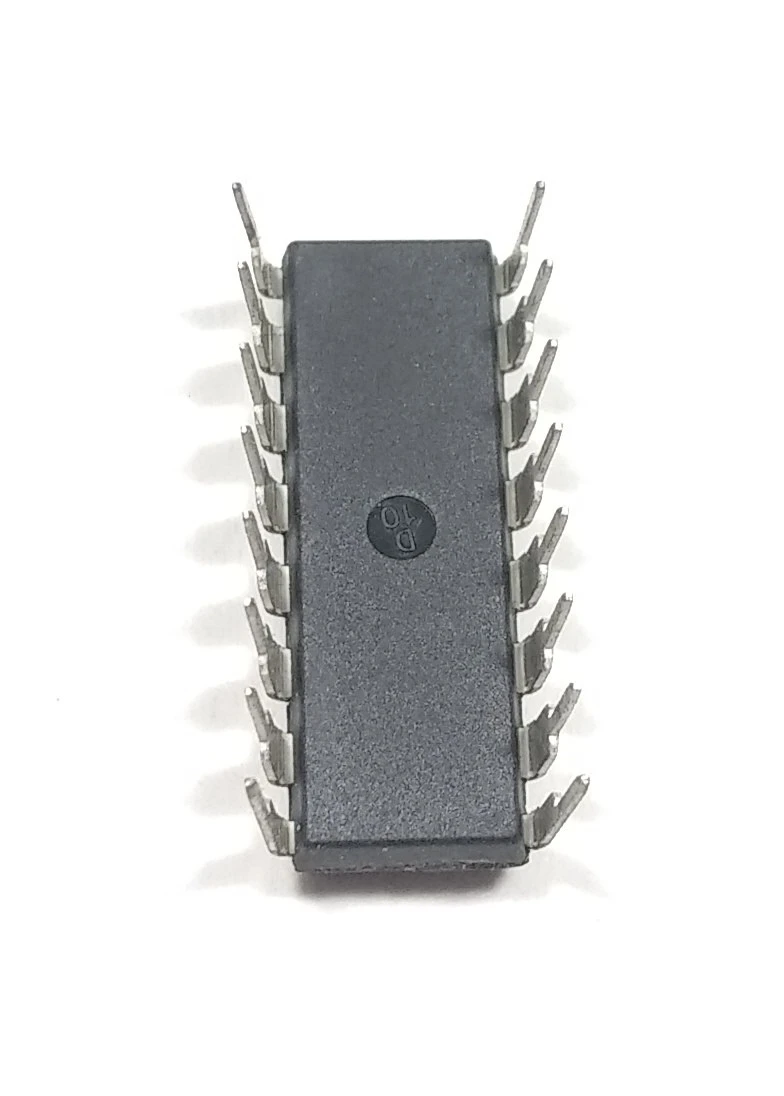

The ULN2003A is a high-voltage, high-current Darlington transistor array IC that consists of seven Darlington pairs with common-cathode clamping diodes. It is designed to drive high-power loads, such as relays, motors, and stepper motors, while providing electrical isolation between low and high-voltage circuits. The ULN2003A is widely used in applications that require high current handling and robust switching capabilities, making it an essential component in industrial automation, robotics, and power control systems.

This IC provides an easy-to-use solution for interfacing logic-level circuits with high-power devices, protecting microcontrollers and logic circuits from high-current loads.

Features:

• High-Voltage and High-Current Capability: Can handle up to 50V and 500mA per channel, making it ideal for controlling high-power devices.

• Seven Open-Collector Darlington Transistors: Provides seven independent channels, each capable of driving high-power loads such as relays, motors, and lamps.

• Built-in Flyback Diodes: Offers protection against voltage spikes when switching inductive loads.

• Wide Operating Voltage Range: Operates at a voltage range of 4.5V to 50V, supporting various power configurations.

• Thermal Shutdown and Overcurrent Protection: Built-in safety features to prevent damage under high-load conditions.

• Low Saturation Voltage: Ensures efficient switching with low voltage drop.

• Compact Package: Available in a 16-pin DIP or SOIC package for easy integration into a wide variety of systems.

Applications:

• Relay Drivers: Used for controlling relays in industrial and automation systems.

• Motor Drivers: Ideal for driving stepper motors, DC motors, and other high-power motors.

• Lamp and Light Controllers: Used to switch high-power lamps and lighting systems.

• Stepper Motor Controllers: A popular choice for interfacing with stepper motors in robotics and control systems.

• Power Switching Circuits: Acts as an interface between low-voltage logic circuits and high-power control systems.

• Industrial Automation Systems: Helps in controlling various high-power devices, such as solenoids and valves, in factory automation.

Package Includes:

• 1 x ULN2003A High-Voltage, High-Current Darlington Transistor Array IC.

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
