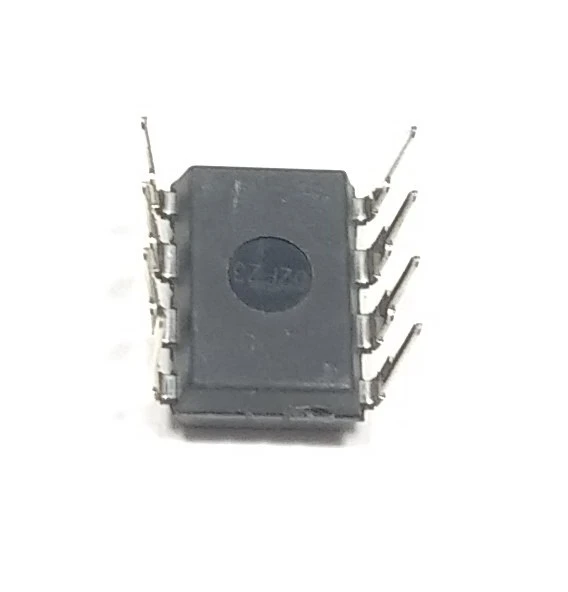

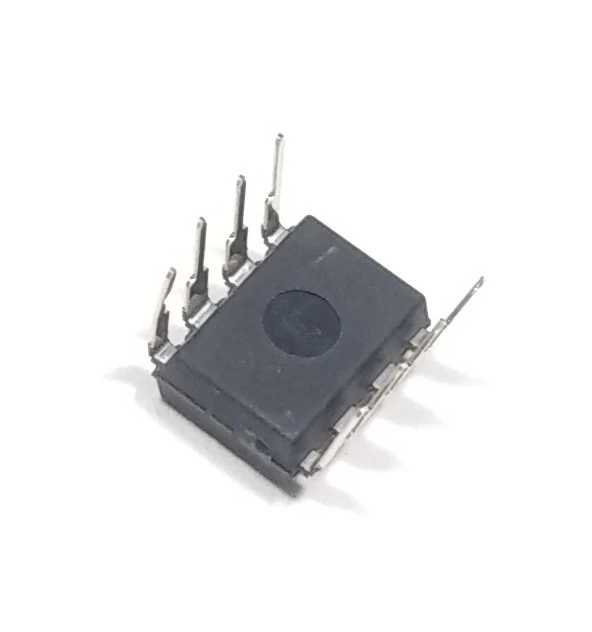

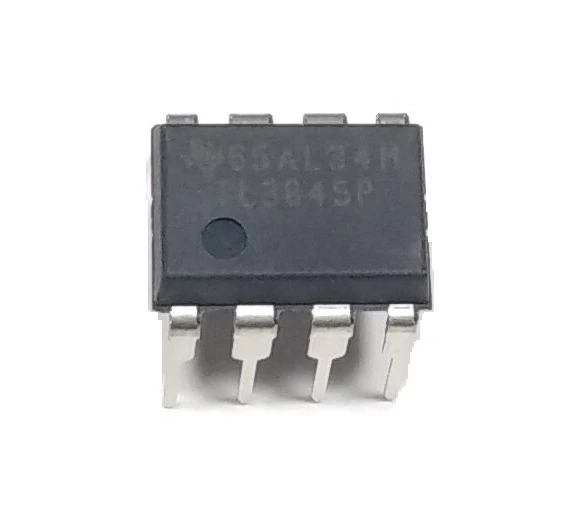

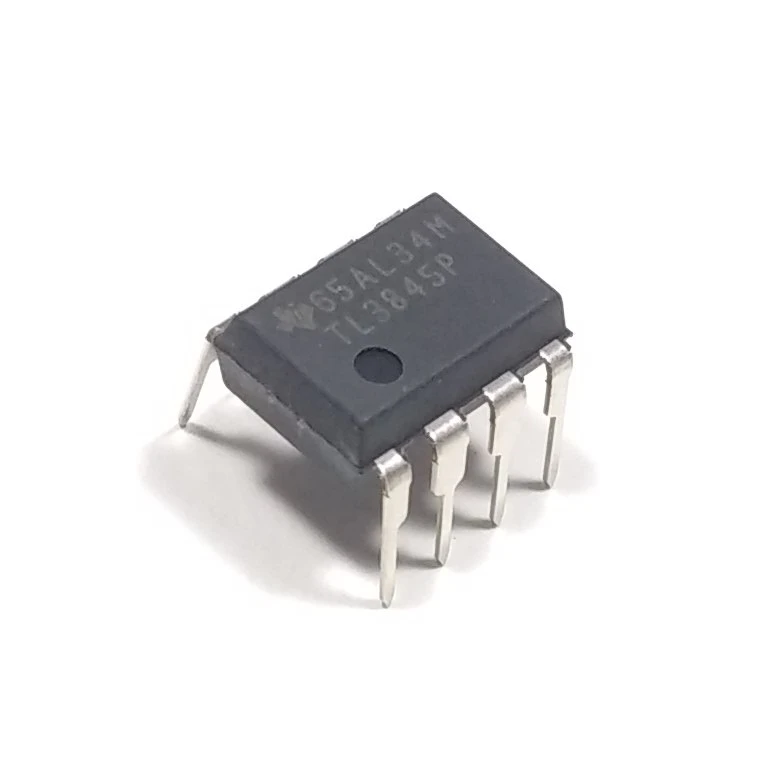

TL3845 Current-Mode PWM Controllers IC

In Stock

SKU: 164209

TL3845 Current-Mode PWM Controllers IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹61.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The TL3845 is a high-performance current-mode pulse-width modulation (PWM) controller IC, optimized for off-line and DC-DC converter applications. Designed for efficient switching power supplies, this IC combines a high-gain error amplifier, a precision voltage reference, and a current-sensing comparator for cycle-by-cycle current limiting.

With features like undervoltage lockout (UVLO), short-circuit protection, and a totem-pole output stage for driving power MOSFETs or BJTs, the TL3845 ensures robust and reliable power regulation. It offers fast transient response and supports high-frequency operation, making it suitable for compact and energy-efficient power supplies.

Features:

Current-mode control for improved load regulation and loop response
High-speed, low-power operation for efficient power conversion
Undervoltage lockout with hysteresis for reliable startup
Totem-pole output stage for direct drive of power transistors
Built-in short-circuit protection and thermal stability
Ideal for DC-DC converters and switch-mode power supplies

Applications:

Switch-mode power supplies (SMPS)
DC-DC converters
Battery-powered equipment
Industrial control power modules
Telecom and networking power systems

Package Includes:

1 x TL3845 Current-Mode PWM Controller IC

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
