The 24C32 is a 32Kbit (4K x 8) Serial I2C EEPROM (Electrically Erasable Programmable Read-Only Memory) IC. It offers a simple, low-cost solution for storing data in a variety of applications. The 24C32 operates with a supply voltage range of 2.5V to 5.5V, and features a serial I2C bus interface, making it easy to integrate into many microcontroller-based designs.
This EEPROM allows for both read and write operations, providing 32Kbits of non-volatile memory for storing configuration data, parameters, and other critical information. It supports fast data transfer and features byte-level addressing, which is ideal for small memory storage needs in embedded systems and electronic devices.

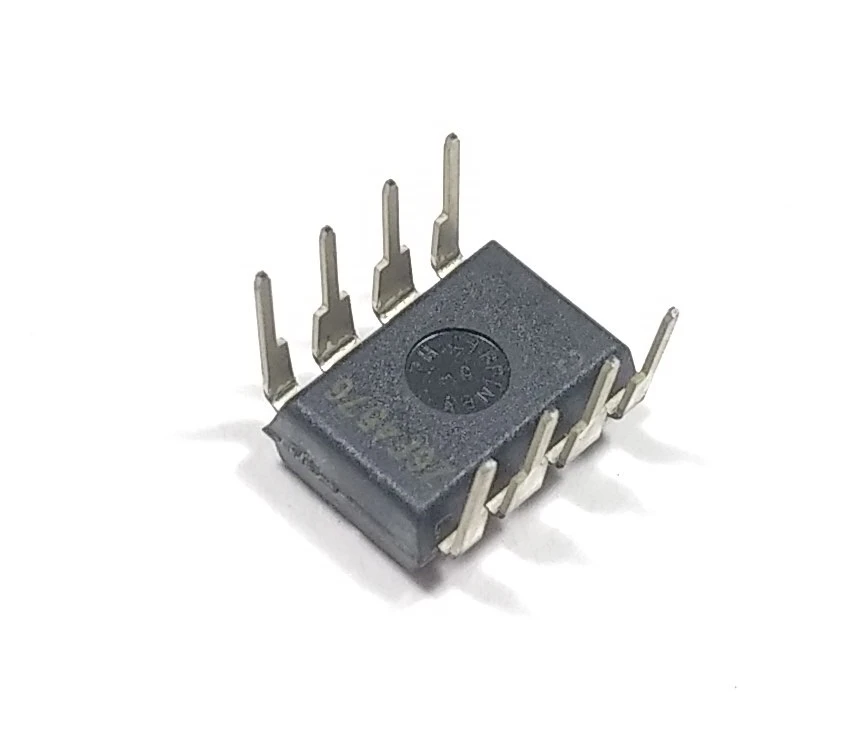

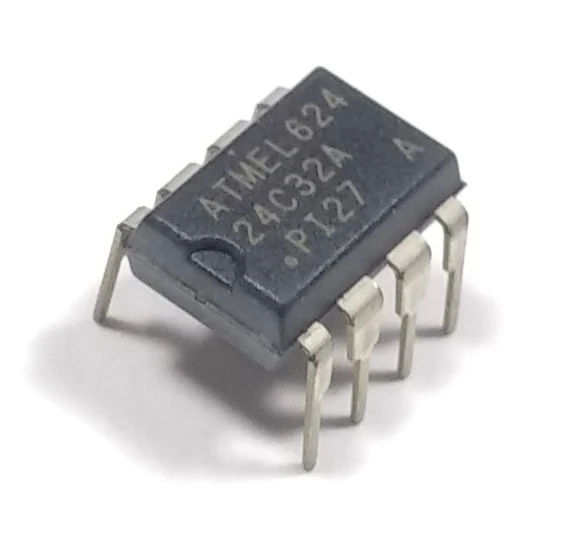

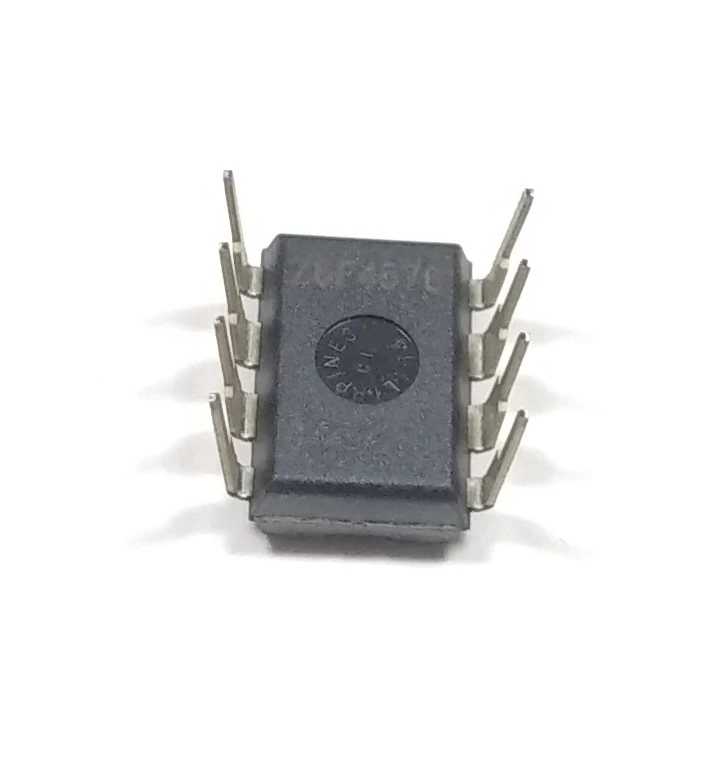

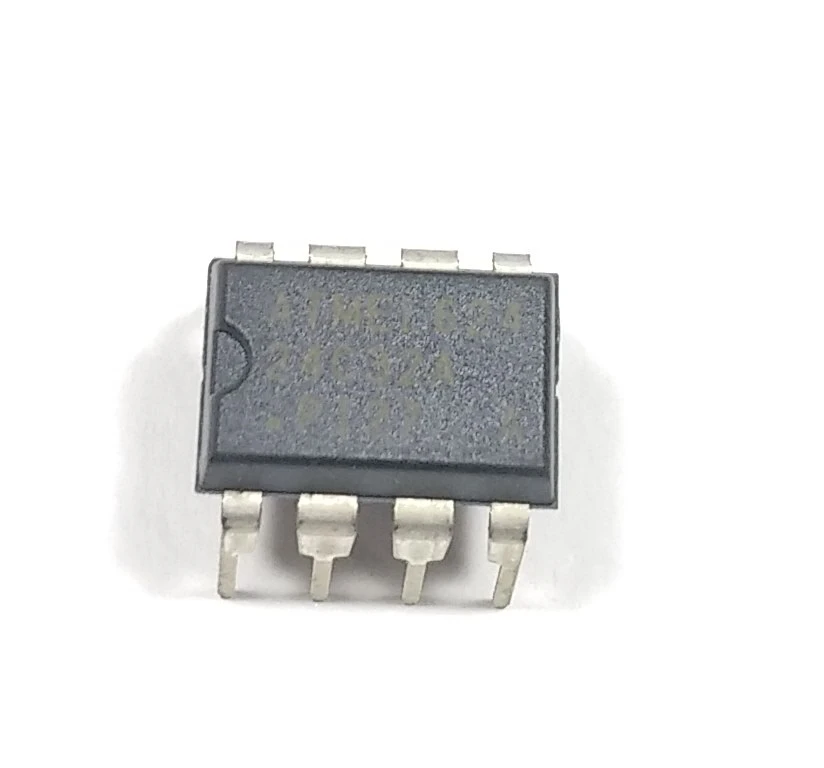

The 24C32 is available in a DIP-8 package, making it suitable for prototyping and easy integration into existing PCB designs.
Memory Size: 32Kbits (4K x 8)
Interface: I2C (Two-Wire Serial Interface)
Operating Voltage Range: 2.5V to 5.5V
Low Power Consumption: Ideal for battery-powered applications
Write Protect Pin: Ensures memory protection during write operations
Byte-level Addressing: Simplifies memory access
Write Cycle Time: 5ms typical write cycle time
Endurance: 1 million write cycles
Non-volatile: Retains data even when power is off
Available in DIP-8 Package: Easy integration into development boards and prototypes
Data Storage: Used for storing configuration data, calibration data, and system parameters in embedded systems.
Microcontroller Projects: Ideal for use with microcontrollers to store small amounts of data.
Consumer Electronics: Can be used in various consumer electronics for data retention.
Industrial Equipment: Suitable for industrial applications requiring non-volatile memory for settings or logs.
1 x 24C32 32Kbit Serial I2C EEPROM IC (DIP-8 Package).
Product specifications, features, and design may change over time due to product updates or improvements.
