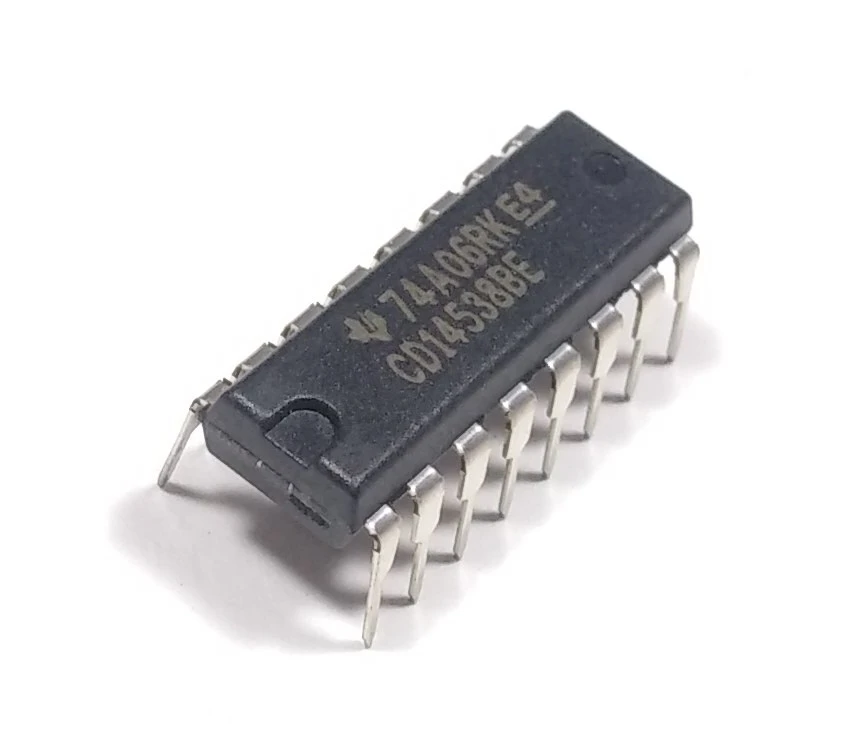

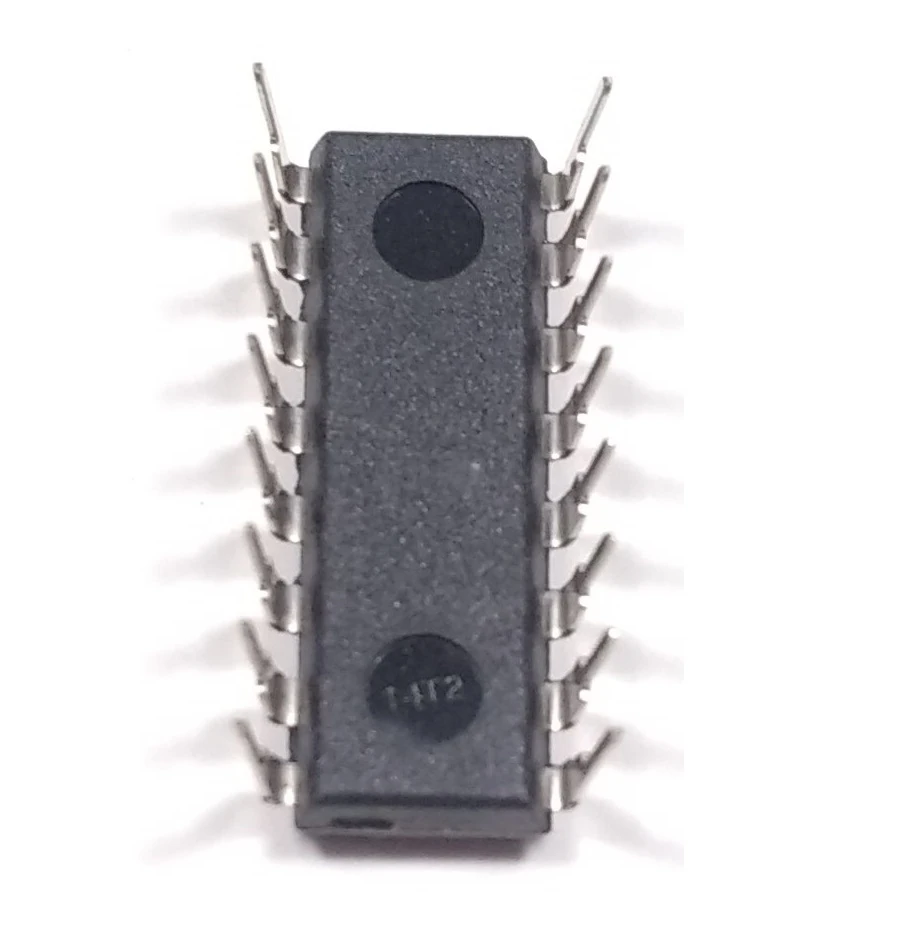

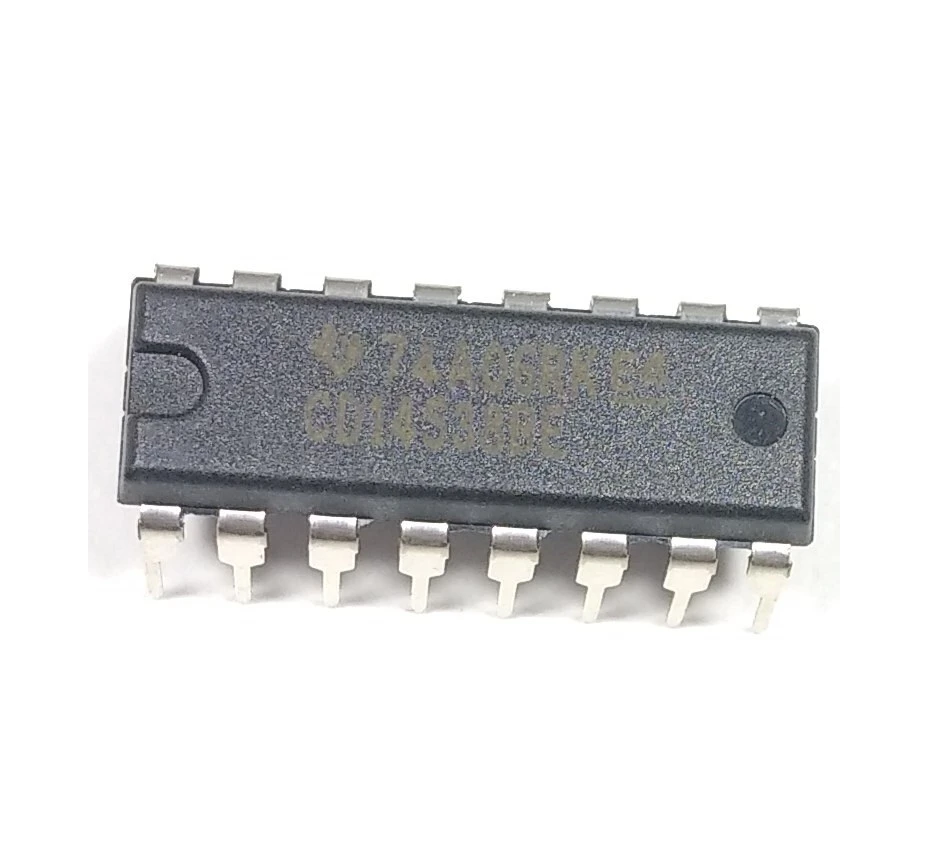

CD14538B IC CMOS Dual Precision Monostable Multivibrator IC

In Stock

SKU: R4-D-2-9

CD14538B IC CMOS Dual Precision Monostable Multivibrator IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹73.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The CD14538B is a CMOS dual precision monostable multivibrator IC, designed to generate precise time delays or pulse outputs based on an external trigger input. This IC contains two independent monostable multivibrator circuits in one package, each capable of producing a single output pulse of a specific duration in response to a trigger. The pulse width is determined by the external timing components, such as resistors and capacitors. This IC is ideal for pulse generation and timing applications in digital systems.

Due to its CMOS construction, the CD14538B offers low power consumption and high noise immunity, making it suitable for a wide range of precision timing and pulse generation tasks in consumer electronics, industrial, and automotive systems.

Features:

Dual Monostable Multivibrator: Two independent monostable circuits in a single package.
Precise Timing: The pulse width is controlled by external components, ensuring accurate and reliable timing.
Low Power Consumption: CMOS technology ensures minimal power drain.
High Noise Immunity: Resistant to electrical noise, ideal for sensitive systems.
Adjustable Pulse Duration: Pulse duration can be easily adjusted via external components.
Wide Supply Voltage Range: Can operate over a broad supply voltage range, typically 3V to 18V.
Compact Package: Available in an 8-pin DIP package, saving space in designs.

Applications:

Pulse generation for timing and control applications.
Timing circuits in consumer electronics, industrial control, and automotive systems.
Frequency synthesis and clock generation for digital systems.
Event counters or delay generation in systems requiring timed responses.
Tone generators and sound applications in audio systems.
