Description:

The L293 is a high-performance quadruple half-H drivers IC designed for controlling the direction and speed of motors, relays, or other inductive loads. With its ability to drive up to four motors or load channels simultaneously, the L293 is commonly used in robotics, motor control systems, and various automation applications. This IC is designed to be compatible with both TTL and CMOS logic systems, offering flexibility in various electronic projects.

The L293 provides an efficient way to control the flow of current to motors with precise direction control and speed modulation, making it an essential component in many DC motor control systems.

Features:

• Quadruple Half-H Drivers: Capable of controlling four independent loads simultaneously, making it ideal for applications involving multiple motors.

• Output Current Handling: Can handle up to 600mA continuous output current per channel, with peak currents up to 1.2A.

• Dual H-Bridge Configuration: Allows for bidirectional control of DC motors or other inductive loads, enabling forward, reverse, and stop motions.

• Thermal Shutdown Protection: Includes built-in thermal shutdown and overload protection features to ensure safe and reliable operation.

• Overcurrent Protection: Provides output current limiting to protect both the IC and the connected motors from excessive current.

• High Voltage Range: Supports a wide voltage range of 4.5V to 36V, making it suitable for driving motors of varying specifications.

• TTL and CMOS Logic Compatible: Can be interfaced with both TTL and CMOS logic devices, providing versatility in design.

• Integrated Diodes for Back EMF Protection: Includes flyback diodes to protect the IC from voltage spikes generated when switching inductive loads.

Applications:

• Motor Control Systems: Used in robotics, automated systems, and any application requiring DC motor control with direction and speed adjustment.

• Robotics: For driving wheels or actuators in robotic projects.

• Automation Systems: Useful for controlling actuators or other mechanical systems that require precise motion control.

• Hobby Projects: Ideal for DIY electronics and motorized systems that require basic control over motor functions.

• Wheelchair Motors, Car Systems, and More: Suitable for various devices that require motor control functionality.

Package Includes:

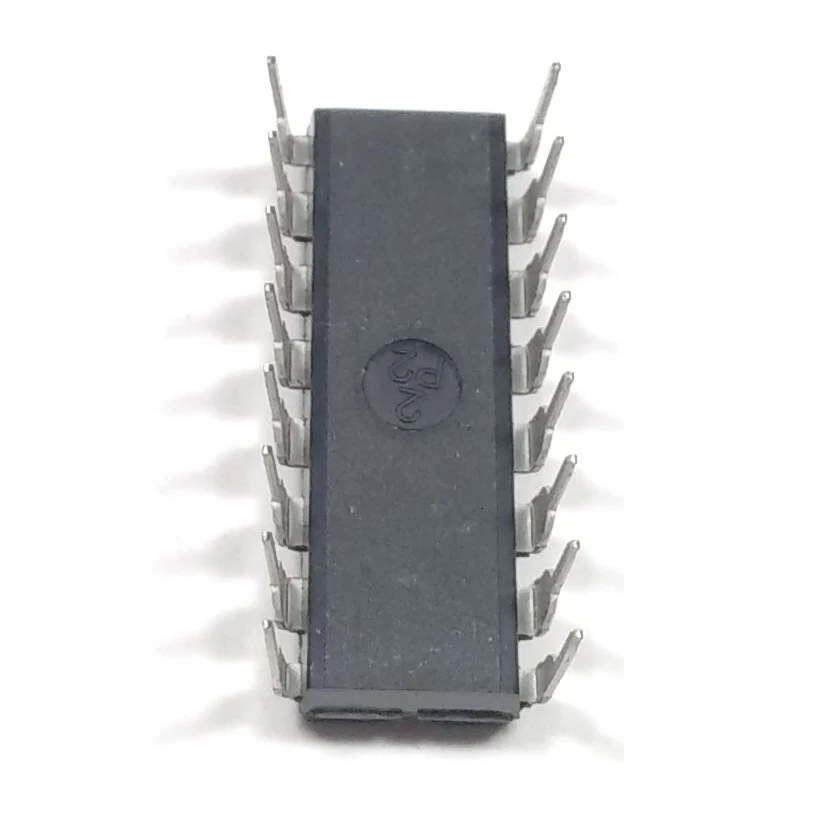

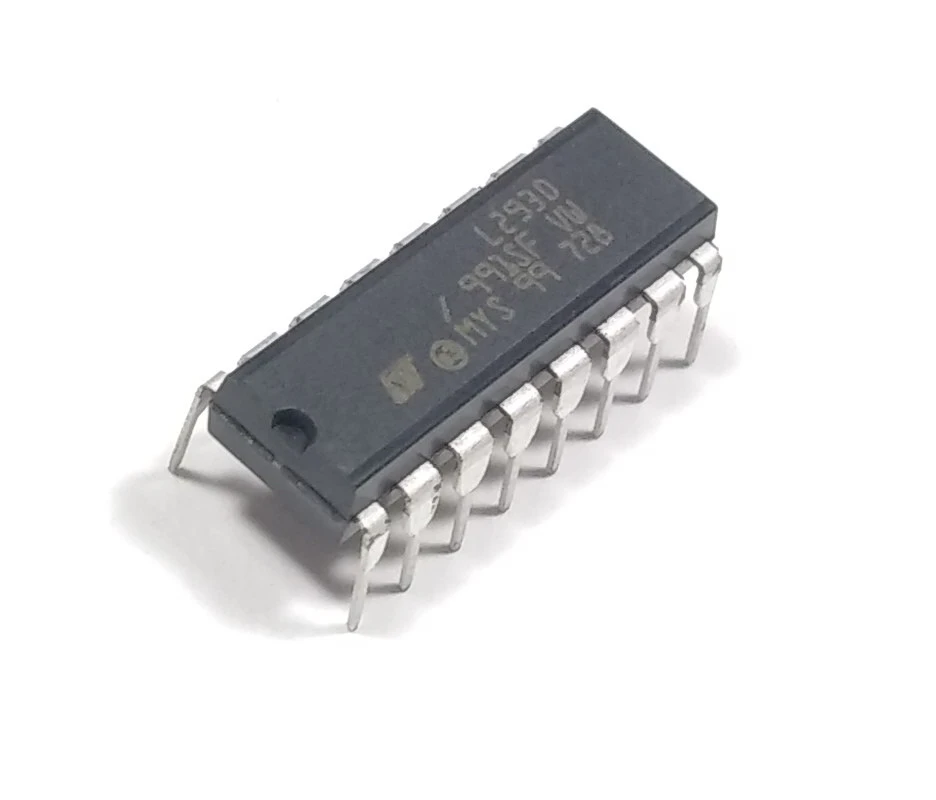

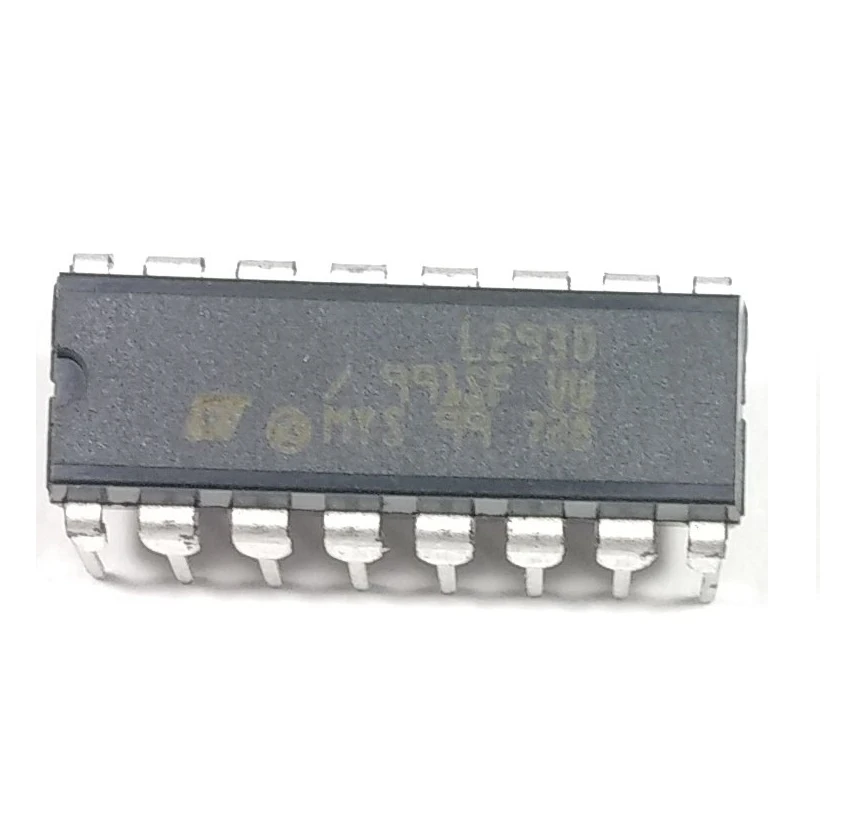

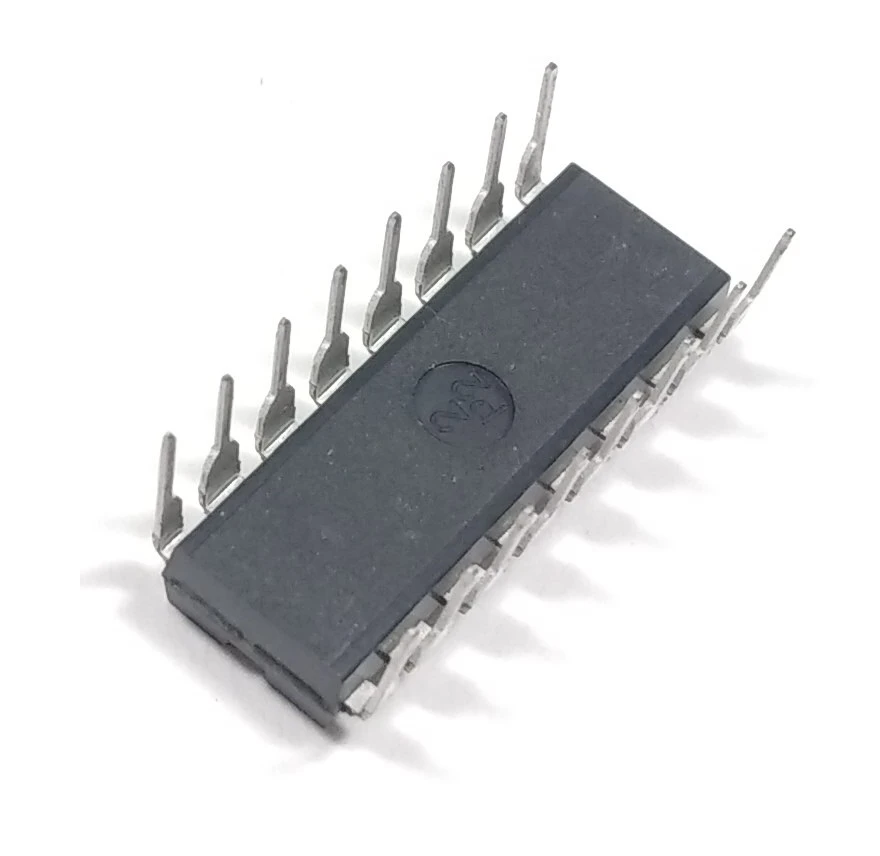

• 1 x L293 Quadruple Half-H Drivers IC.

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
