Description:

The MOC3063 is a triac driver optocoupler designed to provide electrical isolation between control and power circuits in a variety of applications. It is an ideal component for triggering triacs in applications such as light dimmers, motor controls, and other AC switching circuits. The MOC3063 features a high-speed optocoupler with a built-in zero-crossing detector, which helps improve the switching performance by ensuring that the triac is triggered at the point where the AC voltage crosses zero, minimizing the generation of noise and reducing wear on the components.

The IC operates efficiently in controlling AC loads while isolating sensitive circuits from high-voltage transients and surges, making it a popular choice in industrial and consumer electronics.

Features:

• Optical Isolation: Provides electrical isolation between the input and output, protecting sensitive circuits from high-voltage spikes.

• Zero-Crossing Detection: Ensures triggering occurs at the point where the AC voltage is zero, reducing switching noise.

• High-Speed Switching: Capable of fast response times for precise control in AC applications.

• Suitable for AC Switching: Perfect for controlling AC loads, such as light dimmers, fans, and motor controllers.

• Triac Driver: Directly drives triacs, enabling the control of high-voltage AC loads with low-voltage DC signals.

• High Isolation Voltage: Designed to withstand high isolation voltages, ensuring safe operation in electrical environments.

• Compact Package: Available in a small package, making it suitable for space-constrained designs.

Applications:

• AC Motor Control: Used in speed and direction control of AC motors.

• Light Dimming: Ideal for applications such as dimmer switches for lighting control.

• Power Electronics: Used in controlling high-power electronic devices through low-voltage control signals.

• Home Appliances: Provides isolation and control for AC-powered devices.

• Industrial Automation: Enables safe, precise control of AC loads in industrial automation systems.

Package Includes:

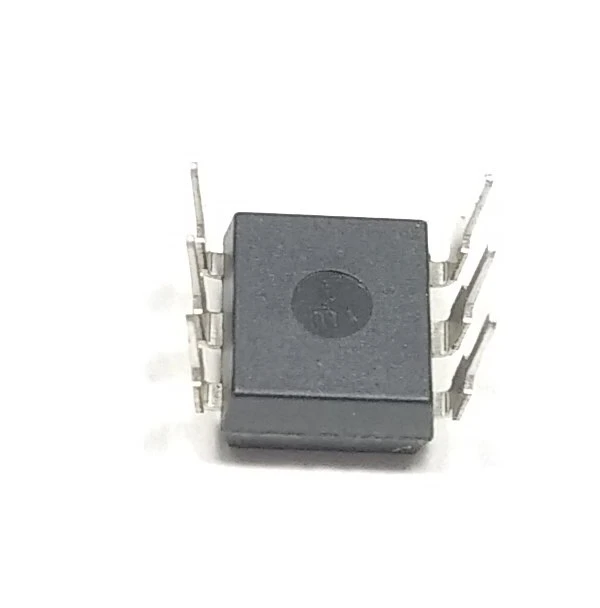

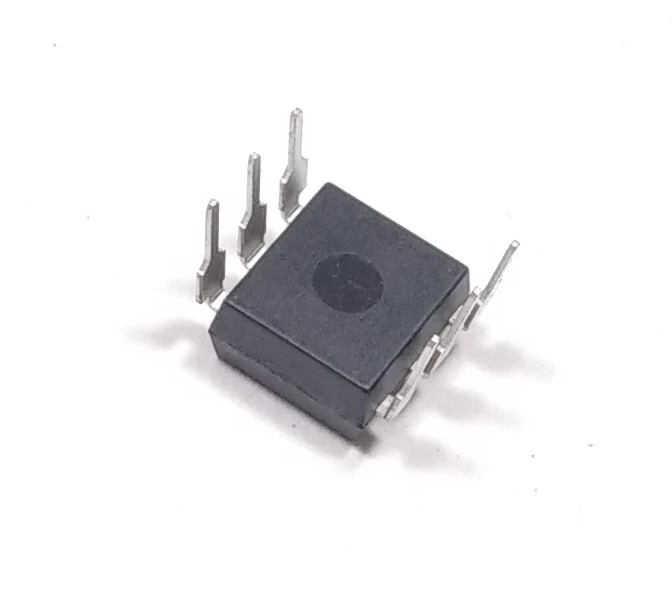

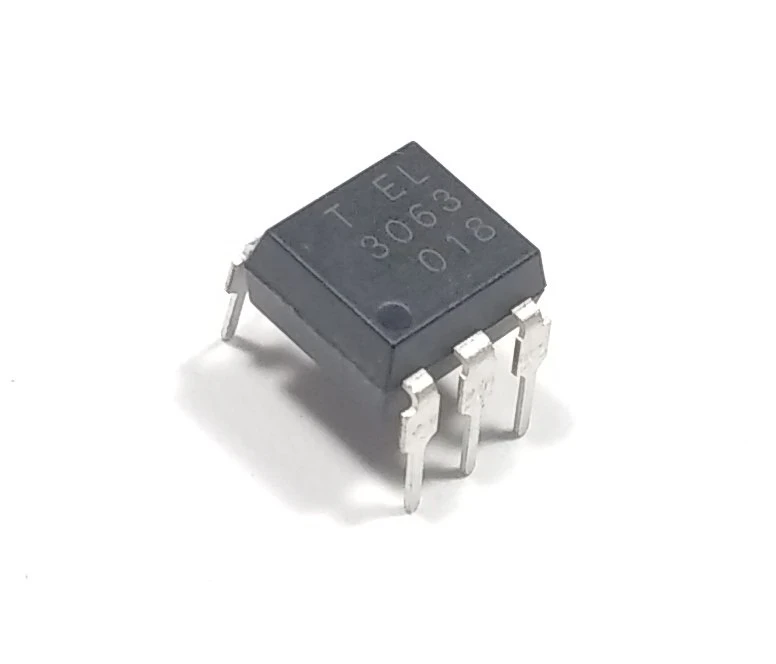

• 1 x MOC3063 Optocoupler IC (DIP-6 Package)

Disclaimer:

Product specifications, features, and design may change over time due to product updates or improvements.
