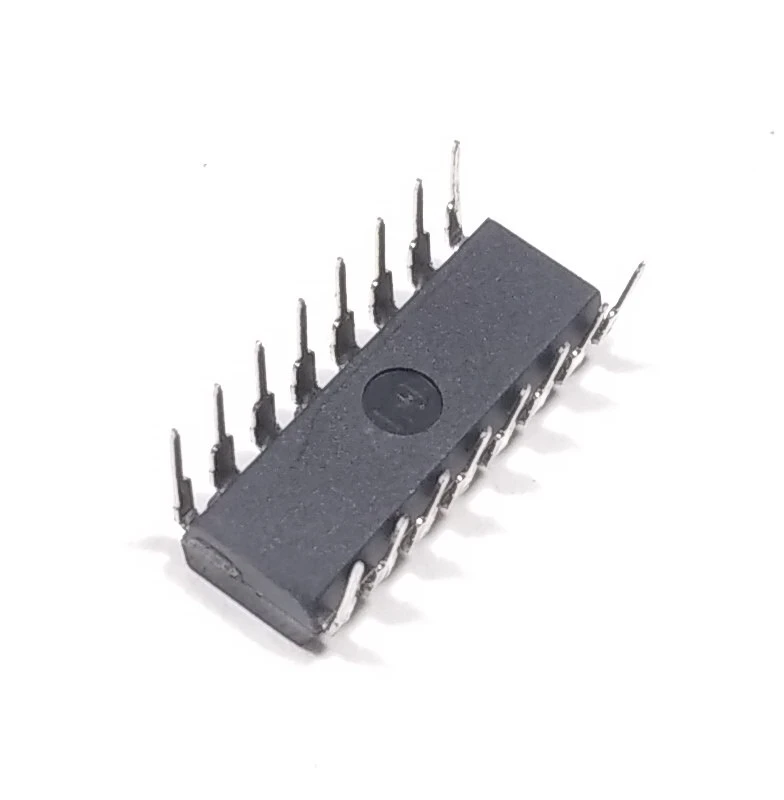

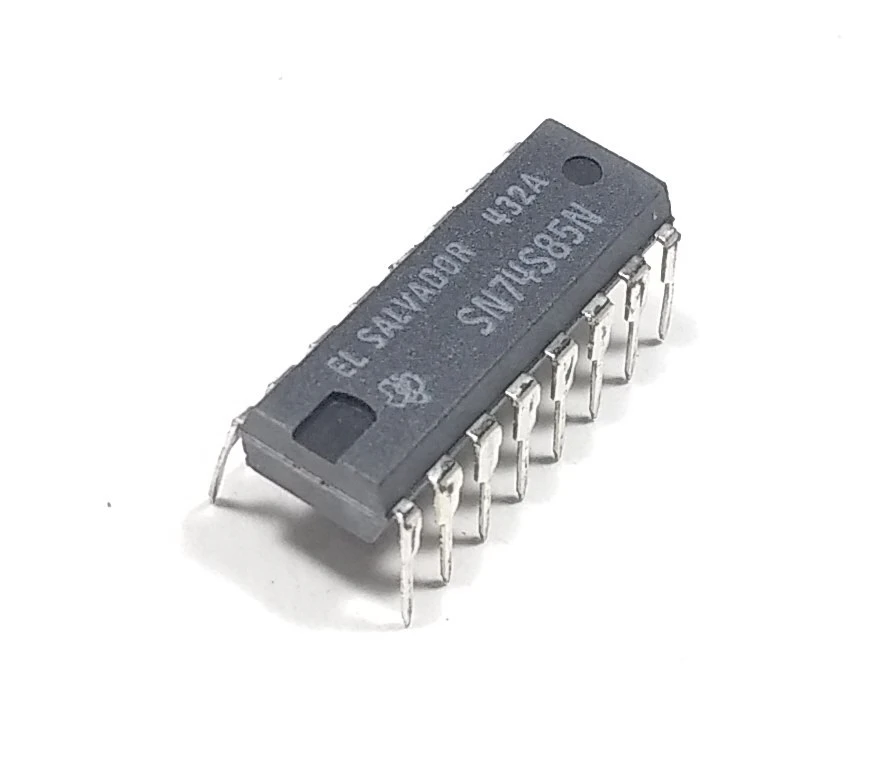

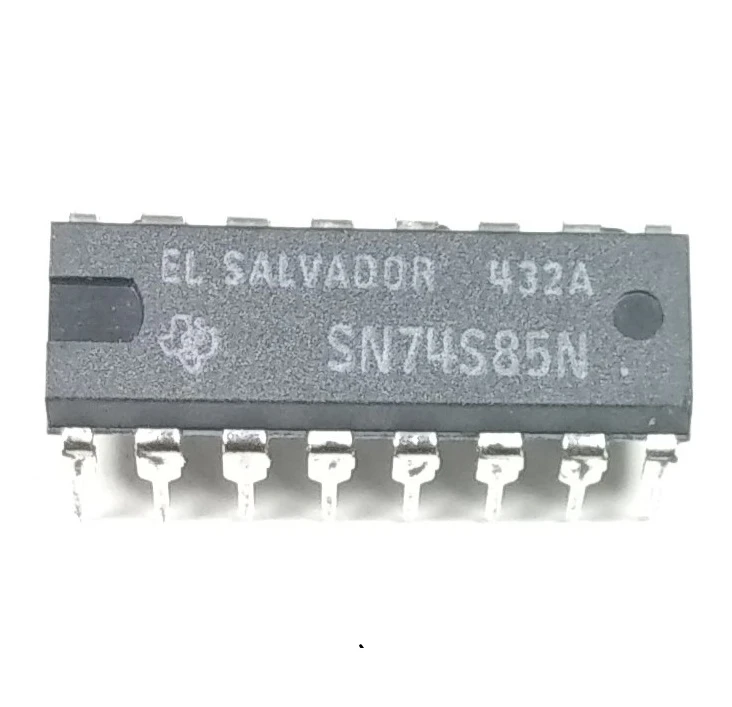

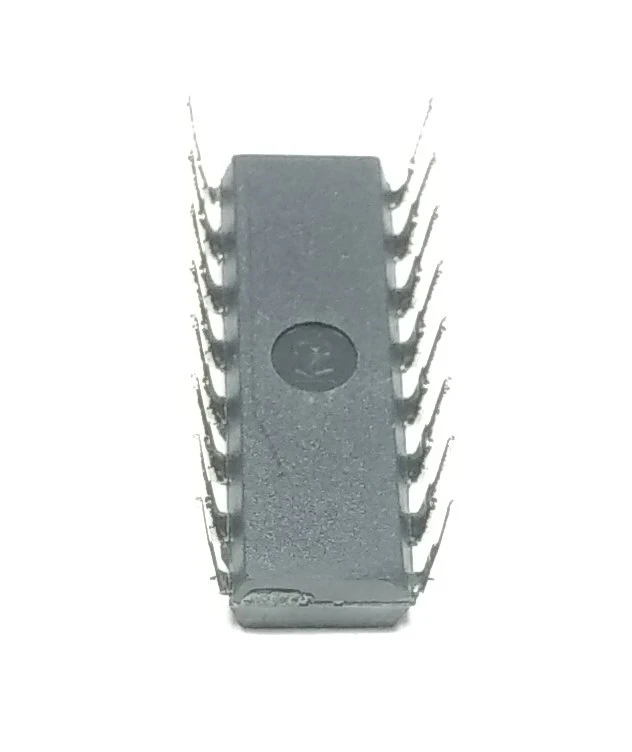

The 7485 is a 4-bit magnitude comparator IC designed to compare two 4-bit binary numbers. It is capable of performing equality, greater-than, and less-than comparisons between the two inputs, providing output signals for each condition. This IC is commonly used in digital systems where comparing binary values is necessary, such as in sorting circuits, digital counters, and various control systems.
The 7485 IC offers a simple interface, providing easy-to-read outputs for A > B, A = B, and A < B, with logic levels that can be easily interpreted by other digital components. This makes it highly suitable for use in applications where quick and accurate comparison of binary values is needed.
4-Bit Magnitude Comparator: Compares two 4-bit binary numbers (A and B)
Equality and Inequality Detection: Provides outputs for A = B, A > B, and A < B
TTL-Compatible: Easily integrates with TTL logic families
Low Power Consumption: Designed for efficient power usage in digital systems
Fast Response Time: Provides quick output changes for high-speed applications
Standard Logic Outputs: Logic level outputs for easy interpretation and use in other digital circuits
Digital sorting circuits
Comparison logic in microcontrollers and processors
Arithmetic and logic unit (ALU) operations
Digital counters and sequence detectors
Control systems requiring magnitude comparisons
1 x 7485 4-Bit Magnitude Comparator IC
Product specifications, features, and design may change over time due to product updates or improvements.
