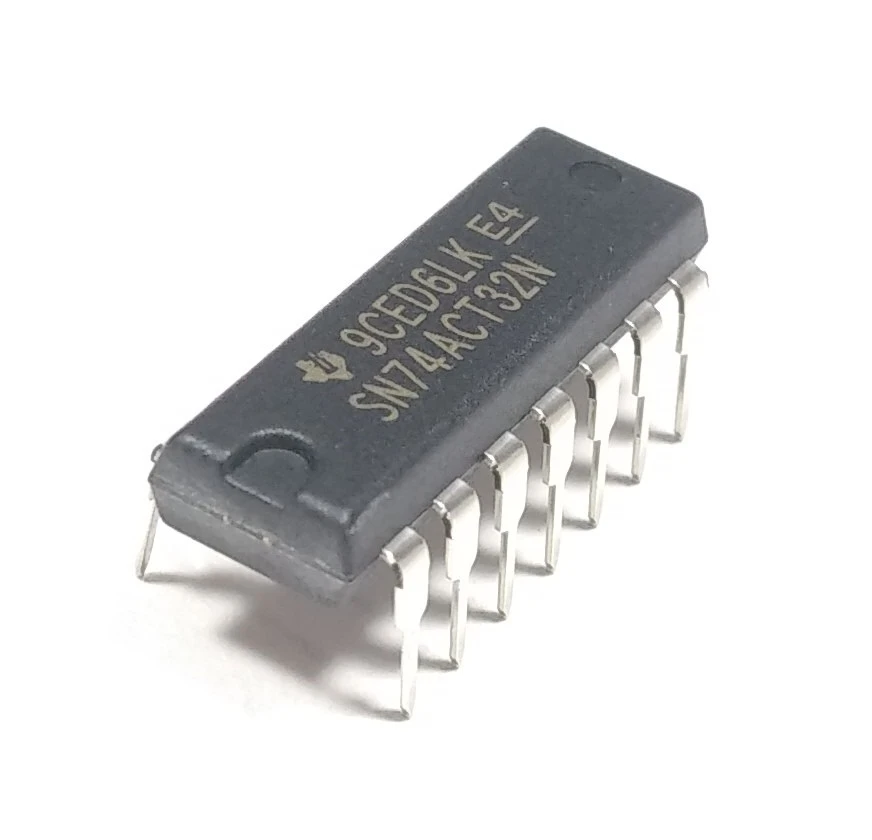

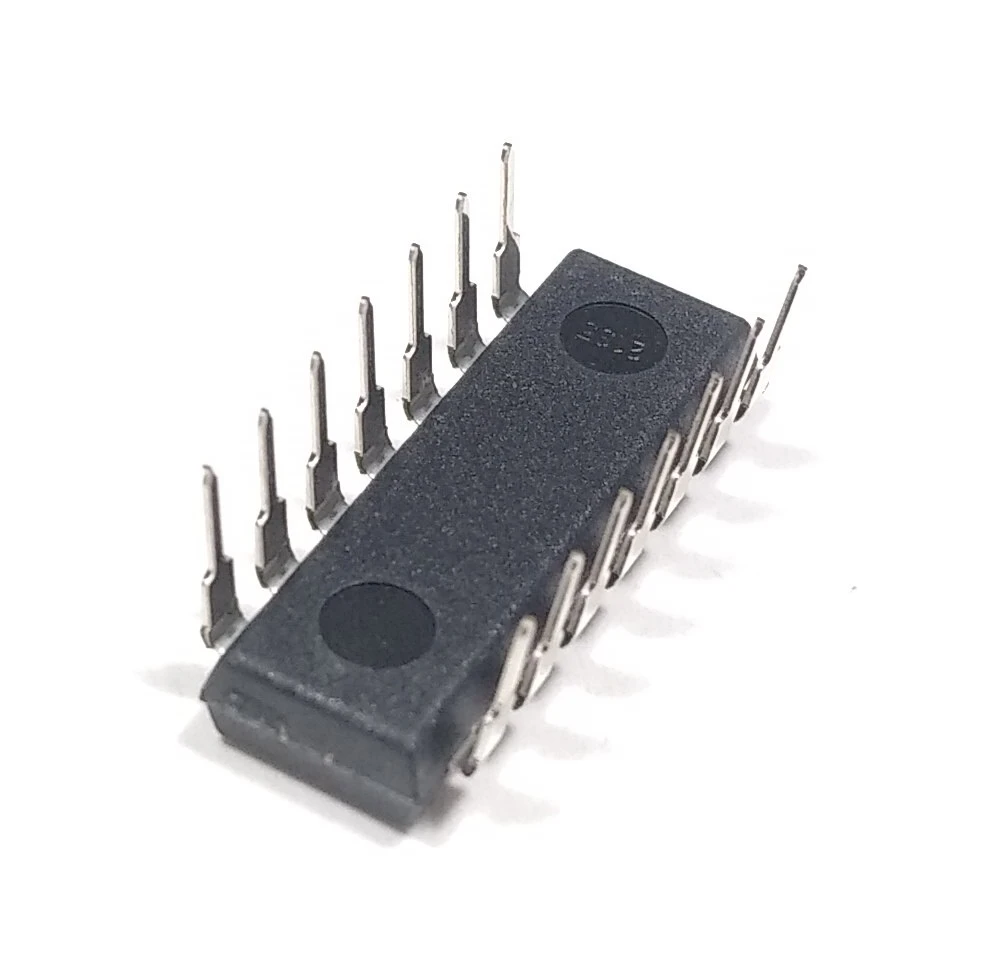

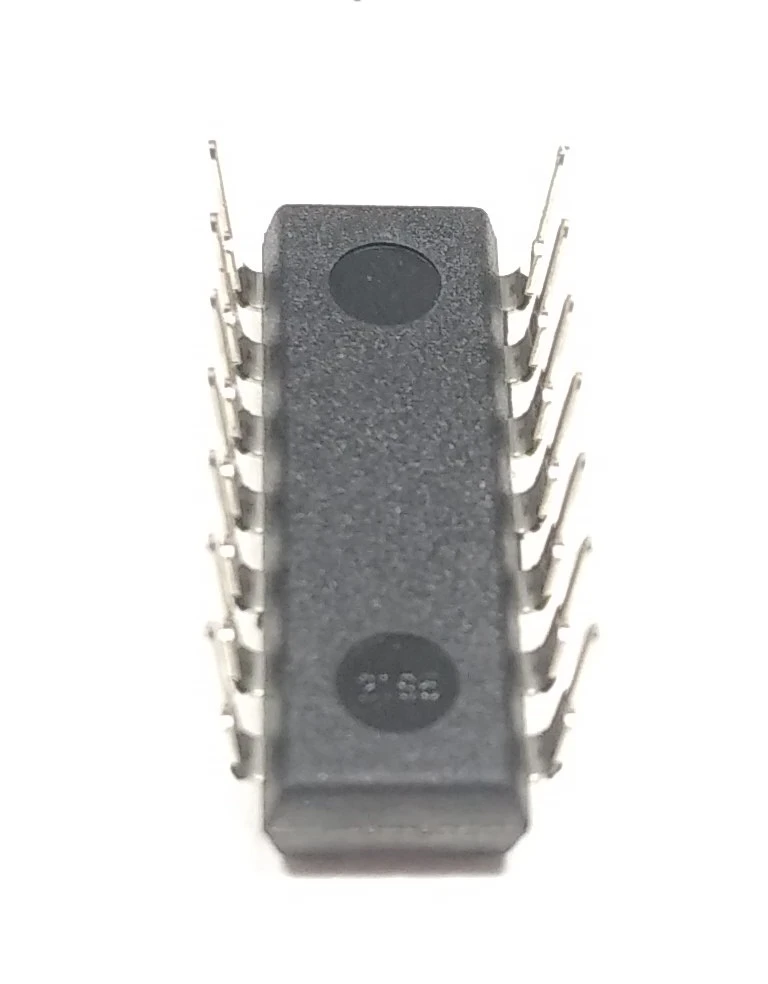

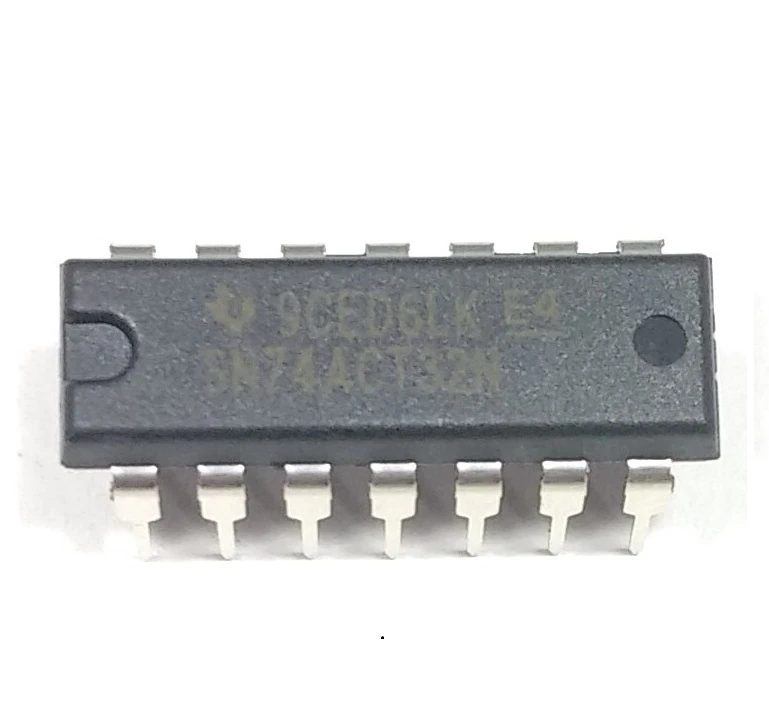

7432 Quad 2-Input OR Gate IC

In Stock

SKU: R4-D-6-2

7432 Quad 2-Input OR Gate IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹49.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The 7432 is a Quad 2-input OR Gate IC, which contains four independent OR gates, each with two inputs. The IC is designed to perform a logical OR operation on two input signals, producing a high (logic 1) output when at least one of the inputs is high. This IC is a part of the 7400 series of TTL logic gates and is widely used in digital circuits for signal processing, logic operations, and condition checking.

The 7432 provides TTL-compatible logic and is ideal for use in applications requiring multiple OR gates in a compact package. It is also known for its fast switching times and low power consumption, making it a reliable component in both simple and complex digital systems.

Features:

Quad 2-Input OR Gates: Contains four independent OR gates with two inputs each.
TTL-Compatible Logic: Suitable for use with standard TTL logic levels.
Fast Switching: Provides fast response times for high-speed applications.
Low Power Consumption: Efficient for energy-conscious designs.
Wide Voltage Range: Operates within standard TTL voltage levels.

Applications:

Logic Operations: Used in digital circuits where logical OR operations are needed.
Signal Processing: Can be used in applications that require multiple input conditions to trigger specific output signals.
Control Systems: Helps in controlling outputs based on different input combinations.
Multiplexing: Useful in multiplexing applications where multiple input signals are combined.
