The 74LS194 is a 4-bit bi-directional shift register IC designed for efficient data storage and manipulation. This versatile IC allows data to be shifted in both directions—left or right—depending on the control inputs. It supports serial-in, serial-out (SISO) and parallel-in, parallel-out (PIPO) operations, making it highly adaptable for various data transfer and manipulation needs in digital systems.
The 74LS194 operates with a wide voltage range of 4.75V to 5.25V, ensuring compatibility with TTL logic. It is designed for high-speed performance and low power consumption, making it suitable for energy-efficient digital systems.
4-bit bi-directional shift register: Shifts data in both left and right directions
Serial-In, Serial-Out (SISO) and Parallel-In, Parallel-Out (PIPO) operation for versatile data entry and retrieval
Wide operating voltage range: 4.75V to 5.25V, compatible with TTL logic
High-speed performance for fast data shifting
Low power consumption: Ideal for energy-efficient digital systems
Data storage and manipulation in digital systems
Data transfer between serial and parallel formats
Signal processing and manipulation in logic circuits
High-speed data shifting in communication systems

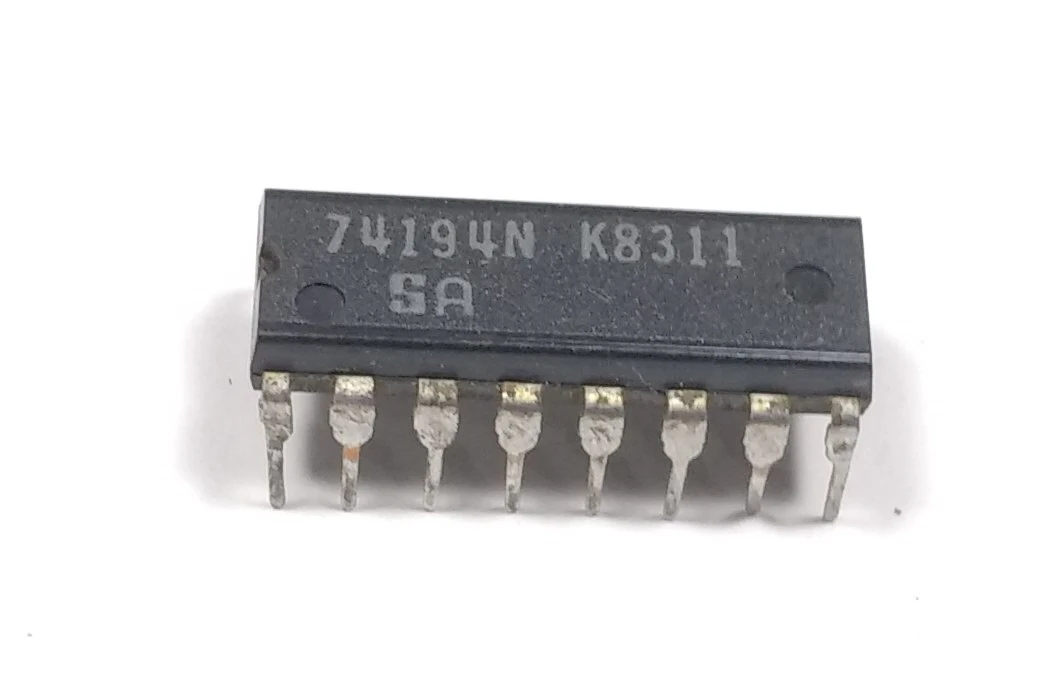

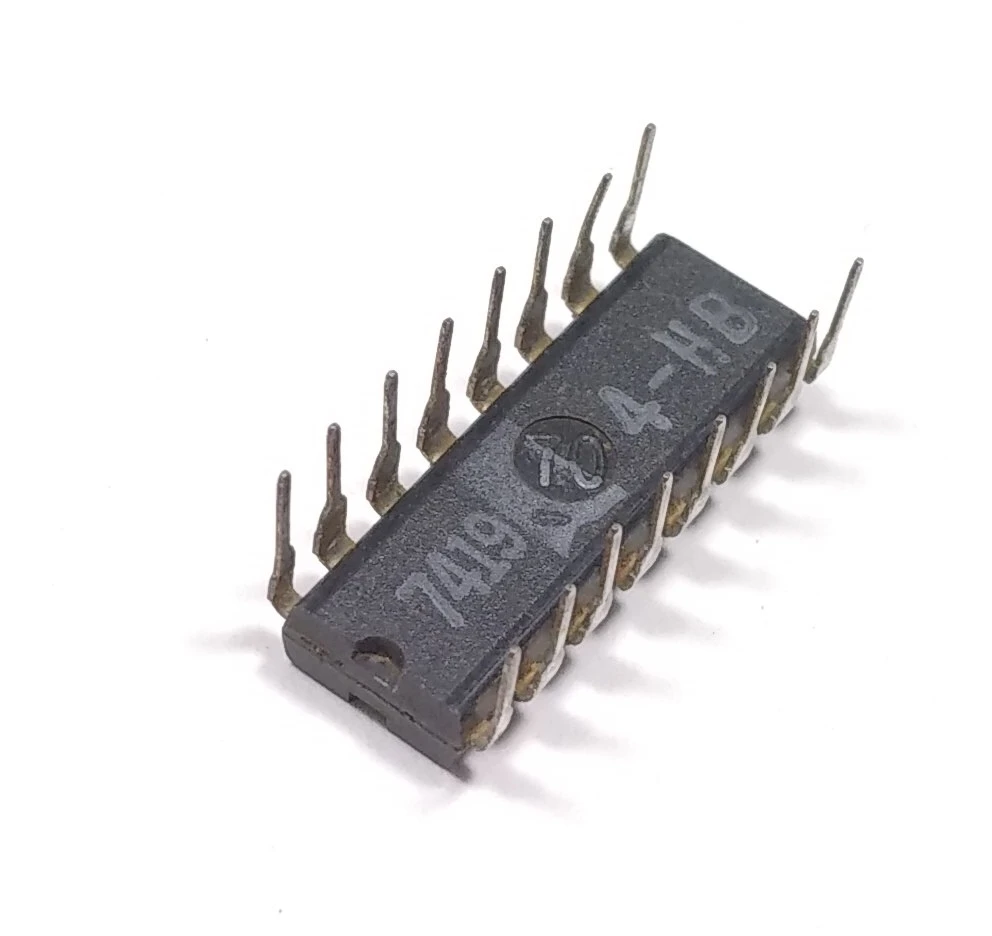

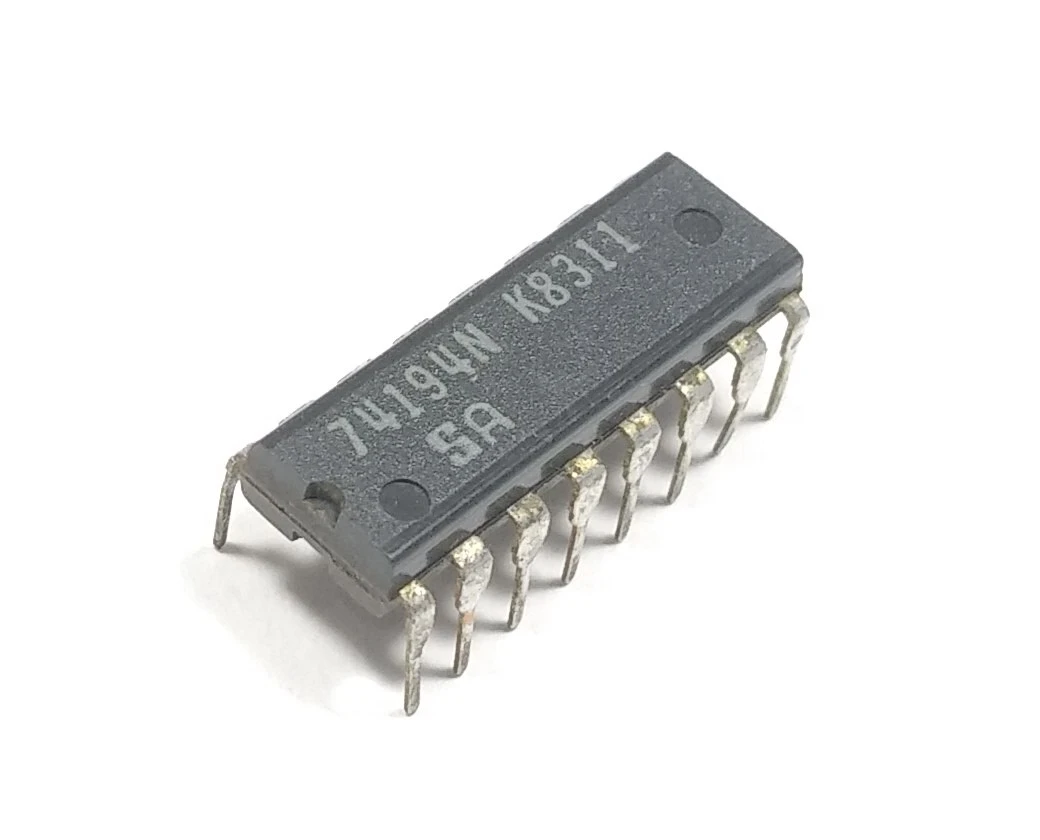

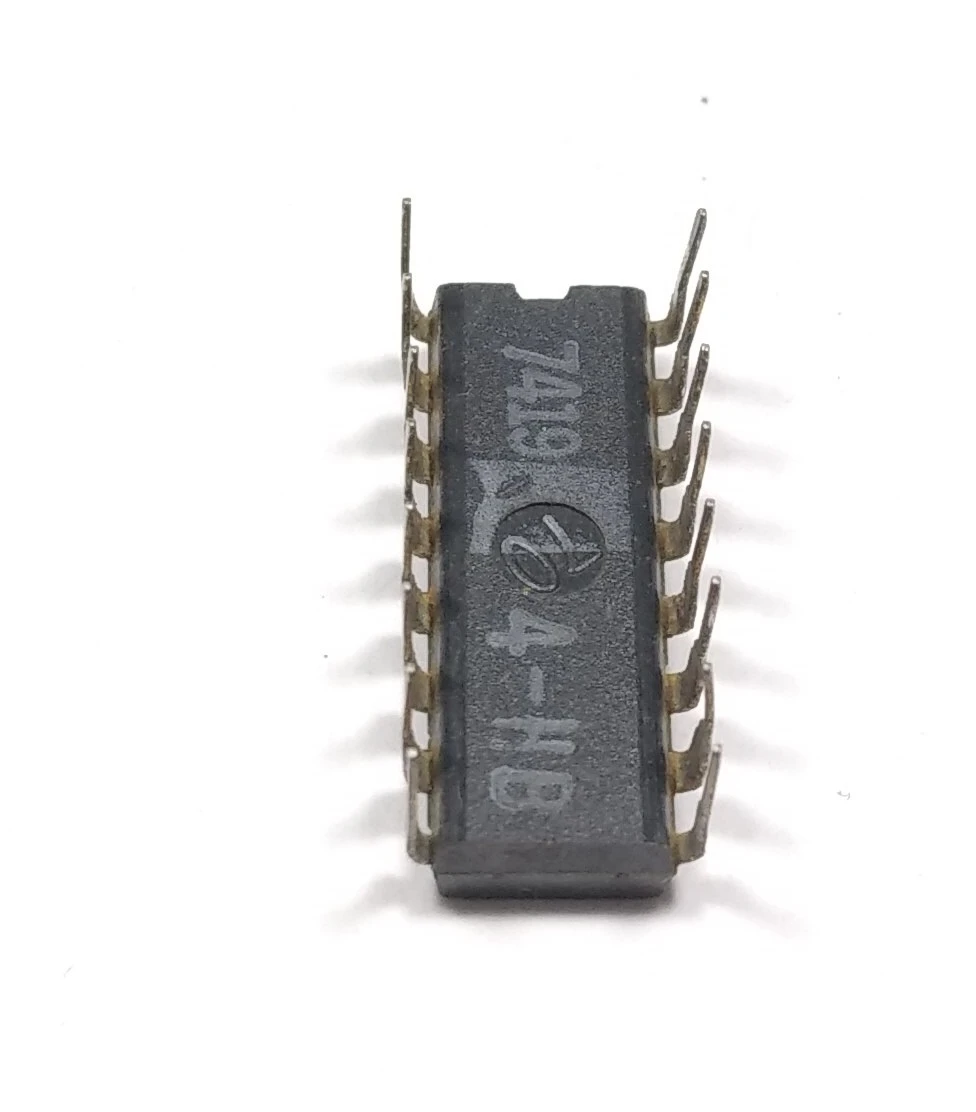

1 x 74LS194 4-bit Bi-directional Shift Register IC (DIP-16 Package)
Product specifications, features, and design may change over time due to product updates or improvements.
