The 74192 is a synchronous up/down decade counter IC, designed to count in decimal (0 to 9) both in the up and down directions. It operates synchronously, meaning all its internal flip-flops are clocked simultaneously. This provides fast and reliable counting for a wide range of digital applications.
This IC features parallel inputs for setting the counter to a specific value and carry output for cascading multiple counters for larger counting ranges. It is ideal for applications that require counting in a controlled, synchronous manner, such as in frequency division, digital clocks, and event counting.
Synchronous counting: All internal flip-flops are clocked together, ensuring accurate counting
Up/Down control: Can count in both up and down directions based on the input control signal
Decade counter: Counts from 0 to 9 (decimal range) in both up and down modes
Parallel inputs: Allows direct setting of the counter value
Carry output: Provides a carry-out signal for cascading multiple counters
TTL-compatible: Works with TTL logic systems, ensuring easy integration into digital circuits
Low power consumption: Designed to minimize power usage while providing reliable performance
Digital counters and clocks
Frequency division
Event counting in digital systems
Electronics projects requiring decade counting

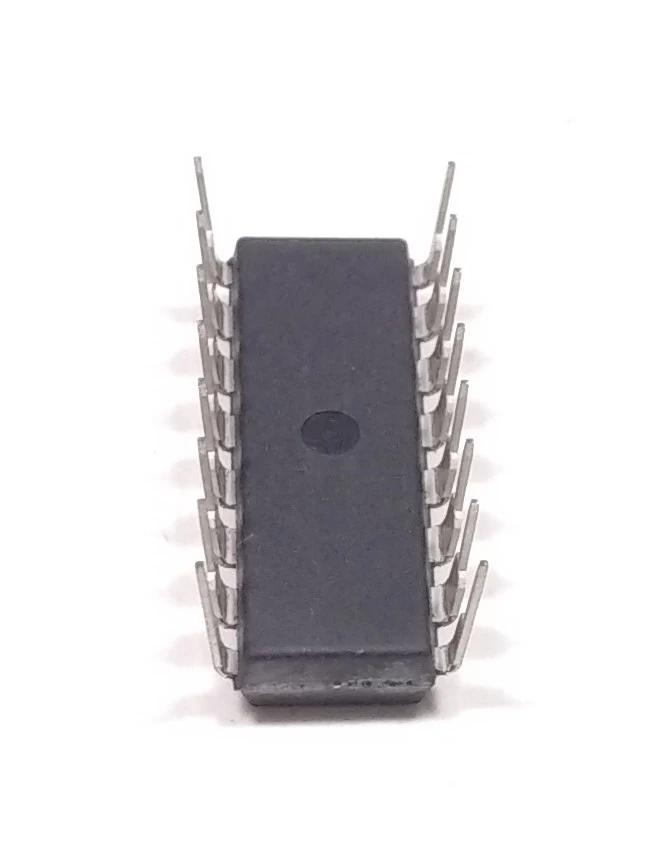

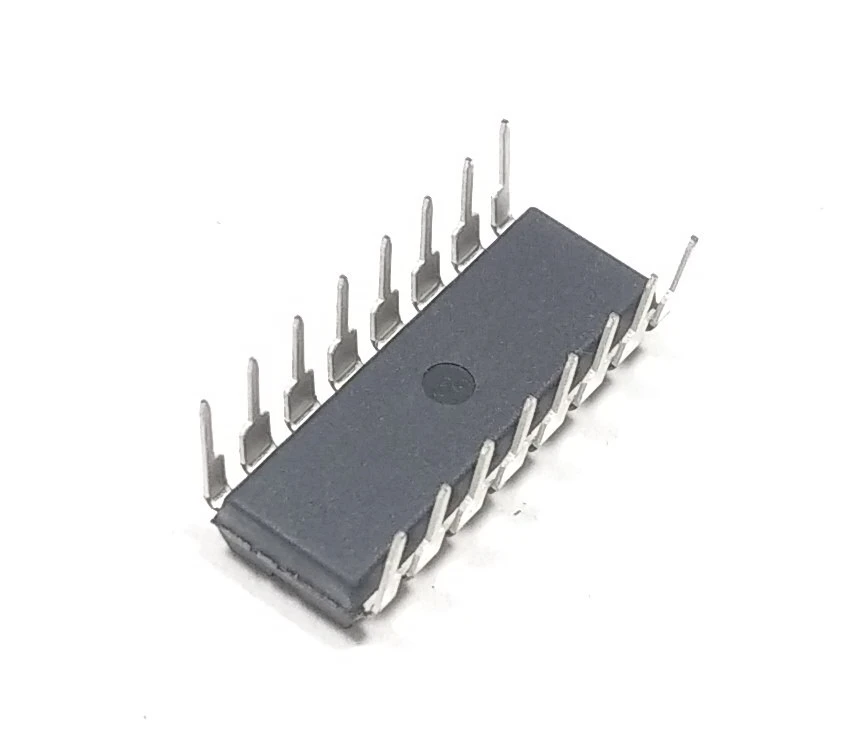

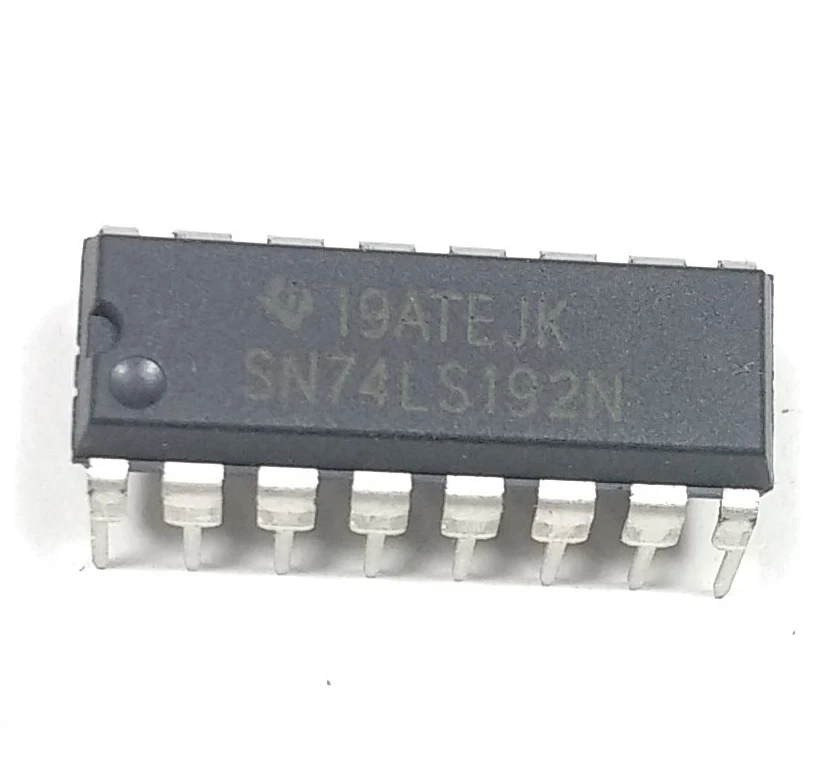

1 x 74192 IC - Synchronous Up/Down Decade Counter IC (DIP-16 Package)
Product specifications, features, and design may change over time due to product updates or improvements.
