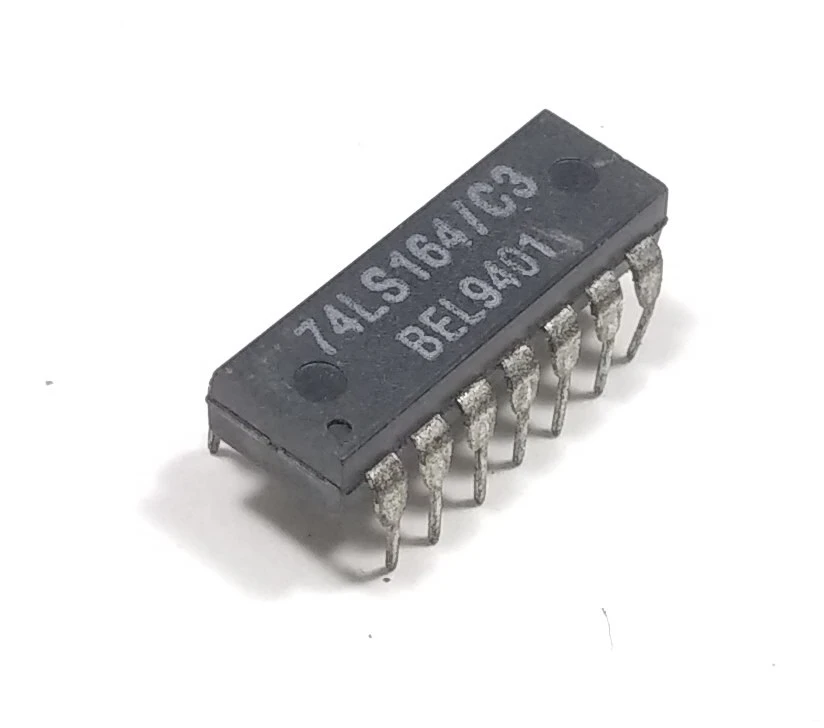

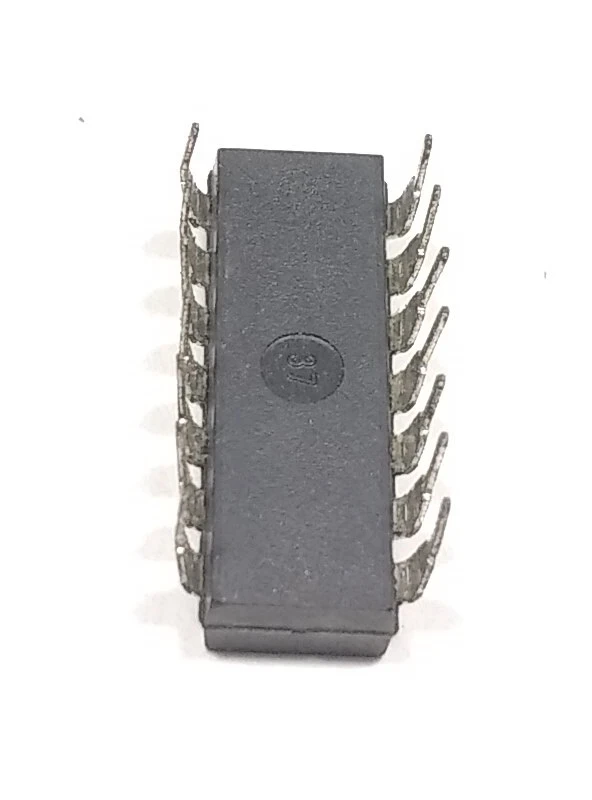

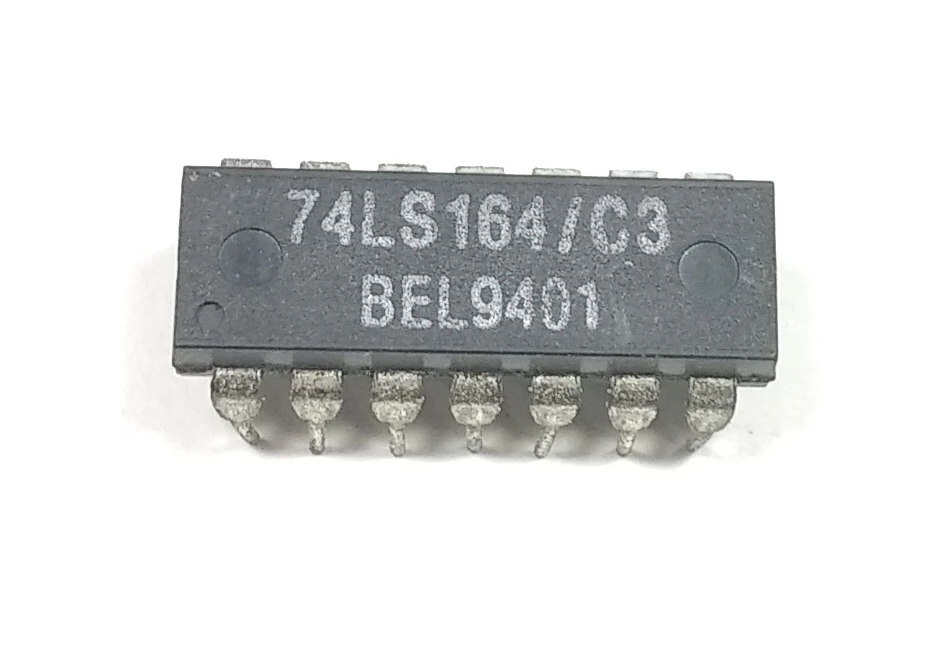

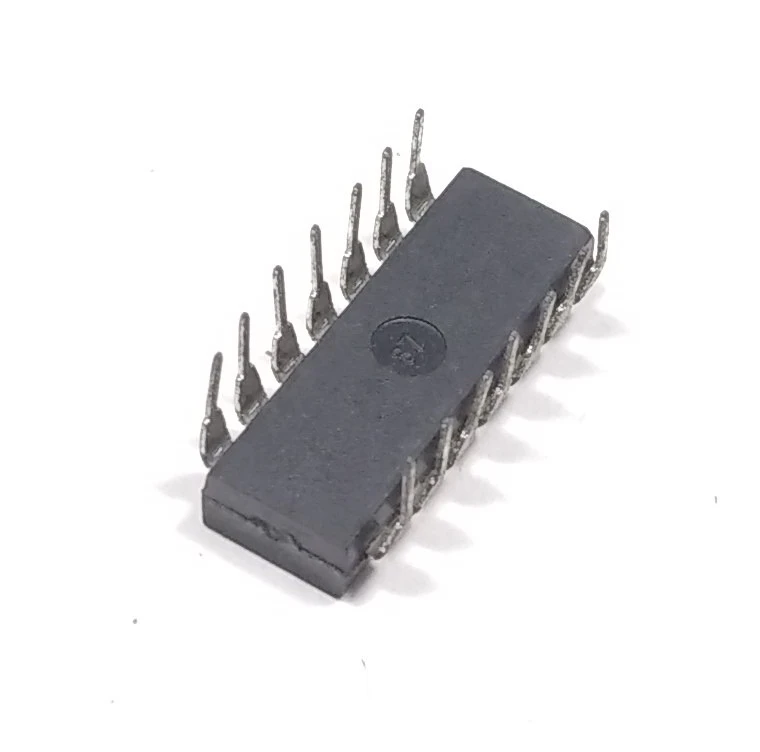

74164 8-BIT SIPO SHIFT REGISTER IC

In Stock

SKU: 129198

74164 8-BIT SIPO SHIFT REGISTER IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹41.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The 74164 is an 8-bit serial-in, parallel-out (SIPO) shift register IC. This IC allows for the serial input of data and converts it into parallel outputs, making it useful for applications that require serial-to-parallel data conversion. It is commonly used for data storage, data transfer, and digital signal manipulation in various digital systems.

The 74164 shift register is designed to operate with TTL logic levels and provides active-low outputs that can be used for controlling multiple devices or processing parallel data efficiently.

Features:

8-bit Serial-in, Parallel-out (SIPO): Accepts serial data and provides parallel outputs.
Shift Register Operation: Shifts data on each clock pulse, transferring the input to parallel outputs.
Active-Low Outputs: The output is active low, useful for driving logic-level devices.
Ease of Use: Simple serial data input and parallel output for easier data handling.
TTL Logic Compatible: Easily integrates into TTL-based logic circuits.
Low Power Consumption: Designed to consume low power, making it suitable for battery-powered and energy-efficient applications.

Applications:

Data Storage: Temporarily stores data in digital systems for processing.
Data Transfer: Used in applications where serial data needs to be converted to parallel format.
Digital Systems: Ideal for use in digital circuits for signal manipulation or control.
Signal Processing: Can be used for controlling multiple devices based on parallel data from a single serial source.
