Description:

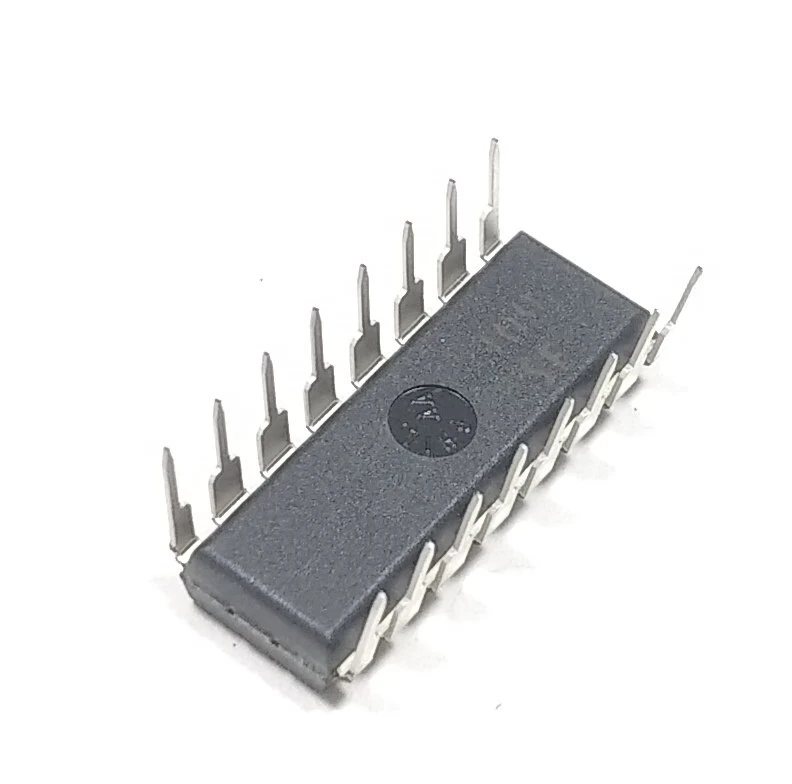

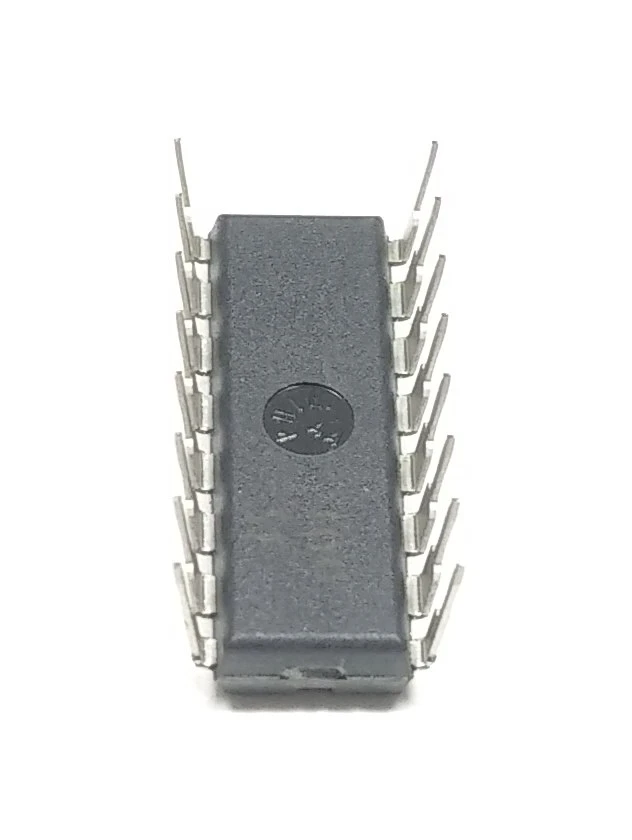

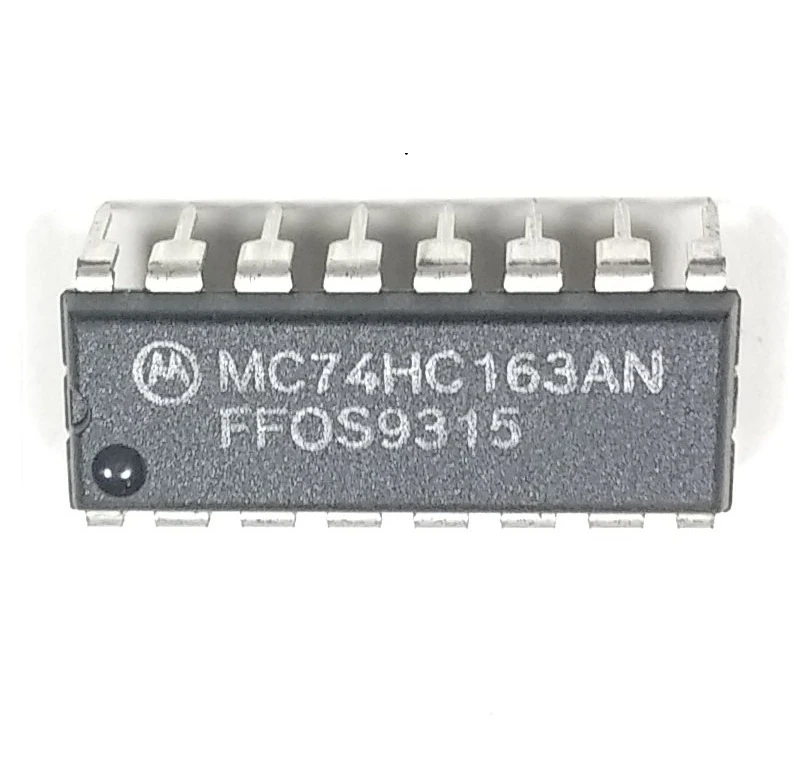

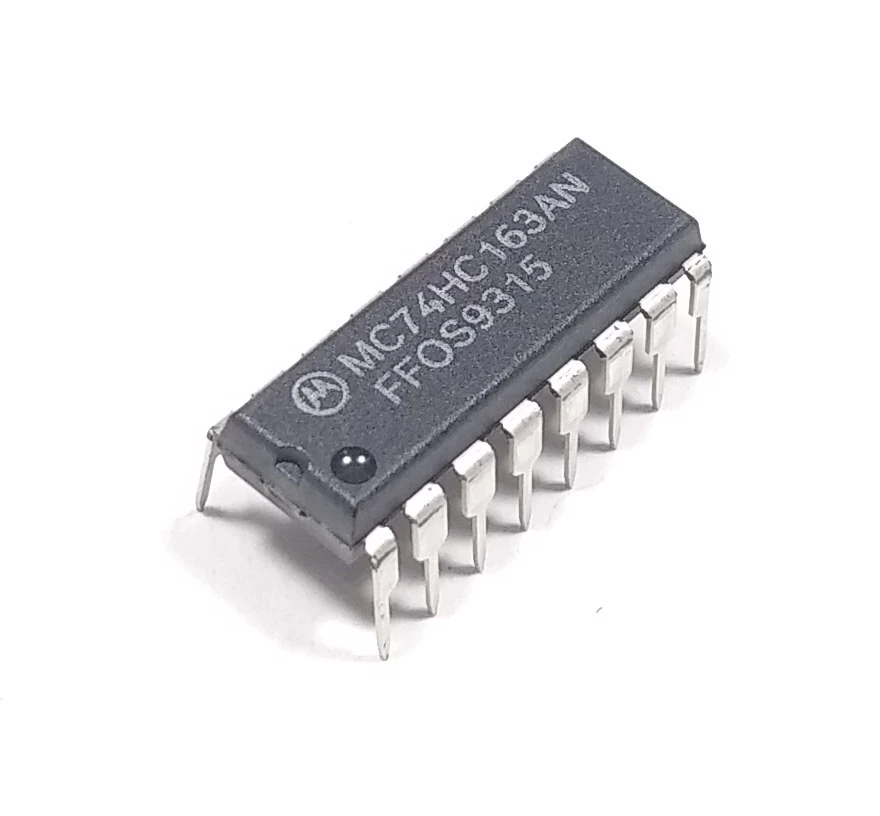

The 74163 is a Synchronous 4-bit Binary Counter IC, part of the 7400 TTL logic family. It features a synchronous counting mechanism, meaning all bits of the counter are updated simultaneously with the clock input, ensuring fast and reliable operation. The IC provides binary counting functionality, with the ability to count up or down based on the mode inputs, making it ideal for applications requiring precise and efficient counting.

The 74163 counter is commonly used in digital clocks, frequency dividers, and other time-related or counting applications where synchronous operation is required. Its parallel outputs allow easy access to the current state of the count.

Features:

Synchronous Counting: All bits of the counter are updated simultaneously with the clock signal.
4-bit Counter: Counts in binary from 0 to 15.
Up/Down Counting: Count direction can be controlled via the Up/Down input.
Clear Function: Counter can be cleared asynchronously, resetting the count to 0.
Enable Input: Enables or disables counting based on control logic.
TTL-Compatible: Compatible with other TTL logic devices for easy integration.
Low Power Consumption: Designed for efficient use in power-sensitive applications.

Applications:

Digital Clocks: Used for generating time-keeping signals and counters.
Frequency Dividers: Ideal for dividing clock frequencies in digital circuits.
Counters and Timers: Essential for counting applications in digital systems.
Pulse Generation: Can generate a series of pulses in various digital systems.
