The 74153 is a dual 4-line to 1-line data selector/multiplexer designed for efficient data routing in digital systems. This IC contains two independent 4-input multiplexers, allowing the selection of one of four input lines to be routed to a single output. It is commonly used in applications that require data selection or multiplexing in microprocessor and logic systems.
The 74153 features select and enable inputs, which provide control over the multiplexing operation. It supports both active high and active low selection modes, offering versatility in how data is selected. The IC is available in a DIP-16 package, making it easy to integrate into various circuit designs.
Dual 4-line to 1-line multiplexers: Provides two independent multiplexers for efficient data routing
Selectable inputs: Each multiplexer has four selectable inputs
Control inputs: Includes select and enable inputs for flexible data selection and routing
TTL compatible: Designed to be compatible with TTL logic systems
Low power consumption: Efficient operation for energy-conscious designs
Available in DIP-16 package: Easy integration into circuits
Digital data selection and multiplexing
Microprocessor interfacing and control
Communication systems
Signal routing in complex circuits
Logic systems requiring efficient data switching

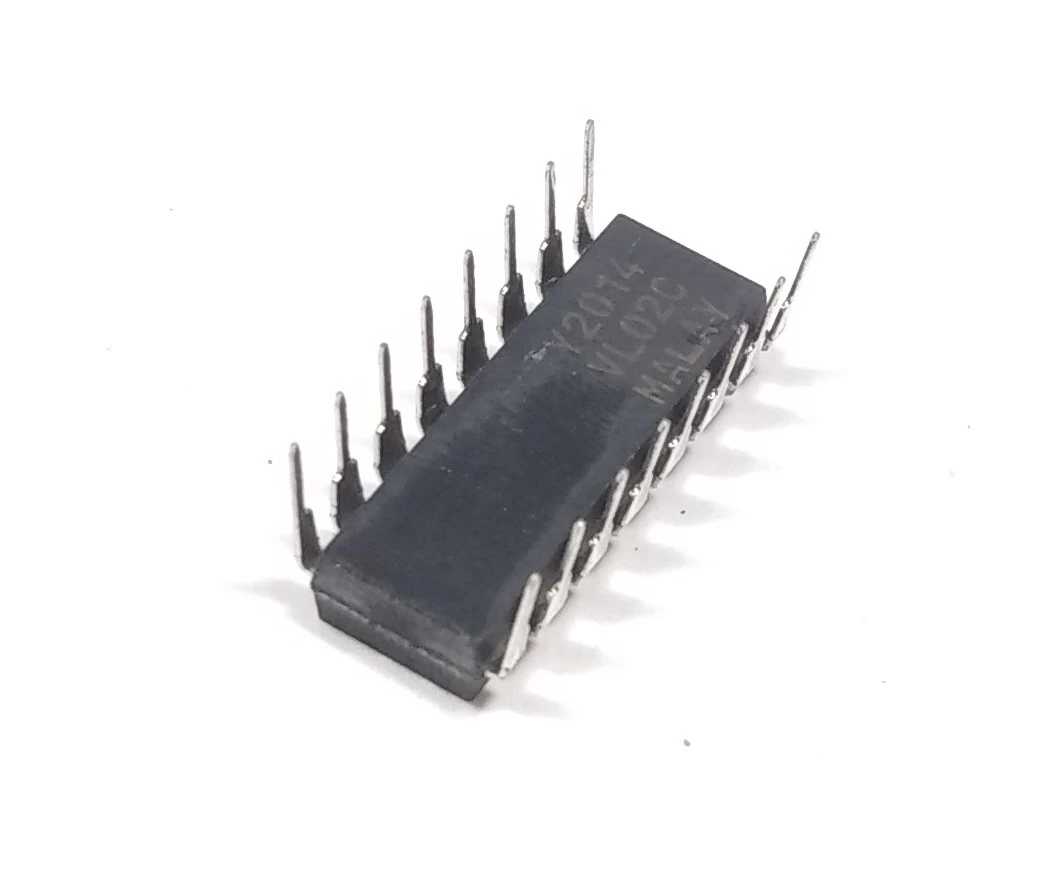

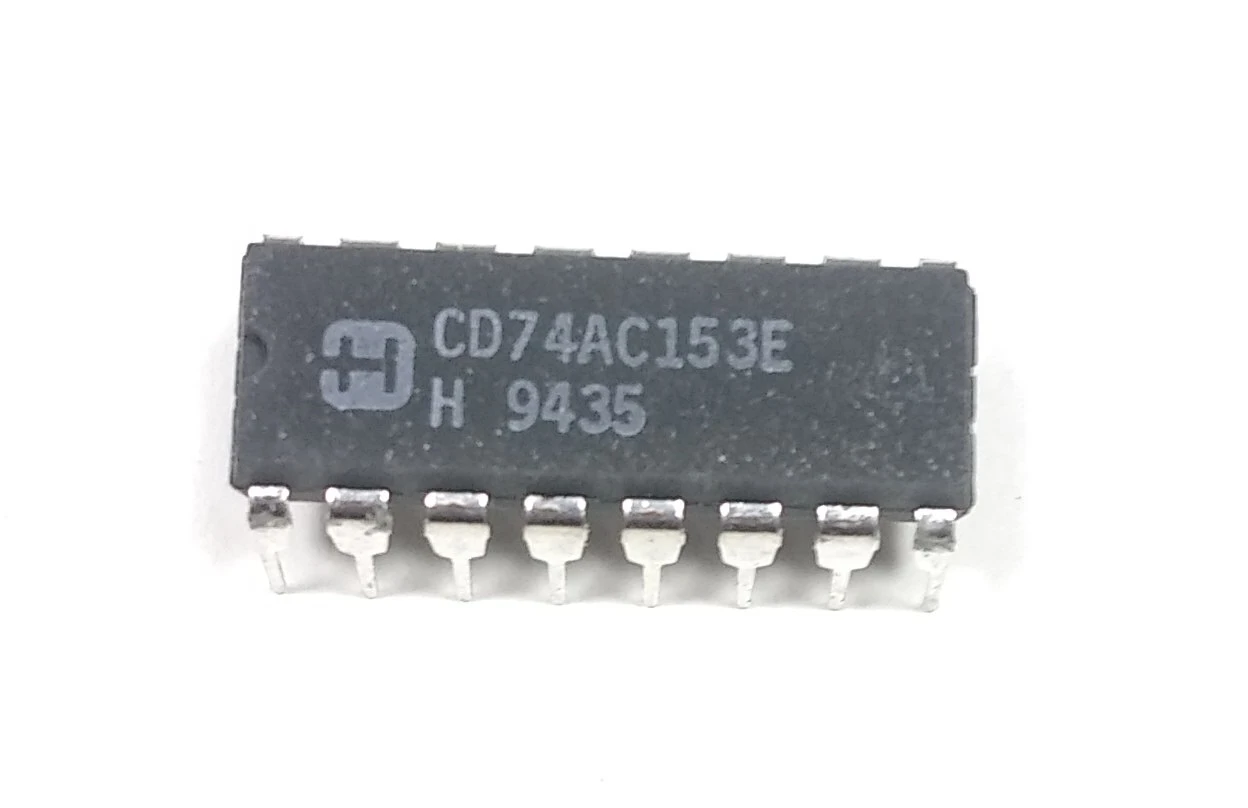

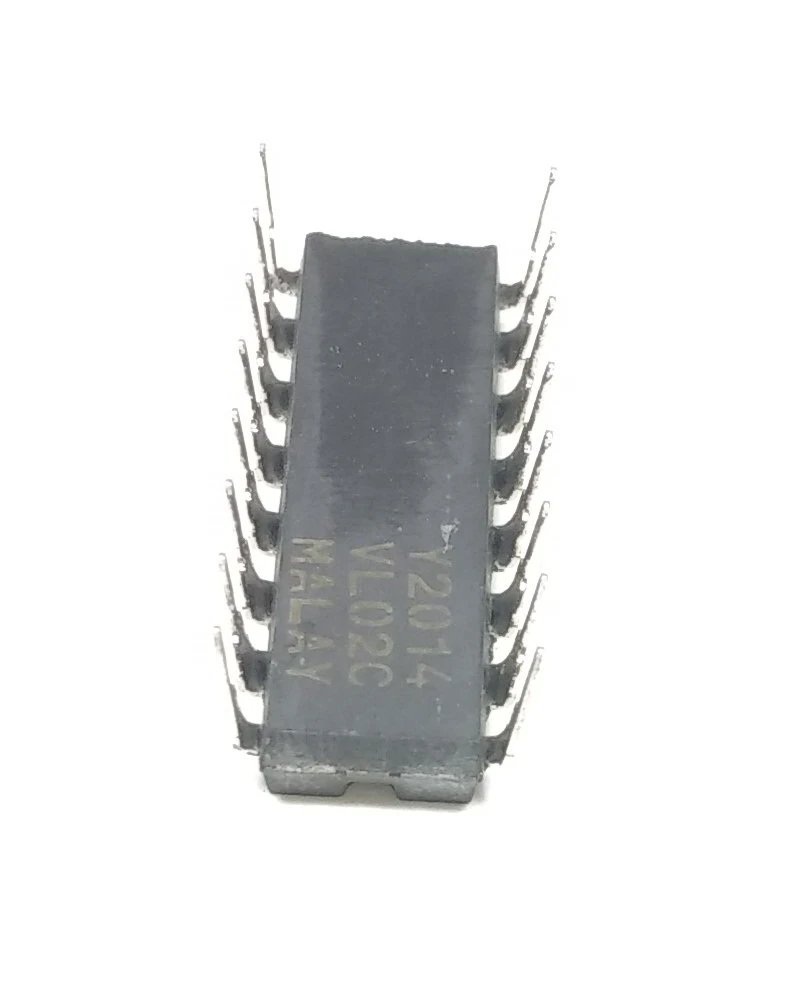

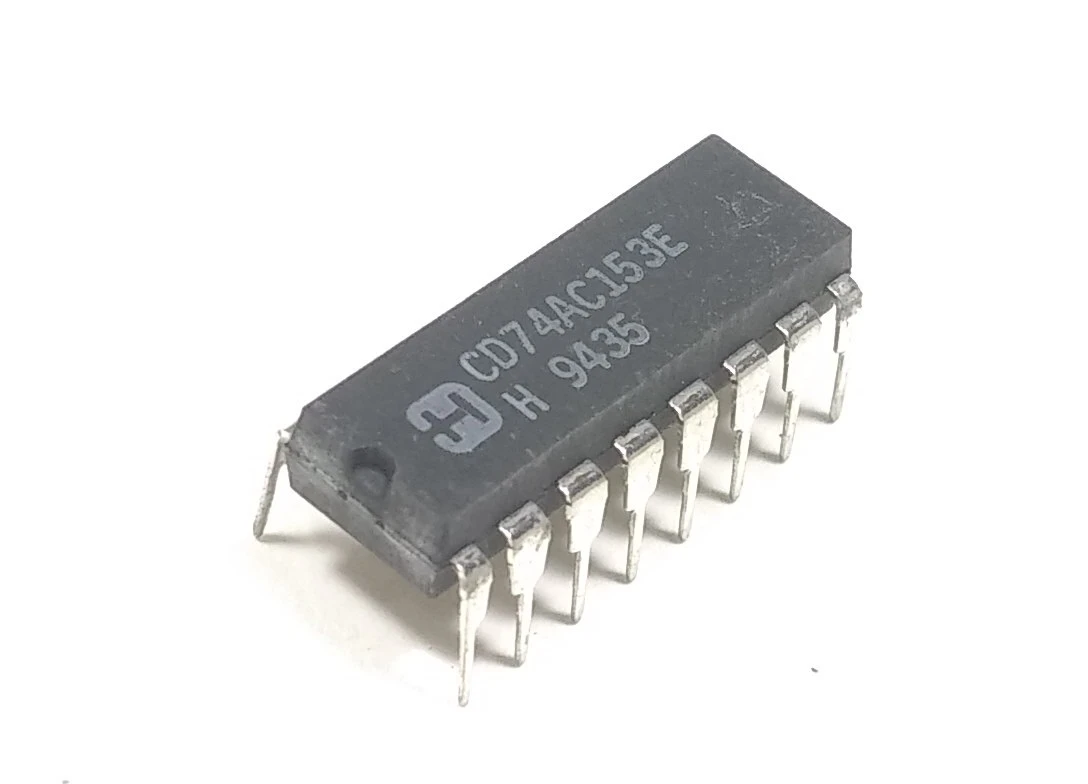

1 x 74153 Dual 4-line to 1-line Data Selector/Multiplexer IC (DIP-16 Package)
Product specifications, features, and design may change over time due to product updates or improvements.
