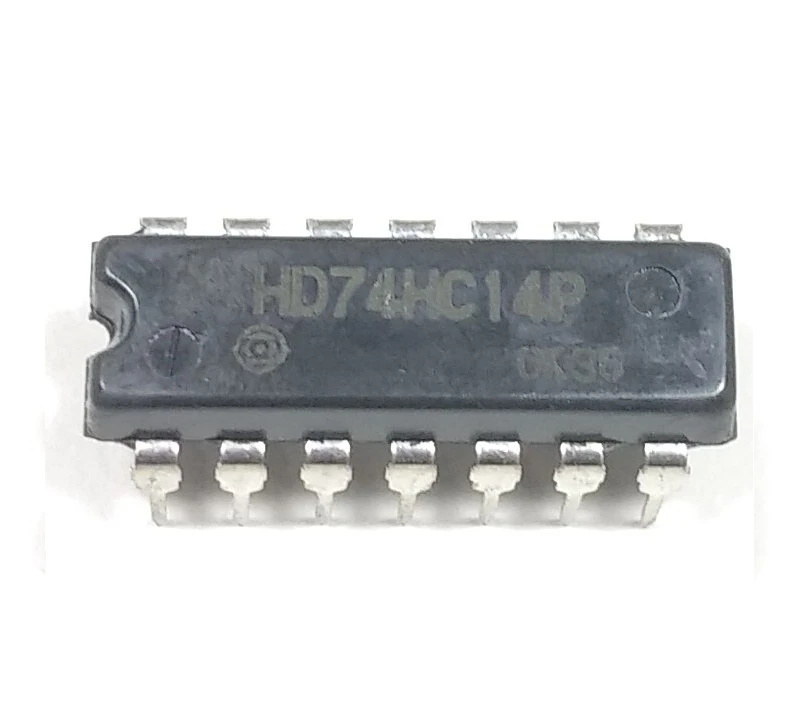

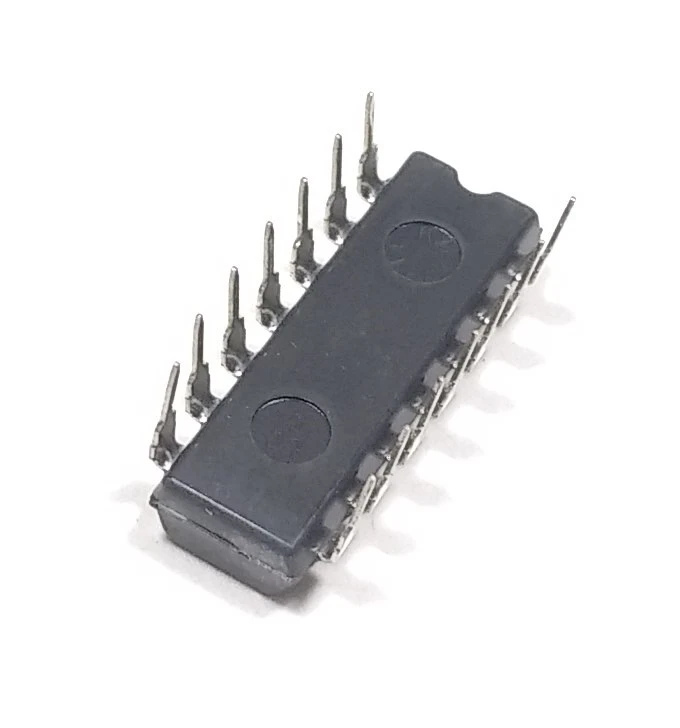

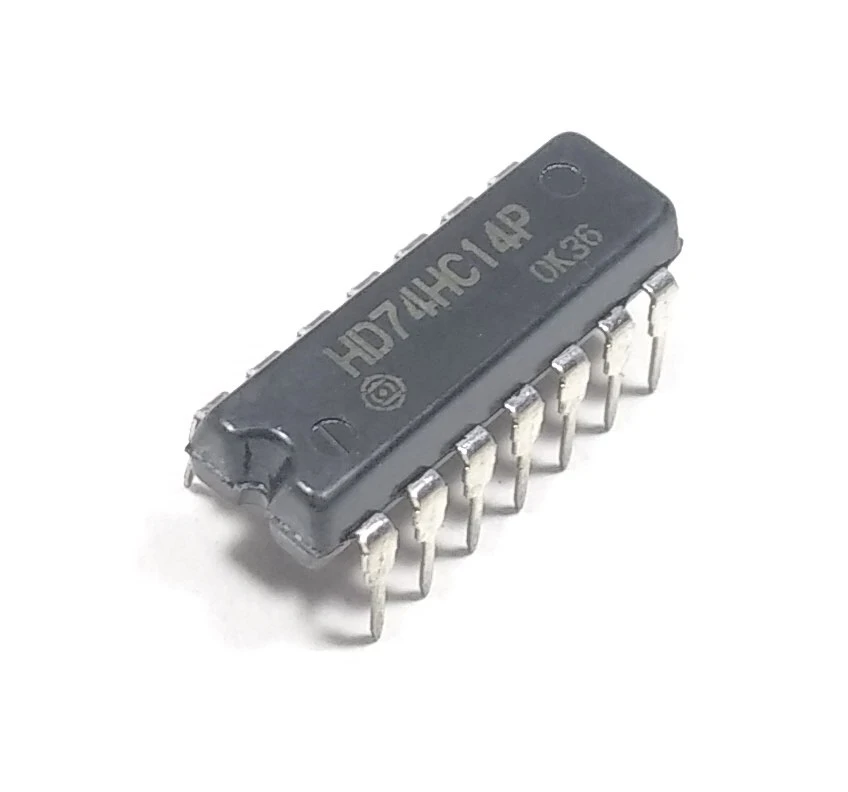

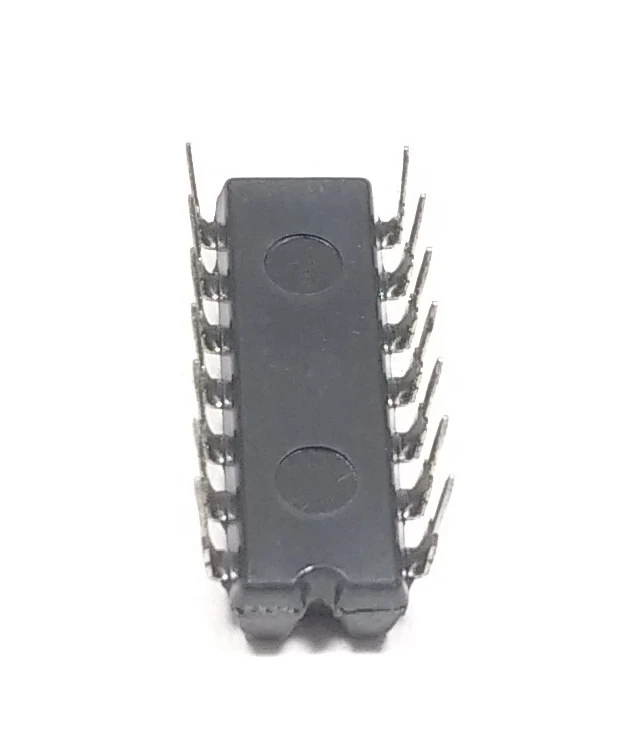

7414 Hex Inverters IC

In Stock

SKU: 175161

7414 Hex Inverters IC

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹49.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The 7414 is a Hex Inverter IC containing six independent inverters. Each inverter is a single-stage logic gate that inverts the input signal, providing the complementary output. This IC is part of the 7400 TTL logic family, widely used in digital systems for signal inversion and logical operations.

The 7414 Hex Inverter provides a high-speed, low-power solution for applications requiring signal inversion or logic level shifting. It is ideal for use in clock circuits, data processing systems, and control systems where inversion of logic levels is necessary.

Features:

Hex Inverters: Six independent inverters in a single package.
TTL-Compatible Logic: Standard TTL logic voltage levels for seamless integration with other TTL devices.
Fast Switching Speeds: Suitable for high-speed applications.
Low Power Consumption: Designed for energy-efficient digital logic systems.
Noise Immunity: Provides reliable performance in noisy environments.

Applications:

Signal Inversion: Inverts logic levels in digital systems.
Clock Circuits: Used to generate or modify clock signals.
Data Processing: Essential for signal manipulation in digital processors.
Control Systems: Commonly used in control logic to handle logic level inversions.
