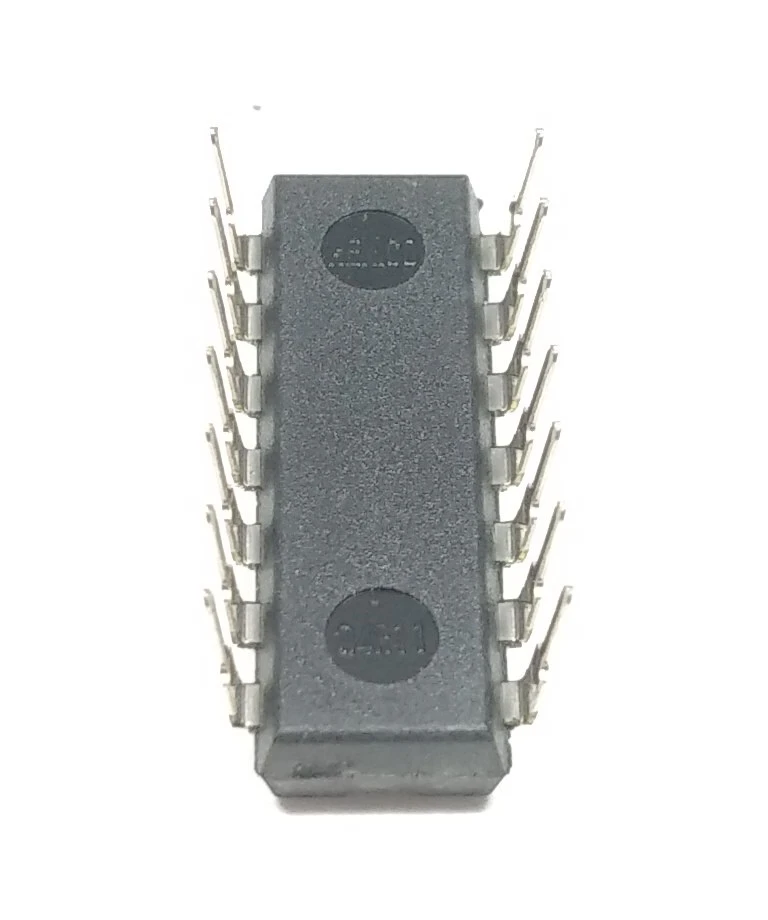

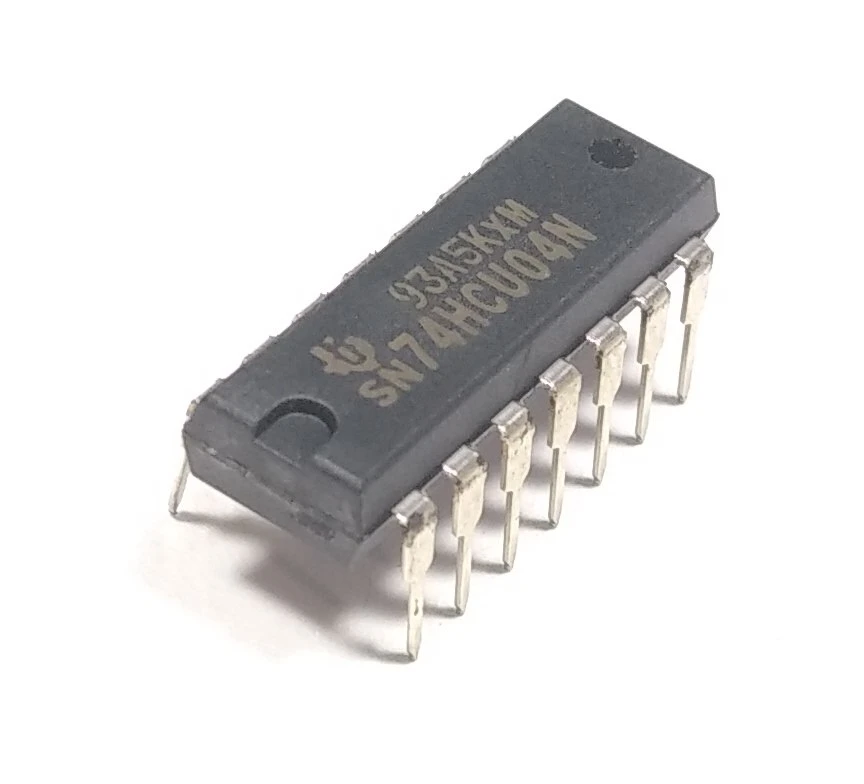

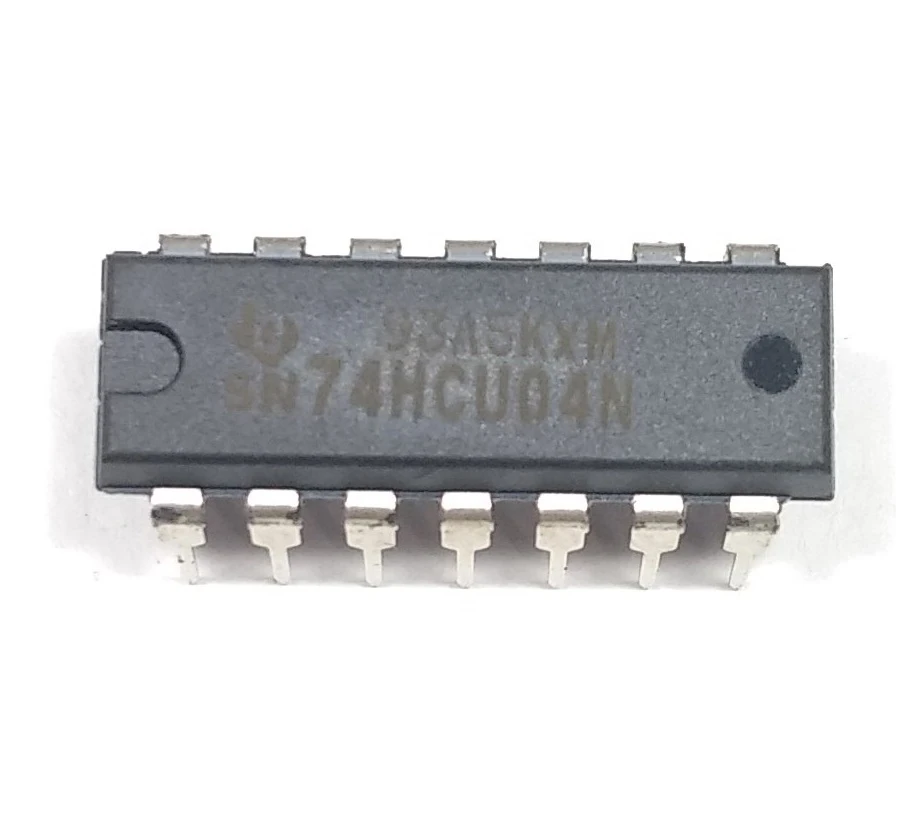

7404 Hex inverter NOT Gate IC

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹41.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Download Data Sheet

Overview
Reviews

Description:

The 7404 is a Hex Inverter IC featuring six independent NOT gates. This IC is part of the 7400 series and is designed for digital logic applications. Each gate in the IC inverts the input signal, meaning that if the input is high (1), the output will be low (0), and vice versa. The 7404 is commonly used in logic circuits where signal inversion is required.

With its TTL compatibility, the 7404 IC ensures reliable operation in high-speed digital circuits with minimal power consumption. It is available in a 14-pin dual in-line package (DIP), making it suitable for both prototyping and mass production in a variety of electronic devices.

Features:

Hex NOT Gates: Contains six independent 2-input inverters in a single package.
High-Speed Operation: Provides fast switching for digital signal processing.
Low Power Consumption: Designed to minimize power draw while performing inversion operations.
TTL Compatible: Works with TTL logic levels, ensuring easy integration into TTL-based circuits.
Wide Voltage Range: Operates from 4.5V to 5.5V, making it adaptable to different logic systems.
Compact Package: 14-pin DIP package for convenient mounting and use.
Reliable Performance: Designed to provide stable and predictable outputs in various operating conditions.

Applications:

Digital Logic Circuits: Used in situations requiring signal inversion and manipulation.
Clock Generation: Essential for producing clock pulses in digital systems.
Signal Processing: Inverts signals for logic operations in various applications.
Control Systems: Utilized in systems that require control logic through signal inversion.
Data Storage Systems: Commonly used in addressing and memory control logic.
