The 7402 is a quad 2-input NOR gate IC, part of the 7400 series of logic ICs. This IC contains four independent 2-input NOR gates, which output the logical NOR of their two inputs. The NOR gate is a universal gate, meaning it can be used to create any other logic gate, making the 7402 a versatile component in digital circuit design. It operates at high speed with low power consumption, making it ideal for a variety of digital logic applications.
The 7402 IC is compatible with TTL (Transistor-Transistor Logic) devices and can operate within a wide voltage range, ensuring flexibility in system integration. Its compact form factor and reliability make it well-suited for both simple and complex logic circuits.
Quad 2-Input NOR Gates: Contains four independent NOR gates, each with two inputs and one output.
Low Power Consumption: Efficient operation with minimal power use, suitable for energy-efficient designs.
High-Speed Performance: Ideal for fast switching applications.
Wide Operating Voltage Range: Operates from 4.5V to 5.5V, making it compatible with various logic systems.
TTL-Compatible: Designed to work with TTL logic levels for easy integration.
Compact Package: Standard 14-pin DIP package for easy mounting and integration.
Noise Immunity: High noise tolerance for reliable operation in noisy environments.
RoHS Compliant: Environmentally friendly and compliant with industry standards.
Digital Logic Circuits: Ideal for creating logic functions in combination with other gates.
Signal Processing: Used in circuits requiring logical signal manipulation.
Control Systems: Suitable for digital control and switching operations.
Frequency Dividers: Commonly used in timing and clock circuits.
Data Storage Systems: Used in systems where NOR logic is beneficial for memory addressing and data manipulation.

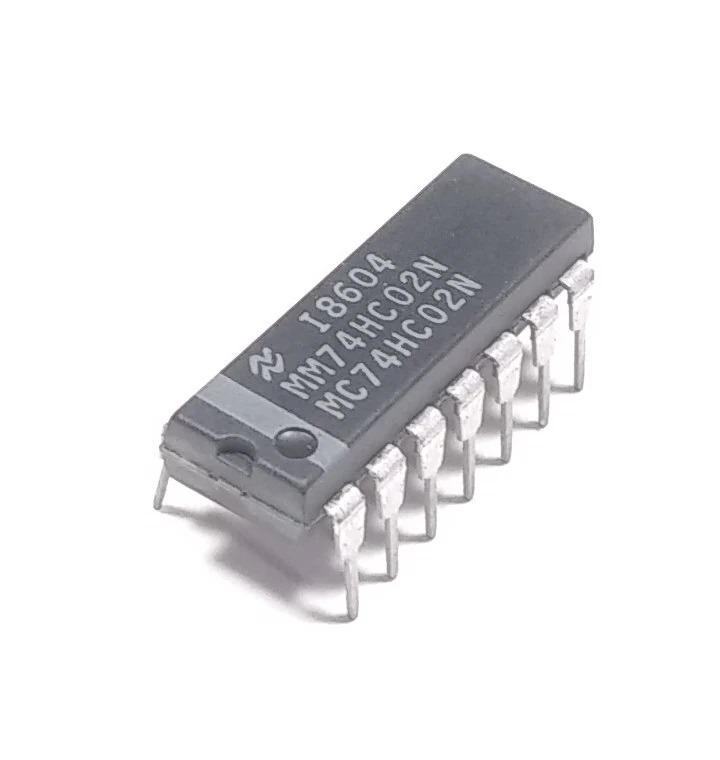

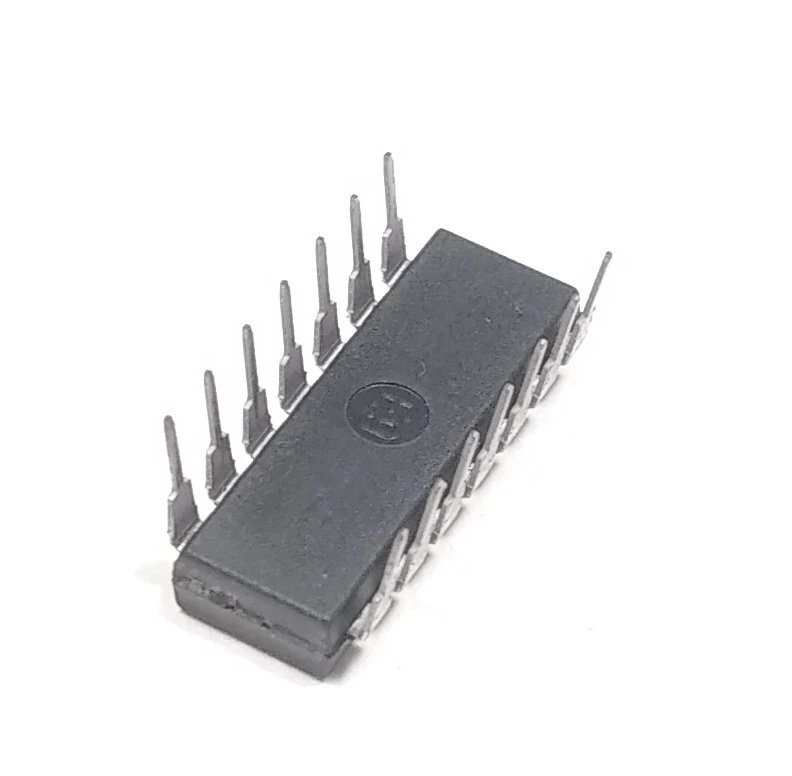

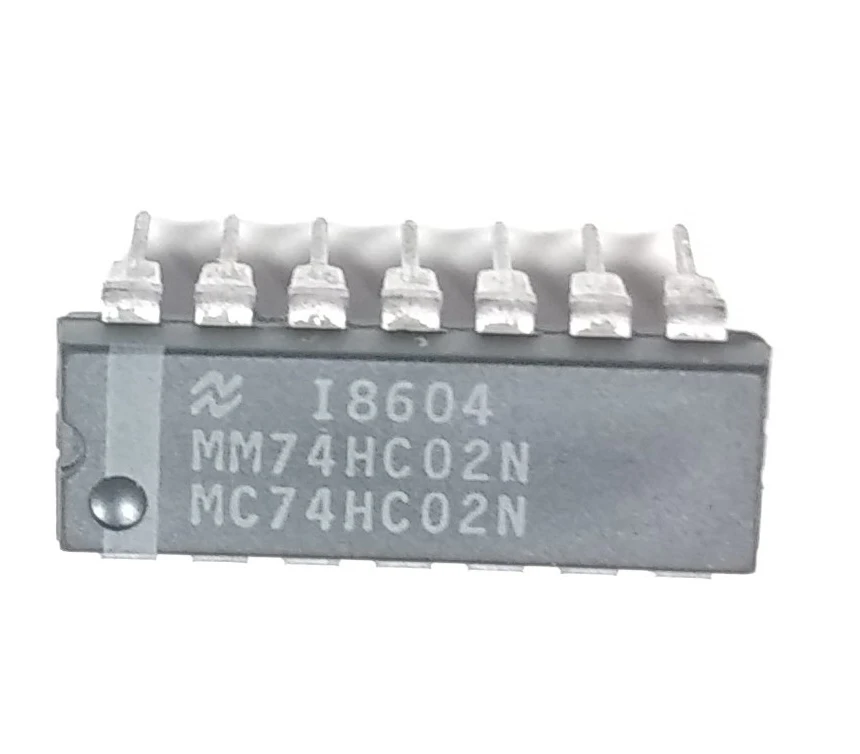

1 x 7402 Quad 2-Input NOR Gates IC (14-Pin DIP Package)
