The 7017 is a 3 1/2 digit A/D (Analog-to-Digital) Converter IC designed for use with LCD or LED displays. It converts an analog voltage input into a digital format, providing a convenient solution for applications requiring analog to digital conversion with a display interface. The IC supports a wide range of applications including digital voltmeters, multimeters, and other measurement devices that require precise conversion of an analog signal into a readable digital output.
The 7017 IC includes built-in display drivers for driving either LCD or LED displays directly, making it an ideal choice for compact measurement devices where space is limited. It also integrates functions like zero-adjustment and internal voltage references for more accurate and reliable results.
3 1/2 Digit Display: Supports a 3 1/2 digit LCD or LED display (0-1999 range) for easy digital readouts
A/D Conversion: Converts analog input voltages into digital output
Display Driver: Directly drives LCD or LED displays, eliminating the need for additional display driver ICs
High Accuracy: Provides precise measurements with excellent resolution for most common applications
Internal Reference Voltage: Comes with an integrated reference voltage for improved accuracy
Zero Adjustment: Includes a built-in zero adjustment to calibrate the measurement system
Low Power Consumption: Designed for low-power applications, making it suitable for battery-powered devices
TTL Compatible: Can be easily interfaced with TTL logic circuits for seamless integration
Digital voltmeters and multimeters
Measurement and monitoring systems
Battery-powered instruments
Signal measurement tools
Consumer electronics requiring analog-to-digital conversion

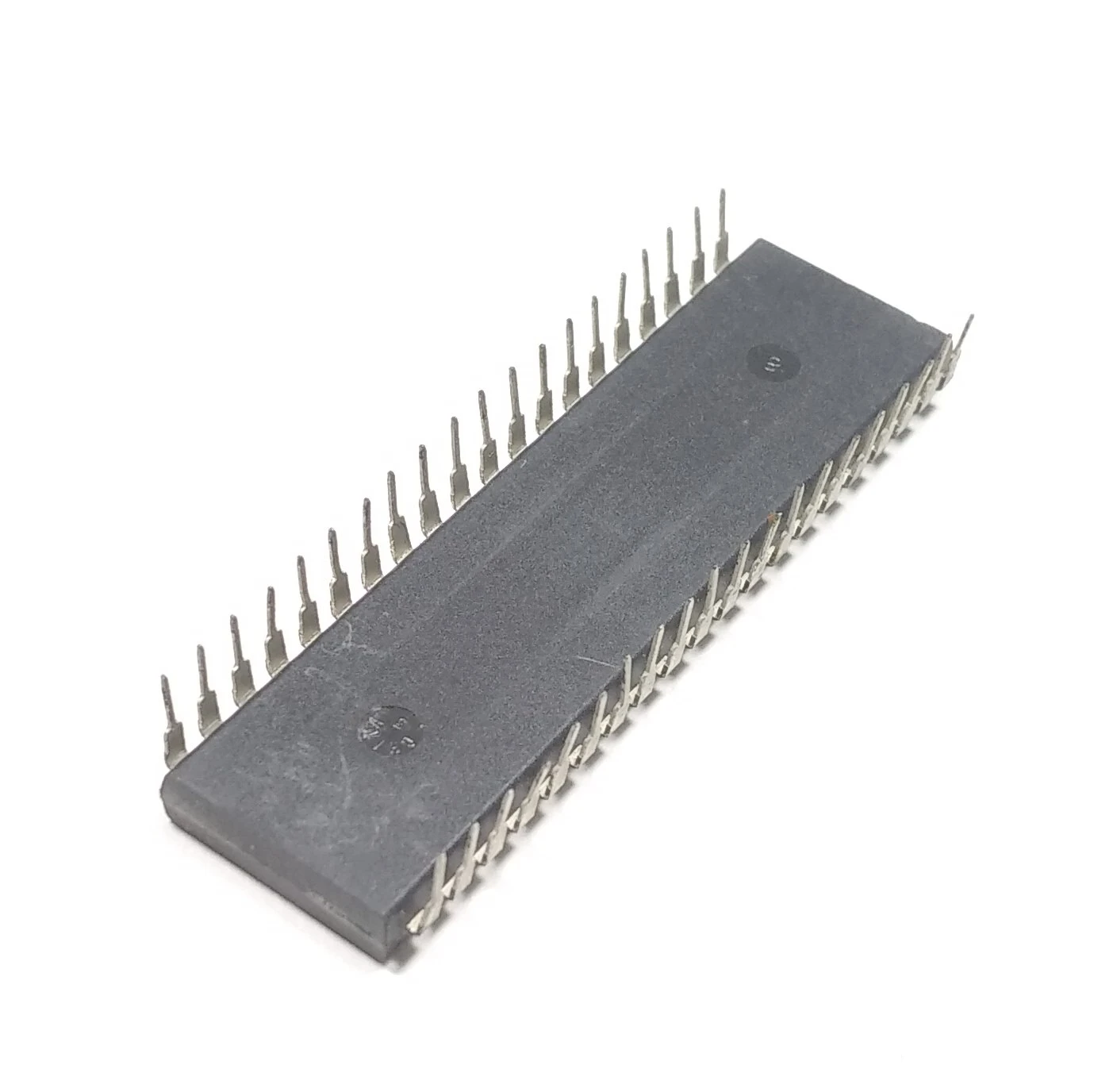

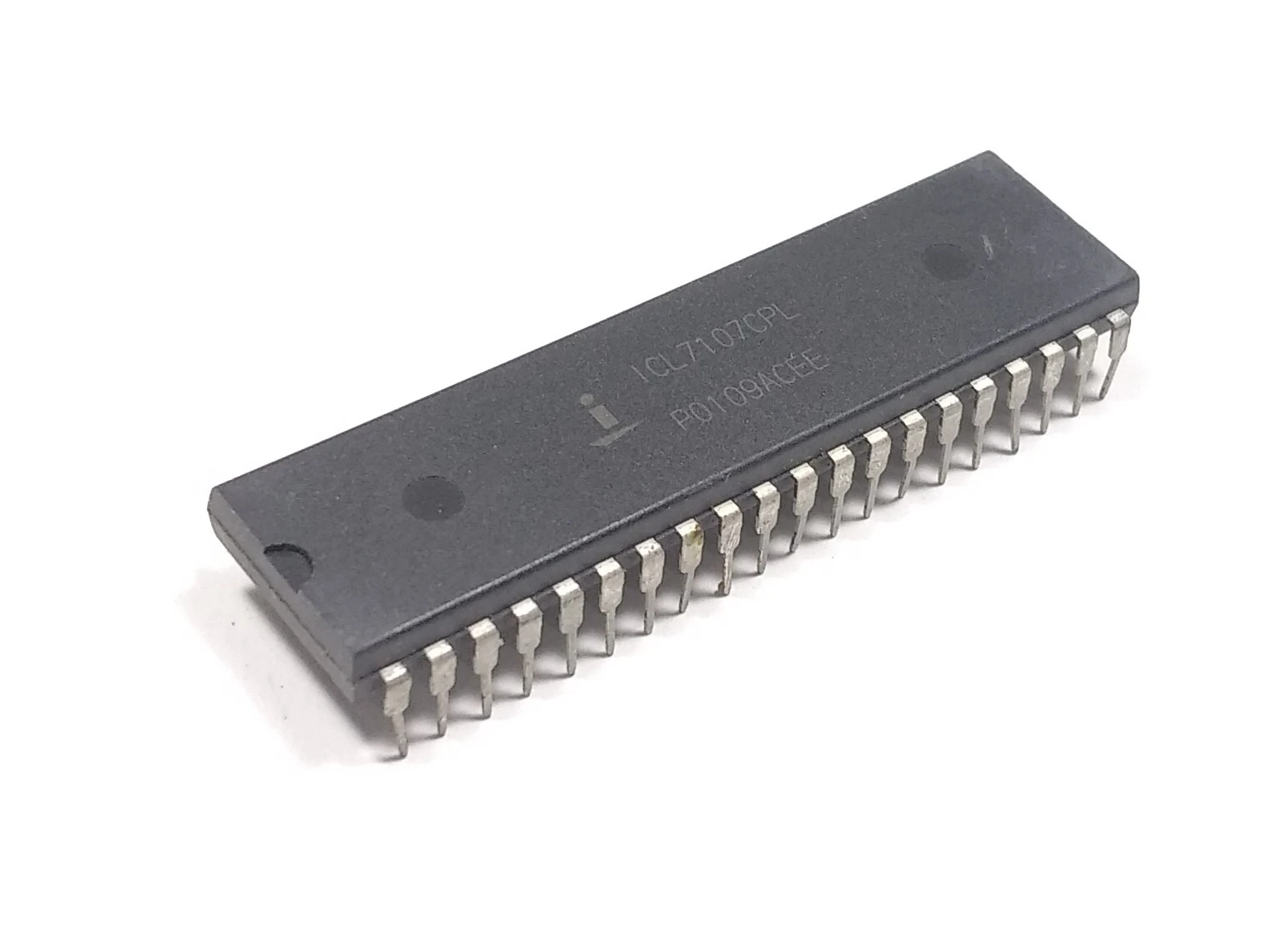

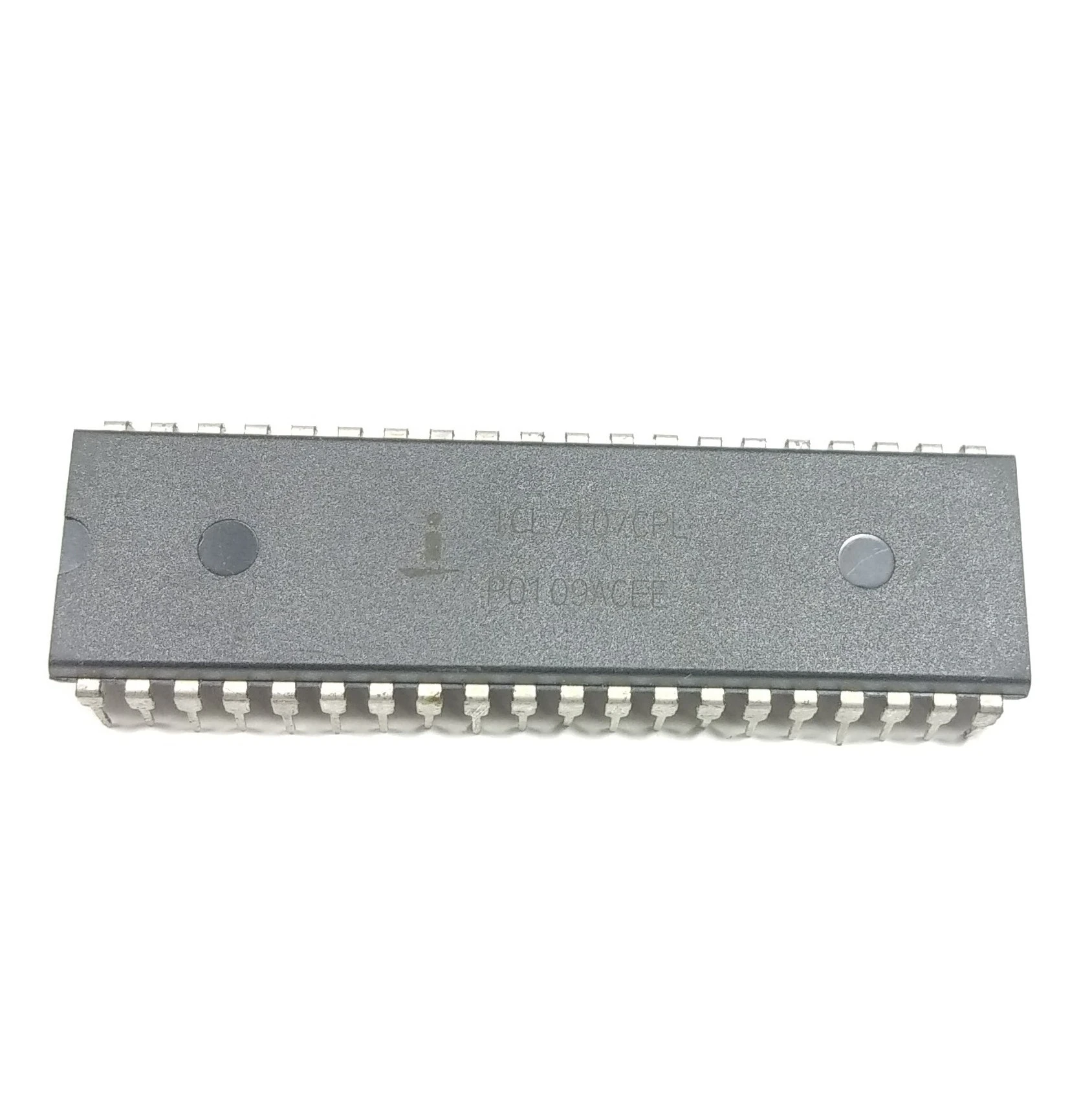

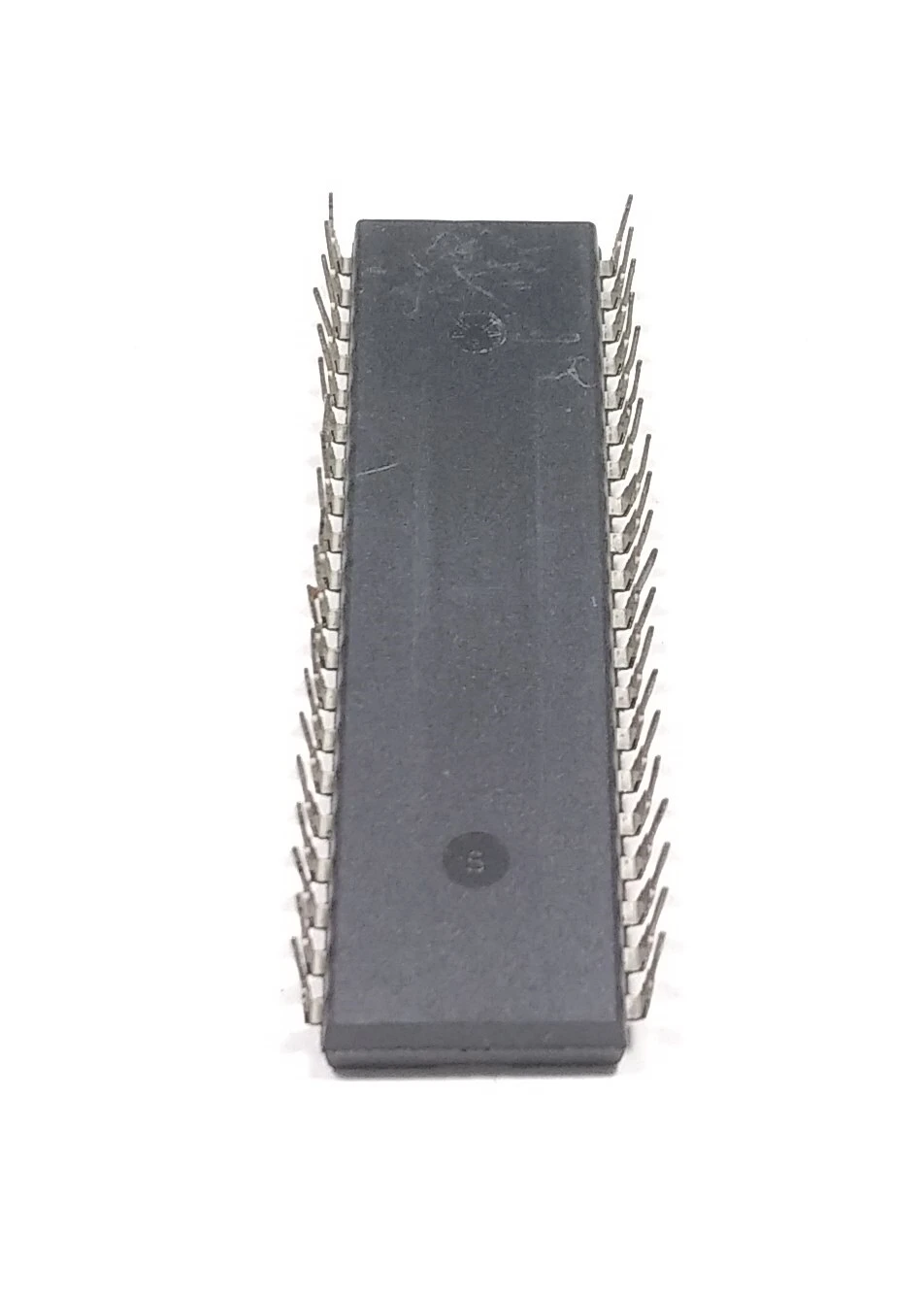

1 x 7017 IC - 3 1/2 Digit A/D Converter with LCD/LED Display
Product specifications, features, and design may change over time due to product updates or improvements.
