Description:

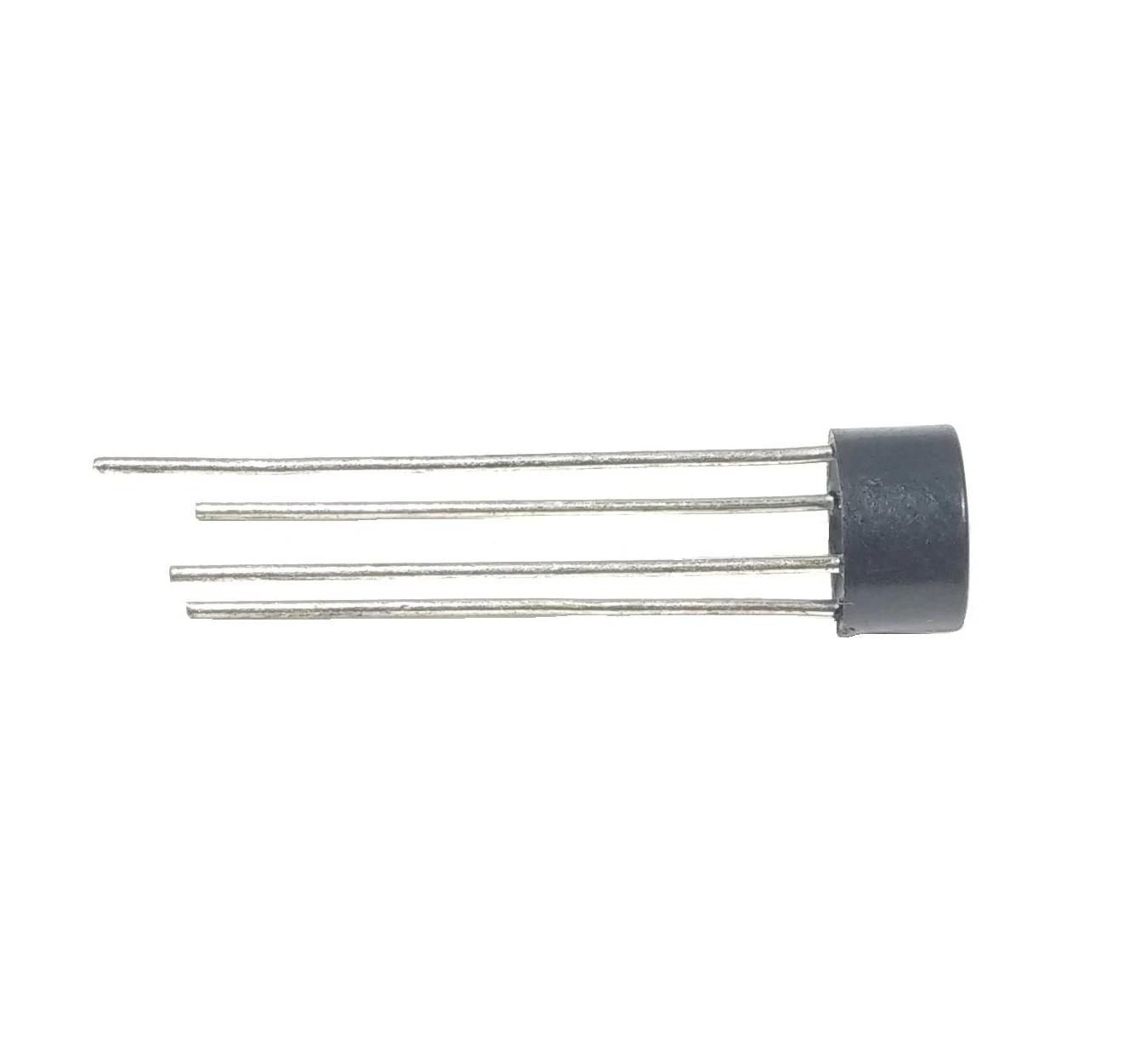

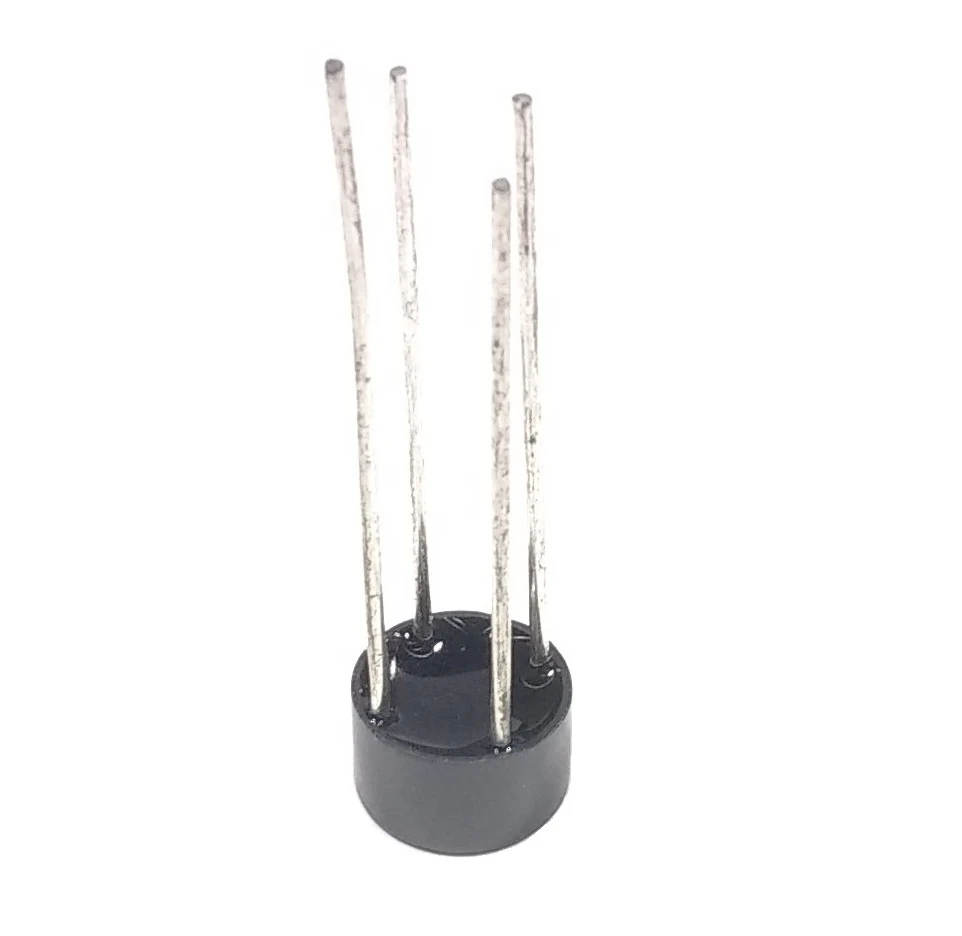

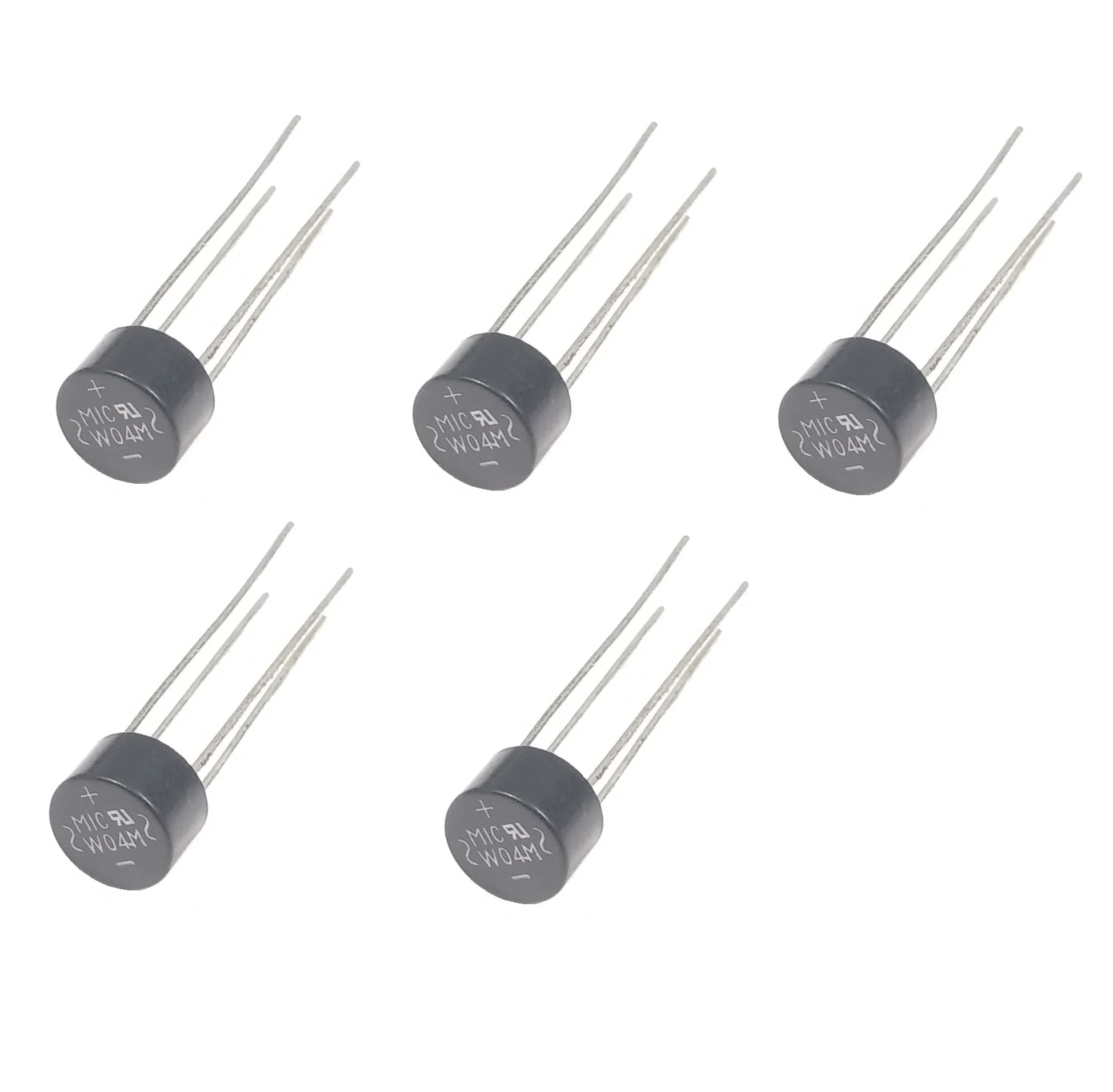

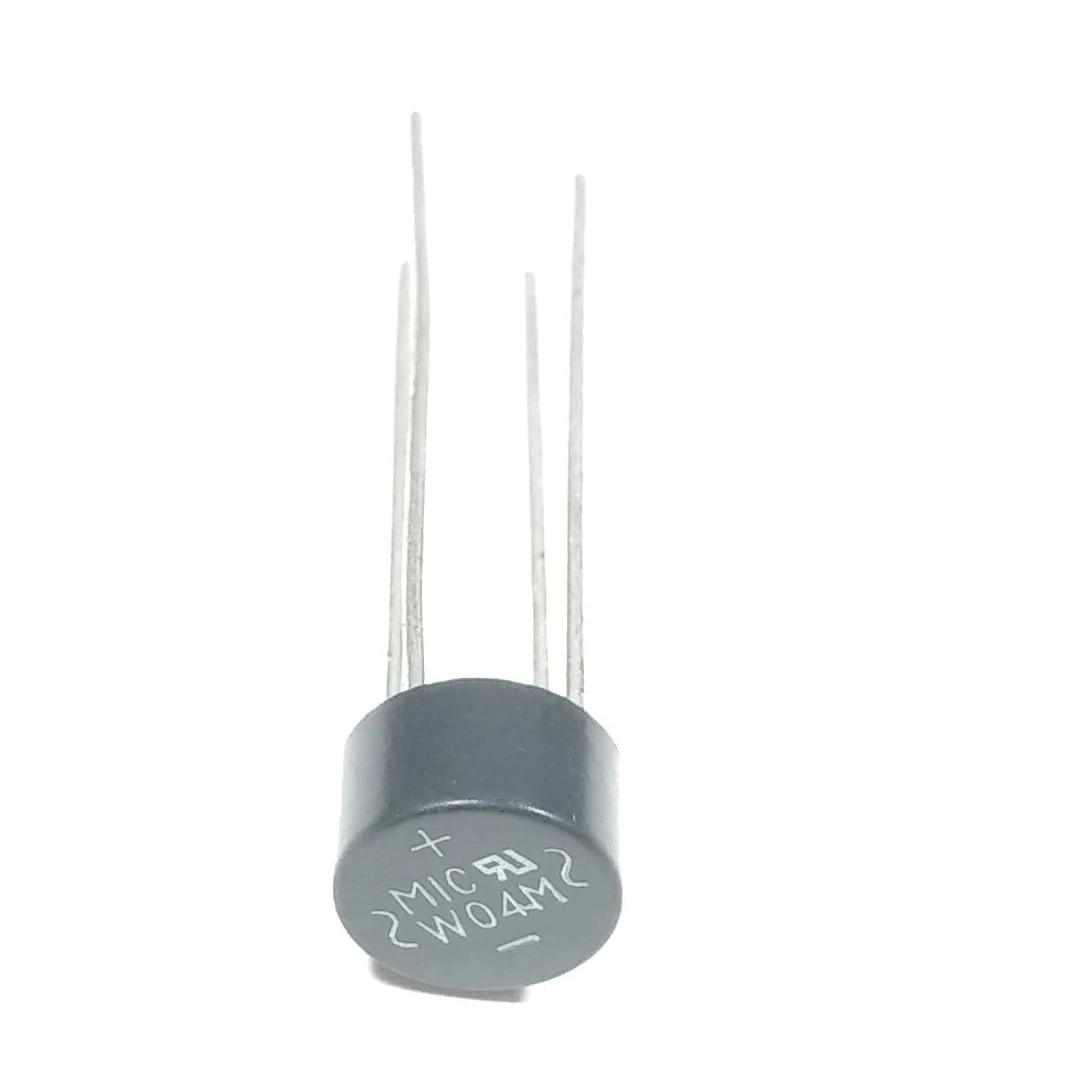

The W04M Bridge Rectifier is a compact and efficient solution for converting AC to DC in single-phase applications. Designed in a robust WOM-4 package, it offers excellent reliability with low forward voltage drop and minimal leakage current. Ideal for use in printed circuit boards and general rectification tasks.
Features:
Ideal for PCB mounting
Low forward voltage drop (1V typical)
Very low leakage current (5 µA max)
Passivated silicon technology for stability and durability
Not ESD sensitive
Compact WOM-4 package
Product Specification:
Manufacturer Part No: W04M
Manufacturer: Mic
Series: W0
Type: Single Phase Bridge Rectifier
Forward Voltage: 1V
Average Forward Current: 1.5A
Peak Reverse Voltage: 400V
Reverse Voltage (Vr): 280V
Reverse Leakage Current: 5 µA
Peak Surge Current: 50A
Operating Temp Range: -55°C to +150°C
Mounting Style: Through-hole
Termination Style: Solder Lead
Package/Case: WOM-4
Dimensions: 9.1mm (L) × 9.1mm (W) × 5.5mm (H)
Applications:
AC to DC converters
General-purpose rectifier circuits
Battery chargers
Consumer electronics
Low-voltage power supplies
Package Includes:
1 x W04M 400V 1.5A Single Phase Bridge Rectifier (WOM-4 Package)
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
