Description:

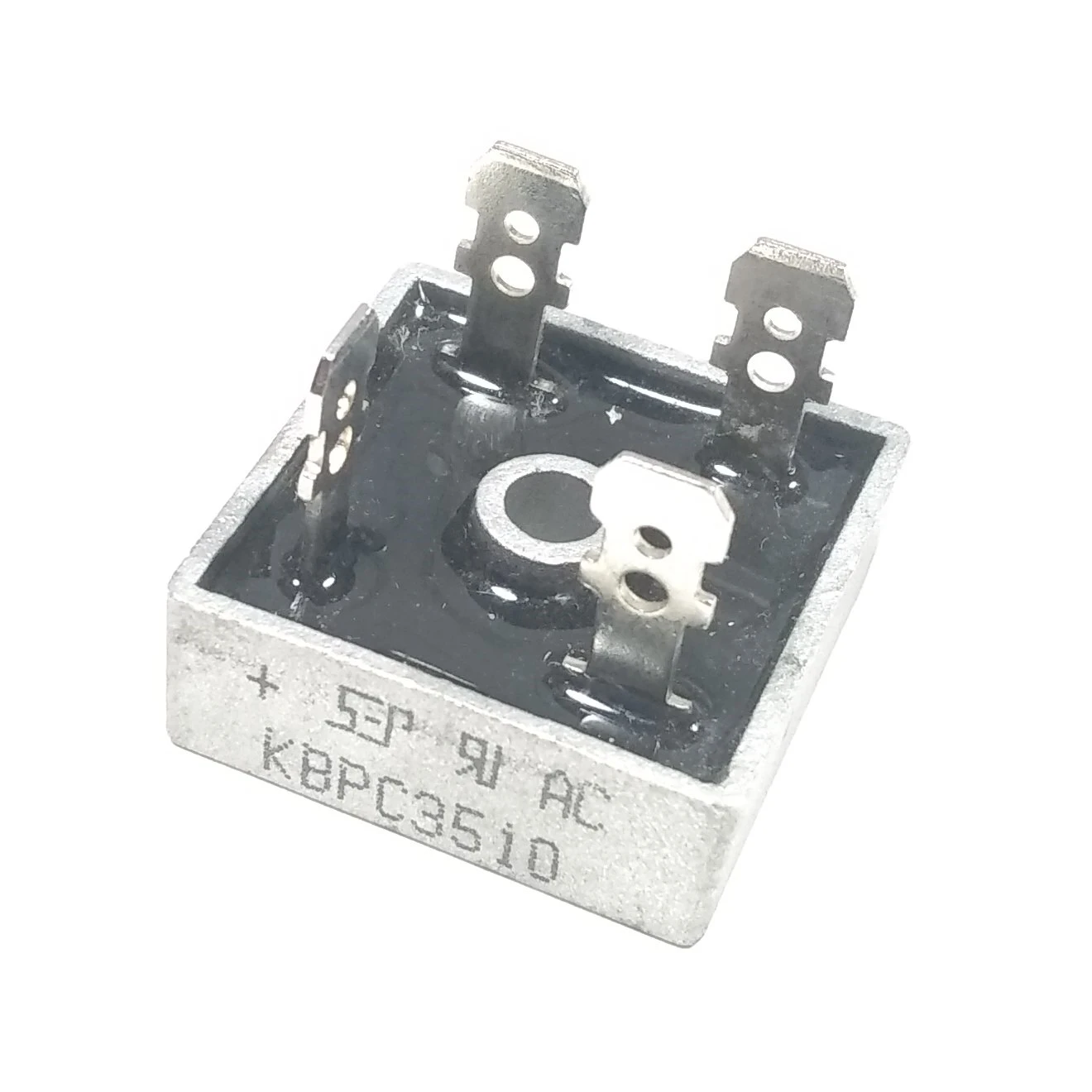

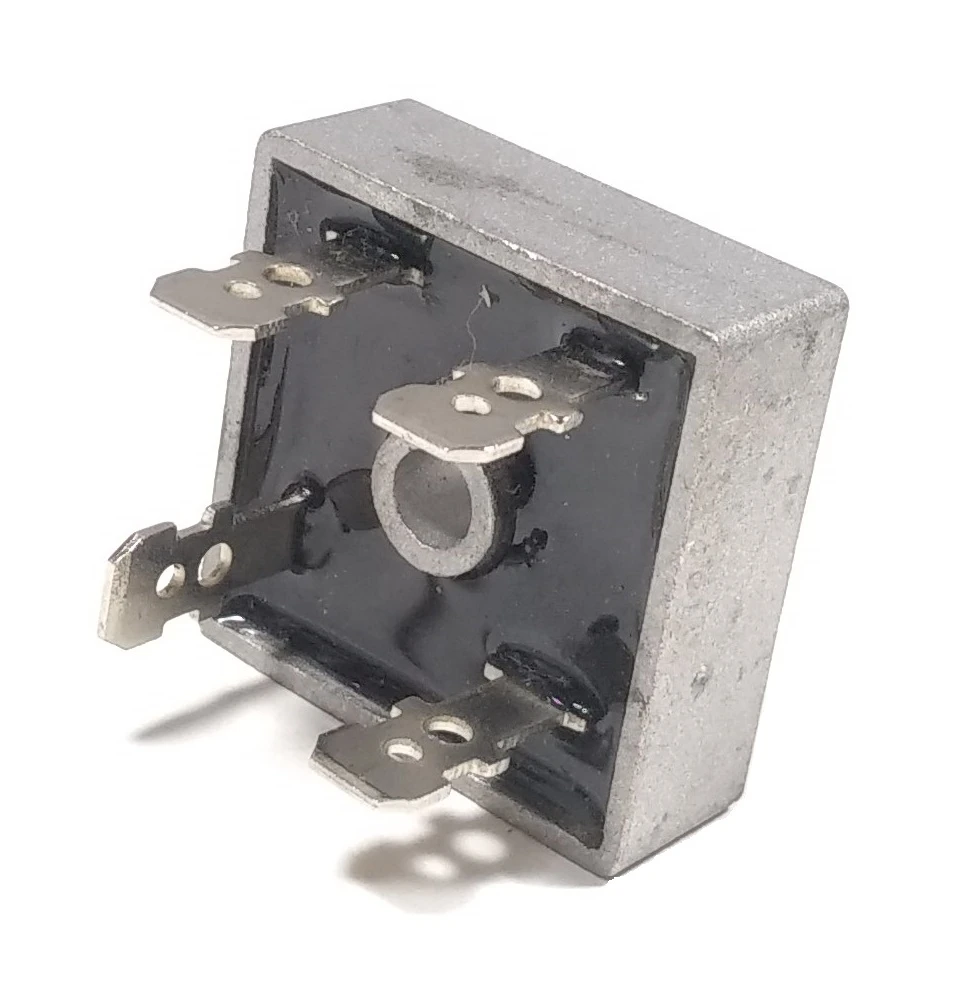

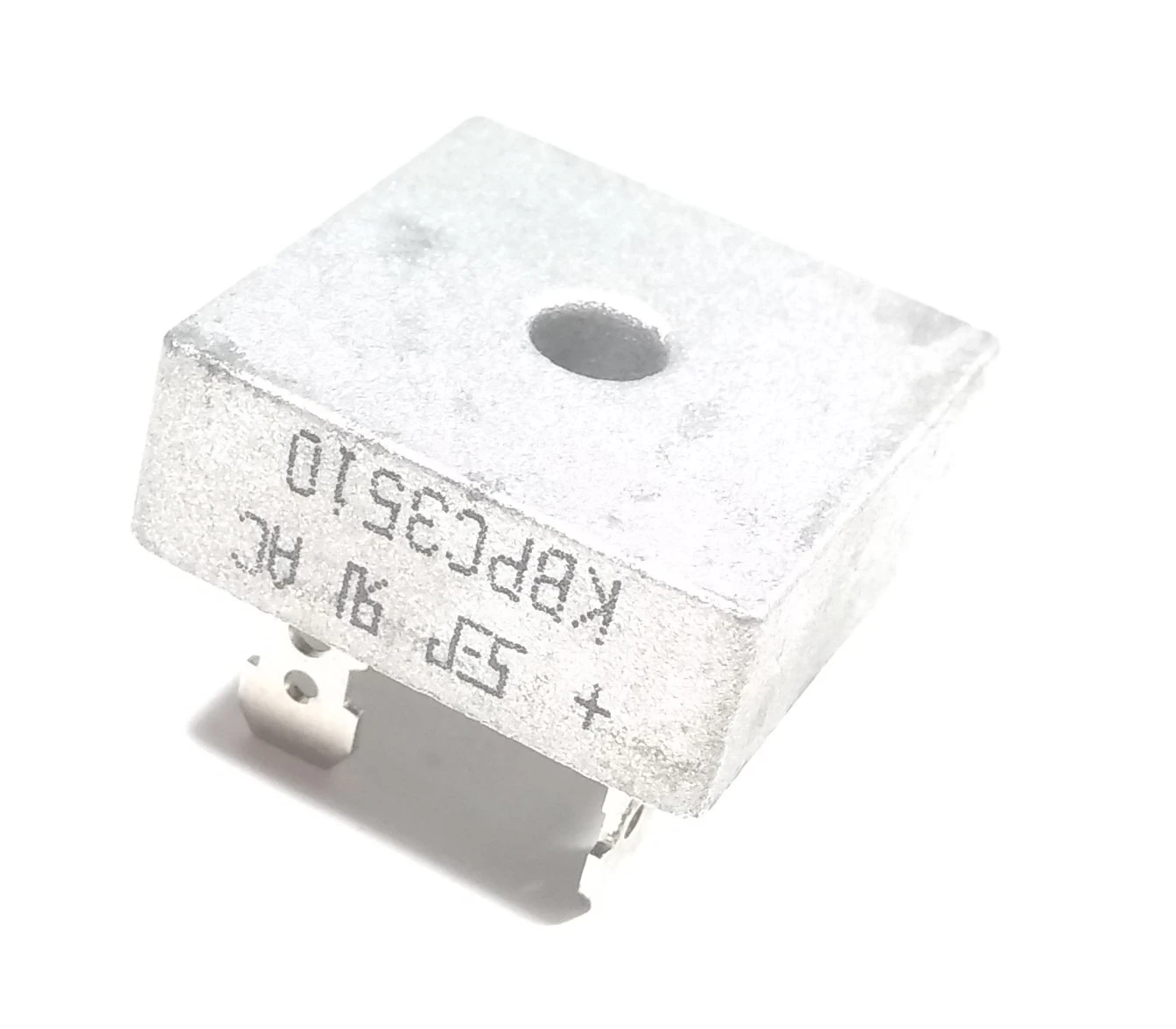

The KBPC3510 is a high-current, high-voltage single-phase bridge rectifier housed in a robust metal casing with a diffused junction. Engineered for heavy-duty applications, this rectifier delivers reliable AC to DC conversion with excellent thermal performance, making it ideal for industrial and commercial power supplies. Its isolated metal case enhances heat dissipation, ensuring high efficiency and long-term durability.
Features:
High current capability up to 35A
Peak reverse voltage tolerance of 1000V
Diffused junction for enhanced reliability
Surge overload rating up to 400A peak
Electrically isolated metal case for superior heat dissipation
Low reverse leakage current
High efficiency with low power loss
Product Specification:
Part Number: KBPC3510
Rated Average Forward Current (IO): 35A
Peak Repetitive Reverse Voltage (VRRM): 1000V
Surge Forward Current (IFSM): 400A
Junction Type: Diffused
Package Type: Metal case
Mounting: Through-hole
Isolation: Electrically isolated metal case
Quantity: 2 pieces
Applications:
Industrial AC to DC converters
Commercial power supplies
DC motor drives
Battery chargers
General-purpose rectification
Package Includes:

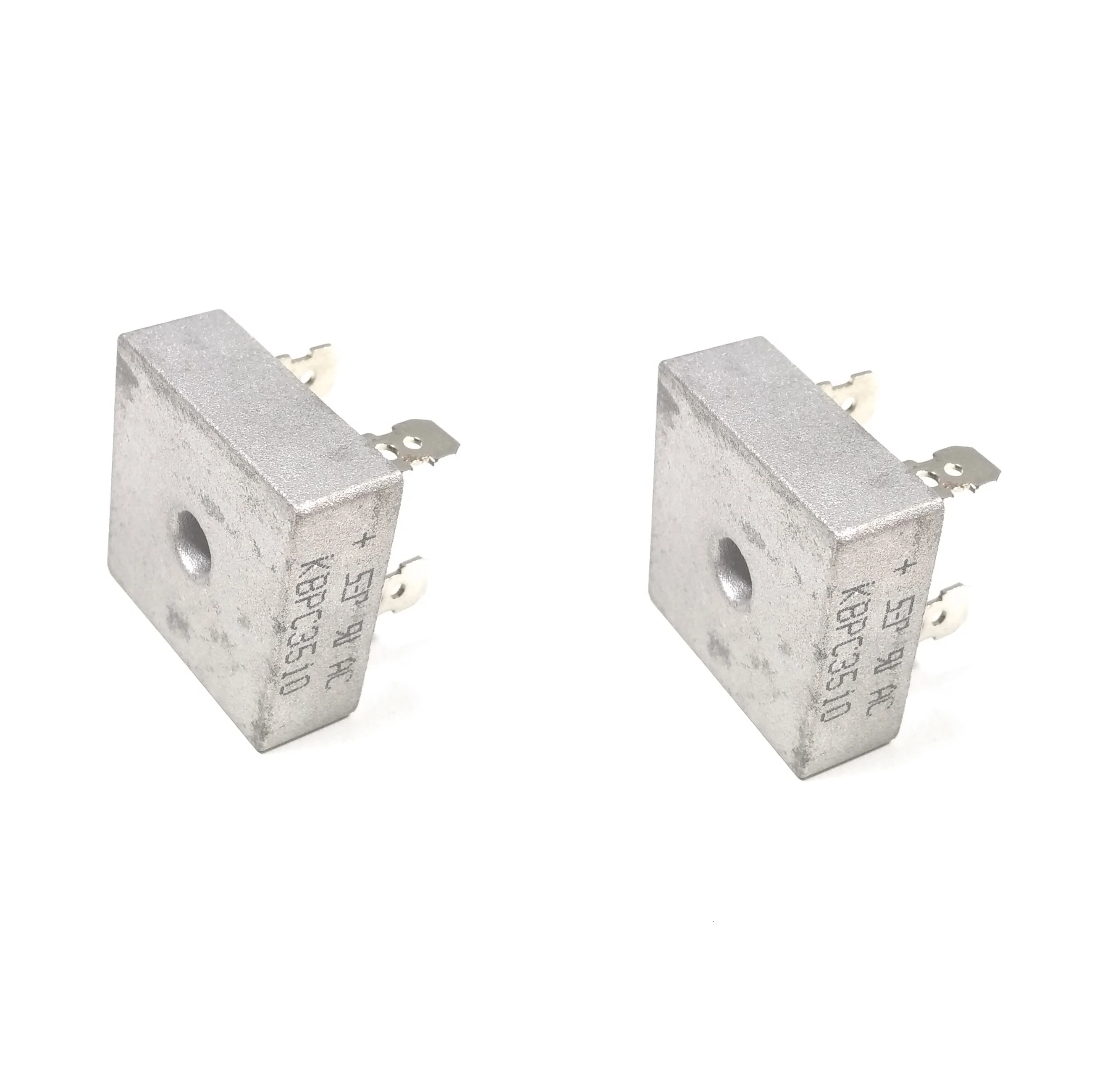

2 x KBPC3510 35A 1000V Bridge Diode Rectifier
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
