Description:
The BR1010 is a reliable and cost-effective single-phase full-wave bridge rectifier designed to convert AC input into DC output. With a peak reverse voltage of 1000V and a current rating of 10A, it is ideal for medium to high-power applications. Constructed using molded plastic techniques, this rectifier features a high transformer utilization factor and supports operation with or without a transformer. It efficiently conducts during both halves of the AC input cycle, making it a superior choice for rectification tasks.
Features:
High Peak Reverse Voltage: 1000V
Rated Average Forward Current: 10A
Molded plastic construction for durability and cost-effectiveness
Full-wave rectification from a 2-wire AC input
High Transformer Utilization Factor (TUF)
Supports operation with or without a transformer
Stable and reliable performance in a wide range of AC to DC applications
Gate control terminal for switching applications (acts as a bistable switch)
Product Specification:
Part Number: BR1010
Type: Single-Phase Full-Wave Bridge Rectifier
Peak Reverse Voltage (VRRM): 1000V
Forward Current (IO): 10A
Material: Molded Plastic Package
Configuration: 4-terminal bridge with labeled anode and cathode
Control Terminal: Gate (optional for switch control)
Mounting Style: Through-hole
Applications:
AC to DC power conversion
Power supply circuits
Radio signal demodulation
Welding power supplies
Switching and voltage control circuits
Package Includes:

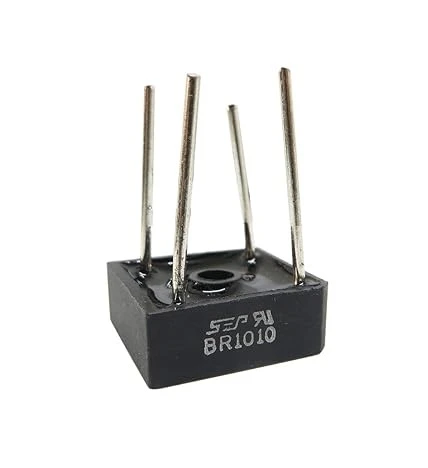

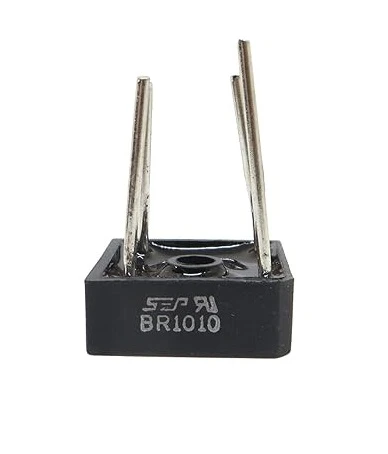

1 x BR1010 10A 1000V Bridge Rectifier
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
