Description:

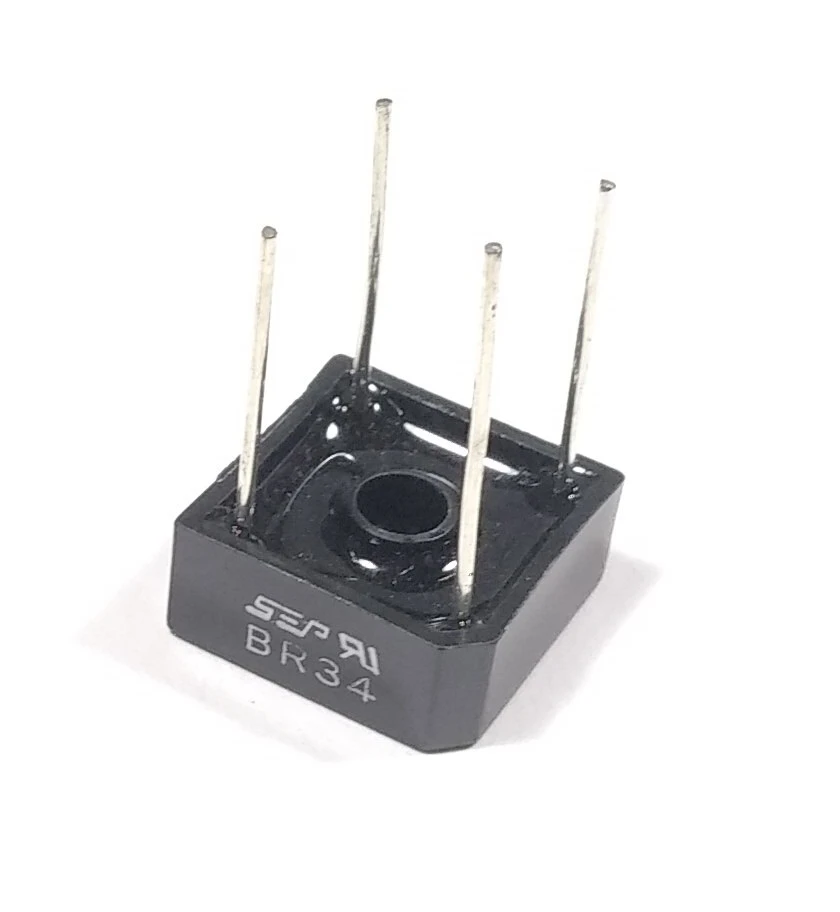

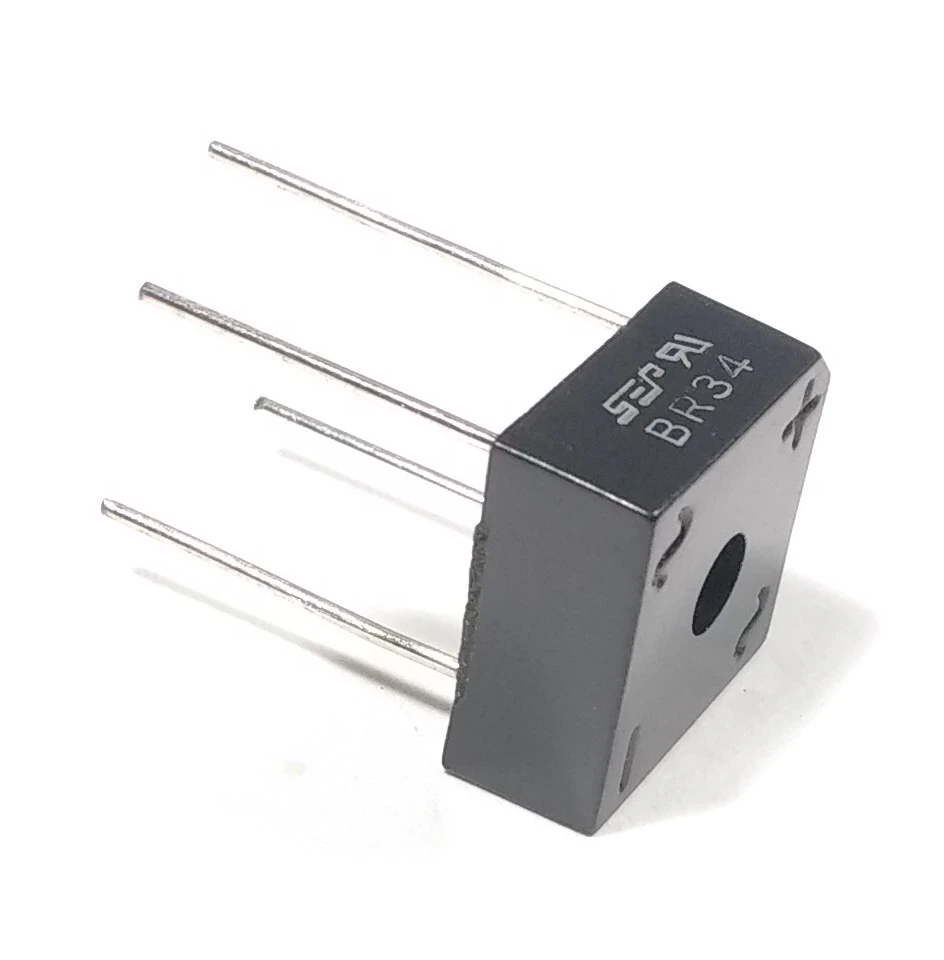

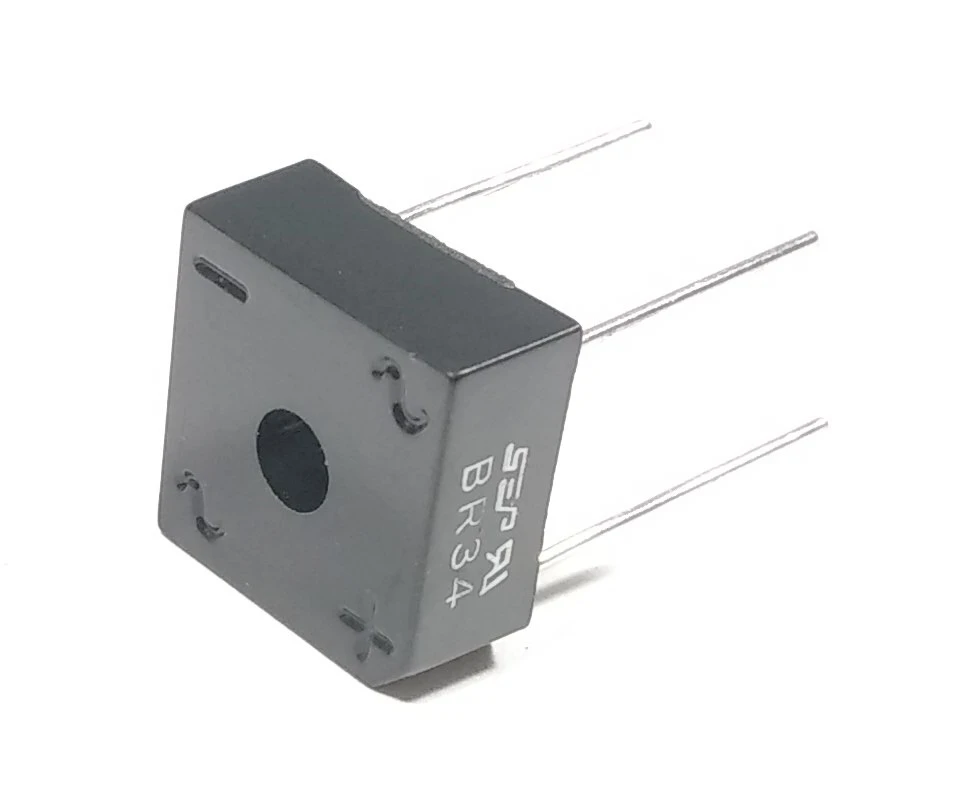

The BR34 is a compact and efficient single-phase bridge rectifier diode, designed for converting AC to DC in power supply applications. It offers a maximum reverse voltage of 400V and a continuous load current of 3A, making it suitable for low to moderate power electronics. With a square BR-34 case and through-hole mounting, it ensures reliable electrical connections and easy integration into various circuit boards.
Features:
Single-phase full-wave bridge rectifier
Compact square BR-34 case design
Maximum reverse voltage of 400V
Load current capacity of 3A
High surge current tolerance up to 50A
Through-hole mounting (THT) for robust mechanical support
0.9mm diameter leads for secure soldering
Product Specification:
Part Number: BR34
Component Type: Bridge Rectifier
Max. Reverse Voltage (V_RRM): 400V
Max. Forward Load Current (I_O): 3A
Max. Forward Surge Current (I_FSM): 50A
Package Type: BR-34 (square case)
Mounting Style: THT (Through-Hole Technology)
Lead Diameter: ≈ 0.9mm
Polarity Configuration: 4-terminal single-phase bridge
Applications:
AC to DC conversion circuits
Consumer electronics
Power adapters and chargers
Small motor and relay drive circuits
DIY and hobby electronic projects
Package Includes:

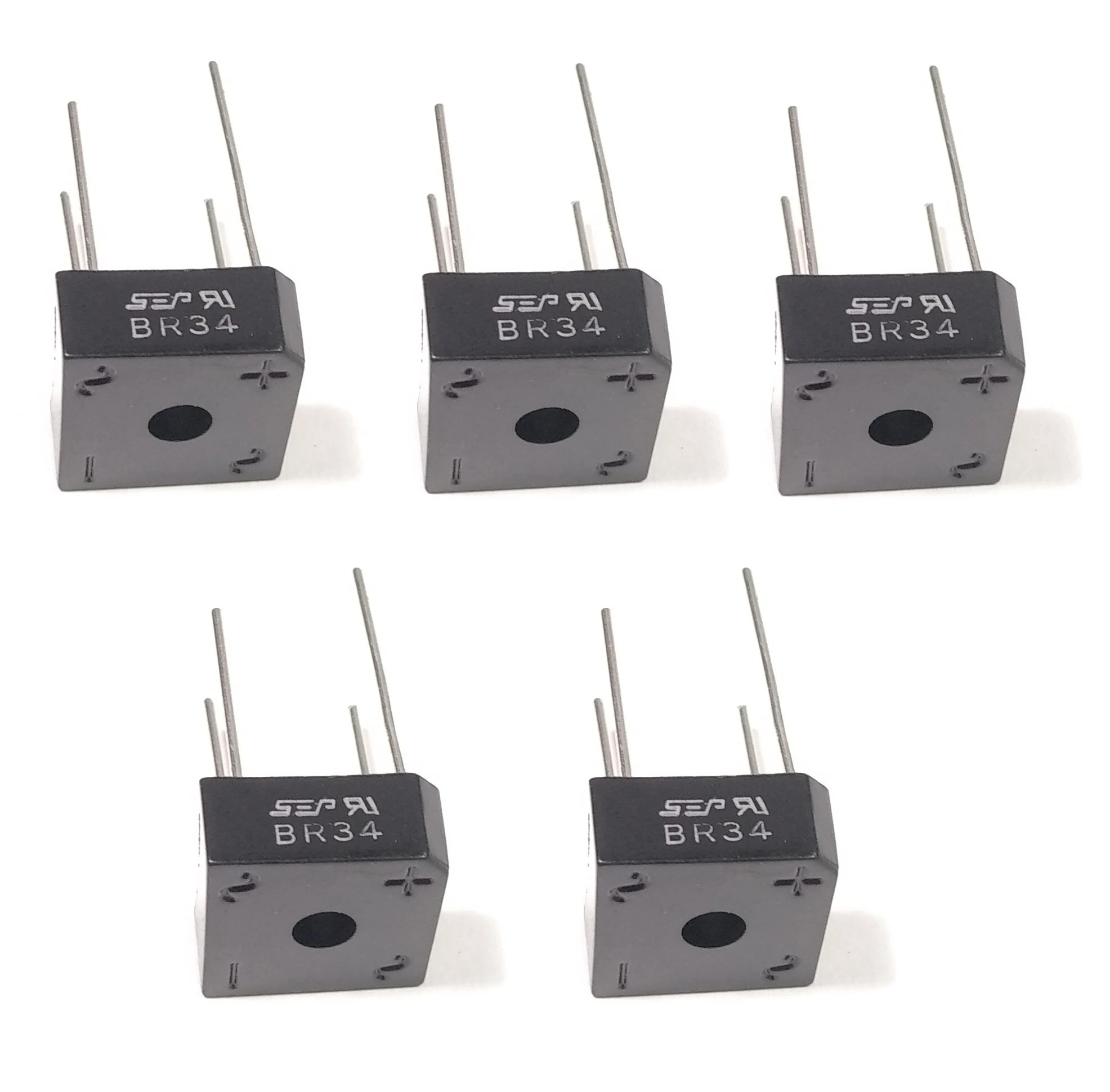

5 x BR34 Bridge Rectifier Diode
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
