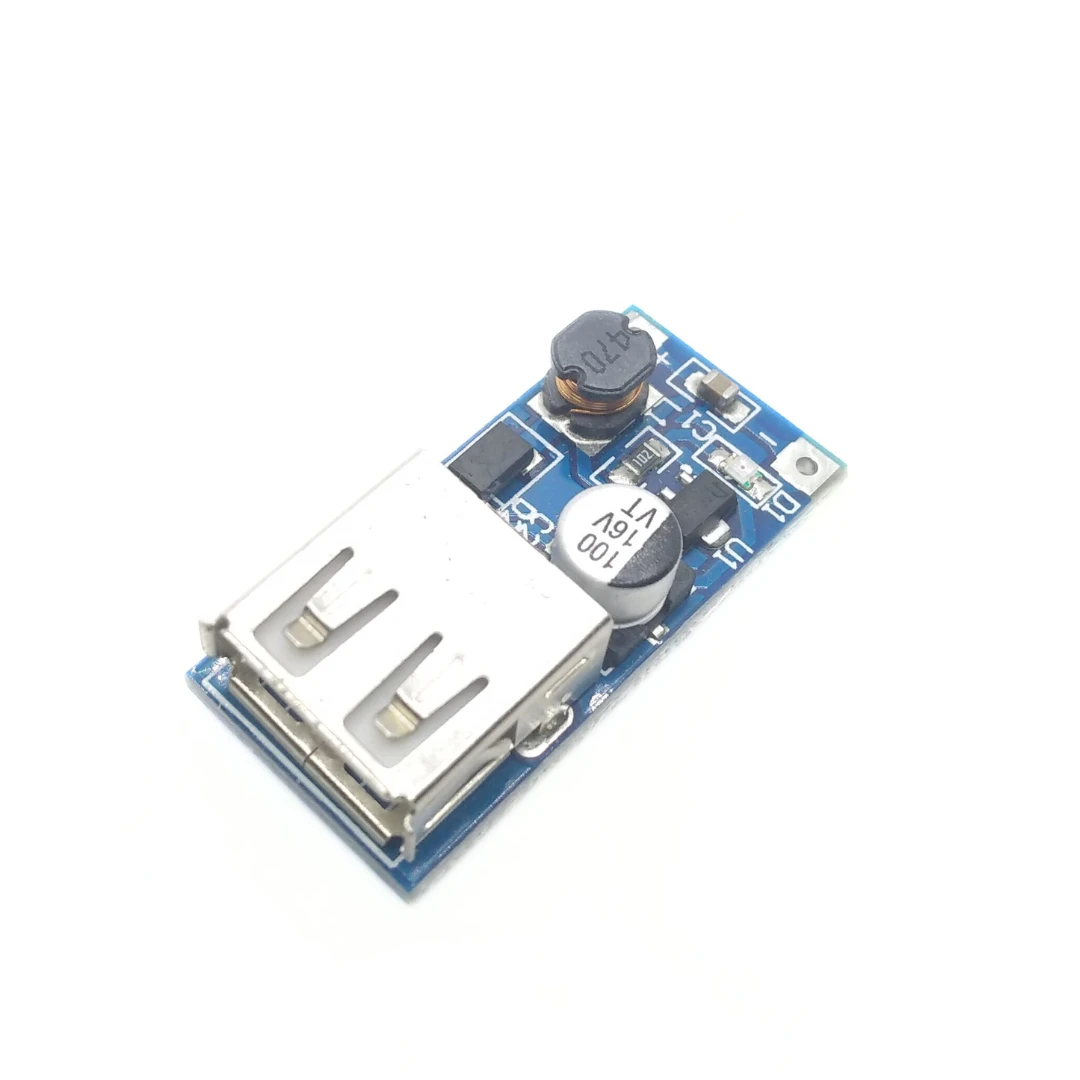

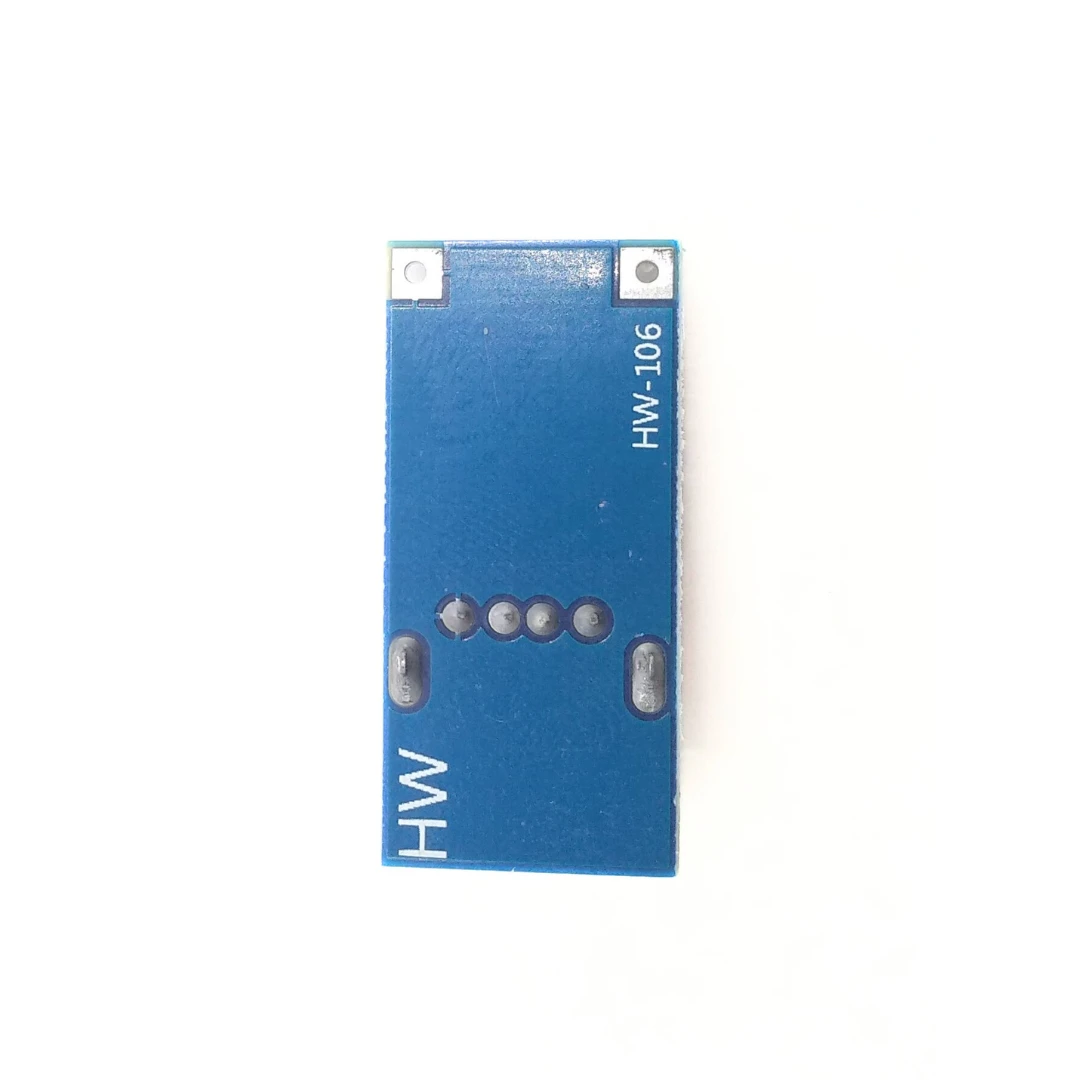

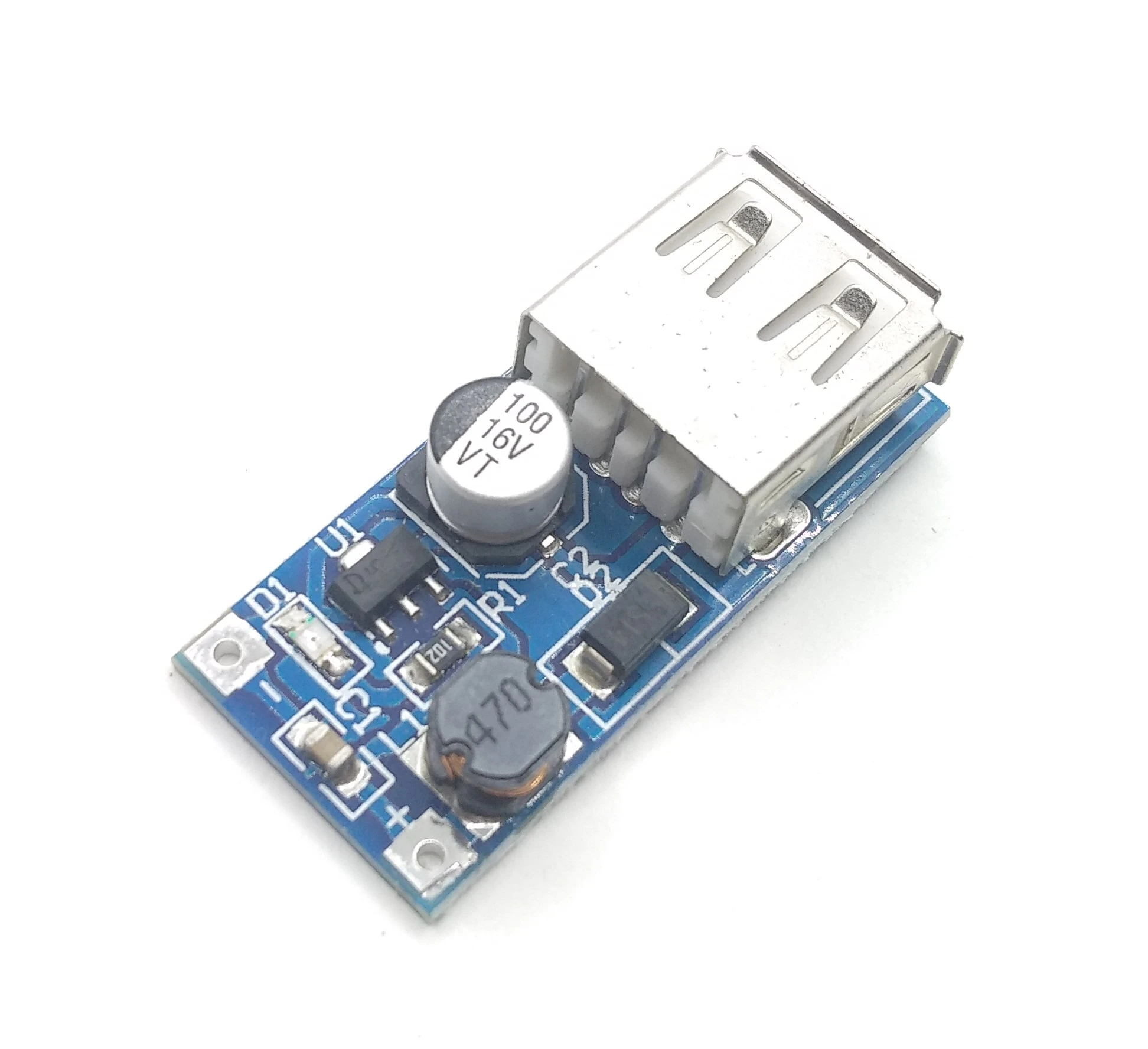

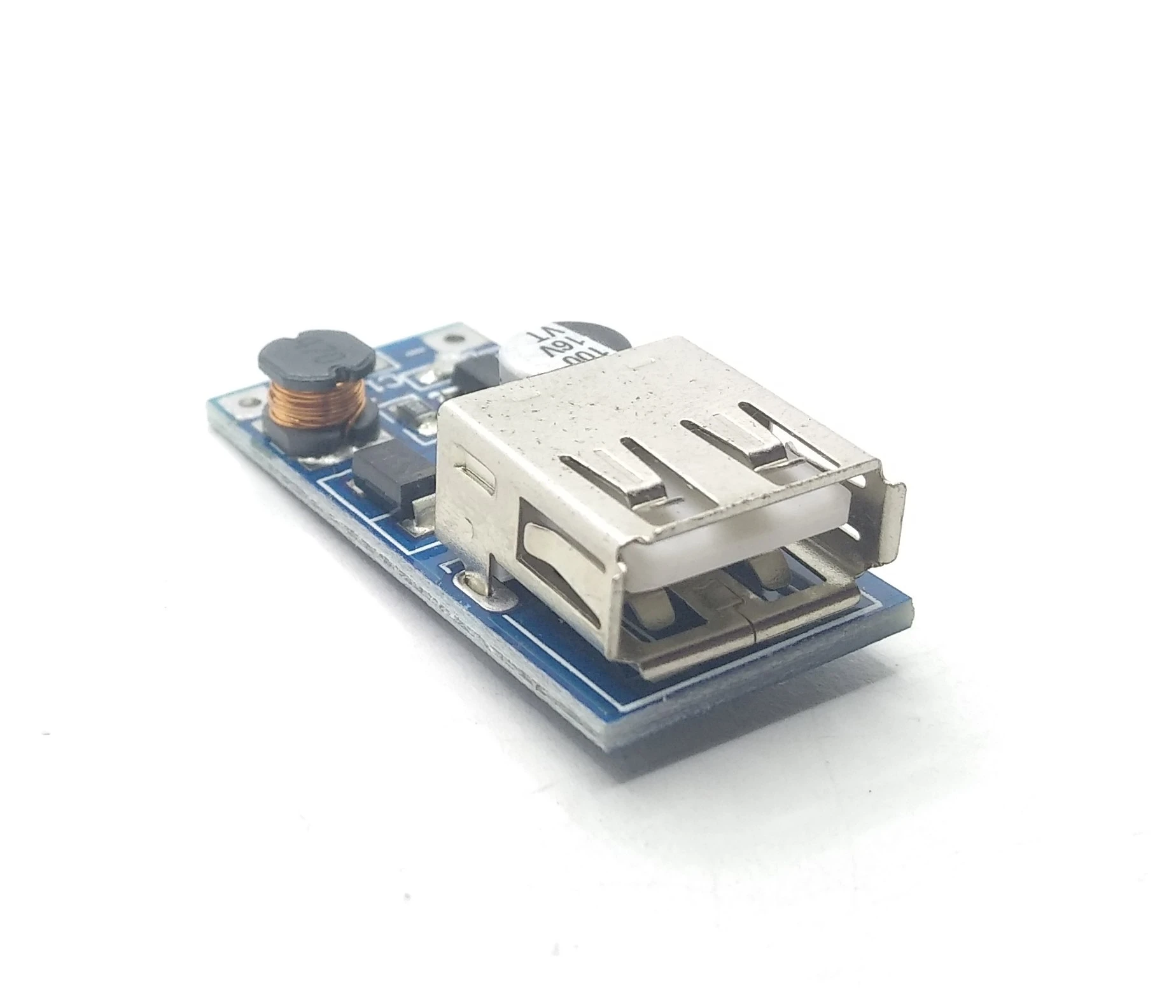

Description: The DC-DC Boost Module (0.9V~5V to 5V, 600mA USB Step-up Board) is a versatile and efficient step-up converter ideal for powering USB devices from low voltage batteries. It accepts input voltages as low as 0.9V and steps them up to a regulated 5V output, providing a current of 500-600mA. This module is great for portable charging applications, such as charging mobile phones, cameras, or MP3/MP4 players, using low-power batteries like AA or LiPo cells. It’s perfect for creating portable USB chargers or powering USB devices from low voltage sources.

Applications:

USB voltage regulator for USB-powered devices.
Supply 5V from low-voltage batteries for USB devices.
Charge mobile phones, MP4/MP3 players from AA batteries while traveling.
Portable power solutions for digital devices like cameras or single-chip electronics.

Specifications:

Input Voltage (V): 0.9-5V
Output Voltage (V): 5V
Output Current: 500-600mA
Load Regulation: 1%
Voltage Regulation: 0.5%
Switching Frequency (KHz): 500
Operating Temperature Range (°C): -40 to 85
Length (mm): 25
Width (mm): 18
Height (mm): 10
Weight (gm): 5

Features:

High-performance imported chip for superior performance.
Equipped with an indicator light.
USB female connector for easy integration into your project.
Supports a single AA battery with 200-300mA output and two AA batteries for up to 500-600mA output.
Operates from as low as 0.9V input, maximizing battery usage.
