Description:

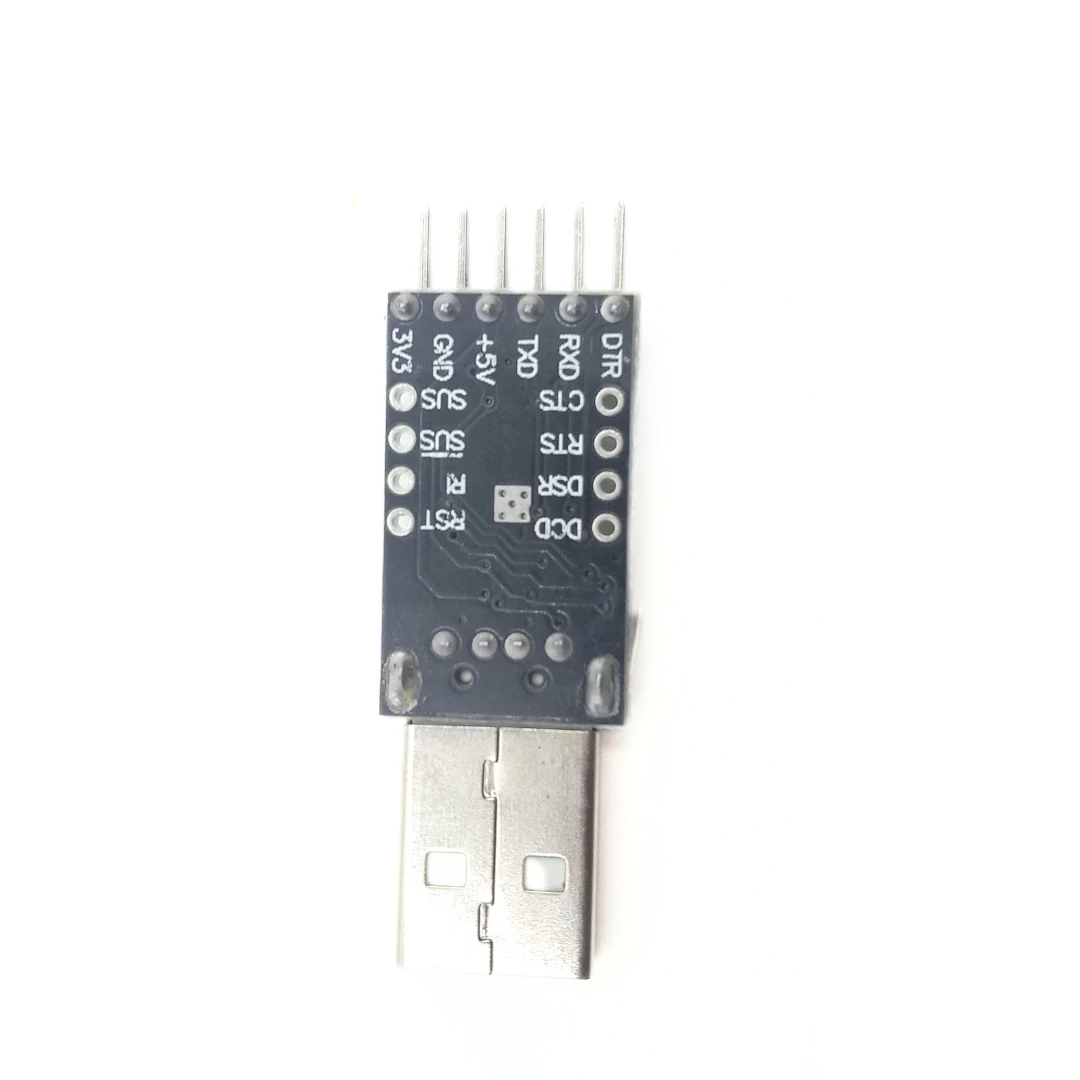

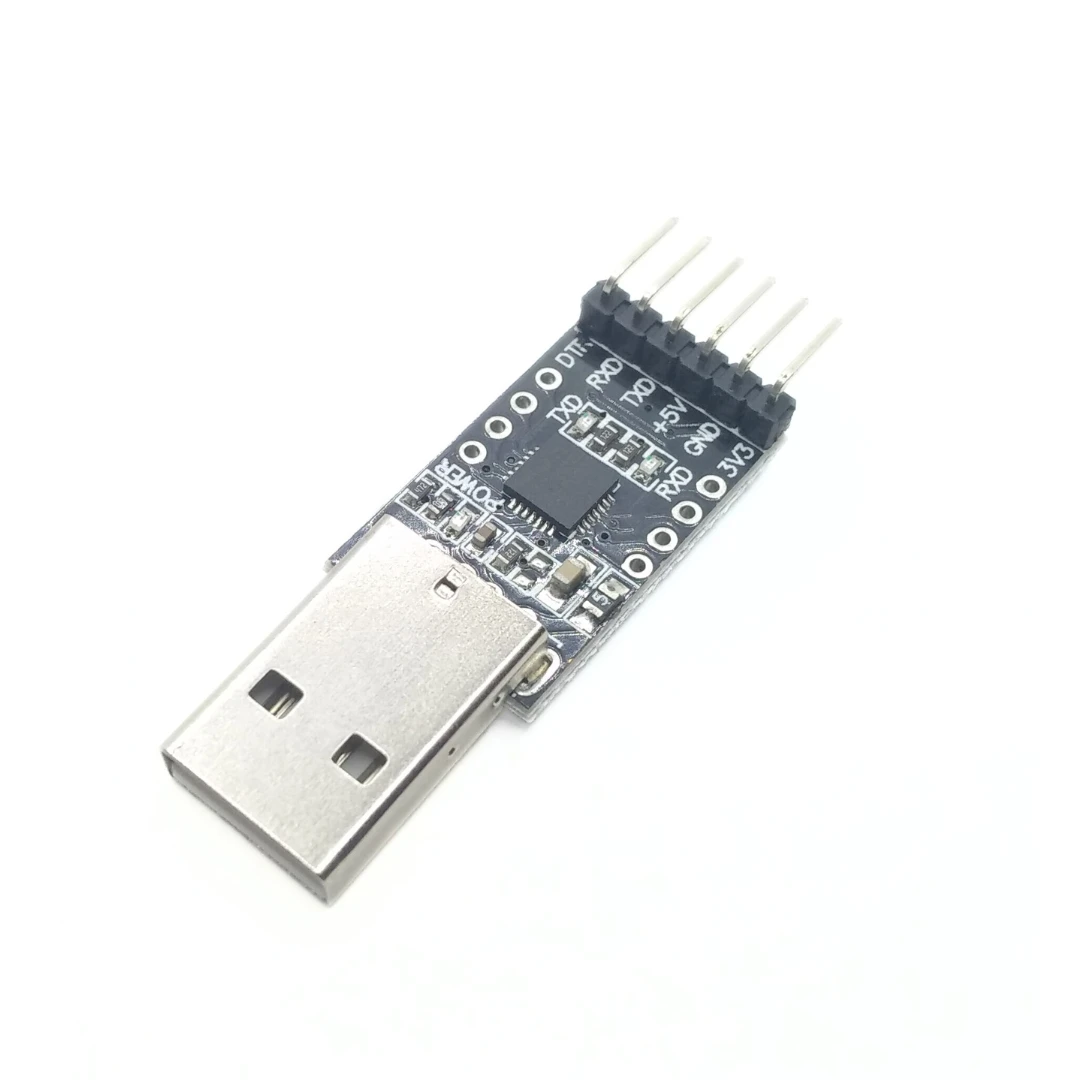

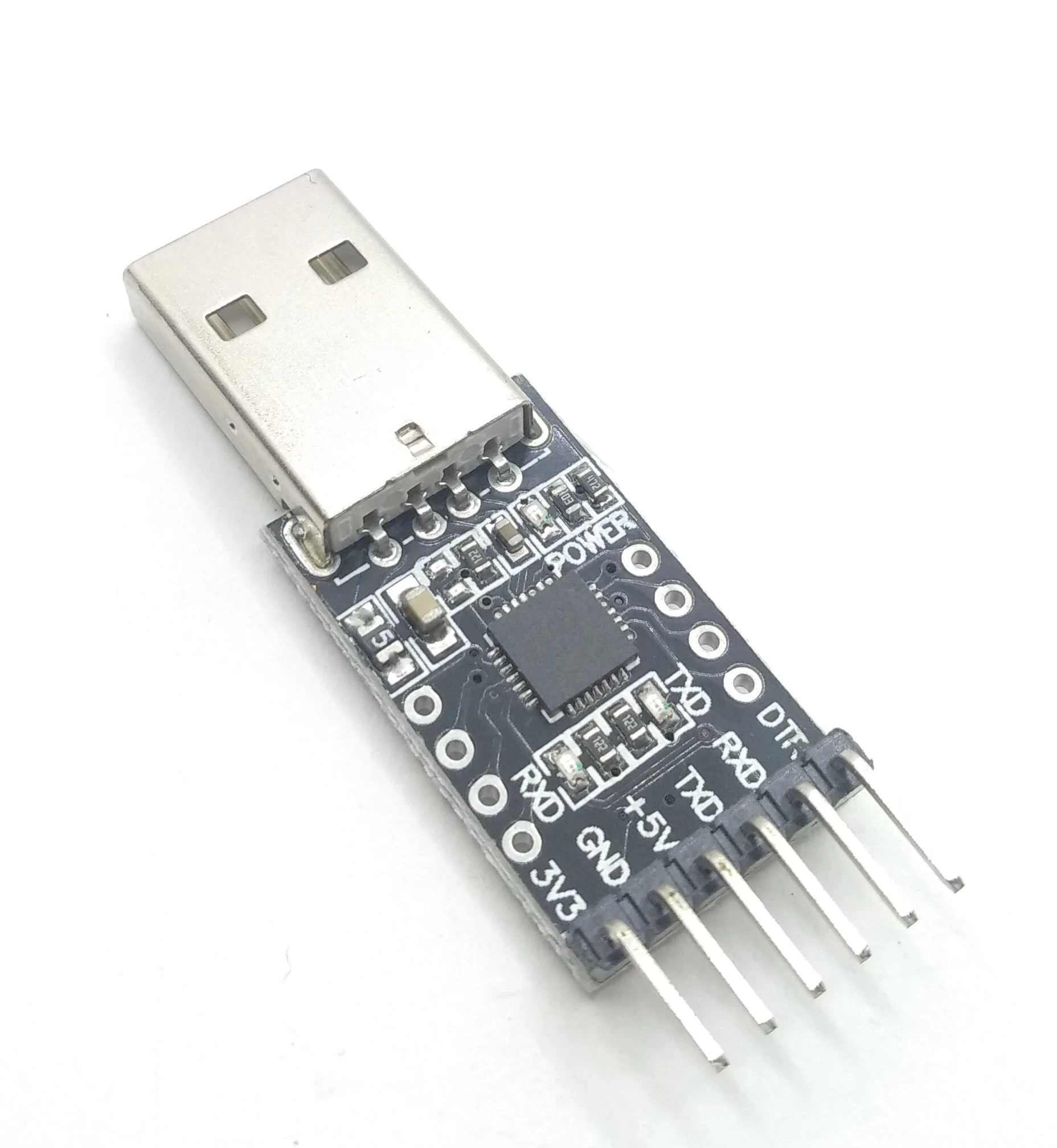

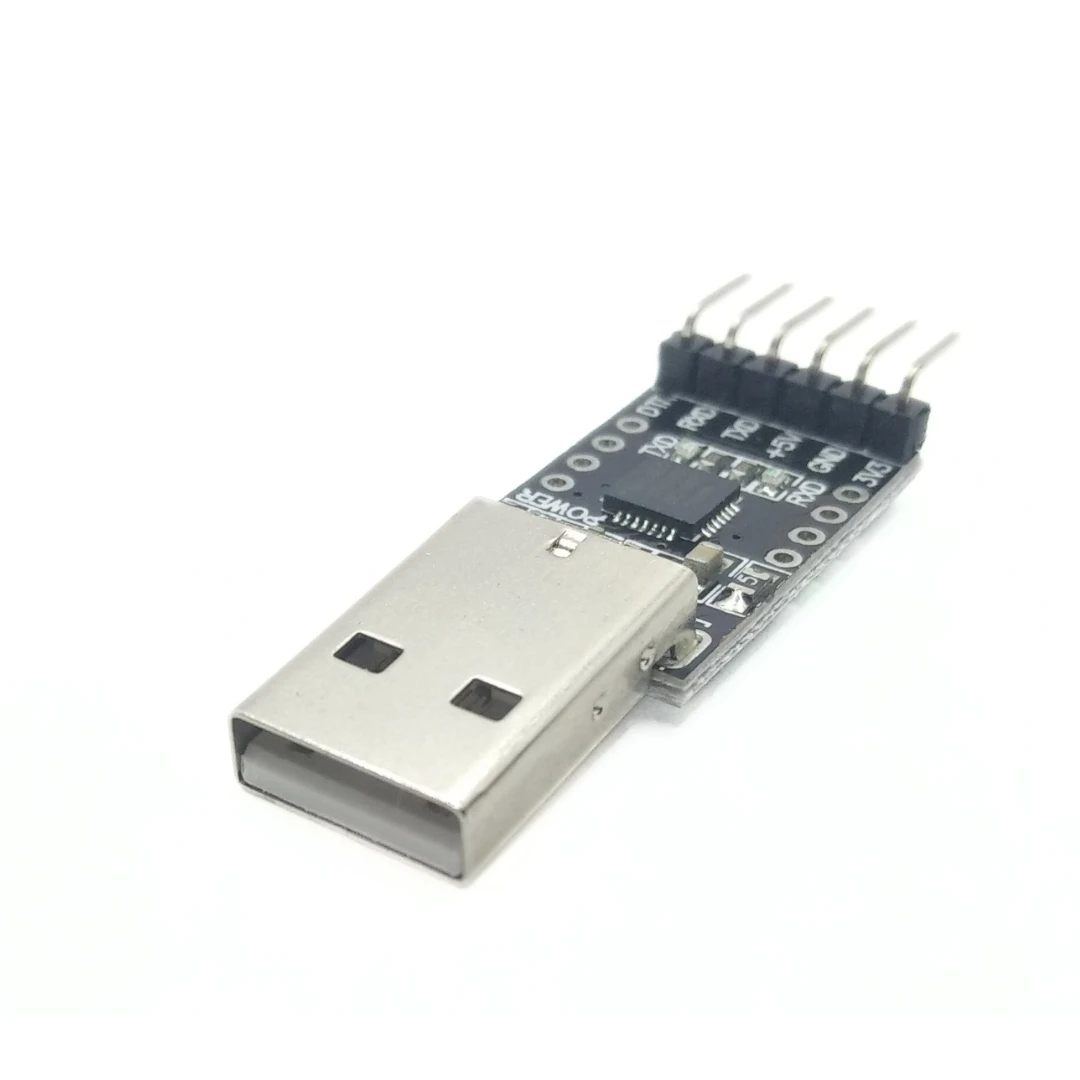

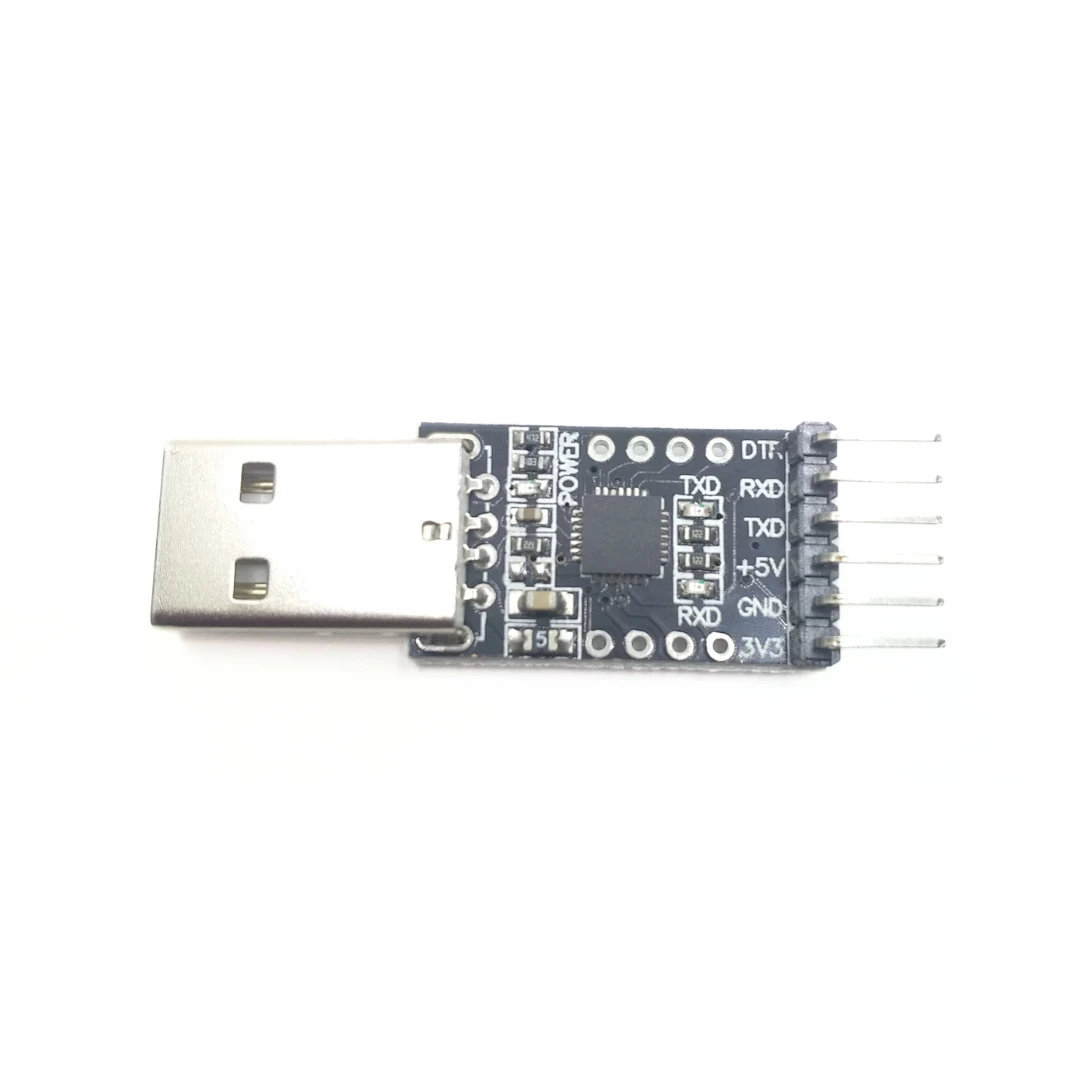

The CP2102(6-pin) USB 2.0 to TTL UART serial converter module is a compact and efficient solution for embedded systems that require a serial connection to a computer. This module easily connects to a USB port and appears as a standard COM port, making it a convenient tool for UART communication. It features an onboard voltage regulator and does not require an external oscillator. The module also utilizes a reprogrammable internal EEPROM for the device description, adding flexibility and ease of use.

The CP2102 module supports baud rates from 300bps to 921600bps, and provides full hardware UART with flow control. It’s designed for simple serial cable replacement by connecting the TX/RX pins of your microcontroller or serial device to the corresponding pins on the breakout.

Features:

• Brand new and high-quality USB to TTL serial converter module.

• No external oscillator required, with an onboard voltage regulator.

• Reprogrammable internal EEPROM for device description.

• Full hardware UART with flow control.

• Baud rate support from 300bps to 921600bps.

• 3.3V and 5V dual power output.

• Includes three LEDs: power indicator, data reception indicator, and data transmission indicator.

• Complies with USB 2.0 specification requirements.

• Supports USB suspend state with the SUSPEND pin.

• Built-in self-recovery fuse for protection against accidental short circuits.

• Reset signal output for direct Arduino board Promini download.

• Asynchronous serial data bus compatible with all handshake and modulation controller interface signals.

• Data format: 8 data bits, 1 stop bit, and optional parity bits.

• 512-byte receive buffer and 512-byte transmit buffer.

• Supports hardware handshaking or X-ON/X-OFF protocols.

Supported Operating Systems:

• Windows 98/Me/2000/7

• MAC OS-9

• MAC OS X

• Windows CE

• Linux 2.40 or later

Applications:

• Ideal for connecting microcontrollers or serial devices to a computer for communication.

• Suitable for embedded systems and DIY projects that require USB-to-serial communication.

• Can be used for Arduino board programming (e.g., Arduino Promini).

• Perfect for projects requiring UART communication at high baud rates.

Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
