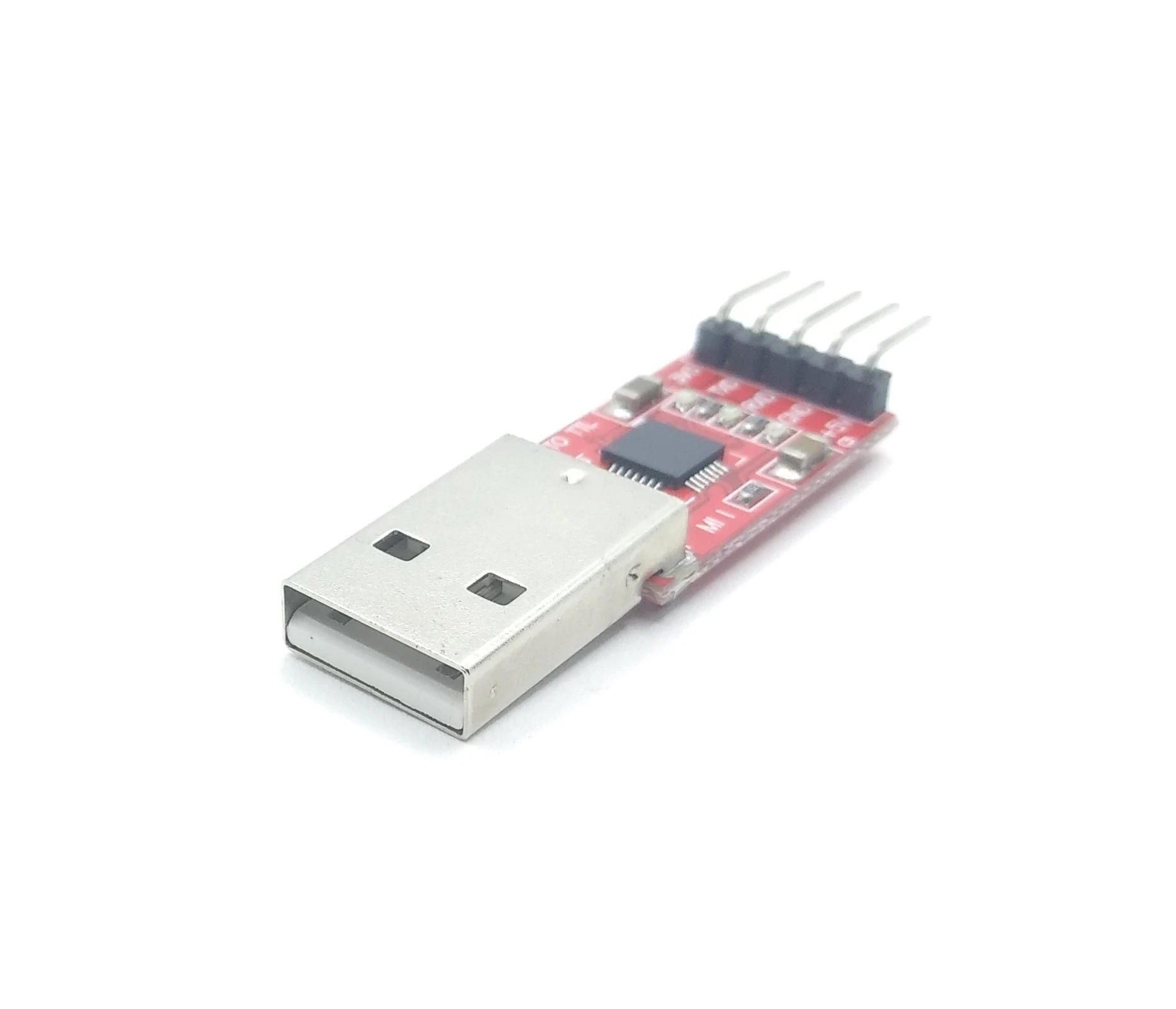

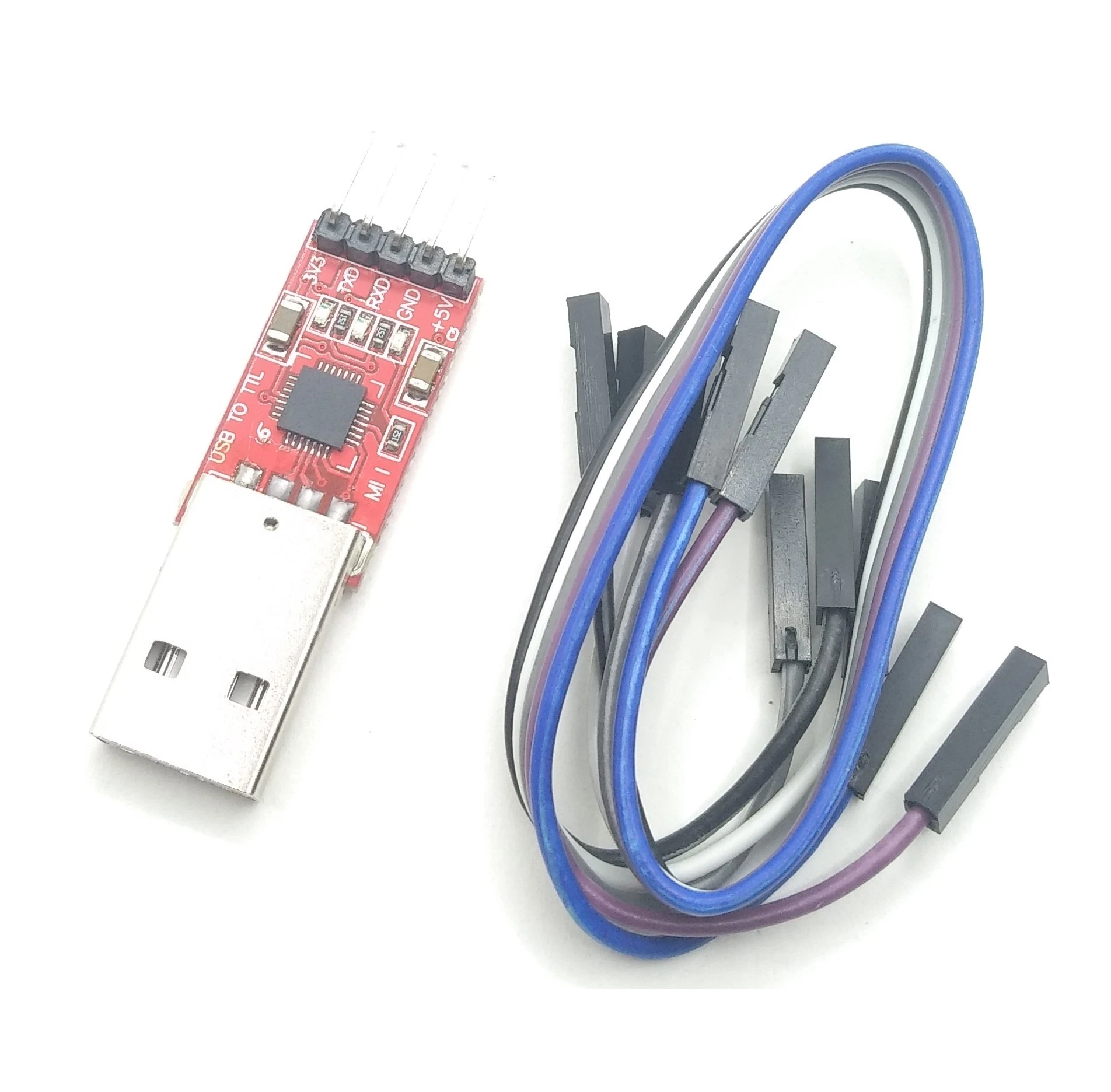

CP210 USB to TTL serial converter 5 pin

In Stock

SKU: 133118

CP210 USB to TTL serial converter 5 pin

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹155.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

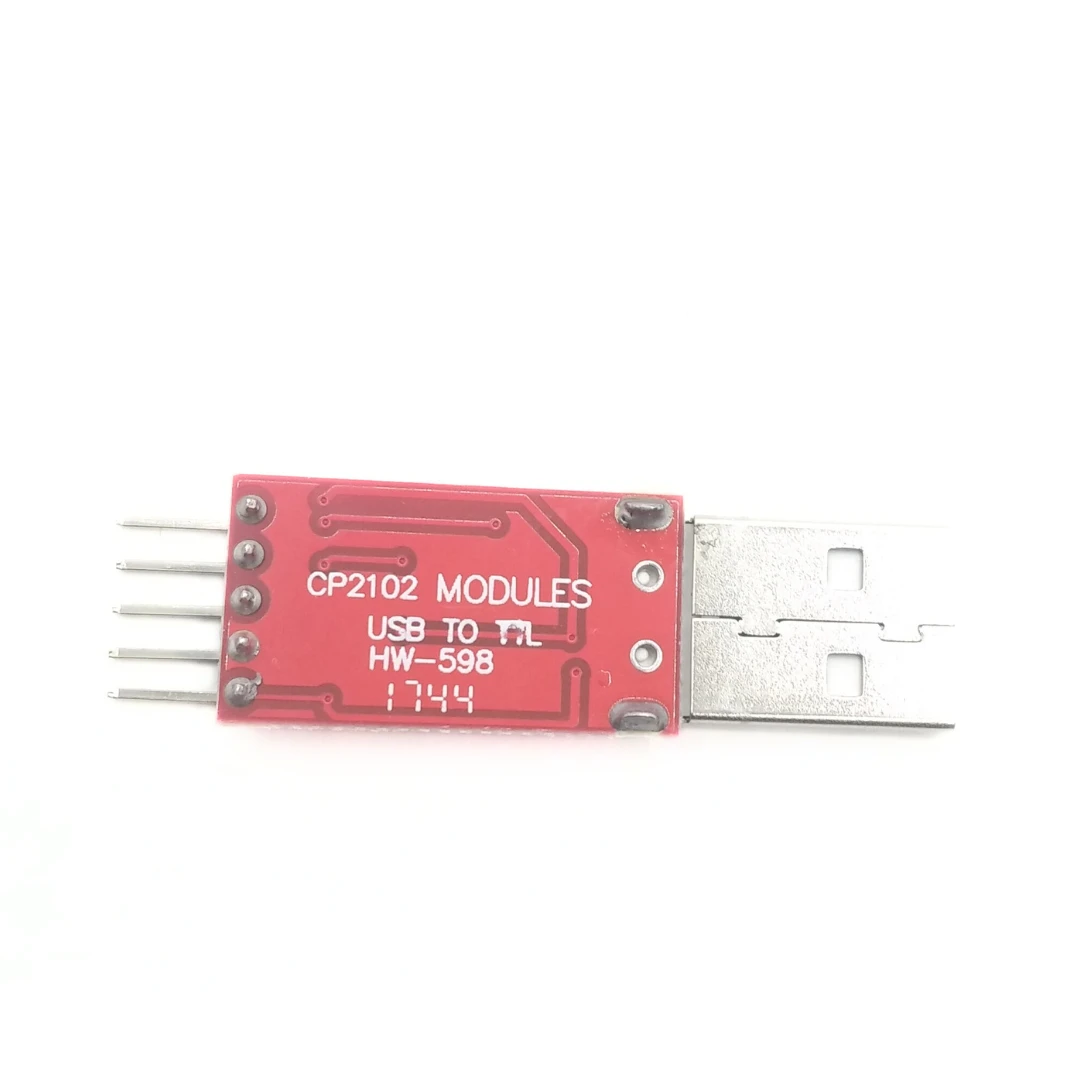

CP2102 chip is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB.

Features:-

Stable and reliable chipset CP2102.

USB specification 2.0 compliant with full-speed 12Mbps.

Standard USB type A male and TTL 6pin connector.

6pins for 3.3V, RST, TXD, RXD, GND & 5V.

Baud rates: 300 bps to 1.5 Mbps

Byte receive buffer; 640 byte transmit buffer.

Hardware or X-On/X-Off handshaking supported.

Event character support Line break transmission.

USB suspend states supported via SUSPEND pins.

Temperature Range: -40 to +85.

Size: 42mm X 15mm.

Weight: 4g

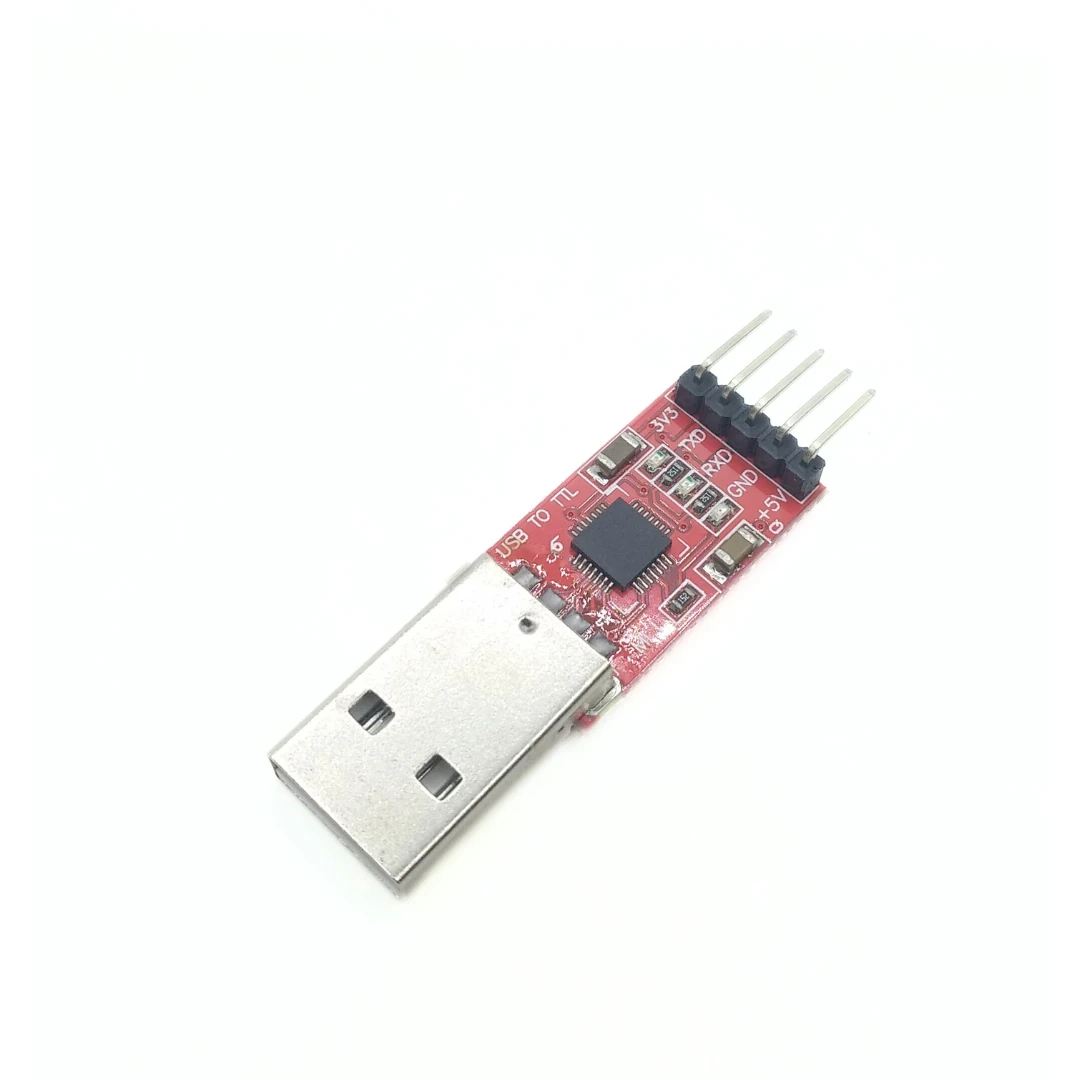

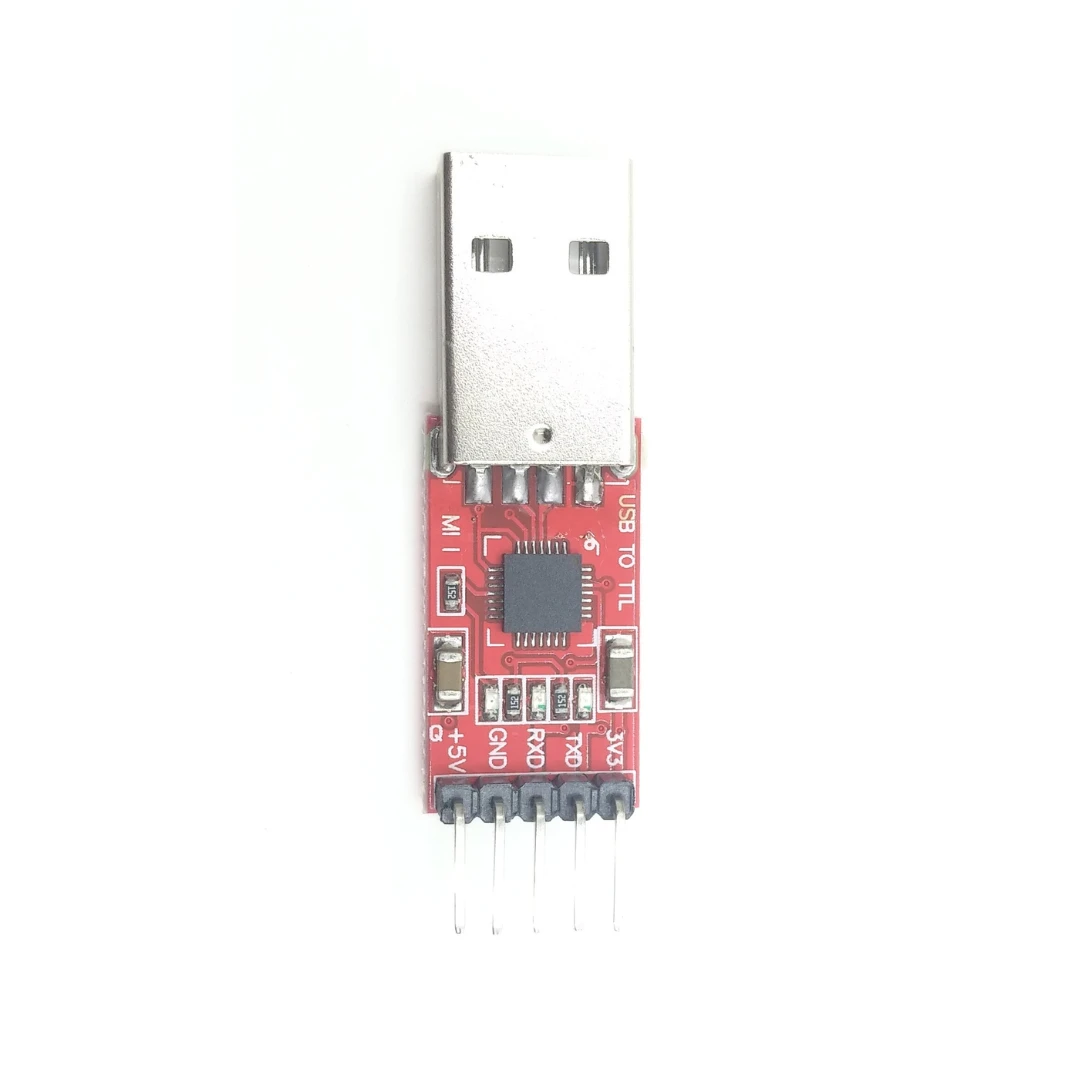

Pinouts:-

TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.

RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.

RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs

GND = Should be common to microcontroller ground.

3V3 = Optional output to power external circuit upto 50mA.

5V = Optional output to power external circuit upto 100mA
