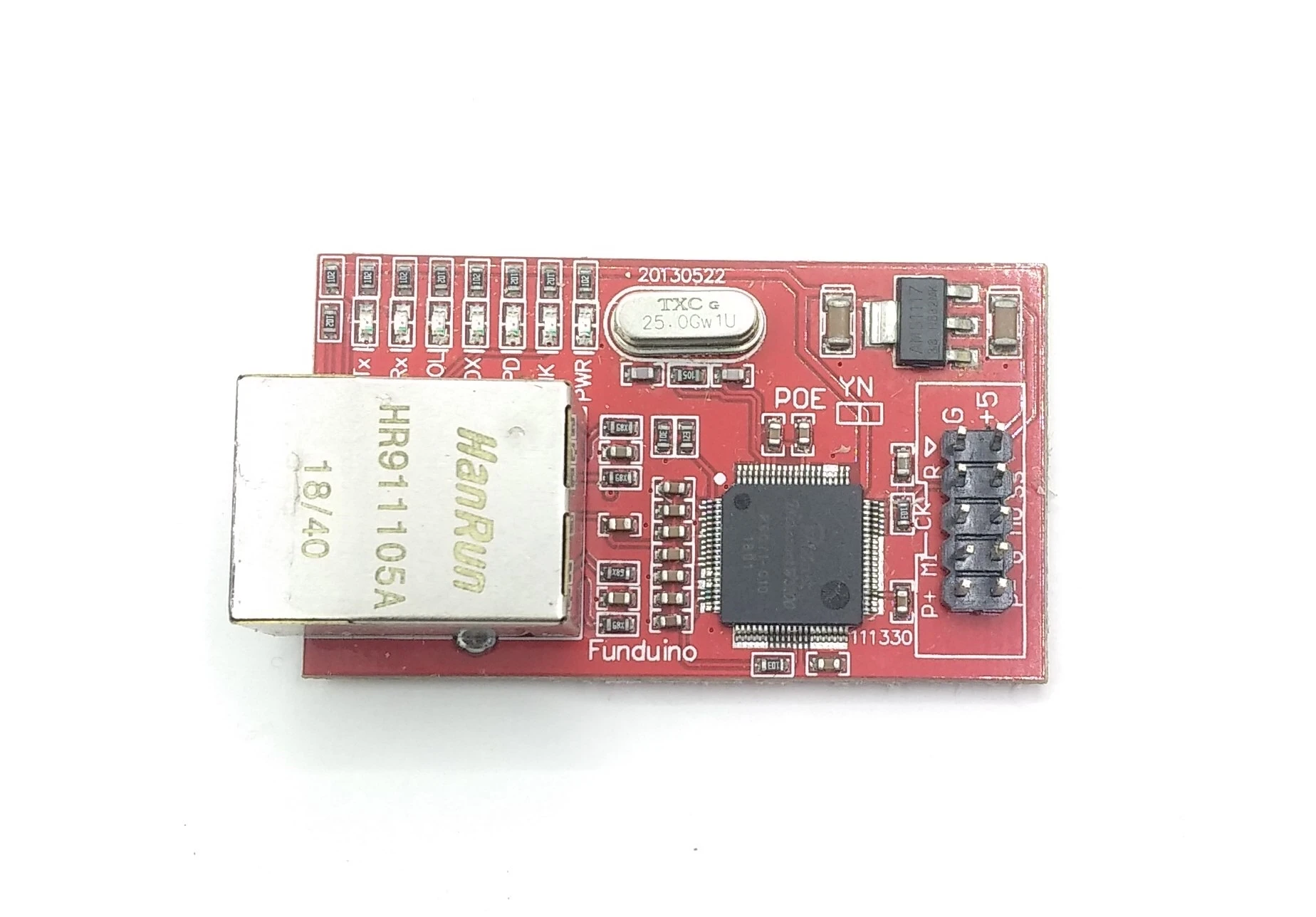

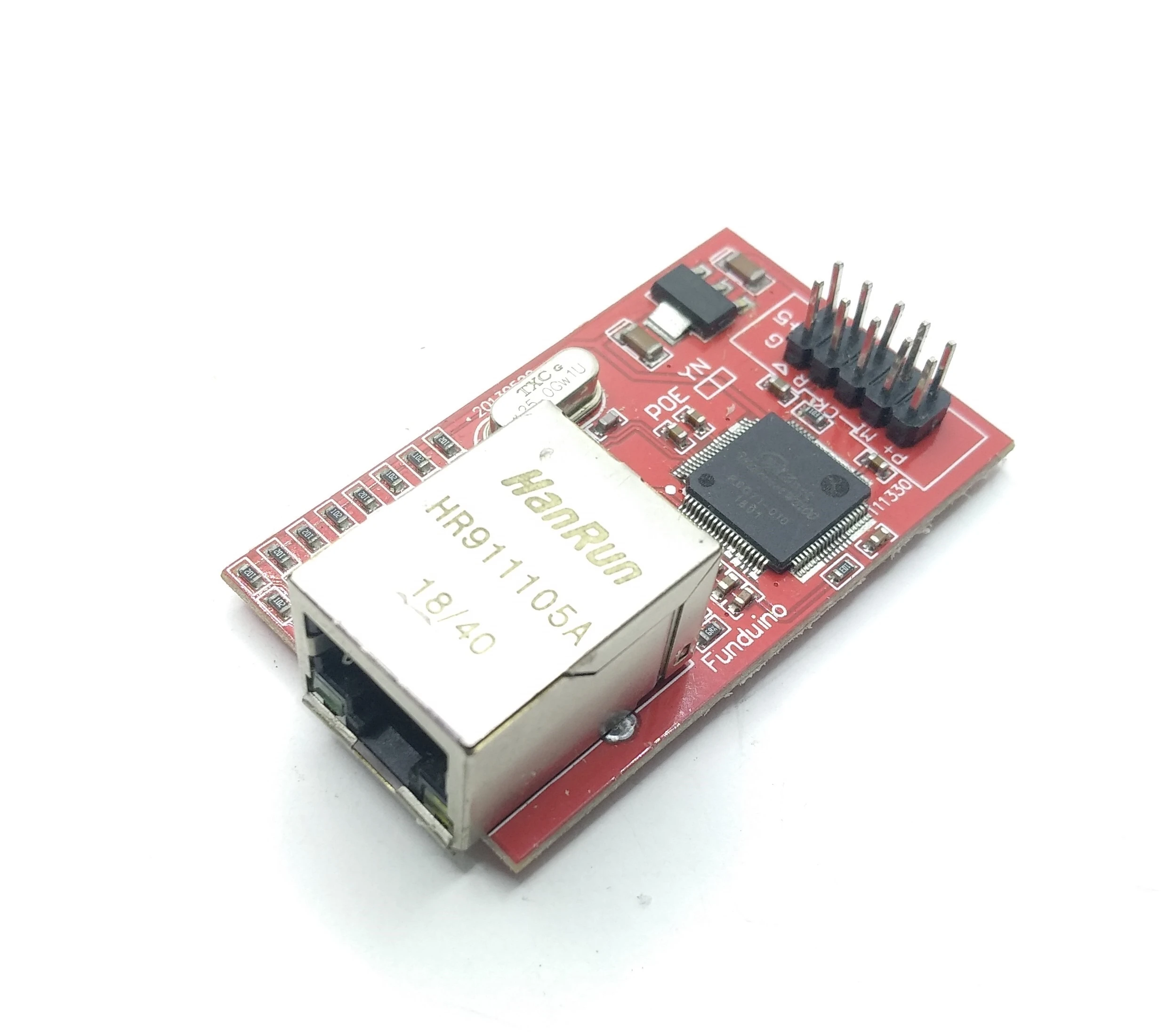

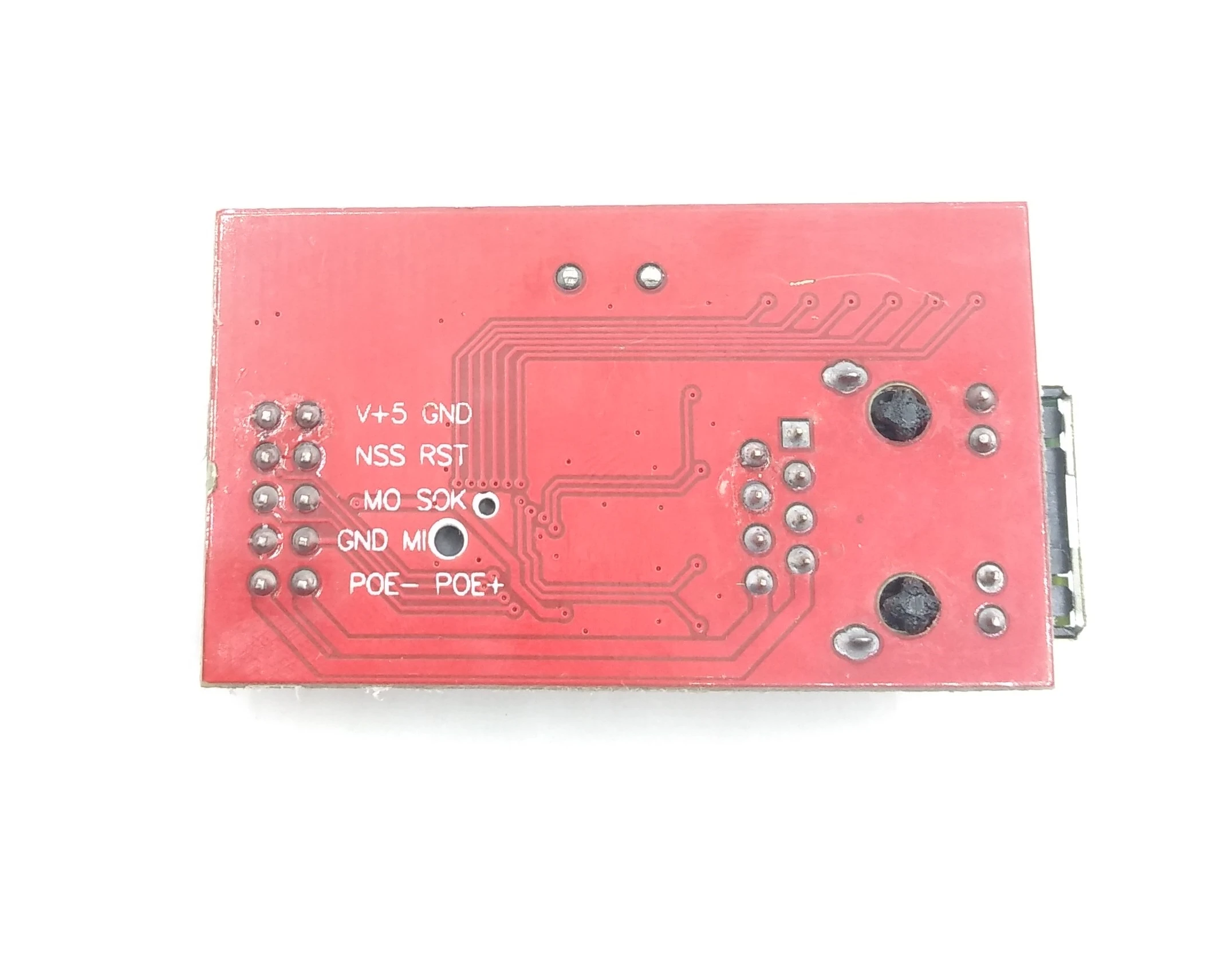

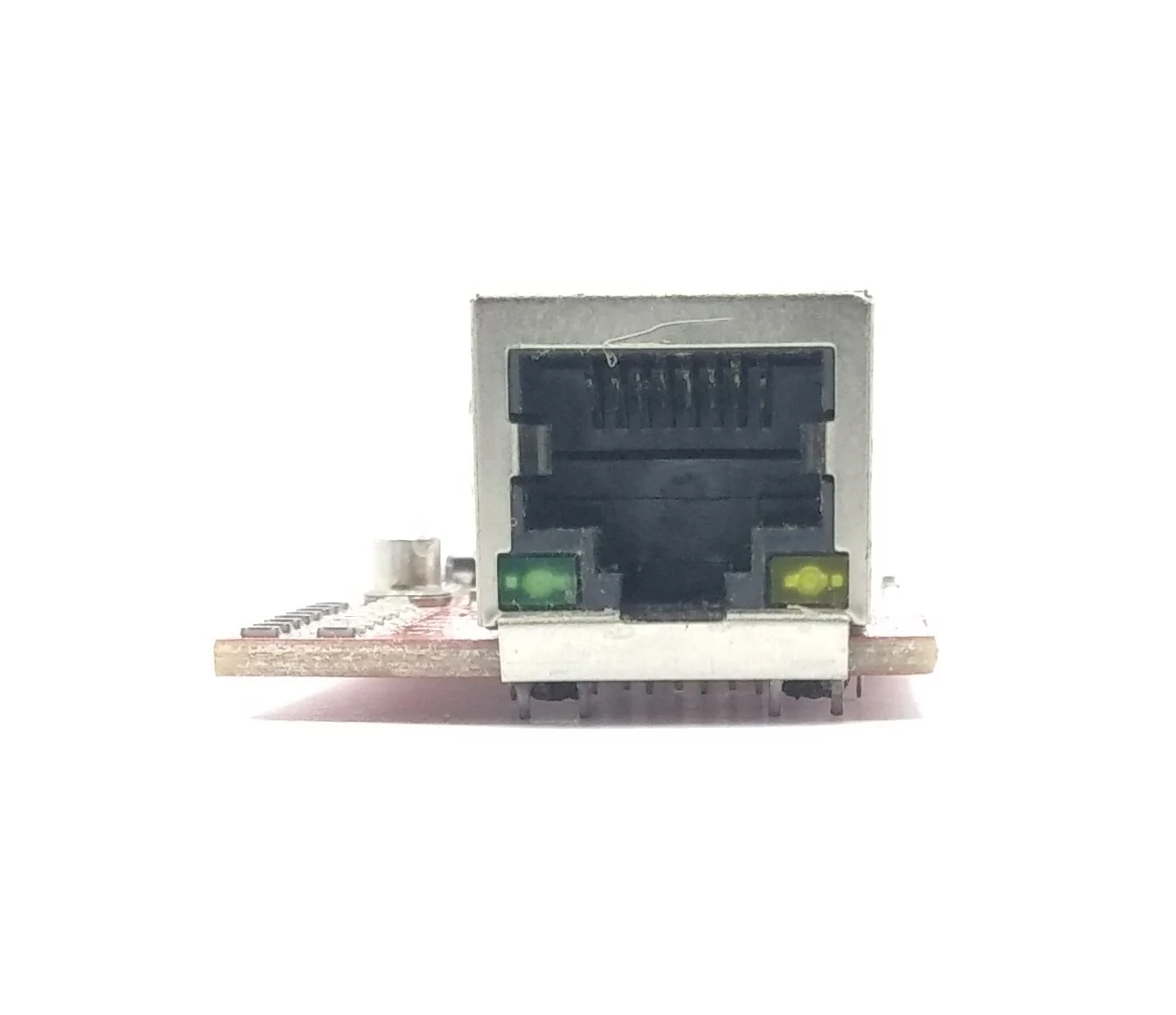

The W5100 Ethernet Module is a versatile and cost-effective solution for embedding network connectivity into your projects. It features a highly integrated 10/100 Ethernet controller, perfect for use in embedded systems requiring stable, high-performance networking capabilities. The module supports multiple bus interfaces and is compatible with various signal voltages, making it ideal for diverse applications.
Features:
Supports hardware TCP/IP protocol
Supports TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE
Compatible with SPI, direct, and indirect bus interfaces
Up to 4 independent ports with 16KBYTE internal transceiver buffer
3.3V power supply with 5V IO signal compatibility
Comes with dual-row 2x14 2.0mm pins for easy connection
Product Specifications:
Material: ABS
Support Protocols: TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE
Size: Approx. 51.6 x 29.8mm / 2 x 1.2in
Power Supply: 3.3V
Pin Interface: Dual row 2x14 2.0mm pins
Applications:
Network-enabled embedded systems
IoT (Internet of Things) projects requiring Ethernet connectivity
Prototyping with microcontrollers that need Ethernet communication
Home automation and smart devices
Industrial control systems
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
