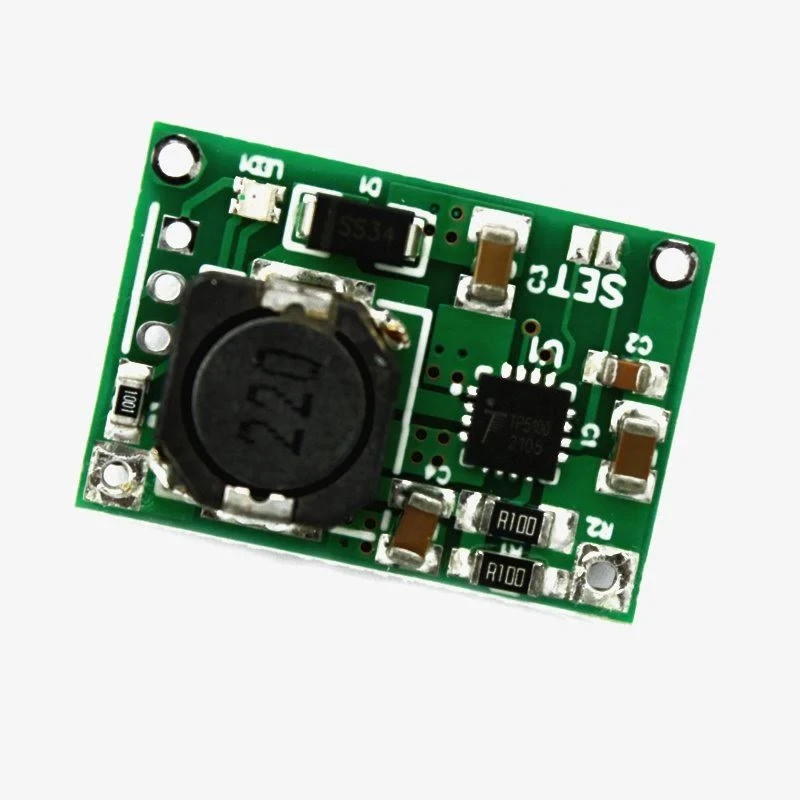

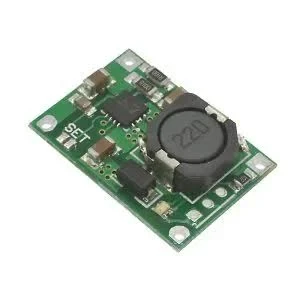

TP5100 Charging Module

(0) | 0 Reviews | 3 Orders | 0 Wish Listed

₹50.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The TP5100 Charging Module is a high-efficiency switching charger designed for both single-cell (1S) and two-cell (2S) lithium-ion or lithium-polymer batteries. It provides fast and stable charging with low heat generation, making it suitable for robotics, DIY battery packs, and portable power systems.

Specifications:

Charging IC: TP5100
Battery Type: 1S (3.7V) or 2S (7.4V) Li-Ion / Li-Po
Input Voltage: 5V – 18V DC
Charging Voltage: 4.2V (1S) / 8.4V (2S)
Charge Current: 0.1A – 2A (adjustable)
Charging Method: CC/CV (Constant Current / Constant Voltage)
Efficiency: High (switch-mode design)
Indicators: LED (Charging / Full)

Features:

Supports both 1-cell and 2-cell battery charging
High charging current up to ~2A
Low heat due to switching regulator design
Wide input voltage range
LED indicators for charging status
Compact and easy to integrate

Applications:

18650 battery charging (1S / 2S packs)
Robotics and Arduino projects
Portable battery systems
DIY electronics and embedded systems

Pin Configuration:

IN+ / IN– → Input power supply
B+ / B– → Battery connection
SET pads → Mode selection (1S / 2S)

Package Includes:

1 × TP5100 Charging Module

Disclaimer:
No warranty. No guarantee. No return. No replacement.
