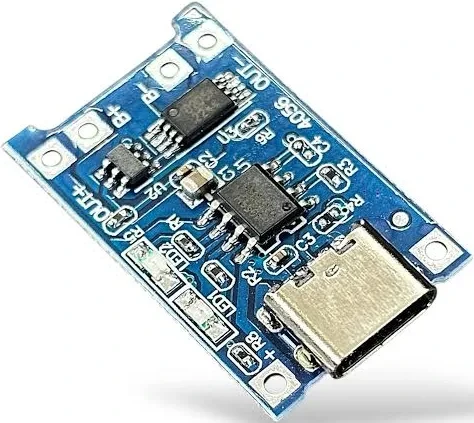

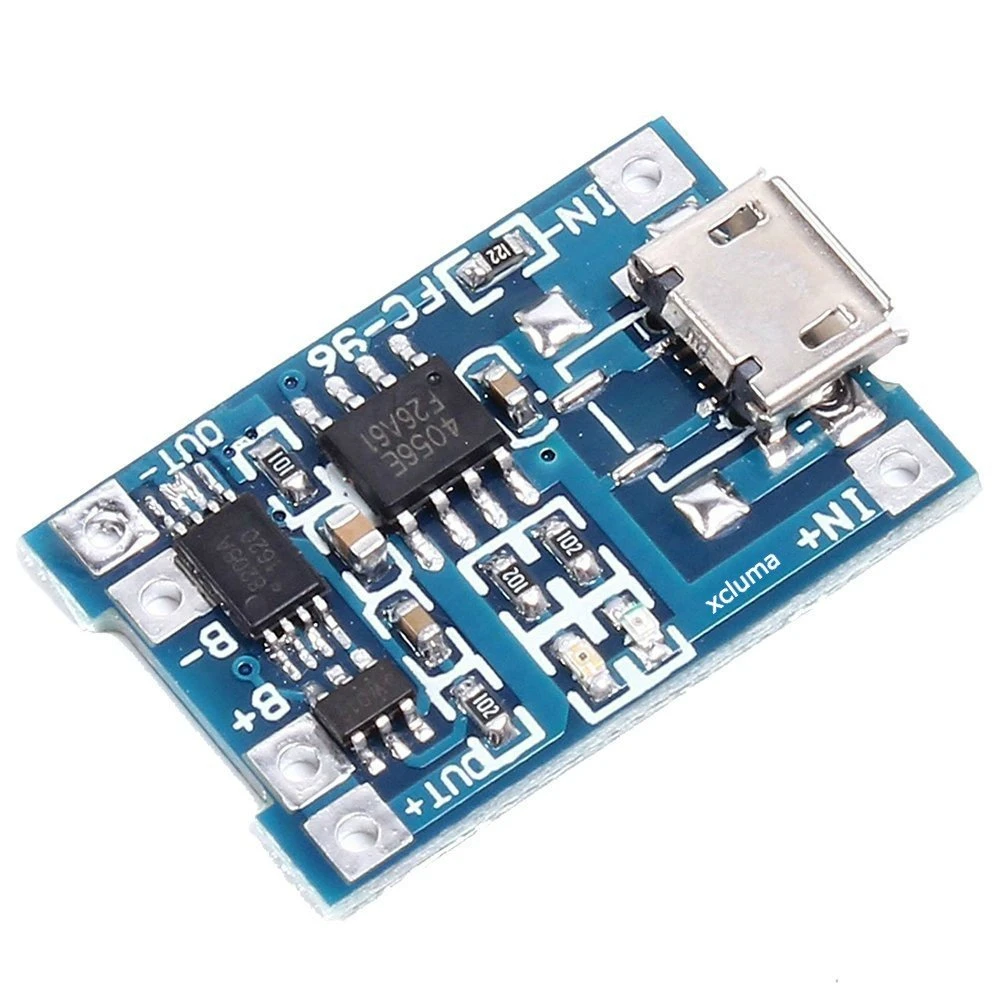

TP4056 Charging Module

In Stock

SKU: R3-D-15

TP4056 Charging Module

(0) | 0 Reviews | 22 Orders | 0 Wish Listed

₹40.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The TP4056 Charging Module is a compact and reliable solution for charging single-cell 3.7V lithium-ion or lithium-polymer batteries. It uses a constant current/constant voltage (CC/CV) charging method and is widely used in DIY electronics, power banks, and embedded systems. The module includes LED indicators for real-time charging status and is available in versions with or without battery protection.

Specifications:

Charging IC: TP4056
Battery Type: 1 × 3.7V Li-Ion / Li-Po Cell
Input Voltage: 5V DC (Micro USB / Type-C, varies by model)
Charging Voltage: 4.2V ±1%
Charge Current: Up to 1A (adjustable via resistor)
Charging Method: CC/CV (Constant Current / Constant Voltage)
Indicators: Red LED (Charging), Blue/Green LED (Fully Charged)
Protection: Available in versions with overcharge, over-discharge, and short-circuit protection

Features:
