Single turn Trimming Potentiometer/trimpot

Overview
Reviews

Description:

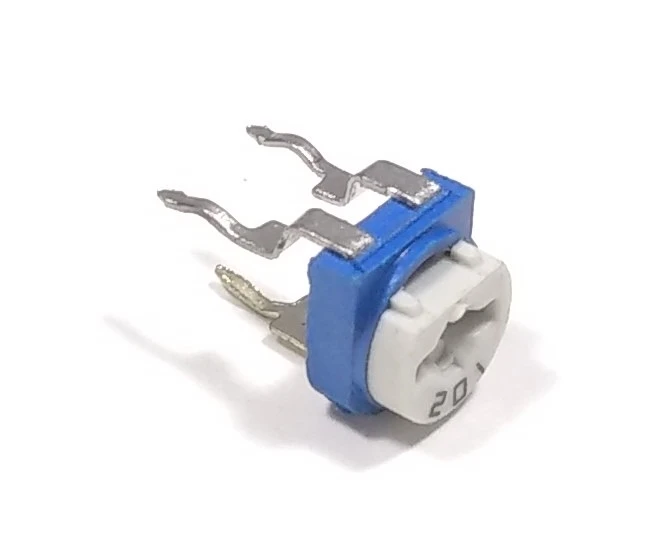

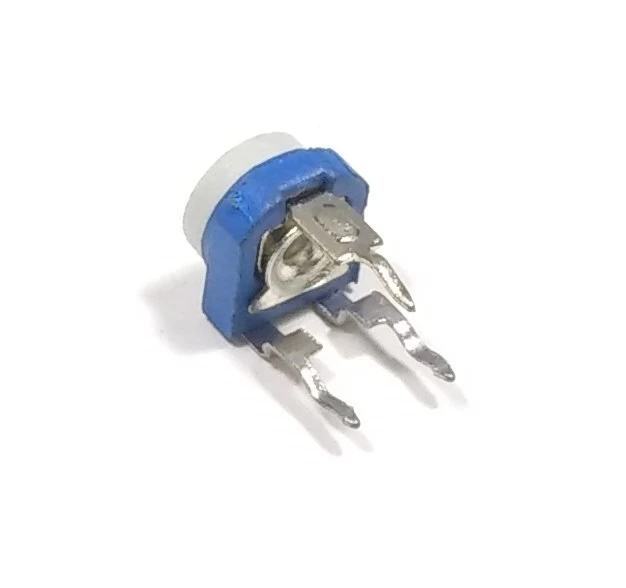

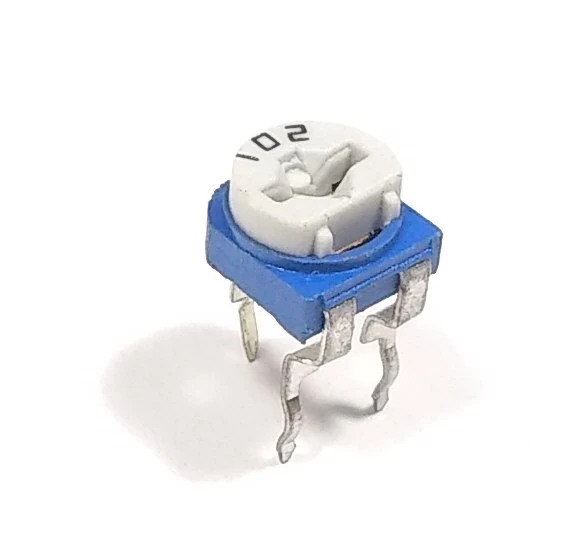

The Single Turn Trimming Potentiometer (also known as a trimpot) is a small, adjustable resistor used for fine-tuning and calibrating electrical circuits. It provides precise control of resistance and is commonly used for adjusting the output of circuits such as voltage references, amplifiers, and oscillators. This potentiometer features a single turn design with a rotational angle of 200° ±20°, allowing for accurate adjustments with a rotational torque of 30~350 g.cm.

The trimpot comes with a wide resistance range and offers easy adjustment to suit various application needs, with a standard resistance tolerance of ±30%. Its compact size makes it ideal for precise circuit adjustments, particularly in low-power applications.

Key Specifications:

Standard Resistance Range: 100Ω - 2MΩ
Resistance Tolerance: ±30%
Operating Voltage: 50V Max
Rotational Angle: 200° ±20°
Rotational Torque: 30~350 g.cm
Operating Temperature Range: -25°C ~ 40°C

Available Potentiometer Values:

Code	Resistance
101	100 Ω
201	200 Ω
501	500 Ω
102	1 kΩ
202	2 kΩ
502	5 kΩ
103	10 kΩ
203	20 kΩ
503	50 kΩ
104	100 kΩ
204	200 kΩ
504	500 kΩ
105	1 MΩ

Applications:

Circuit calibration and fine-tuning
Audio volume control
Adjustable reference voltages
Feedback and gain control in amplifiers

Package Includes:

Single Turn Trimpot (Quantity as per your selection)

Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements. Images are for illustration purposes only. Brand and color may vary depending on stock availability.
