Wattage: "1/2 watt" indicates the power rating of the resistors. It means that each resistor in the assortment can handle up to 1/2 watt (0.5 watts) of power without overheating or getting damaged.

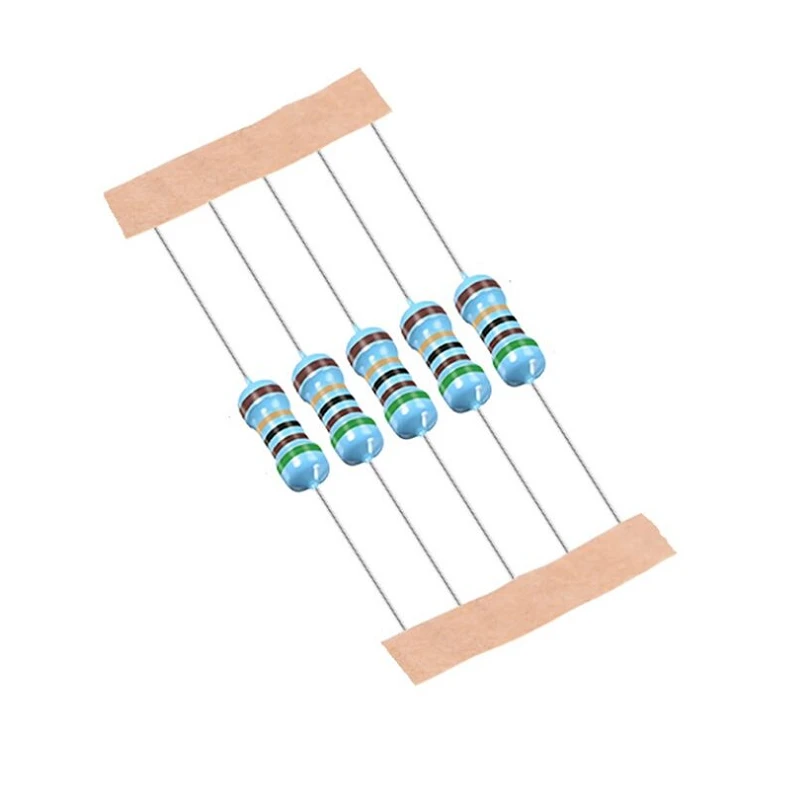

CFR: CFR stands for "Carbon Film Resistor." Carbon film resistors are one of the most common types of resistors used in electronic circuits. They are made by depositing a thin layer of carbon film onto a ceramic core.
5%: The "5%" represents the tolerance of the resistors. In this case, it means that the resistors have a tolerance of 5%. Tolerance refers to the acceptable variation in resistance value from the specified or labelled resistance value. A 5% tolerance indicates that the actual resistance of each resistor can vary by +/- 5% from its stated value. For example, if the labelled resistance is 100 ohms with a 5% tolerance, the actual resistance of that particular resistor can be anywhere between 95 ohms and 105 ohms.
Resistor values
| 1 | 100 | 3.9k | 150k |
| 2.2 | 120 | 4.7k | 180k |
| 4.7 | 150 | 5.6k | 220k |
| 5.6 | 180 | 6.8k | 330k |
| 8.2 | 220 | 8.2k | 470k |
| 10 | 270 | 10k | 560k |
| 15 | 330 | 15k | 680k |
| 22 | 390 | 22k | 1meg |
| 27 | 470 | 33k | 1.5meg |
| 33 | 560 | 39k | 2.2meg |
| 39 | 680 | 47k | 3.3meg |
| 47 | 820 | 56k | 4.7meg |
| 56 | 1k | 68k | 5.6meg |
| 68 | 1.5k | 82k | 10meg |
| 75 | 2.2k | 100k | |
| 82 | 3.3k | 120k |
