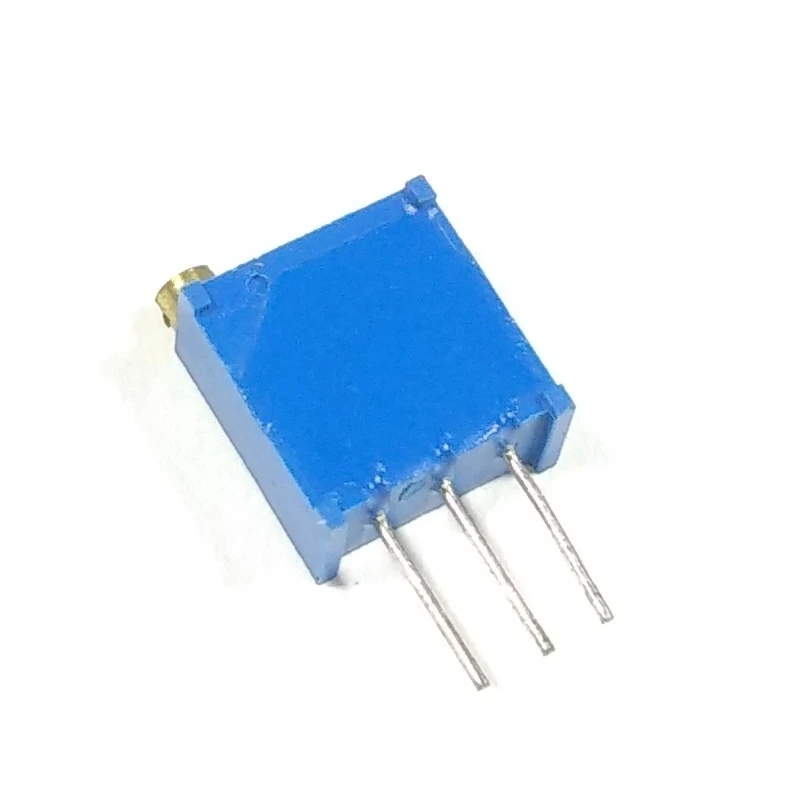

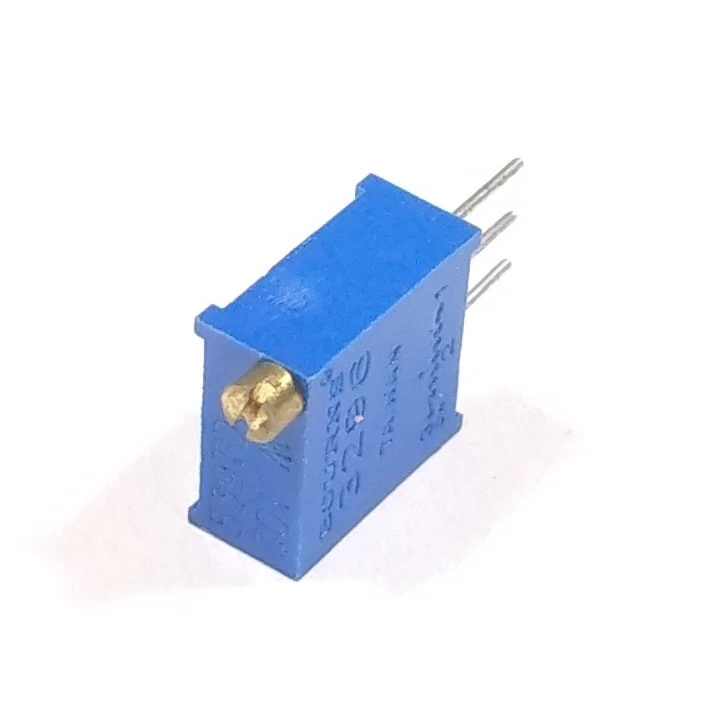

3296 Multiturn Trimpot Trimmer potentiometer screw on top
Temperature Coefficient: ±100 ppm/°C
Orientation: Side Adjust
Length: 9.53 mm
Series: 3296
Mounting Type: Through Hole
Termination Style: Solder Pin
Shaft Diameter: 2.19 mm
Maximum Operating Temperature: +125 °C
Number of Turns: 25
Tolerance: ±10 %
Power Rating: 0.5 W
Shipping Weight: 0.001 kg
Shipping Dimensions: 4 × 4 × 1 cm
Potentiometer value in ohms:
| 10 | 20 | 100 | 200 |
| 500 | 1K | 2K | 5K |
| 10K | 20K | 50K | 100K |
| 200K | 500K | 1Meg | 2Meg |
