SCR Voltage Regulator Module

In Stock

SKU: R3-C-10

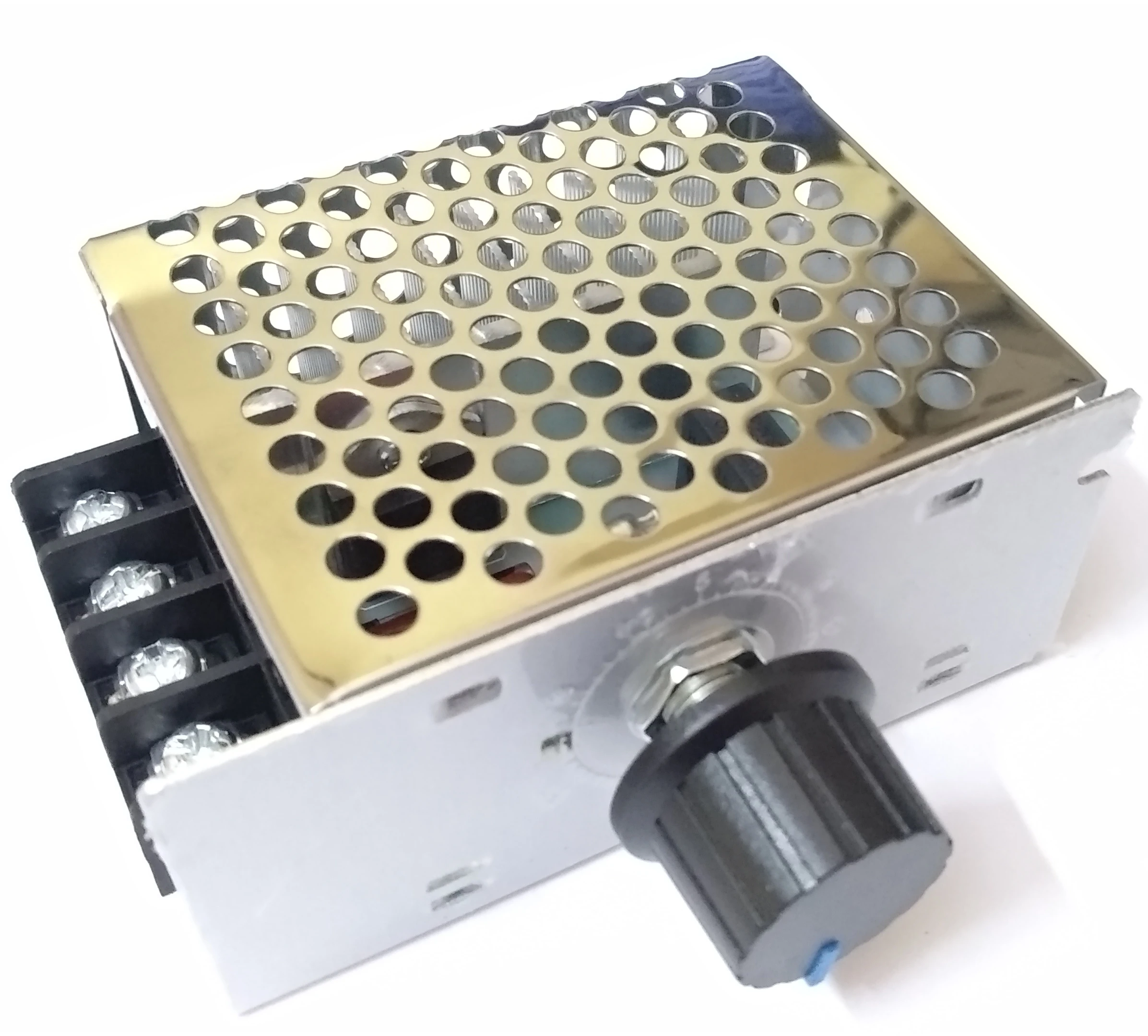

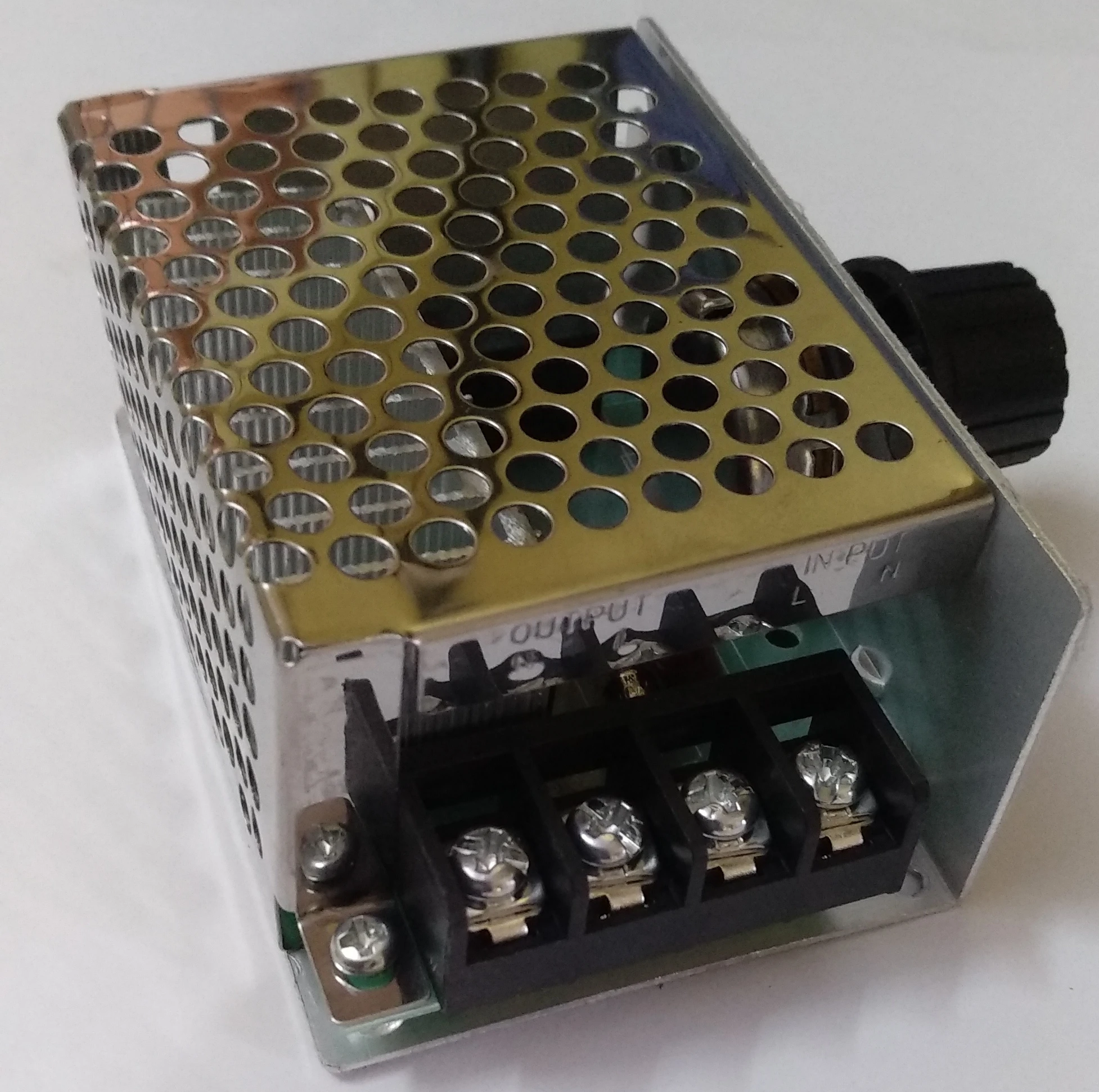

SCR Voltage Regulator Module

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹280.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The SCR Voltage Regulator Module is an AC power control device designed to adjust the output voltage supplied to resistive loads using Silicon Controlled Rectifier (SCR) technology. It enables smooth control of AC voltage, making it suitable for regulating the speed of AC motors, controlling the brightness of incandescent lamps, adjusting heating elements, and various DIY electronics and laboratory applications.

The module offers stable performance, high power handling capability, and simple operation through an integrated rotary potentiometer that allows precise voltage adjustment.

Features

SCR-based AC voltage regulation
Smooth and continuous voltage adjustment
High-power load handling capability
Adjustable output using rotary potentiometer
Compact and durable design
Easy wiring and installation
Built-in heat dissipation (model dependent)
Suitable for resistive and compatible inductive loads
Reliable and stable performance

Specifications

Parameter	Value
Product Type	SCR AC Voltage Regulator Module
Input Voltage	AC 110V–250V, 50/60Hz
Output Voltage	Adjustable (Approx. 0V to Input Voltage)
Maximum Load Power	Up to 2000W (Model Dependent)
Control Method	Phase Angle Control (SCR)
Adjustment	Rotary Potentiometer
Mounting	Panel/Enclosure Mount
Operating Frequency	50/60Hz

Applications

Electric Heater Power Control
Soldering Iron Temperature Control
Incandescent Lamp Dimming
Fan Speed Control
Universal AC Motor Speed Control
Laboratory Equipment
DIY Electronics Projects
Hot Wire Foam Cutters
Small Heating Elements
Educational Demonstrations

Advantages

Smooth voltage adjustment
Simple installation
Compact and lightweight
High efficiency
Reliable SCR-based control
Wide AC input voltage range
Cost-effective power regulation

Safety Instructions

Operates on high-voltage AC mains; handle with extreme caution.
Install inside a properly insulated enclosure.
Ensure adequate ventilation for high-power loads.
Do not exceed the module's rated power capacity.
Disconnect power before wiring or servicing.
Use appropriate fuses and electrical protection.

Package Includes

1 × SCR Voltage Regulator Module

Disclaimer

Product appearance, PCB color, heatsink size, knob style, and terminal configuration may vary depending on the manufacturing batch without affecting functionality or performance. This module is intended for AC voltage regulation only and should be installed by users familiar with mains-powered electrical equipment.
