Description:

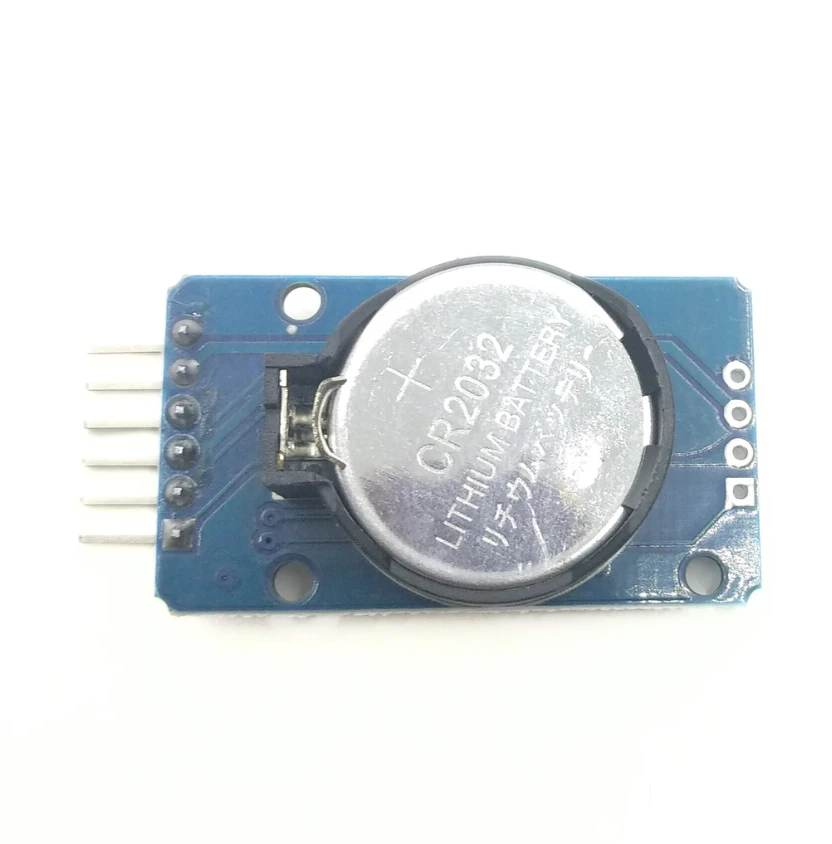

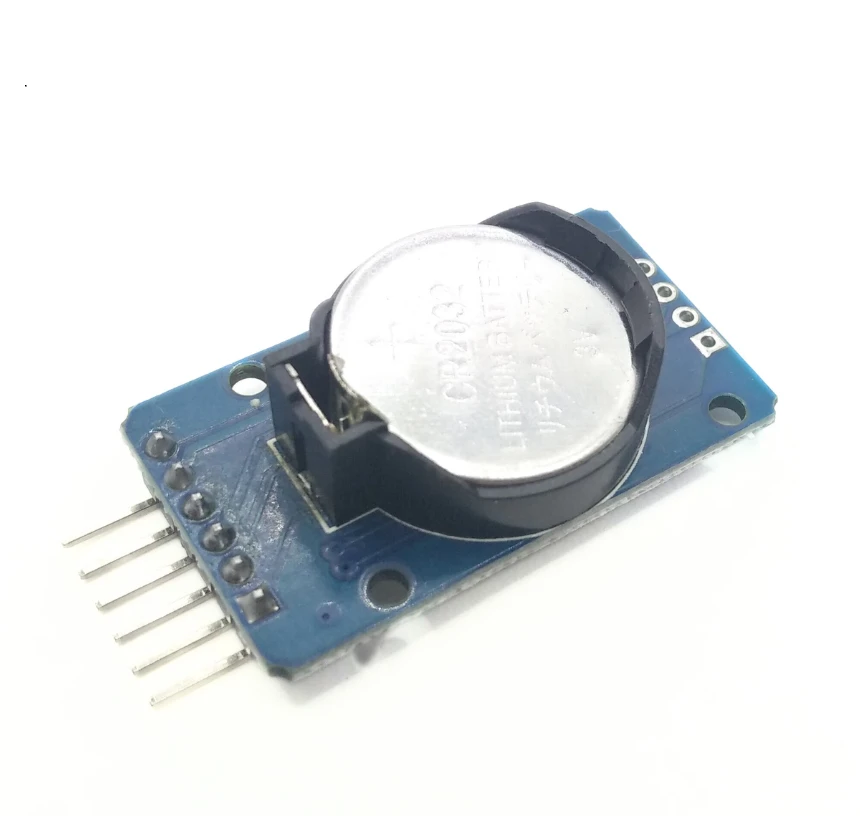

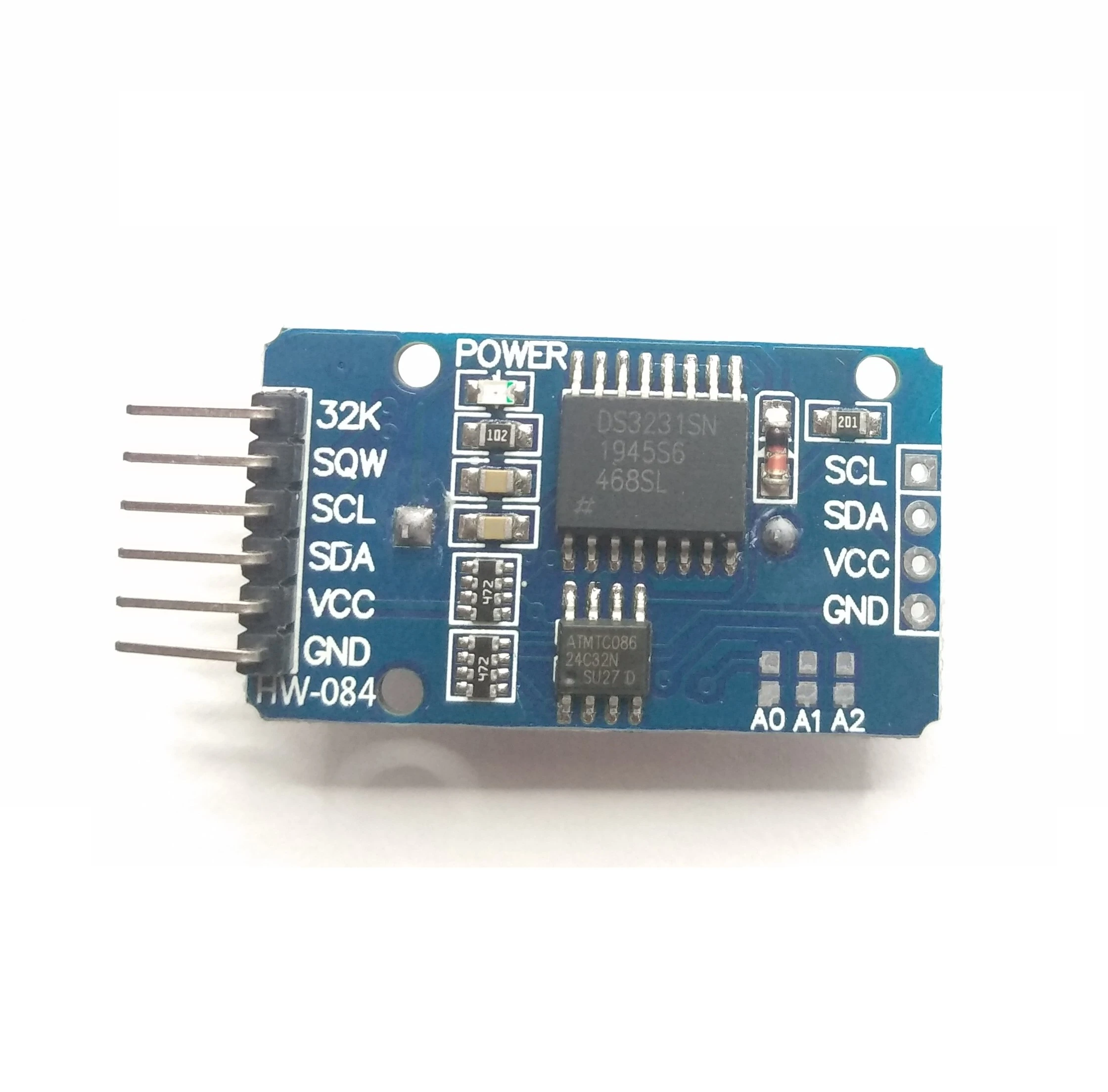

The DS3231 Module is a breadboard-friendly, extremely precise I2C real-time clock (RTC) module. It is designed using the DS3231 RTC chip and AT24C32 EEPROM, integrated with a temperature-compensated crystal oscillator for enhanced accuracy. The module also features a built-in comparator to monitor VCC status, detect power failures, and automatically switch to backup power supply. The AT24C32 EEPROM provides 32,768 bits of serial non-volatile memory (32Kb), organized as 4096 words of 8 bits each. This allows you to store data for your projects, even when power is lost. The DS3231 module is compatible with Arduino boards, Raspberry Pi, and a wide range of microcontrollers.
Features:
Size: 38mm (L) x 22mm (W) x 14mm (H)
Weight: 8g
Operating Voltage: 3.3V to 5.5V
Clock Chip: High-precision DS3231 RTC chip
Clock Accuracy: ±2ppm in the range of 0-40°C, equivalent to about 1 minute of error per year
Calendar Alarm Clock: Includes two programmable alarm clocks
Square-Wave Output: Programmable square-wave output
Real-Time Clock: Tracks seconds, minutes, hours, day, date, month, and year with leap year compensation up until the year 2100
Temperature Sensor: Integrated temperature sensor with ±3°C accuracy
Memory: AT24C32 EEPROM with 32K of non-volatile memory for storage
Interface: I2C bus interface with a maximum transmission speed of 400KHz (at 5V operating voltage)
Applications:
Timekeeping for embedded systems
Data storage for microcontroller projects
Projects requiring accurate time and date tracking
Low-power applications with backup power supply
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
