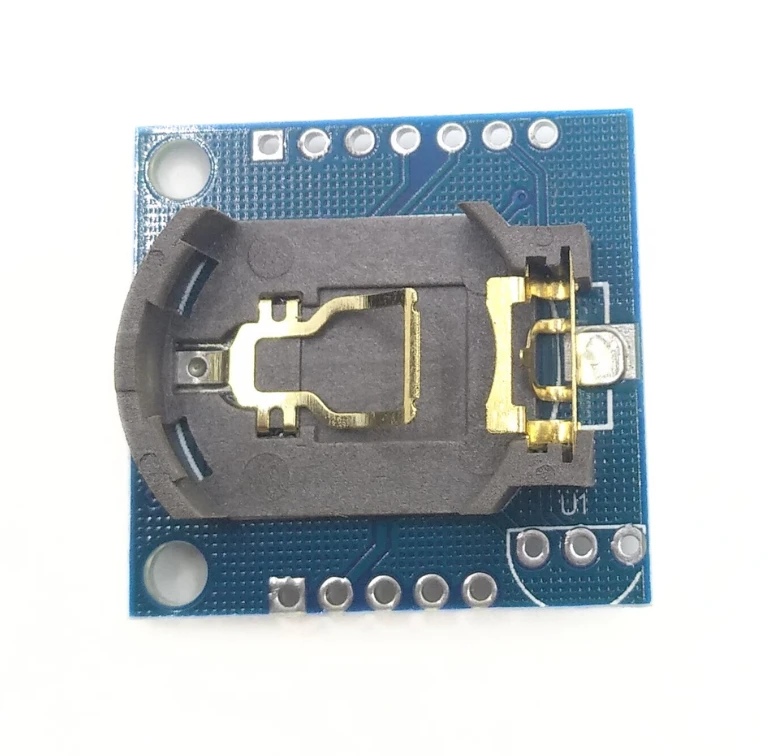

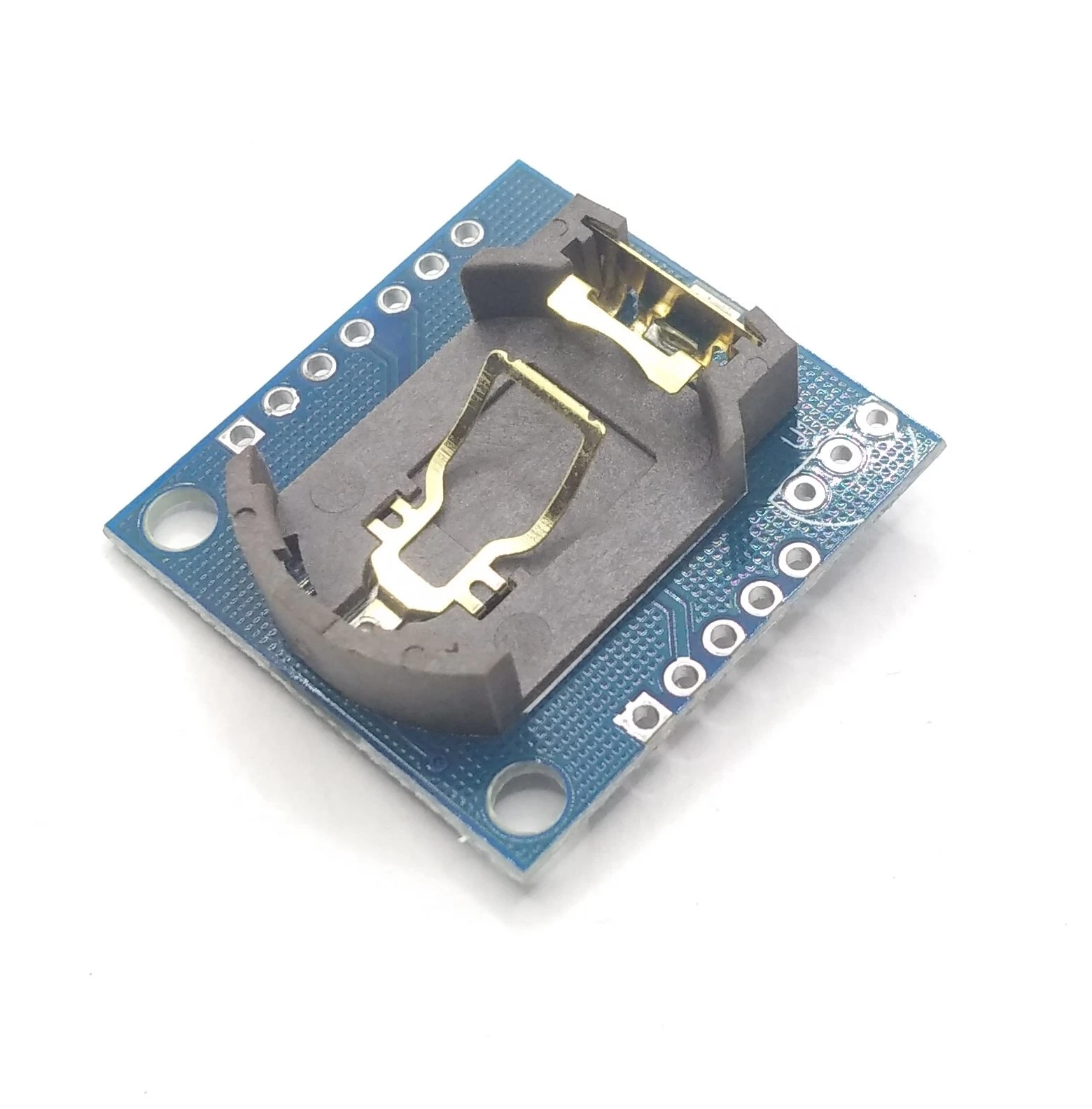

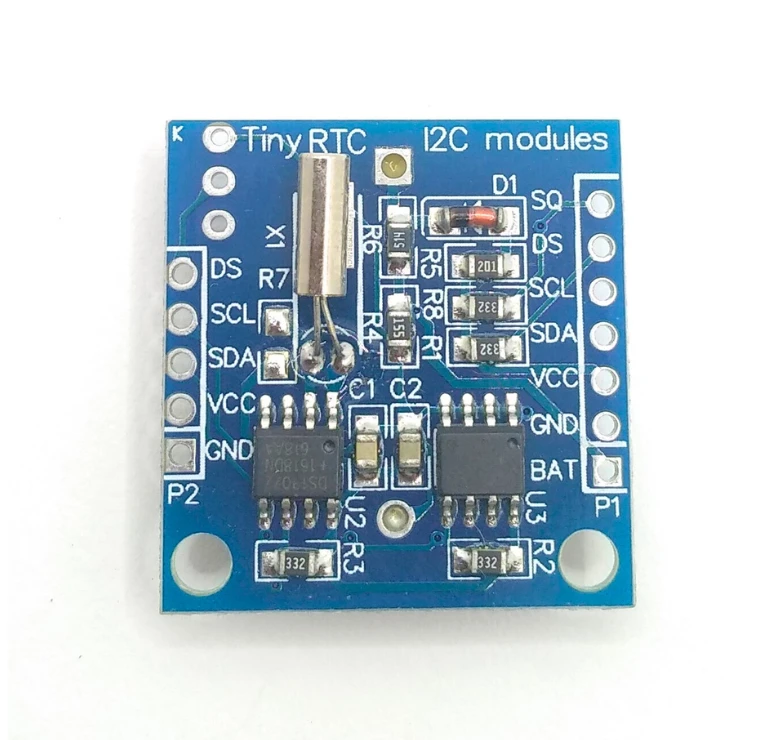

This module uses the DS1307 I2C real-time clock (RTC) chip, with an integrated AT24C32 32K I2C EEPROM memory for accurate timekeeping. It provides a precise time and date reading with a compact design, making it perfect for embedded applications.
Features:
DS1307 I2C real-time clock chip (RTC)
AT24C32 32K I2C EEPROM memory
Two-wire I2C interface
Displays Hour, Minutes, Seconds (AM/PM)
Day, Month, Date, Year information
1Hz output pin
56 Bytes of non-volatile memory available to users
Accessed via the I2C protocol
Compact design, 27mm x 28mm x 8.4mm
Product Specifications:
Chip: DS1307 RTC
Memory: AT24C32 (32K I2C EEPROM)
Interface: Two-wire I2C
Output: 1Hz output pin
Dimensions: 27mm x 28mm x 8.4mm
Applications:
Used in various timekeeping projects with Arduino and other microcontrollers
Ideal for clocks, data loggers, alarms, and time-sensitive applications in embedded systems
Disclaimer: Product specifications, features, and design may change over time due to product updates or improvements.
