Overview

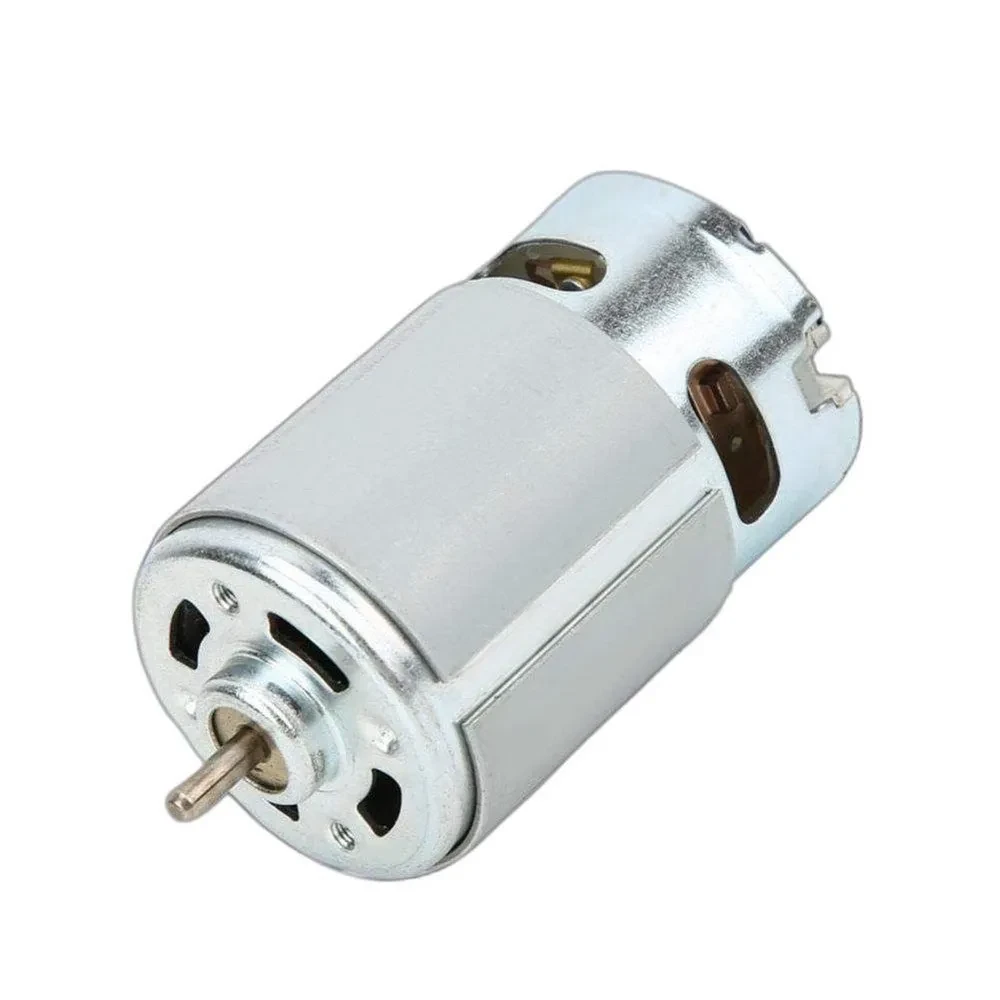

The RS-555 DC Motor is a medium-to-large-sized DC motor widely used in robotics, automation, and STEM experiments. Known for its high torque and durability, it is ideal for projects that require mechanical power, such as robot cars, conveyor systems, and motorized mechanisms.
This motor can be powered with DC voltage and controlled via PWM, H-bridge drivers, or microcontrollers.
Key Features
Motor Type: Brushed DC motor
Voltage Range: Typically 6–12 V DC (check specific model)
High Torque: Suitable for small to medium mechanical loads
Shaft: Standard cylindrical shaft for wheels, gears, or pulleys
Reliable & Durable: Long operational life for STEM and DIY projects
Compatible with Arduino, Raspberry Pi, and motor driver modules
Technical Specifications
| Feature | Specification |
|---|---|
| Operating Voltage | 6–12 V DC |
| No-load Current | ~200–400 mA |
| No-load Speed | 5000–15000 RPM (depends on voltage and load) |
| Stall Current | ~2–5 A |
| Torque | High for small-to-medium loads (~0.5–2 kg-cm typical) |
| Shaft Diameter | 5–6 mm |
| Shaft Length | 15–20 mm |
| Body Dimensions | ~36 × 55 mm (diameter × length, typical) |
| Weight | ~150–250 g |
| Housing Material | Metal + plastic |
Applications
Robotics and automated vehicles
Conveyor belts and small mechanical systems
STEM lab experiments for motor control & mechanical energy
DIY electronics and mechatronics projects
Small appliances or motorized toys
