Description:

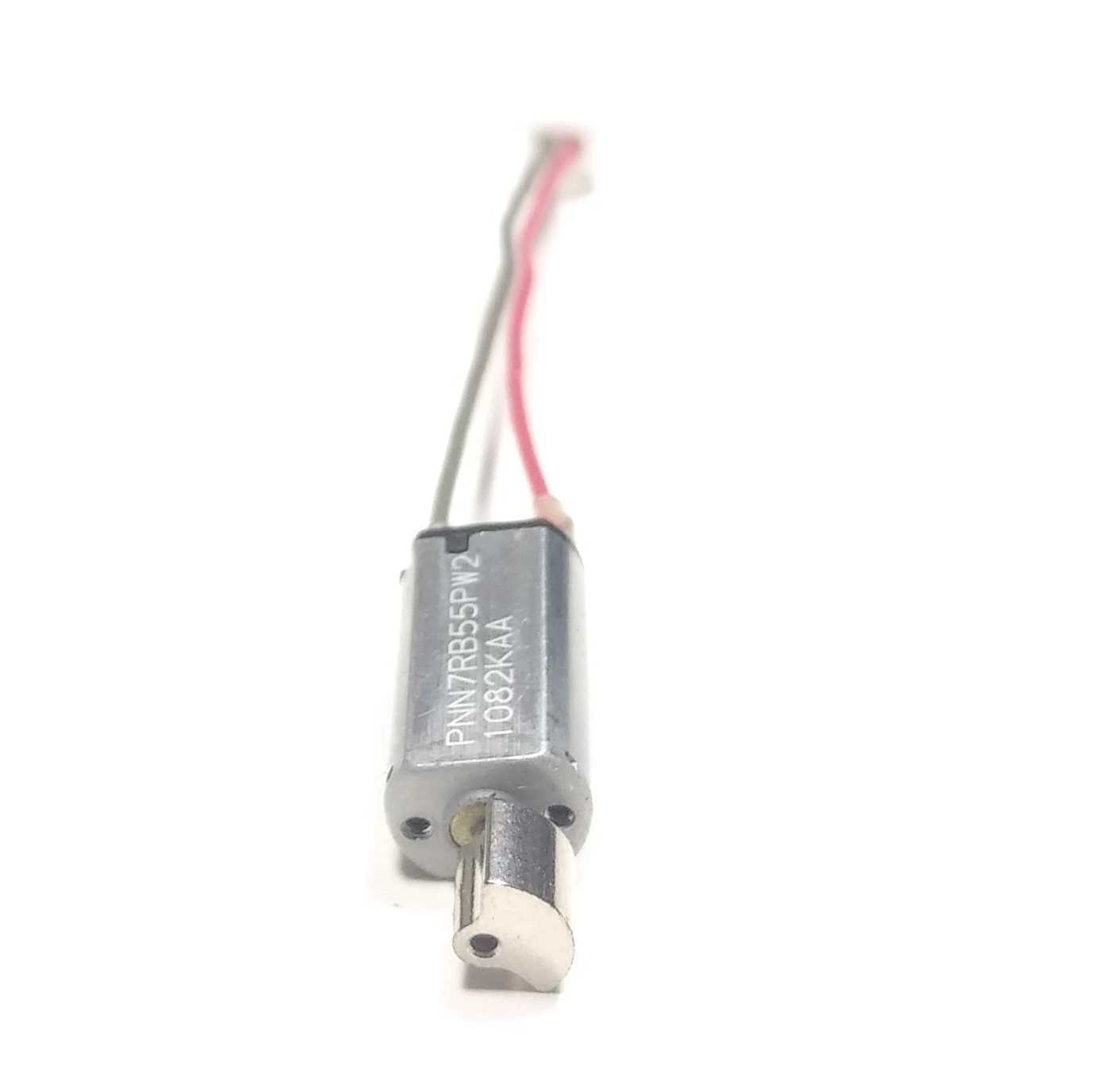

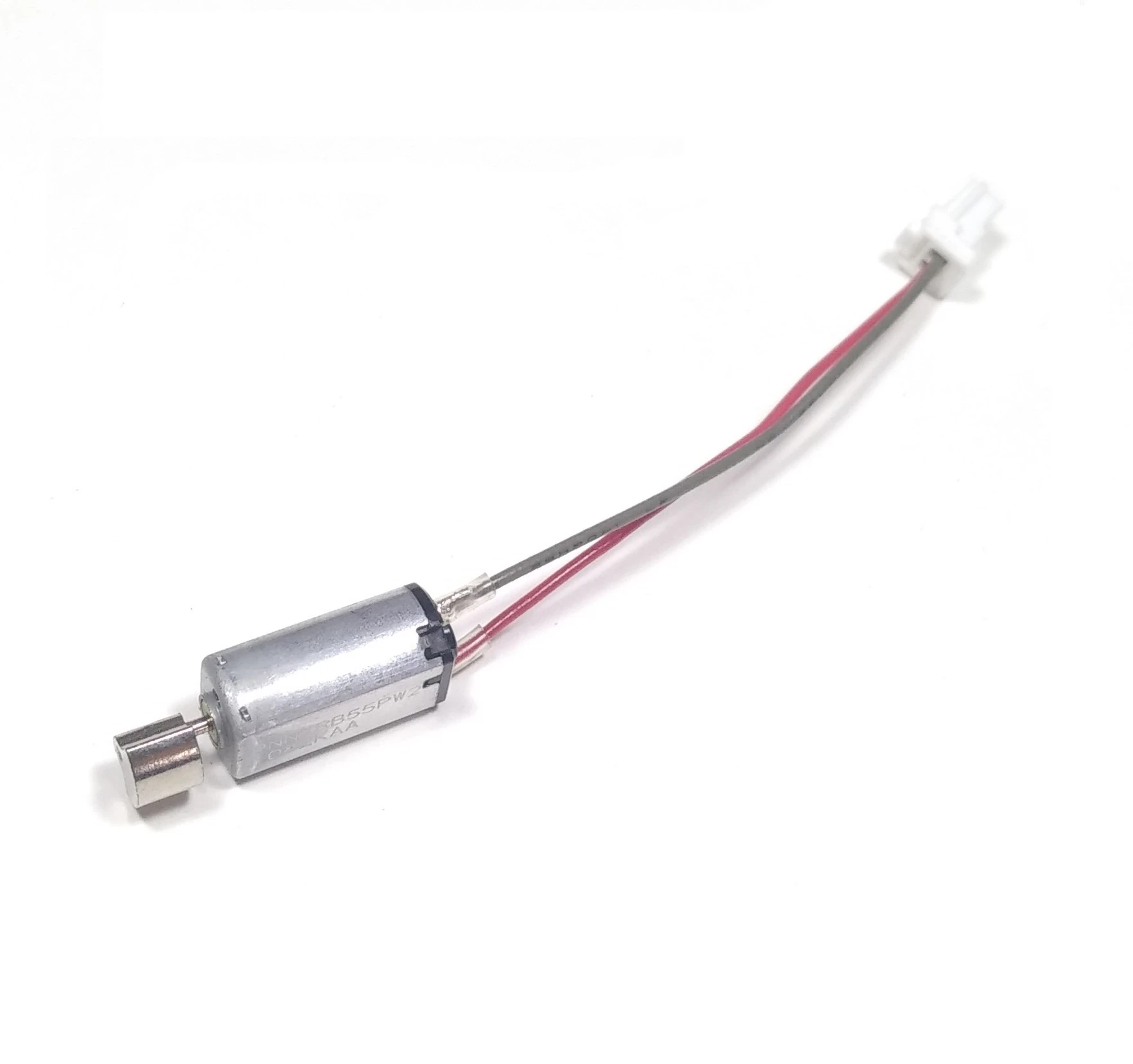

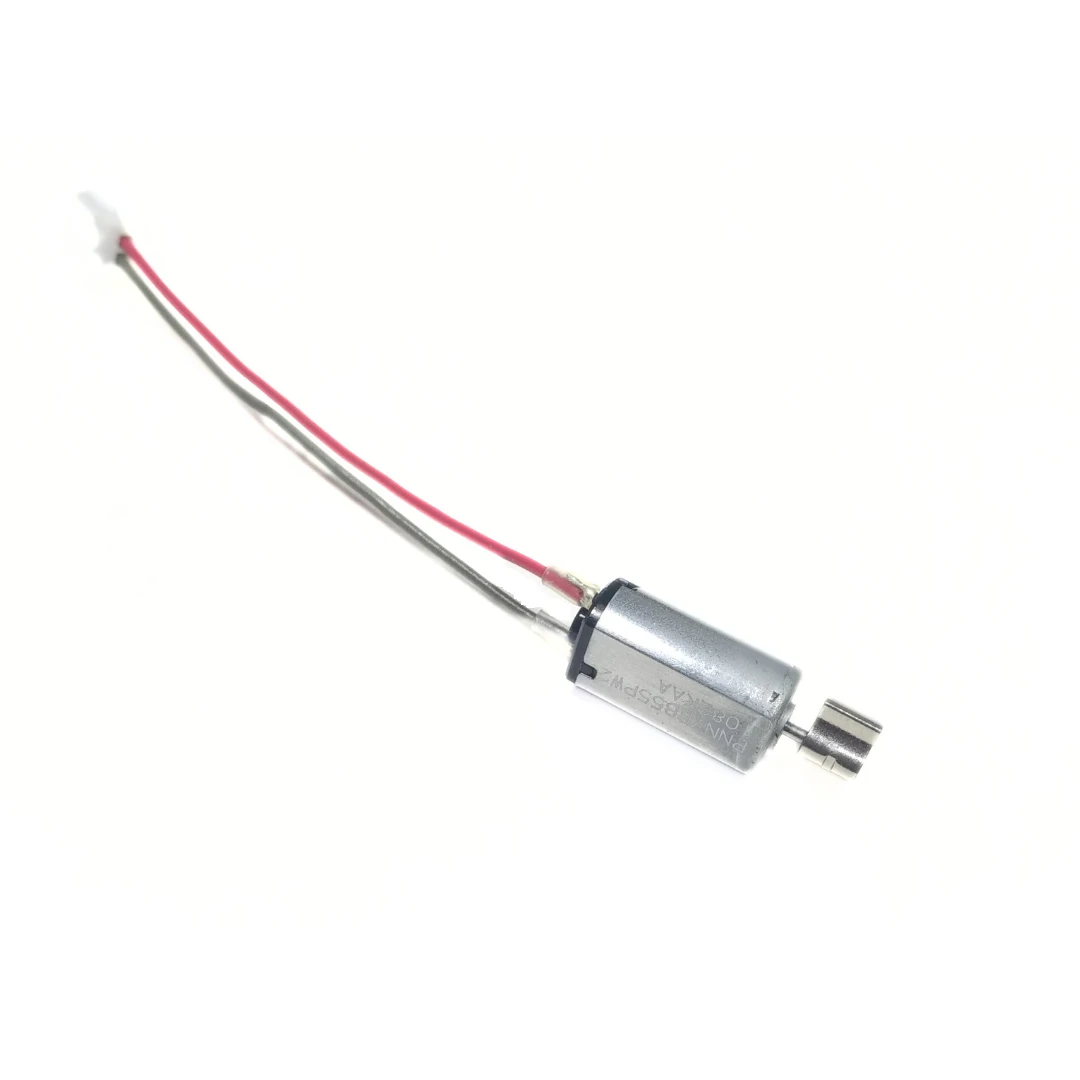

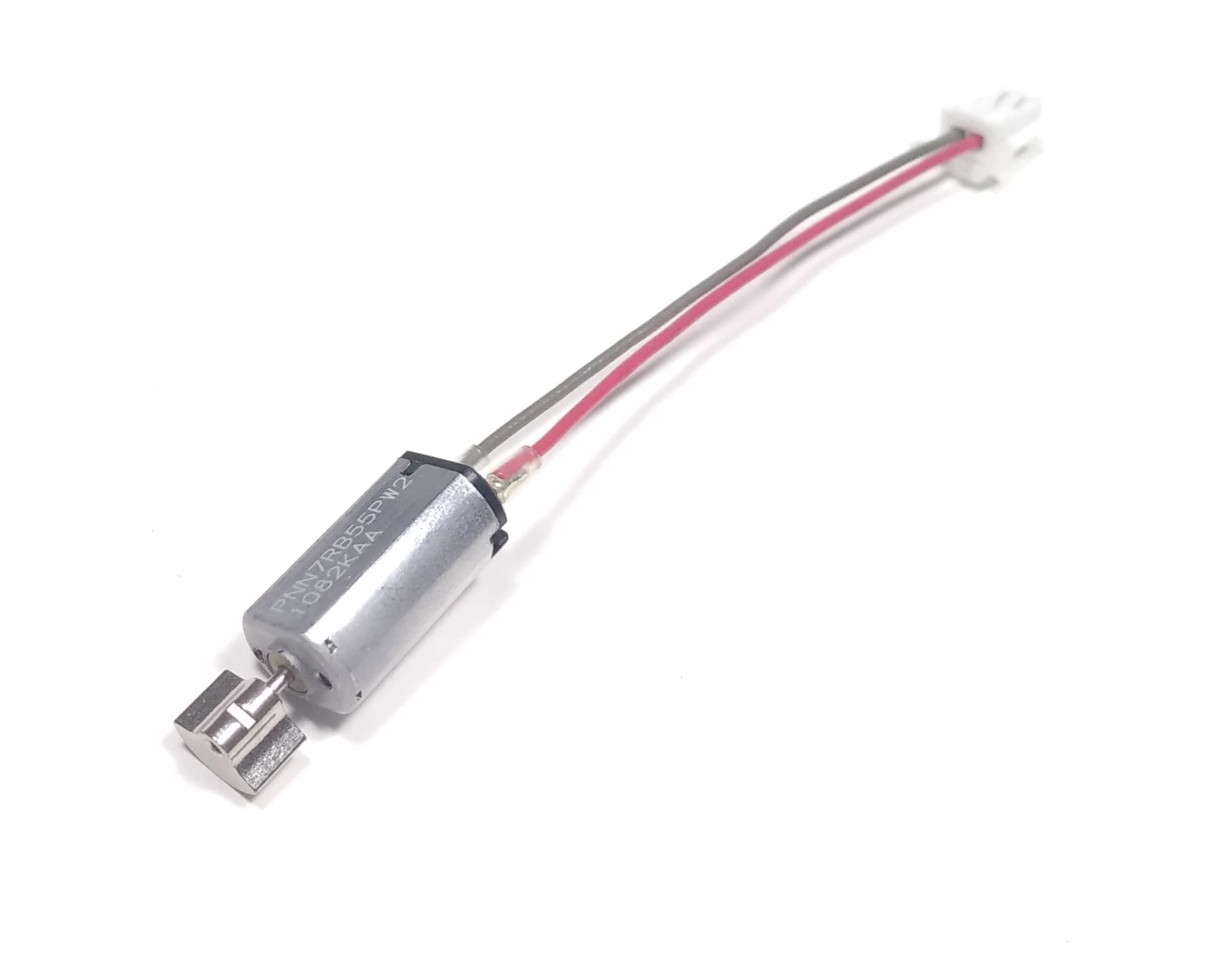

This 6mm vibration motor is a compact and efficient solution for applications requiring vibration feedback. With a rated voltage of 1.5V DC and a speed of 8,500 ± 1,500 rpm, it delivers a nominal vibration force of 1.50G. Its small form factor makes it ideal for embedded or portable devices.
Features:
Compact Size: 6mm diameter, 15mm length
Voltage: 1.5V DC
Rated Speed: 8,500 ± 1,500 rpm
Low Current Consumption: Only 26mA
Rotation Direction: Supports both CW and CCW
Durability: Tested for 20,000 cycles (8s on / 8s off)
Vibration Force: 1.50G nominal amplitude
Specifications:
Motor Diameter: 6mm
Motor Length: 15mm
Rated Voltage: 1.5V DC
Rated Load Dimensions: R – 3mm * L – 4.5mm
Rated Speed: 8,500 ± 1,500 rpm
Rated Current: 26mA
Rotation: Clockwise (CW) / Counterclockwise (CCW)
Life Test: 8s ON / 8s OFF for 20,000 cycles
Nominal Amplitude Vibration Force: 1.50G
Application:
Mobile phone haptic feedback
Wearable devices
Game controllers
Handheld medical equipment
Miniature robotics
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
