Description:

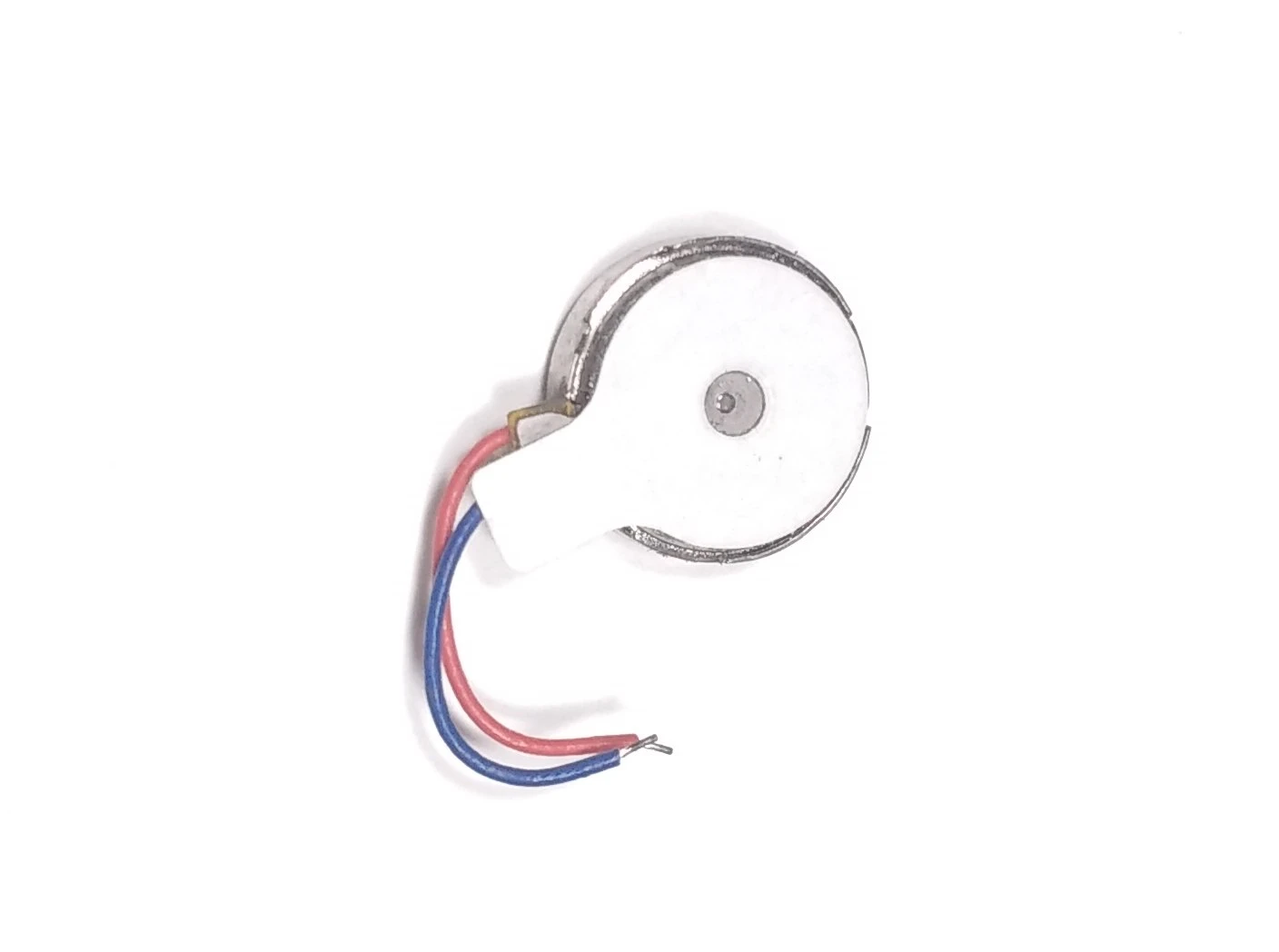

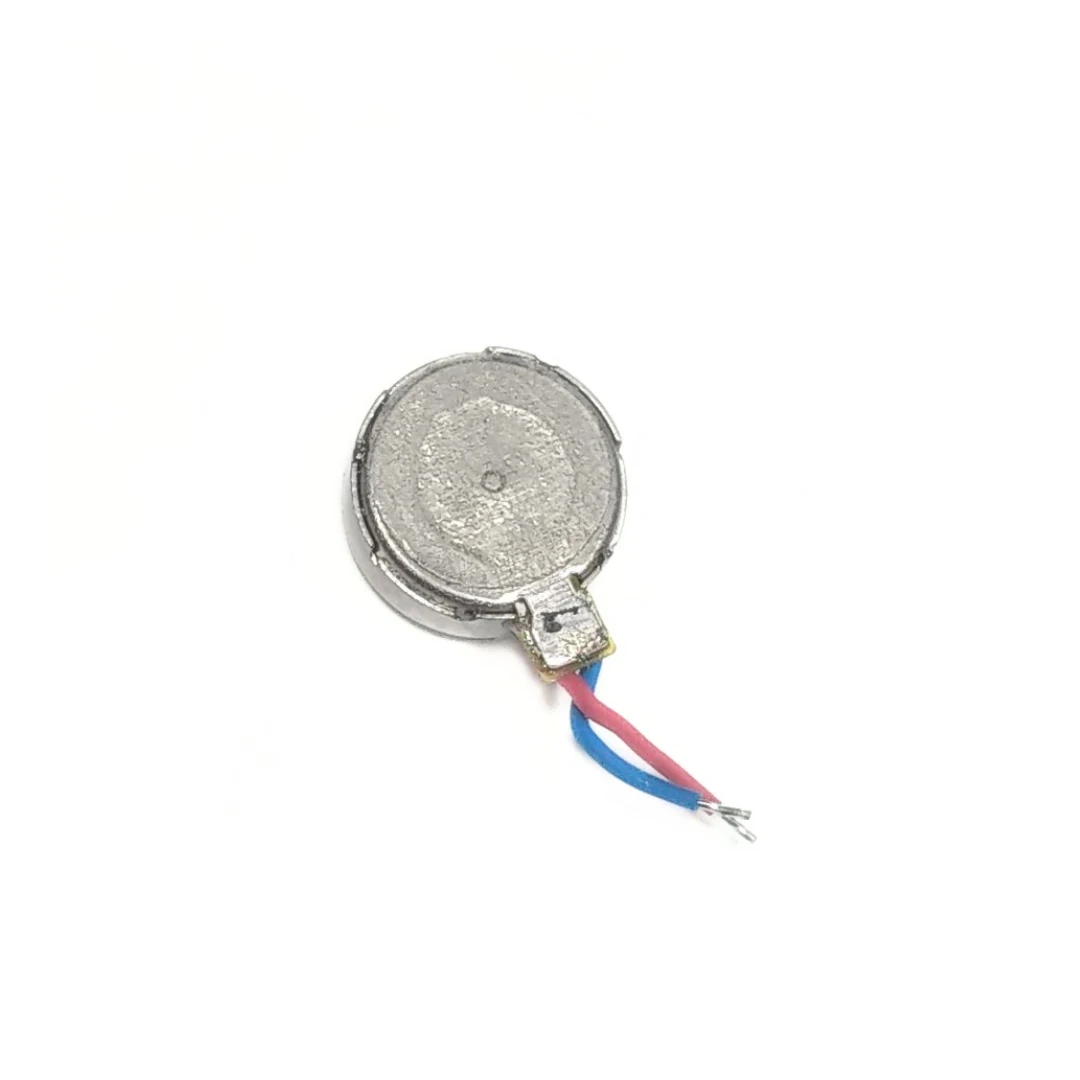

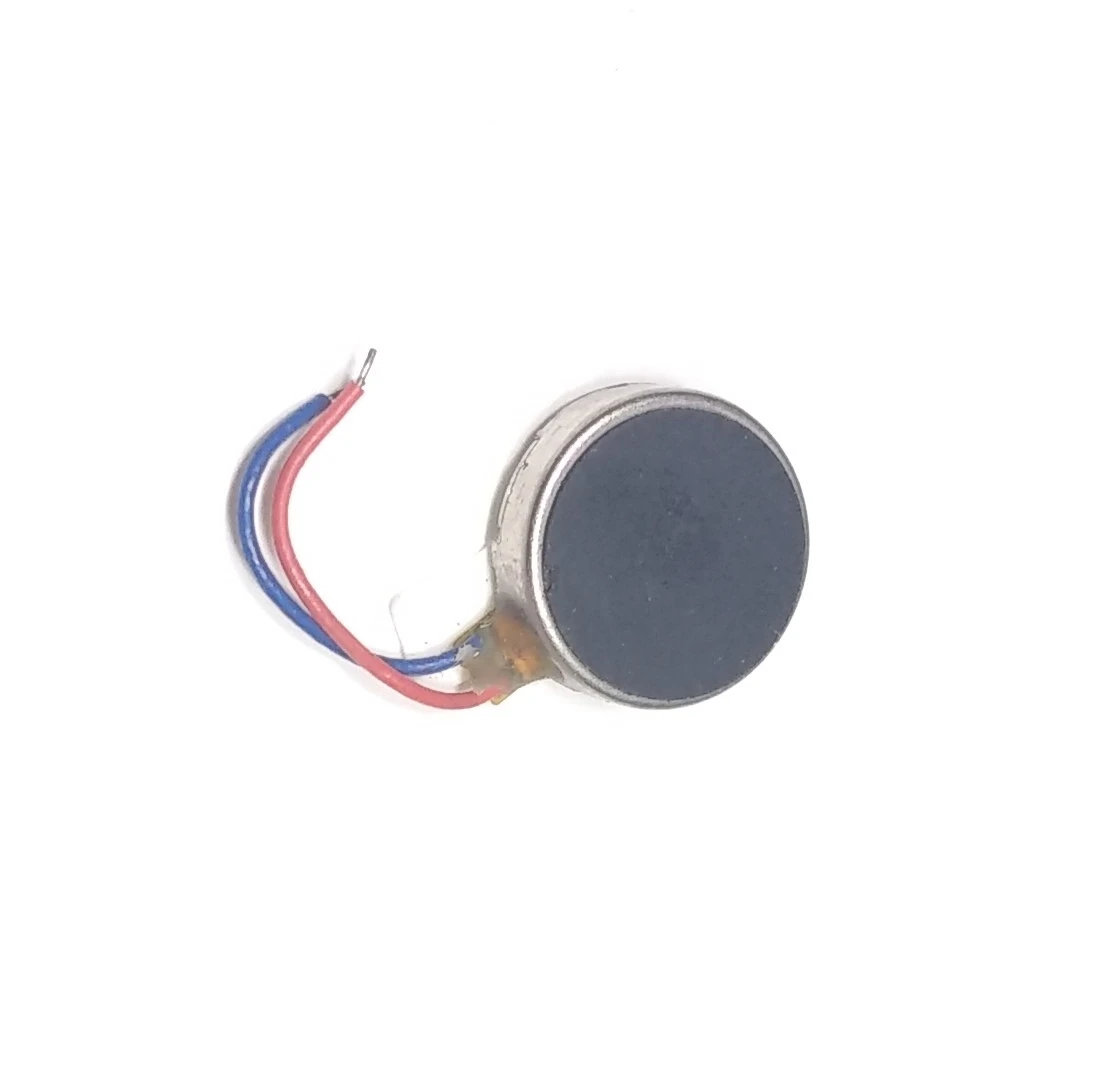

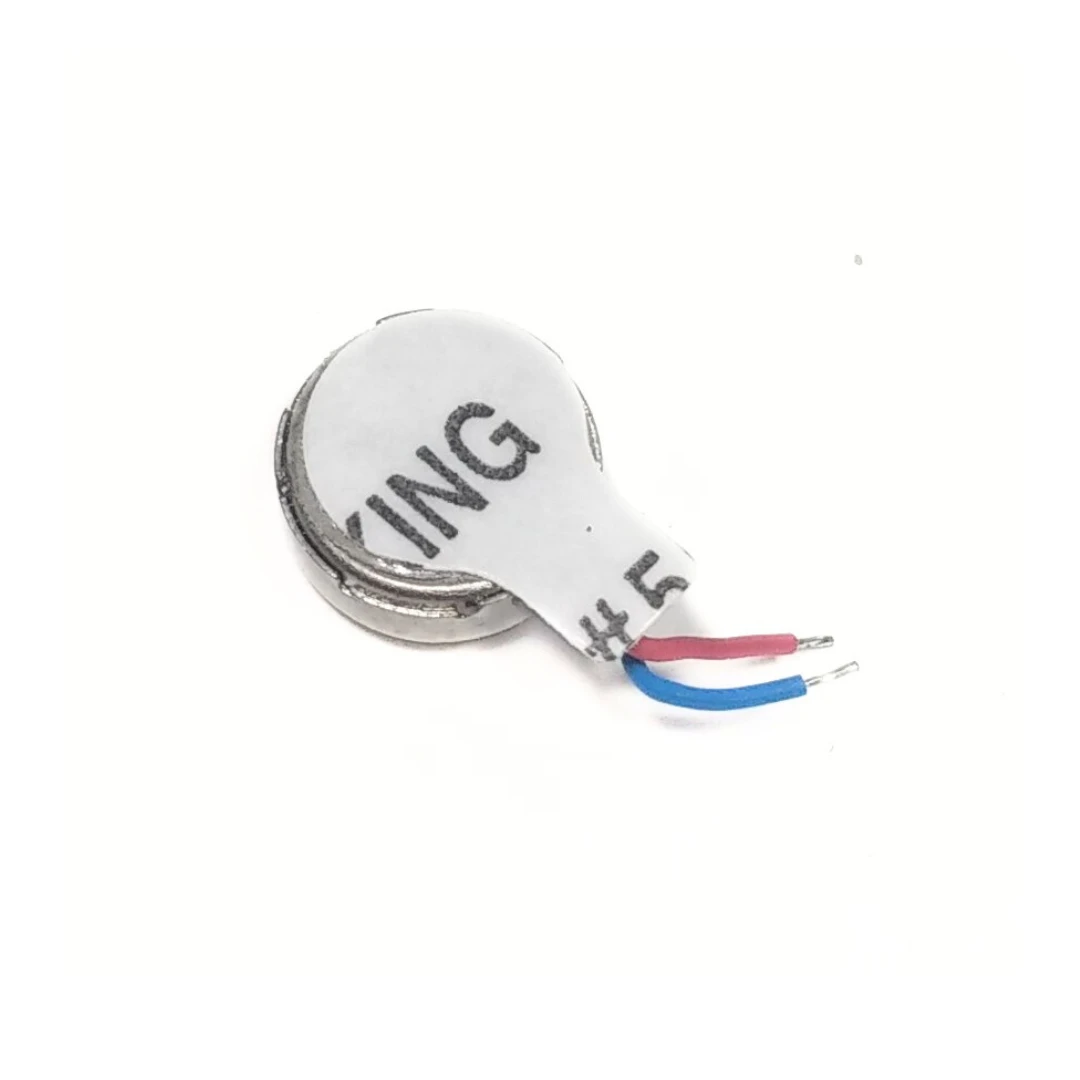

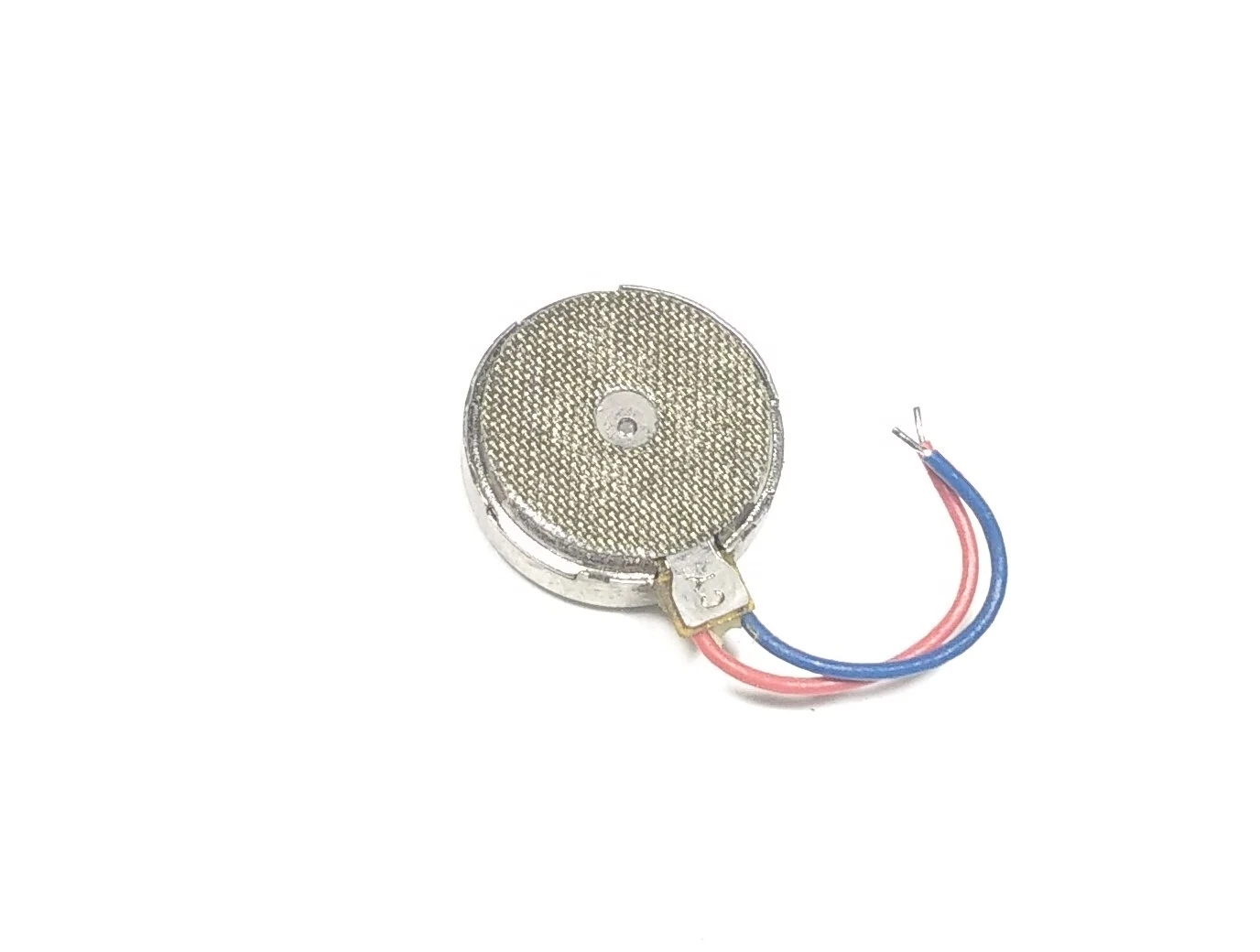

This 8mm ultra-compact coin vibration motor is among the smallest in the world, featuring a built-in driver IC for direct DC operation. Designed to deliver reliable vibration feedback, it operates at a nominal voltage of 3V with low power consumption and a nominal speed of ~12,000 RPM. It is ideal for compact electronics requiring tactile feedback.
Features:
Ultra-Compact Design: Just 8mm in diameter and 3.2mm thick
Built-in Driver IC: No external driver required
Rated Voltage: 3V DC with operating range from 2.0V to 3.5V
High Speed: ~12,000 RPM
Low Power Consumption: Rated current of only 85mA
Long Lifetime & Cost-Effective
Vibration Force: 0.55g
Available Options: With wires or connectors
RoHS Compliant
Specifications:
Nominal Voltage: 3V DC
Operating Voltage: 2.0V – 3.5V
Rated Current: 85mA
Nominal Speed: ~12,000 RPM
Vibration Force: 0.55g
Diameter: 8.0mm
Thickness: 3.2mm
Operating Temperature: -20℃ to +70℃
Storage Temperature: -40℃ to +85℃
Insulation Resistance: ≥10MΩ
Driver IC: Integrated
Mounting: Available with wire leads or connectors
Applications:
Haptic feedback for wearable devices
Smartphones and tablets
Portable medical devices
Compact handheld electronics
Remote controls and gaming accessories
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
