Overview

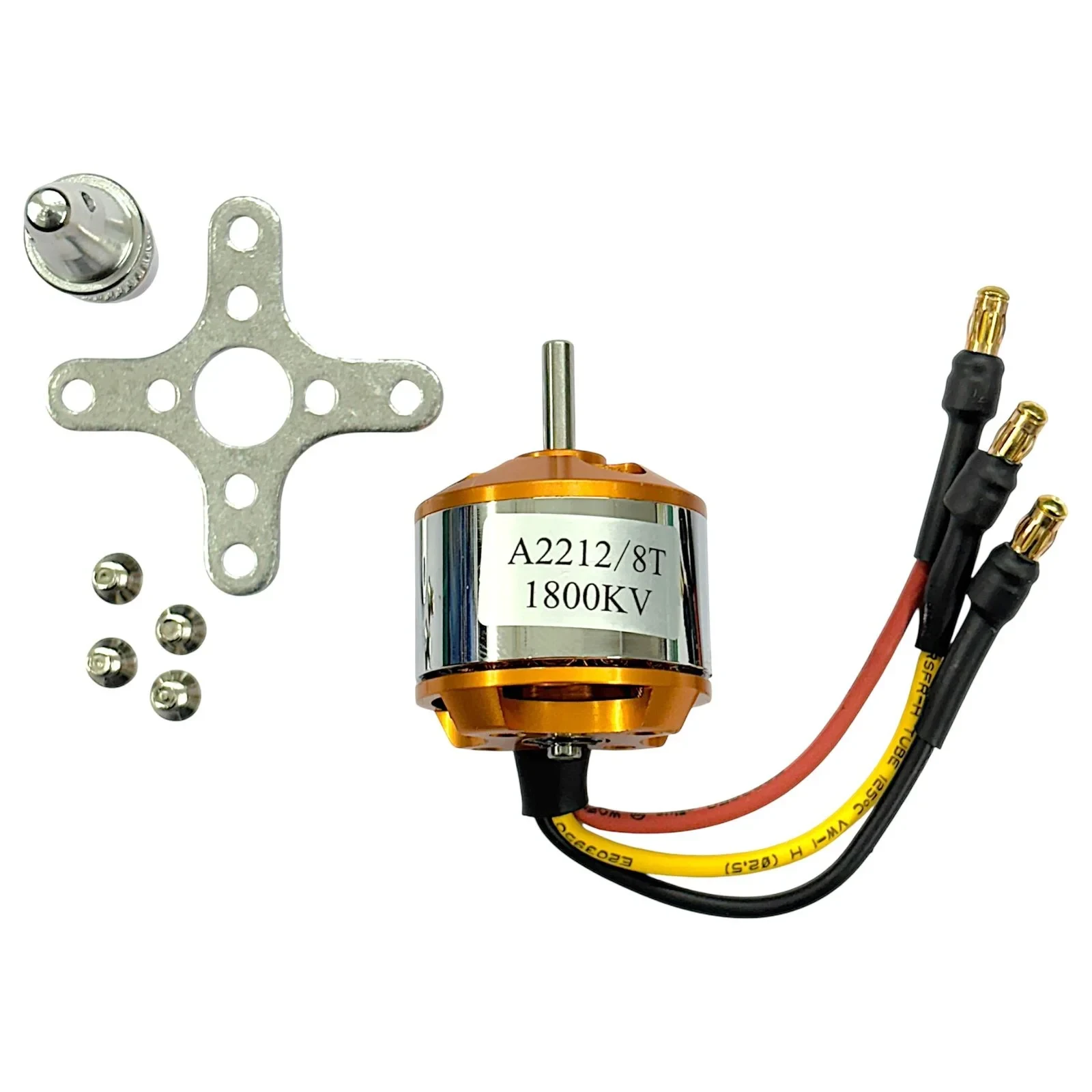

The A2212/8T 1800KV BLDC Motor is a high-performance brushless DC motor commonly used in quadcopters, drones, robotics, and STEM projects. With its high efficiency, high RPM, and low maintenance, it’s ideal for experiments in motor control, PWM speed modulation, and electronics learning.
This motor is perfect for Arduino, Raspberry Pi, and ESC-based robotics projects, allowing students to explore brushless motor operation, speed control, and energy efficiency in hands-on STEM labs.
Key Features
Motor Type: Brushless DC (BLDC)
KV Rating: 1800KV (1800 RPM per volt, no load)
Configuration: A2212/8T, 8 turns winding
Applications: Quadcopters, drones, RC vehicles, robotics experiments
Lightweight and Durable: Aluminum housing for heat dissipation
High Efficiency: Low friction and long lifespan
Technical Specifications
| Feature | Specification |
|---|---|
| Motor Type | Brushless DC (BLDC) |
| KV Rating | 1800 KV |
| Stator Turns | 8 Turns (8T) |
| Voltage Range | 7.4–11.1 V DC (2S–3S LiPo recommended) |
| Max Current | 12 A (typical) |
| Shaft Diameter | 3.17 mm |
| Shaft Length | 24 mm |
| Motor Diameter | 28 mm |
| Motor Length | 35 mm |
| Weight | ~55 g |
| Mounting Pattern | 16 × 19 mm (4 holes) |
| Propeller Compatibility | 8–10 inch propellers (for drones/RC) |
Applications
Quadcopter and drone propulsion
RC cars, boats, and robotics drive systems
STEM labs for brushless motor and ESC experiments
PWM speed and direction control projects with Arduino or ESC controllers
Hands-on learning for motor efficiency, power electronics, and robotics mechanics
