1203B PWM 6V 12V 24V 28V 3A D Motor Speed Regulator

In Stock

SKU: R3-D-6

1203B PWM 6V 12V 24V 28V 3A D Motor Speed Regulator

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹105.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The PWM DC Motor Speed Controller Module is a compact electronic controller designed to regulate the speed of brushed DC motors using Pulse Width Modulation (PWM) technology. By adjusting the duty cycle through the onboard rotary potentiometer, it delivers smooth and efficient motor speed control while maintaining high torque and minimizing power loss.

The module features screw terminal connections for easy wiring, making it suitable for DIY electronics, robotics, automation systems, cooling fans, pumps, and other DC motor applications.

Features

PWM-based motor speed control
Wide DC operating voltage range
Smooth rotary speed adjustment
High efficiency with low heat generation
Maintains motor torque at low speeds
Compact PCB design
Screw terminal connections
Stable and reliable performance
Easy installation
Suitable for brushed DC motors

Specifications

Parameter	Value
Product Type	PWM DC Motor Speed Controller Module
Operating Voltage	4.5V–35V DC
Control Method	Pulse Width Modulation (PWM)
Duty Cycle	Adjustable
Maximum Continuous Current	Up to 5A
Maximum Output Power	Up to 90W (depending on input voltage and cooling)
Speed Adjustment	Rotary Potentiometer
Input Connection	Screw Terminal
Output Connection	Screw Terminal
Mounting	PCB Mounting Hole

Applications

DC Motor Speed Control
Cooling Fans
Water Pumps
Robotics
DIY Electronics Projects
Small Automation Systems
Mini Conveyor Systems
Battery Powered Equipment
Educational Projects
Laboratory Experiments

Advantages

Efficient PWM speed regulation
Smooth motor operation
Compact and lightweight
Low power loss
Easy wiring
Reliable performance
Wide input voltage compatibility
Ideal for hobby and industrial applications

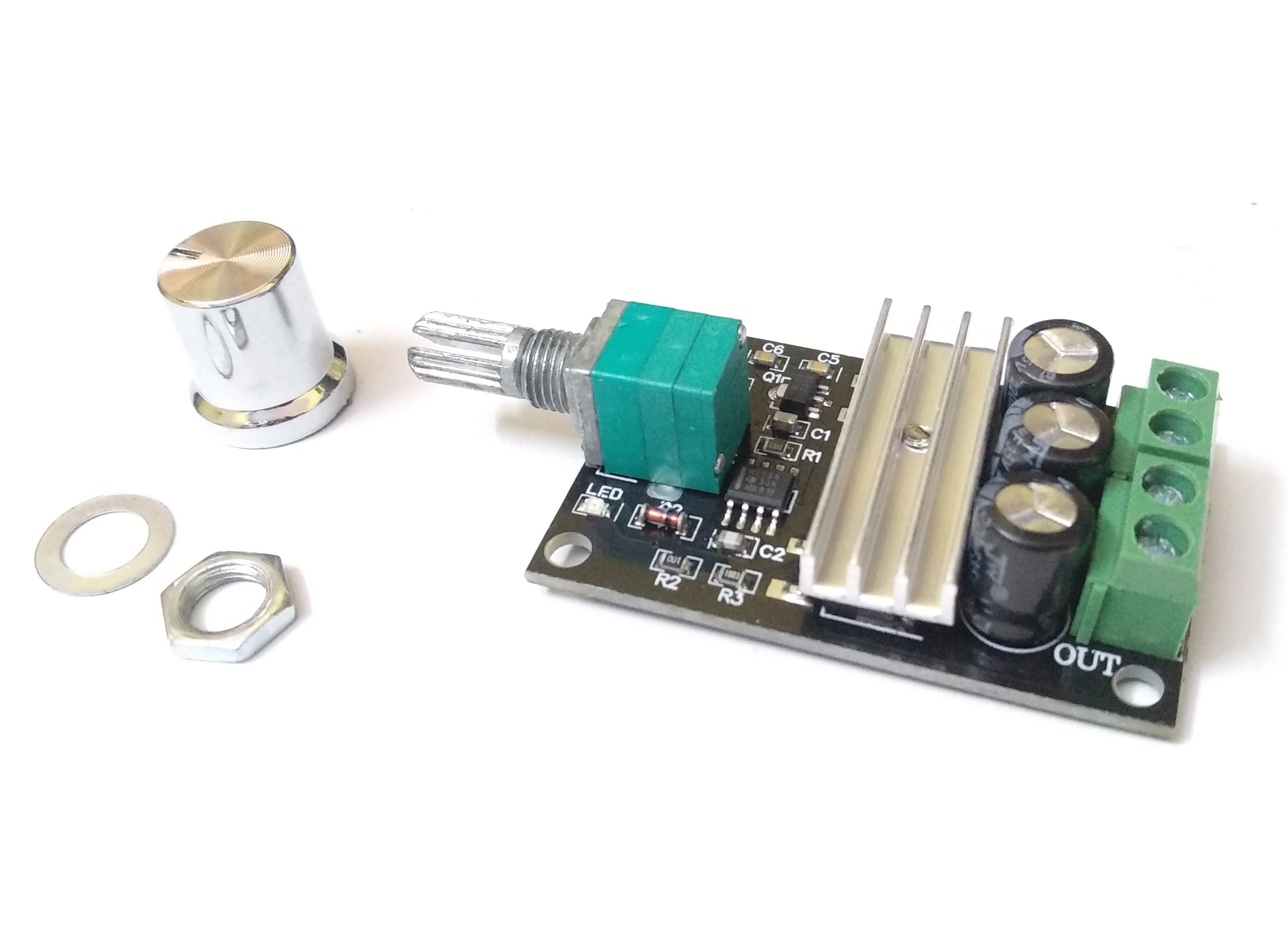

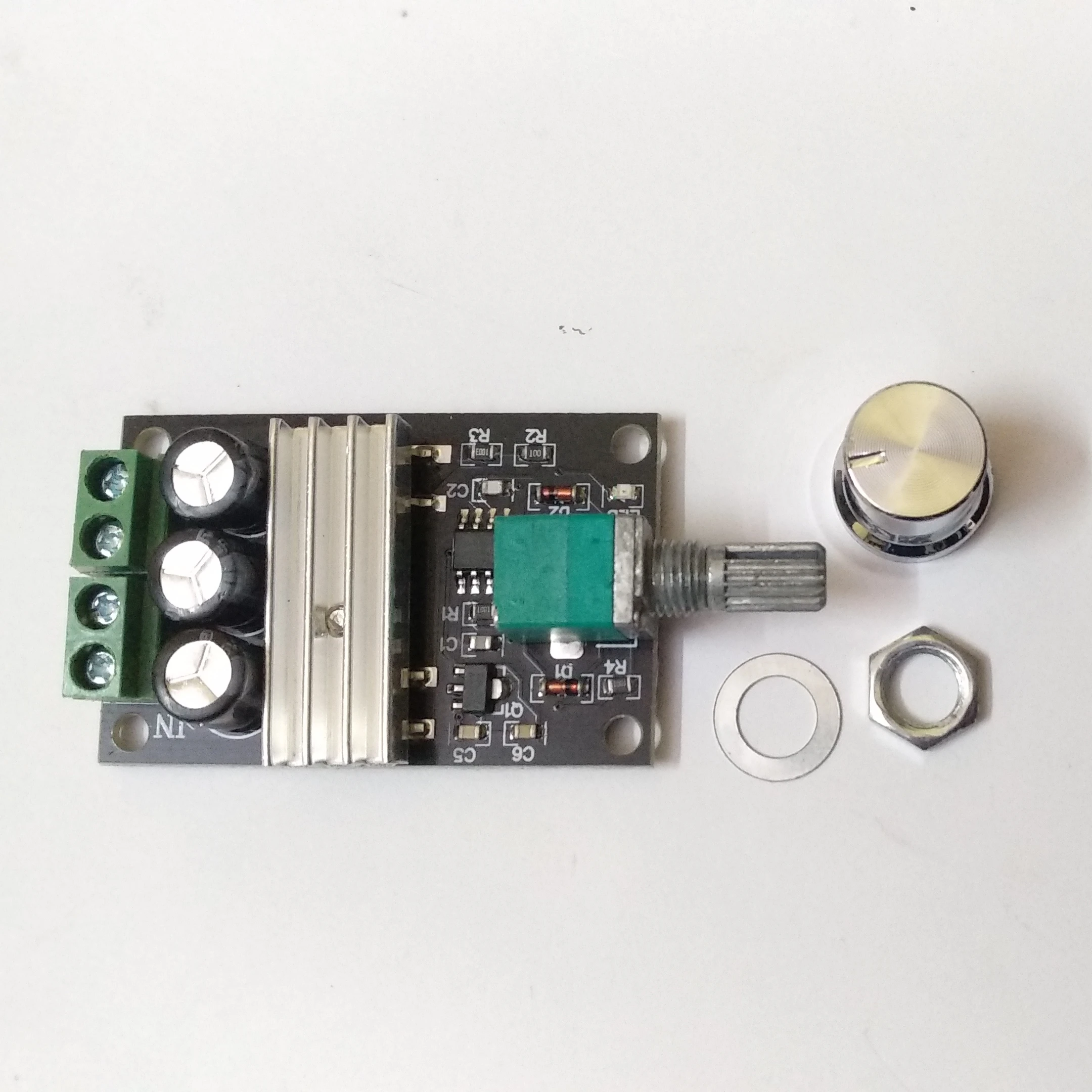

Package Includes

1 × PWM DC Motor Speed Controller Module
1 × Control Knob
1 × Mounting Nut
1 × Washer

Safety Instructions

Use only within the specified voltage range.
Ensure correct polarity before connecting power.
Do not exceed the maximum current rating.
Provide adequate ventilation during continuous high-load operation.
Disconnect power before making wiring changes.
Intended for brushed DC motor applications.

Disclaimer

Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
