HX711 Driver for Load Cell Module

In Stock

SKU: R3-B-2

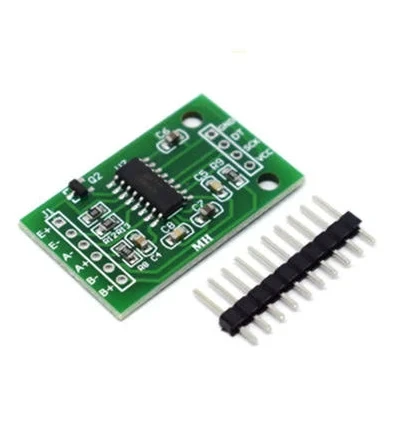

HX711 Driver for Load Cell Module

(0) | 0 Reviews | 3 Orders | 0 Wish Listed

₹55.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The HX711 is a precision 24-bit analog-to-digital converter (ADC) designed specifically for load cell and weight measurement applications. It amplifies and converts the small signals from load cells into digital data, making it ideal for weighing systems and STEM projects.

Specifications:

Type: Load Cell Amplifier & ADC Module
ADC Resolution: 24-bit
Input Channels: 2 (Channel A & B)
Programmable Gain: 32, 64, 128
Operating Voltage: 2.6V – 5.5V
Output Data Rate: 10 SPS / 80 SPS
Interface: 2-wire (DT, SCK)
Input Signal Range: ±20mV (typical)
Mounting: PCB module with header pins

Features:

High precision 24-bit ADC
Built-in programmable gain amplifier
Low noise and high accuracy
Easy interface with microcontrollers
Optimized for load cell applications

Applications:

Digital weighing scales
Industrial measurement systems
Force measurement
Smart kitchen scales
IoT weight sensing projects

Pin Identification:

VCC → Power supply
GND → Ground
DT (DOUT) → Data output
SCK → Clock input
E+ / E− → Excitation to load cell
A+ / A− → Channel A input
B+ / B− → Channel B input

Important Note:

Requires calibration for accurate measurements
Keep wiring short to reduce noise
Use stable power supply for best results
Shield from electrical interference

Package Includes:

1 × HX711 Load Cell Driver Module

Disclaimer:
No warranty. No guarantee. No return. No replacement.
