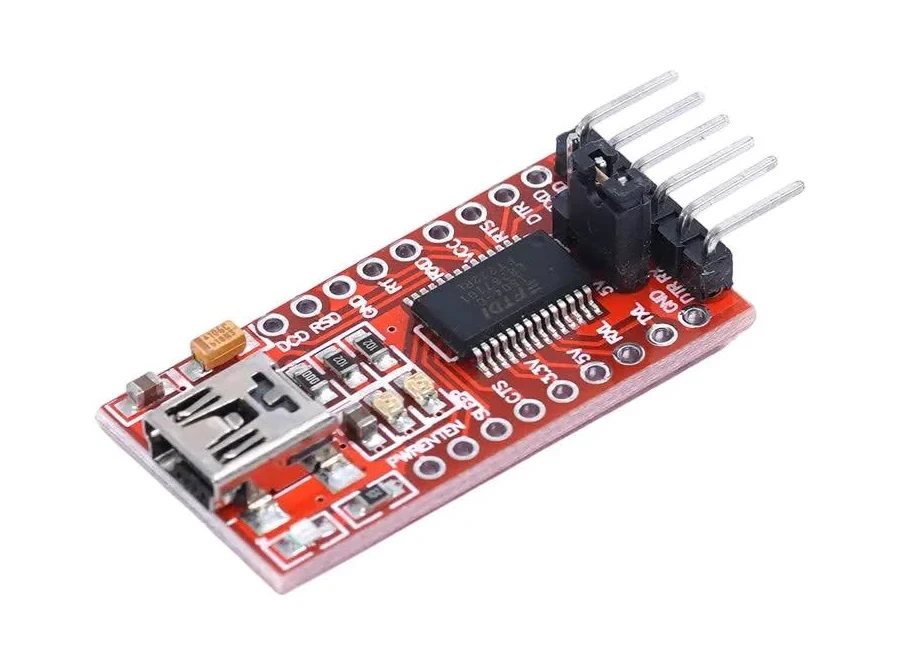

FTDI232

In Stock

SKU: R3-B-10

FTDI232

(0) | 0 Reviews | 2 Orders | 0 Wish Listed

₹83.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description:
The FTDI232 module is a USB to TTL serial converter used for communication between a computer and microcontrollers. It is widely used for programming boards like Arduino, ESP8266, and ESP32, and for serial debugging in STEM and embedded projects.

Specifications:

Type: USB to TTL Serial Converter
Chipset: FT232RL (FTDI)
USB Interface: USB 2.0
Logic Voltage: 3.3V / 5V (selectable)
Operating Voltage: 5V (from USB)
Communication Protocol: UART (TX/RX)
Baud Rate: Up to 3 Mbps
Output Pins: TX, RX, VCC, GND, RTS, CTS
Mounting: PCB module with header pins

Features:

Reliable FTDI chipset
Supports both 3.3V and 5V logic
Plug-and-play USB connectivity
Stable and high-speed communication
Compact and easy to use

Applications:

Programming Arduino Pro Mini
ESP8266 / ESP32 flashing
Serial communication with PC
Debugging embedded systems
IoT development

Pin Identification:

VCC → Power output (3.3V / 5V selectable)
GND → Ground
TX → Transmit
RX → Receive
RTS → Reset control
CTS → Flow control

Important Note:

Ensure correct voltage selection before use
TX connects to RX and RX to TX
Install drivers if not auto-detected
Not all modules provide stable 3.3V current for high-power devices

Package Includes:

1 × FTDI232 USB to Serial Module

Disclaimer:
No warranty. No guarantee. No return. No replacement.
