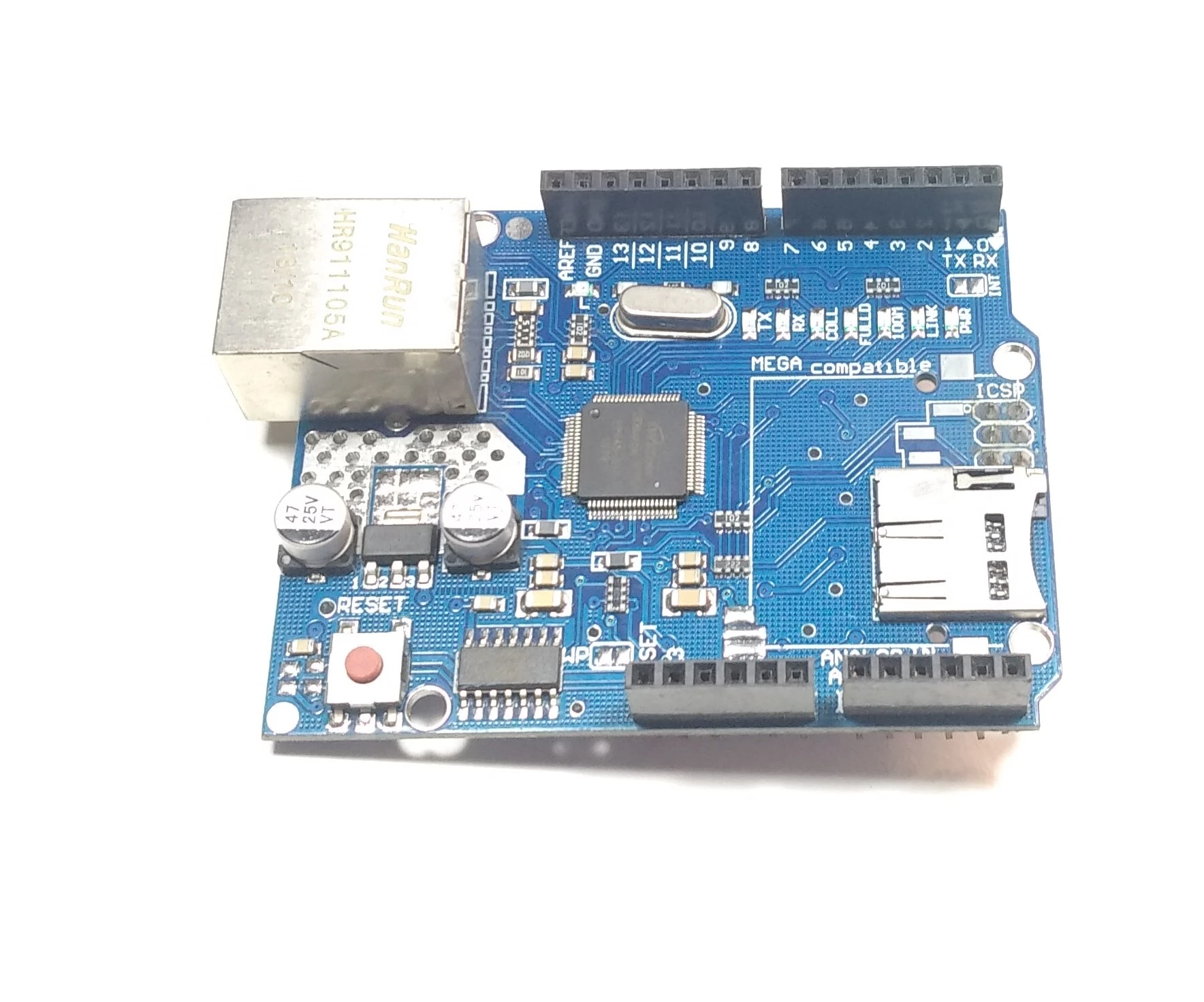

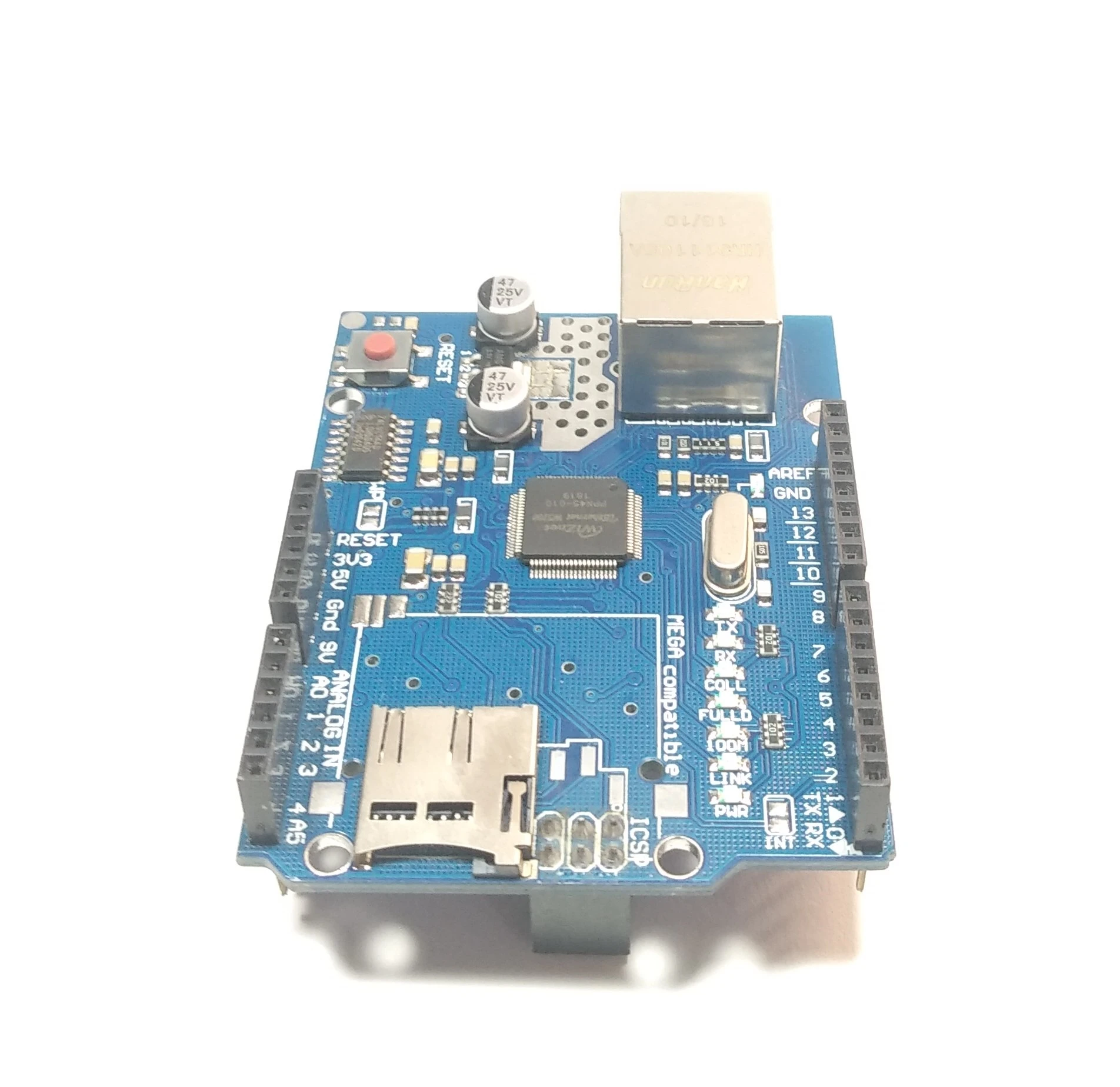

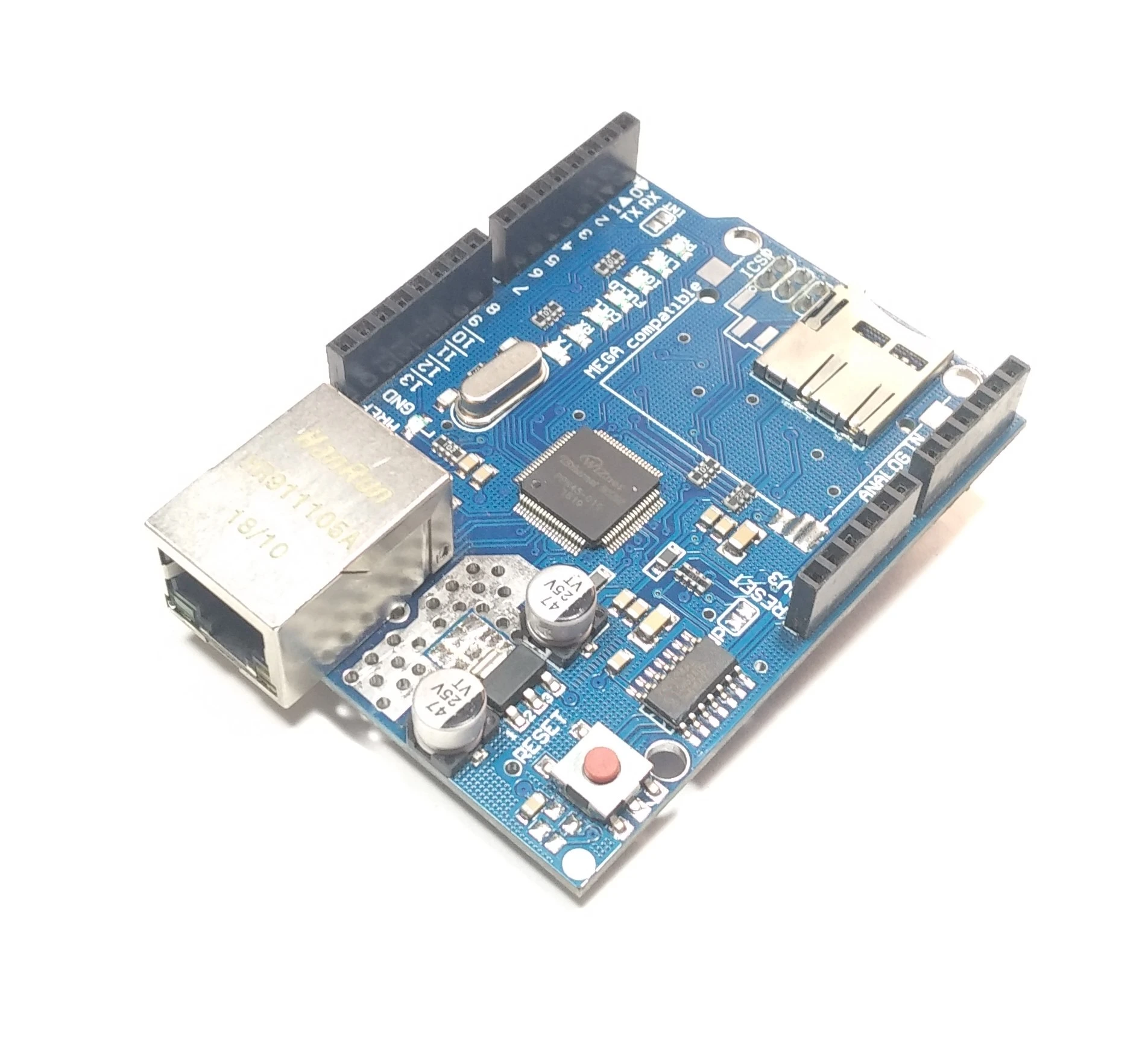

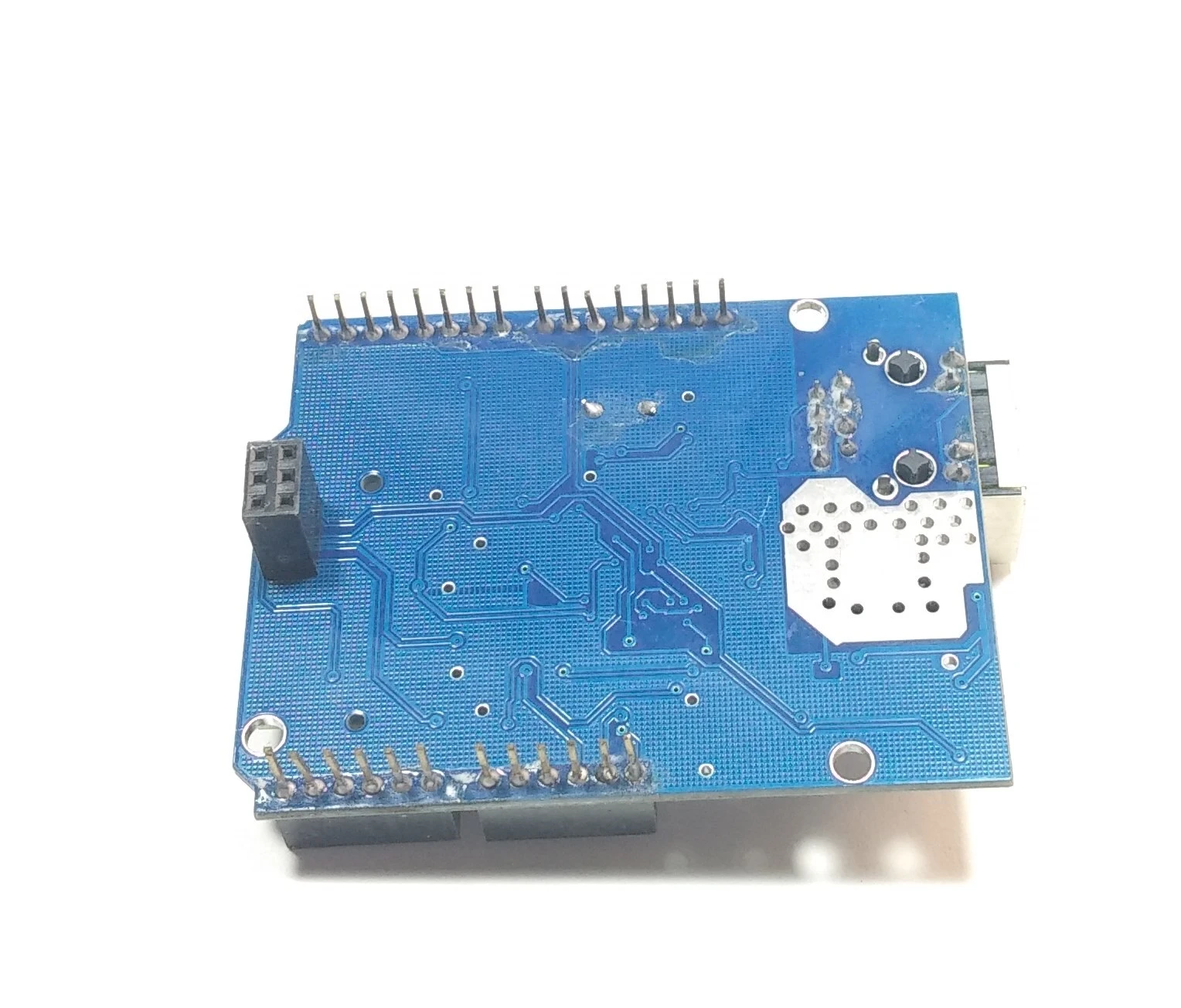

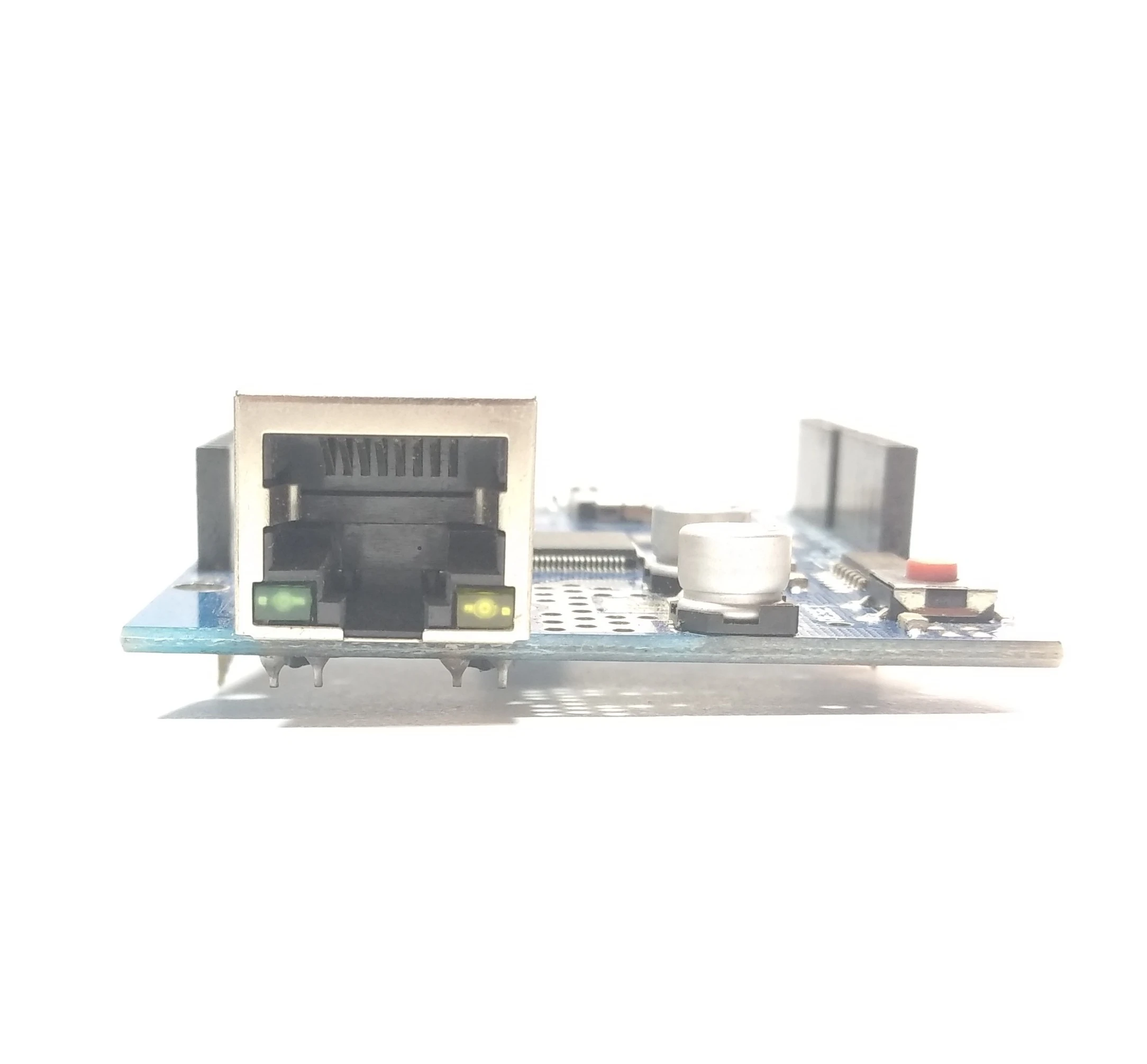

Ethernet W5100 Shield Network Expansion Board

In Stock

SKU: R3-C-5

Ethernet W5100 Shield Network Expansion Board

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹600.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

1. Description: The Arduino Ethernet Shield allows you to connect an Arduino board to the internet using the Wiznet W5100 Ethernet chip. It supports up to four simultaneous socket connections and integrates a Micro SD card slot for storing and serving files over the network. With Power over Ethernet (PoE) capabilities, it enables Arduino boards to be powered via Ethernet cables.

2. Features:

Based on the Wiznet W5100 Ethernet chip.
Supports up to four simultaneous socket connections for TCP/UDP.
Stackable design compatible with the official Arduino Ethernet Library.
Integrated Micro SD card slot for file storage and serving over the network.
Compatible with Arduino Uno, Duemilanove (168 or 328), and Mega (1280/2560).
Accessible through the SD Library; SS on Pin 4.
Power over Ethernet (PoE) module for extracting power from Ethernet cables.
Onboard reset controller for proper reset functionality.
Low output ripple and noise (100mVpp) for stable operation.
Overload and short-circuit protection for safety.
1500V isolation between input and output.

3. Product Specification:

IC Chip: Wiznet W5100
Connection Speed: 10/100Mb
Operating Voltage (VDC): 5V
Dimensions: 75mm (Length) x 54mm (Width) x 25mm (Height)
Weight: 78g
Micro SD Card Slot: Yes (accessible using SD Library)
Power over Ethernet (PoE): Yes

4. Application:

Ideal for IoT (Internet of Things) projects where Arduino needs internet connectivity.
Used for connecting Arduino boards to a network or the internet to control devices remotely.
Can store and serve files over the network, making it suitable for web-based applications.
Commonly used in home automation, remote monitoring, and data logging systems.

5. Disclaimer: Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
