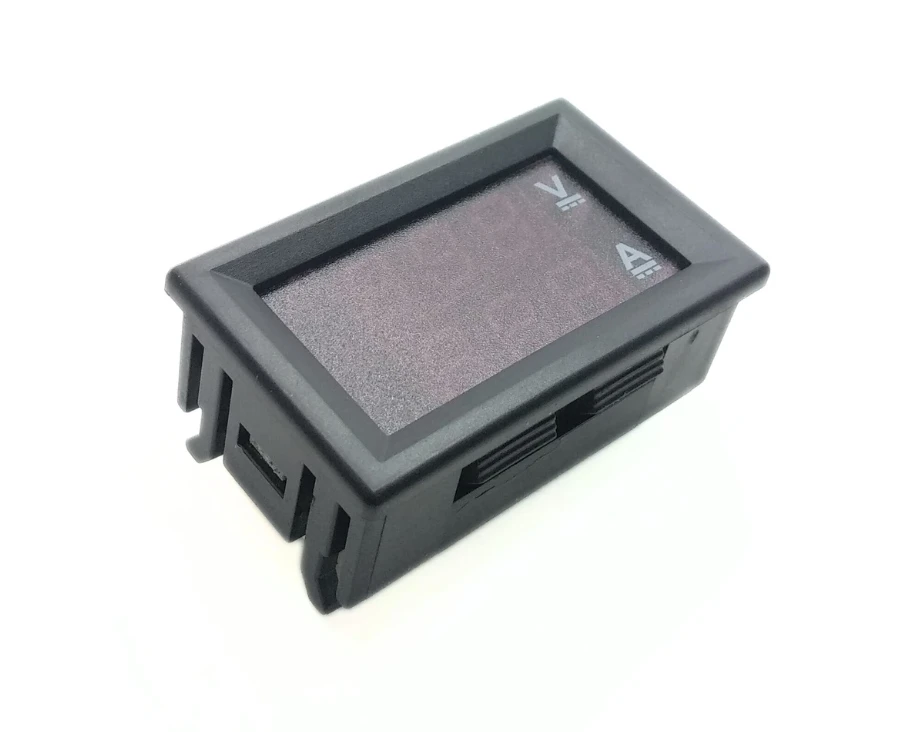

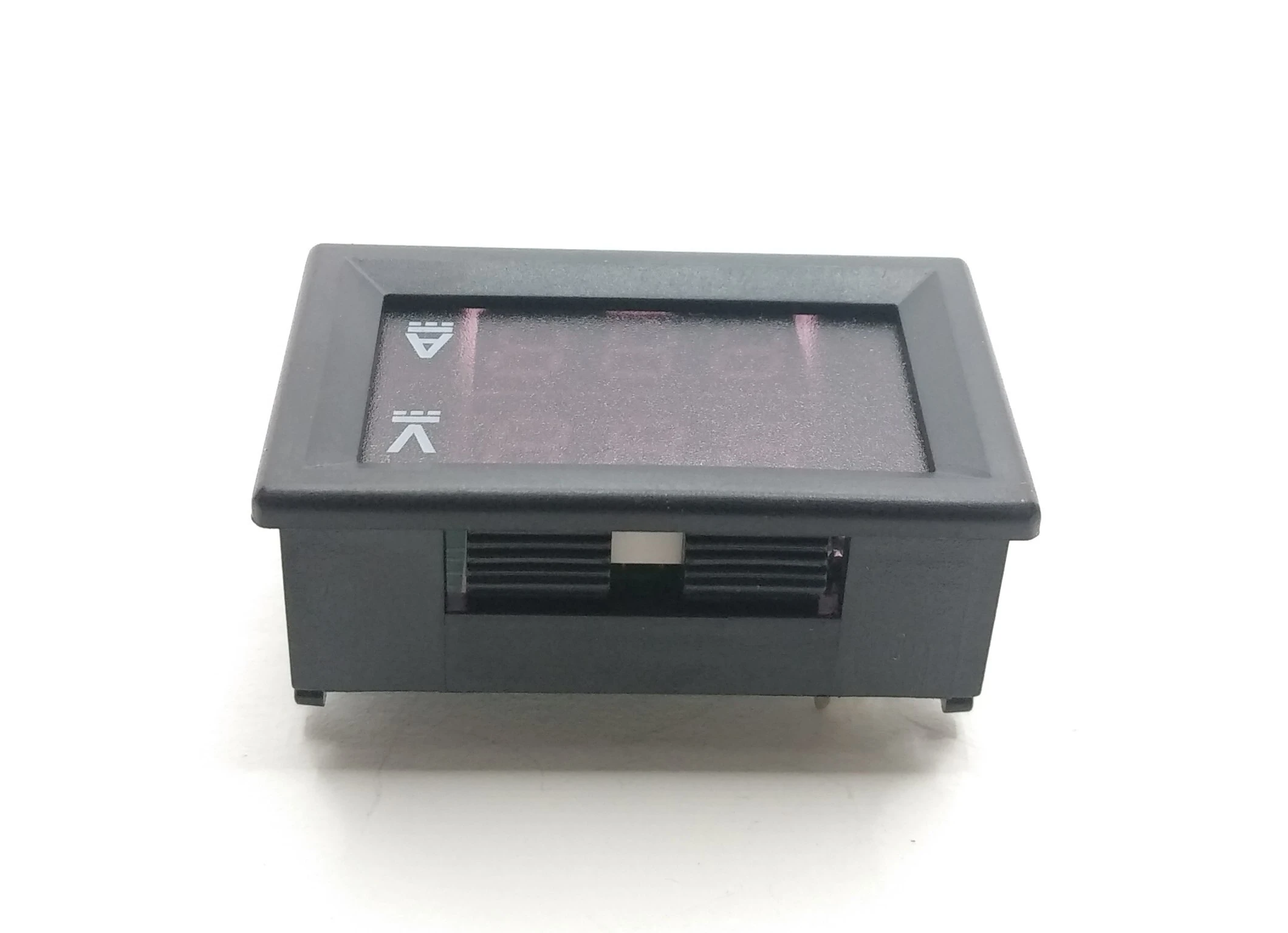

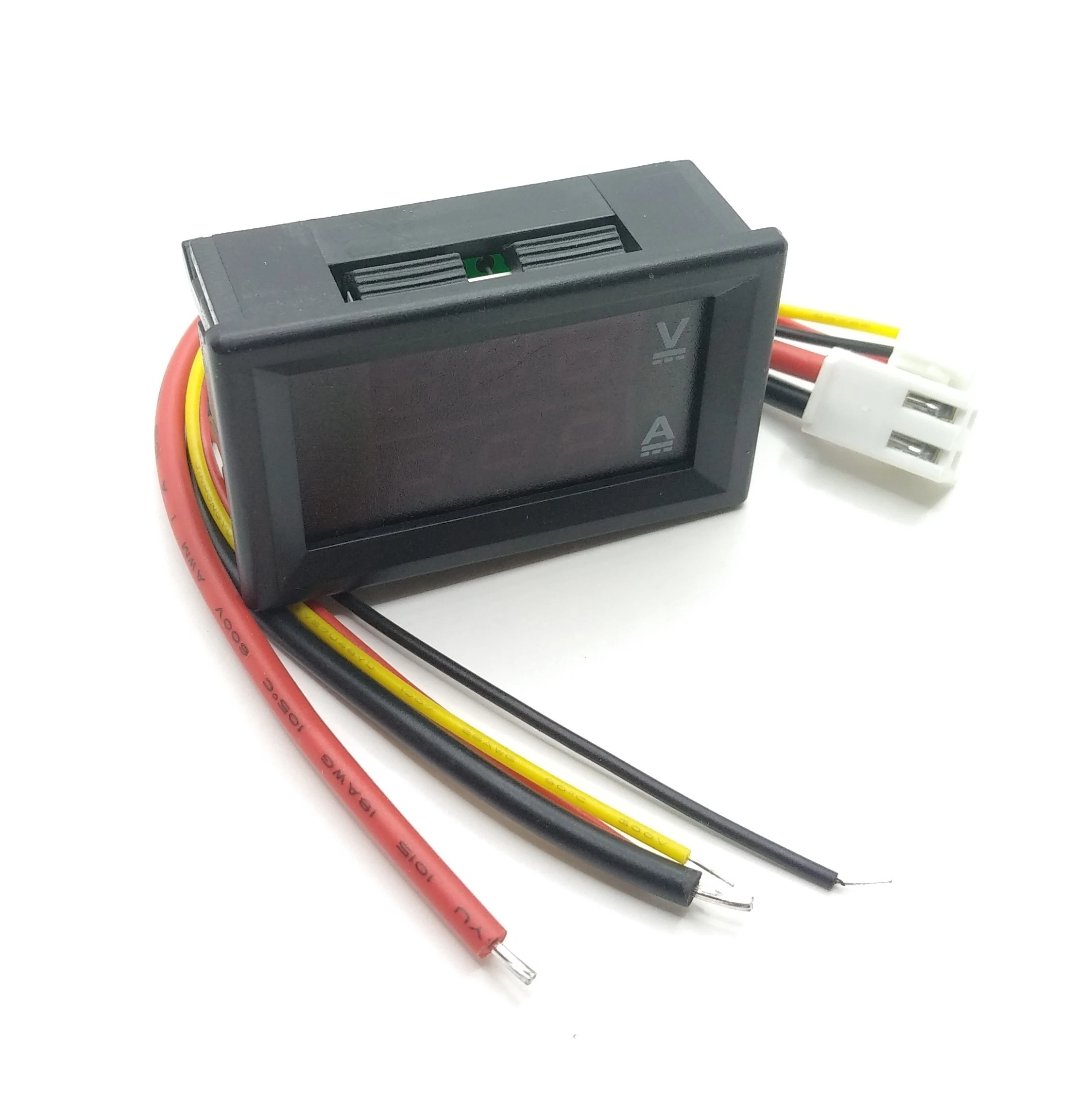

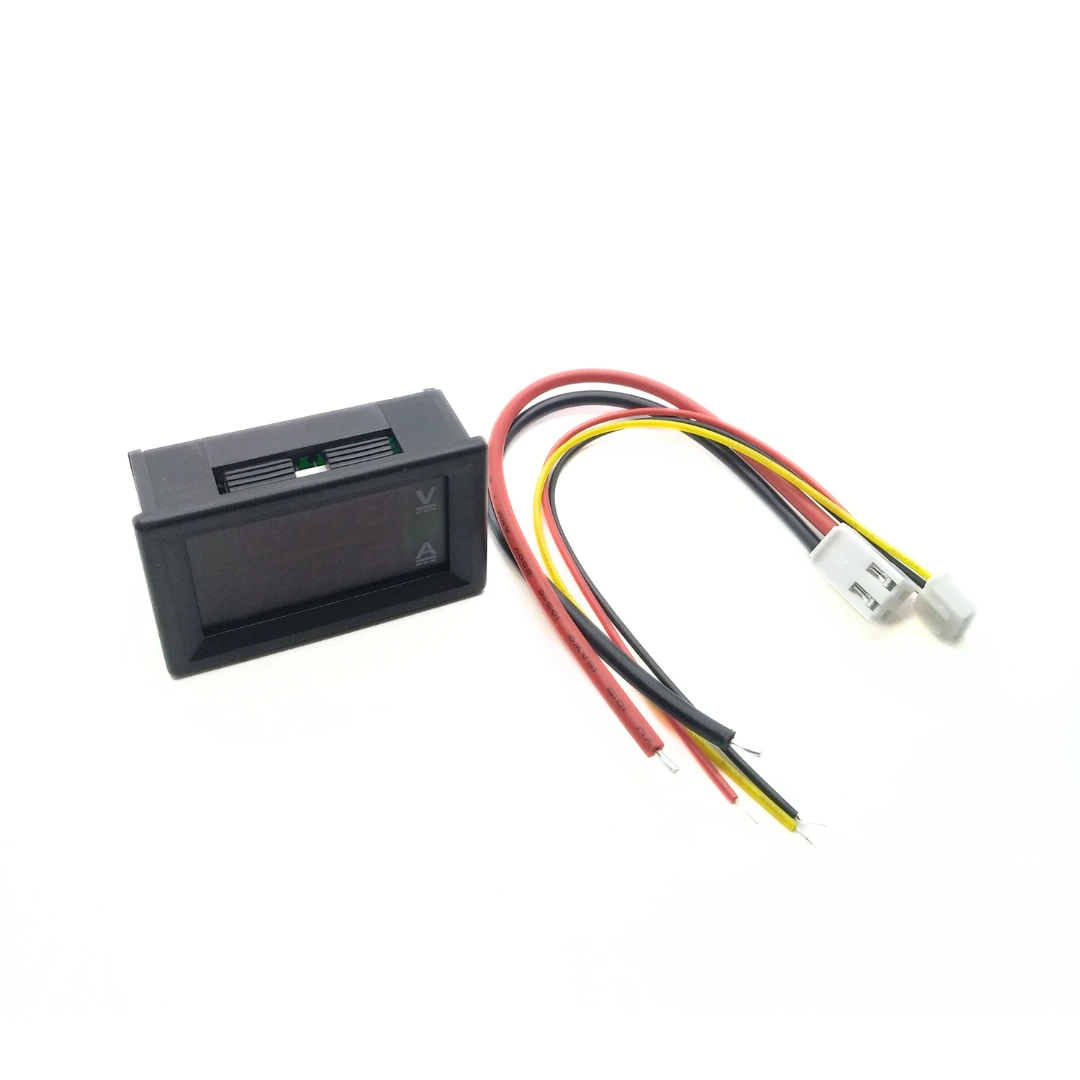

Description: The DC 0-100V Voltmeter Ammeter is a versatile and compact digital display module that allows you to measure both voltage and current efficiently. With its dual-color LED display (Red & Blue) and a 0.28" LED digital display, it provides clear readings for voltage and current with high accuracy. Ideal for measuring DC voltage (0-100V) and current (up to 10A), this device is perfect for a wide range of applications, from electronics projects to industrial monitoring systems.
Specifications:
Size: 48mm x 29mm x 21mm
Display Color: Red & Blue LED (dual display)
Display Type: 0.28" LED digital
Operating Voltage: DC 4.5V ~ 30V
Measure Voltage: DC 0V ~ 100V
Minimum Resolution (Voltage): 0.1V
Refresh Rate: ≥500ms / per reading
Measure Accuracy (Voltage): 1% (± 1 digit)
Minimum Resolution (Current): 0.01A
Operating Current: <20mA
Measure Current: 10A (direct measurement, built-in shunt)
Operating Temperature: -10°C to 65°C
Operating Humidity: 10% to 80% (non-condensing)
Mounting Cutout: 45.5mm x 26.5mm
Applications:
Voltage and current measurement for electronics projects
Power supply and battery testing
DC circuit monitoring in industrial applications
Educational tools for electronics learning
Package Content:
1 x DC 0-100V Voltmeter Ammeter
Disclaimer:
Product specifications, features, and design may change over time due to product updates or improvements.
