Battery Capacity & Voltage Meter 12V-84V

In Stock

SKU: R3-D-17

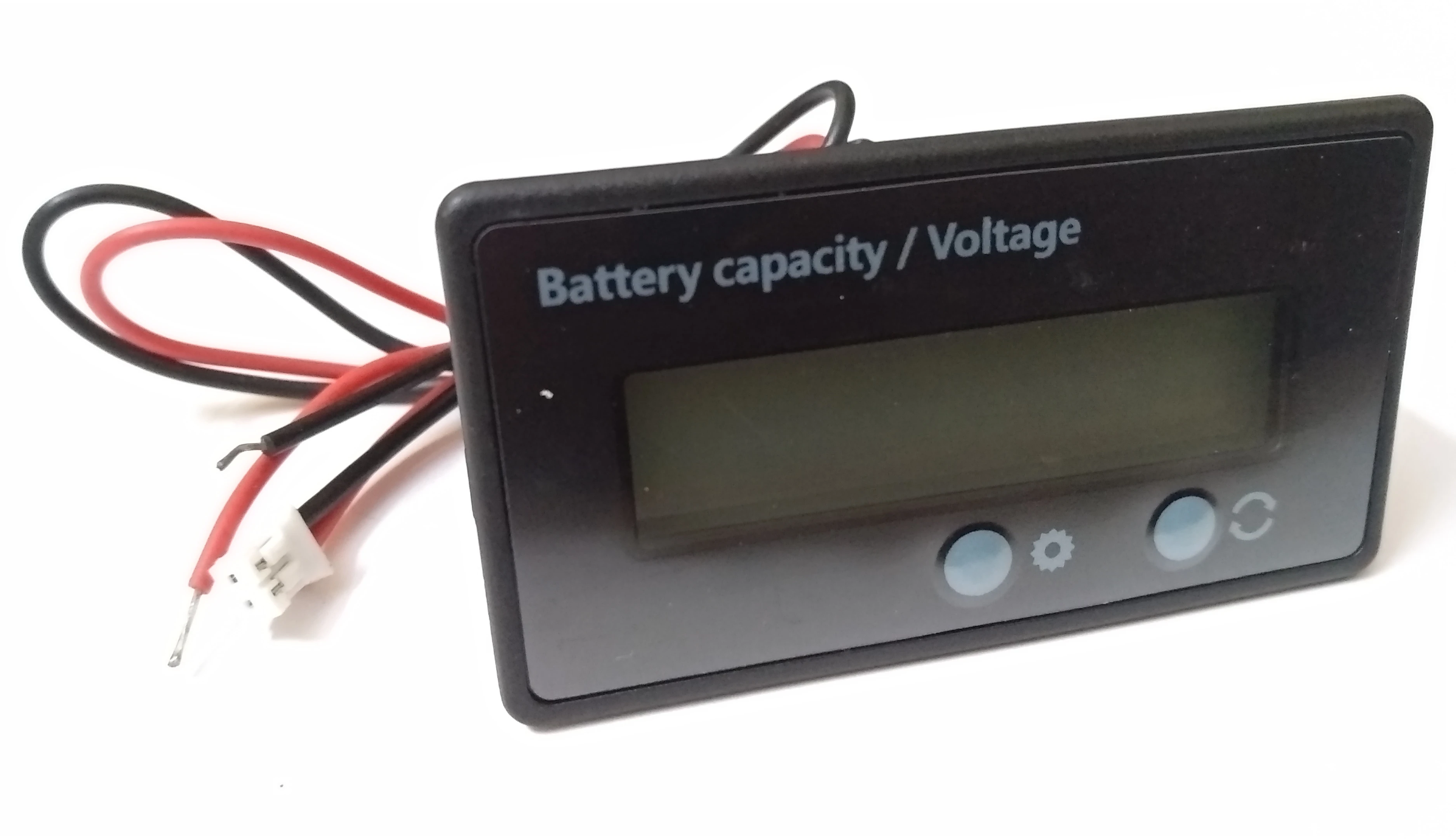

Battery Capacity & Voltage Meter 12V-84V

(0) | 0 Reviews | 0 Orders | 0 Wish Listed

₹280.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description

The Battery Capacity & Voltage Meter is a compact digital panel meter designed to monitor battery voltage and remaining charge level in real time. It features a clear LCD display that shows both battery voltage and capacity, helping users easily monitor battery health and prevent over-discharge.

The module supports multiple battery chemistries and voltage ranges, with user-selectable battery types through the onboard buttons. Its panel-mount design makes it ideal for battery-powered equipment, DIY projects, electric vehicles, UPS systems, solar installations, portable devices, and power backup systems.

Features

Real-time battery voltage display
Battery capacity (charge level) indication
LCD digital display
Supports multiple battery types
User-selectable battery settings
Low power consumption
Compact panel-mount design
Simple wiring and installation
High measurement accuracy
Suitable for various battery-powered applications

Specifications

Parameter	Value
Product Type	Battery Capacity & Voltage Meter
Display Type	LCD Digital Display
Display Functions	Battery Voltage & Capacity
Supported Batteries	Lithium-ion, Lithium Iron Phosphate (LiFePO4), Lead-Acid and other supported battery types
Battery Selection	Configurable using onboard buttons
Mounting Type	Panel Mount
Measurement	Real-time Voltage & Capacity
Operating Temperature	-10°C to +60°C (Typical)
Housing Material	ABS Plastic

Applications

Battery Monitoring Systems
UPS Systems
Solar Power Systems
Electric Vehicles
DIY Battery Packs
Portable Power Stations
Robotics
Battery Chargers
Power Backup Systems
Industrial Equipment

Advantages

Displays both voltage and battery level
Easy battery type configuration
Compact and lightweight
Low power consumption
Quick installation
Accurate battery monitoring
Suitable for multiple battery chemistries
Reliable long-term operation

Package Includes

1 × Battery Capacity & Voltage Meter

Safety Instructions

Connect with correct polarity.
Configure the appropriate battery type before use.
Do not exceed the supported operating voltage range.
Avoid exposure to water, excessive humidity, and corrosive environments.
Disconnect power before installation or rewiring.
Install securely to prevent mechanical damage.

Disclaimer

Product appearance, dimensions, and terminal configuration may vary slightly depending on manufacturing batch without affecting functionality or performance.
