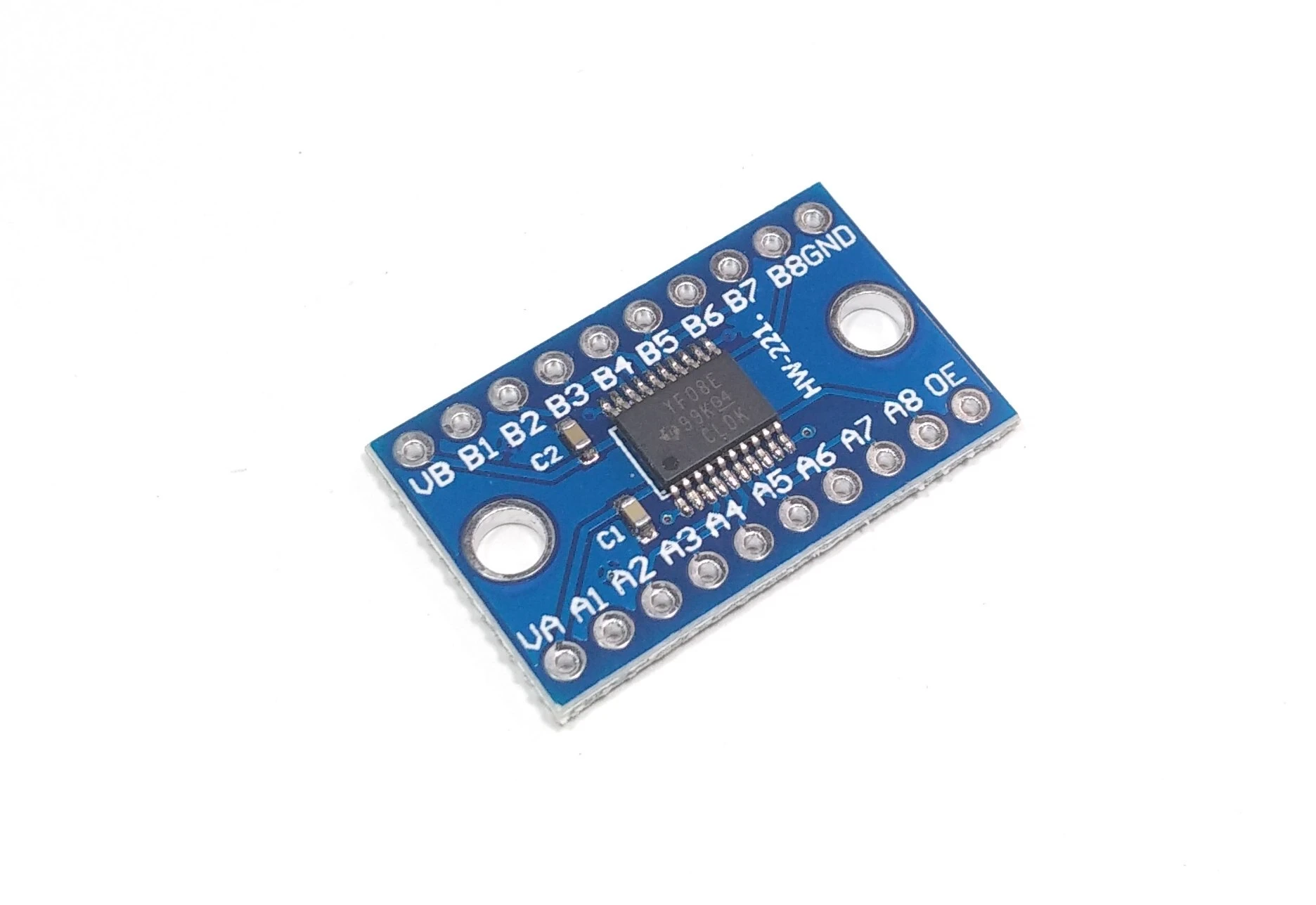

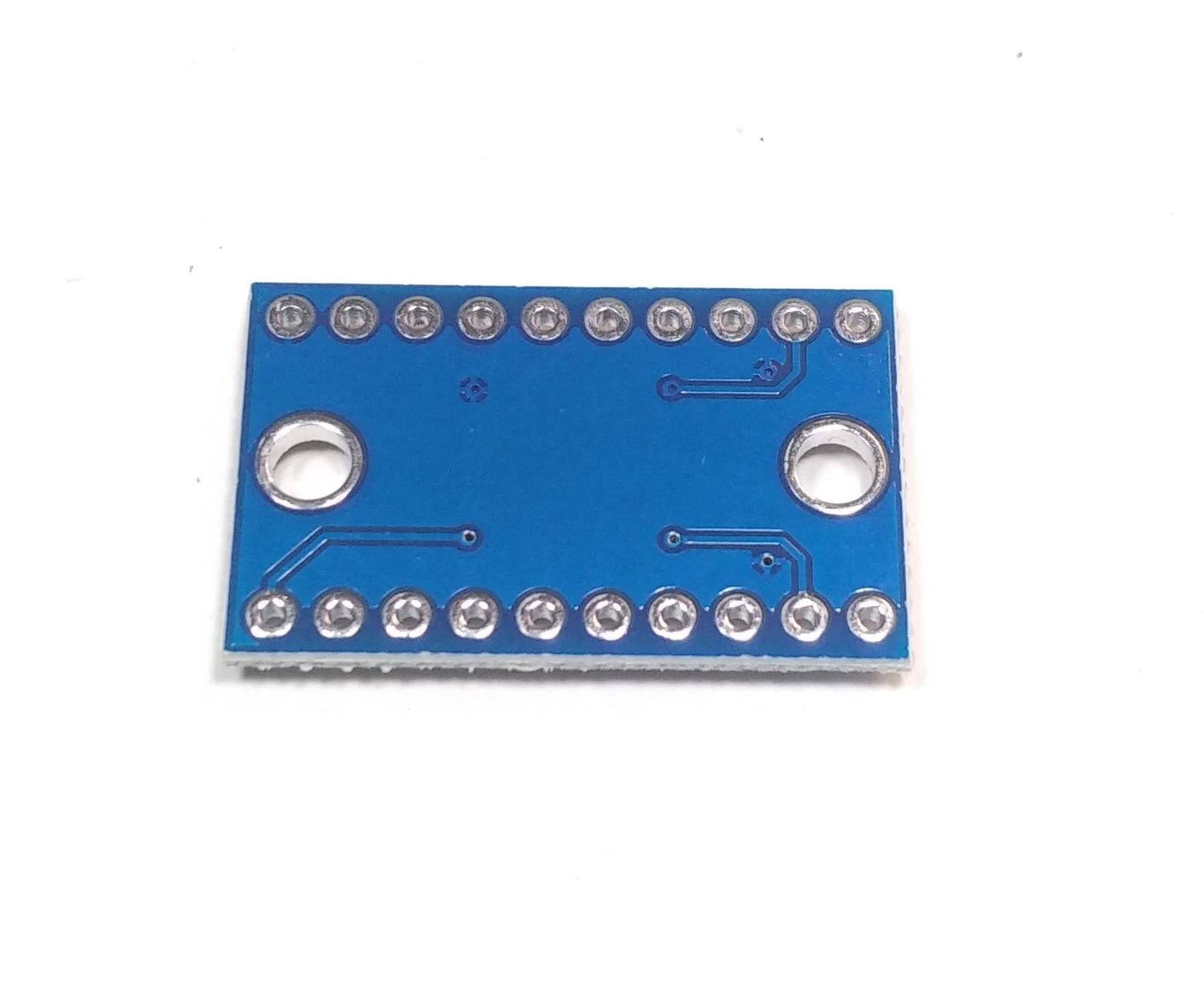

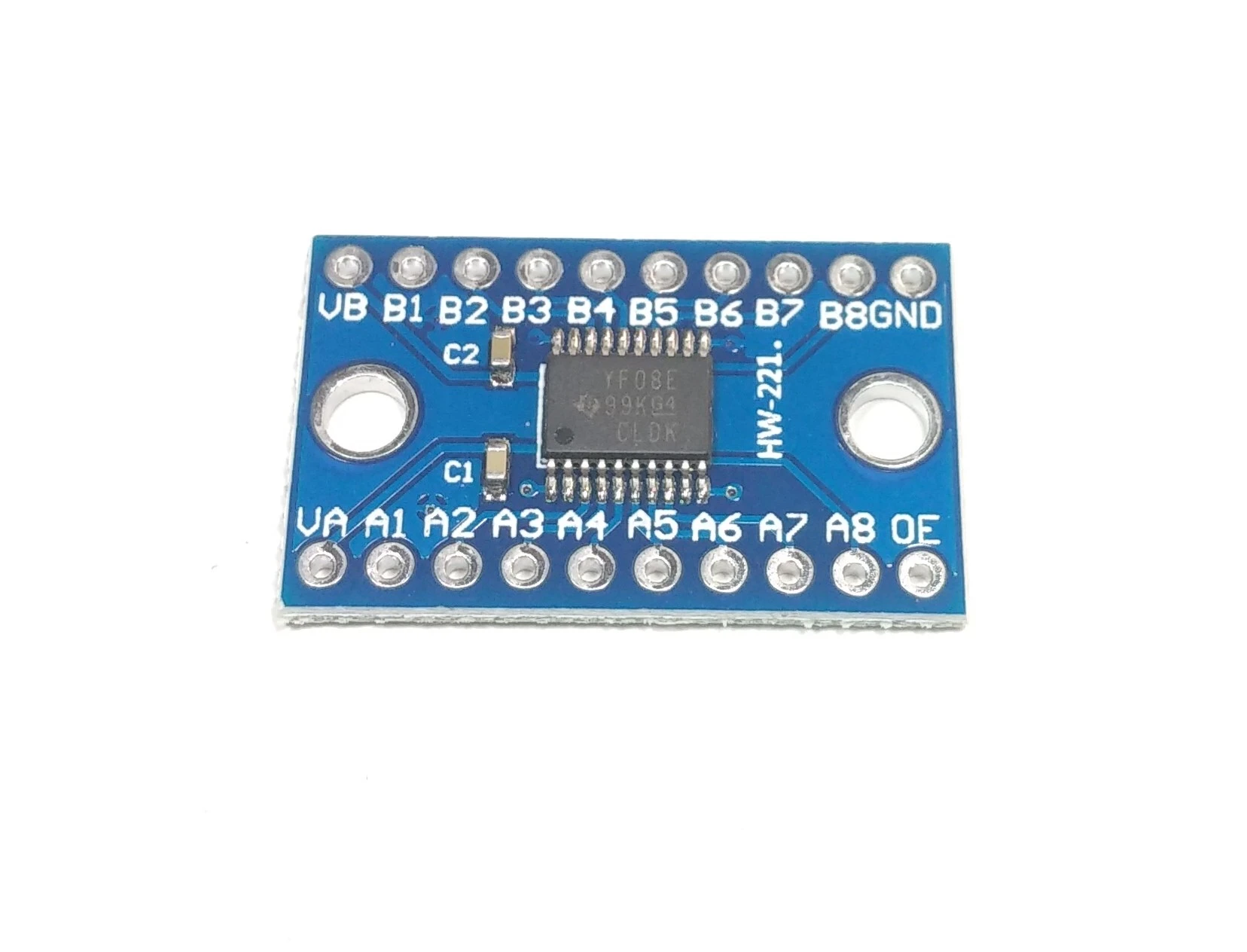

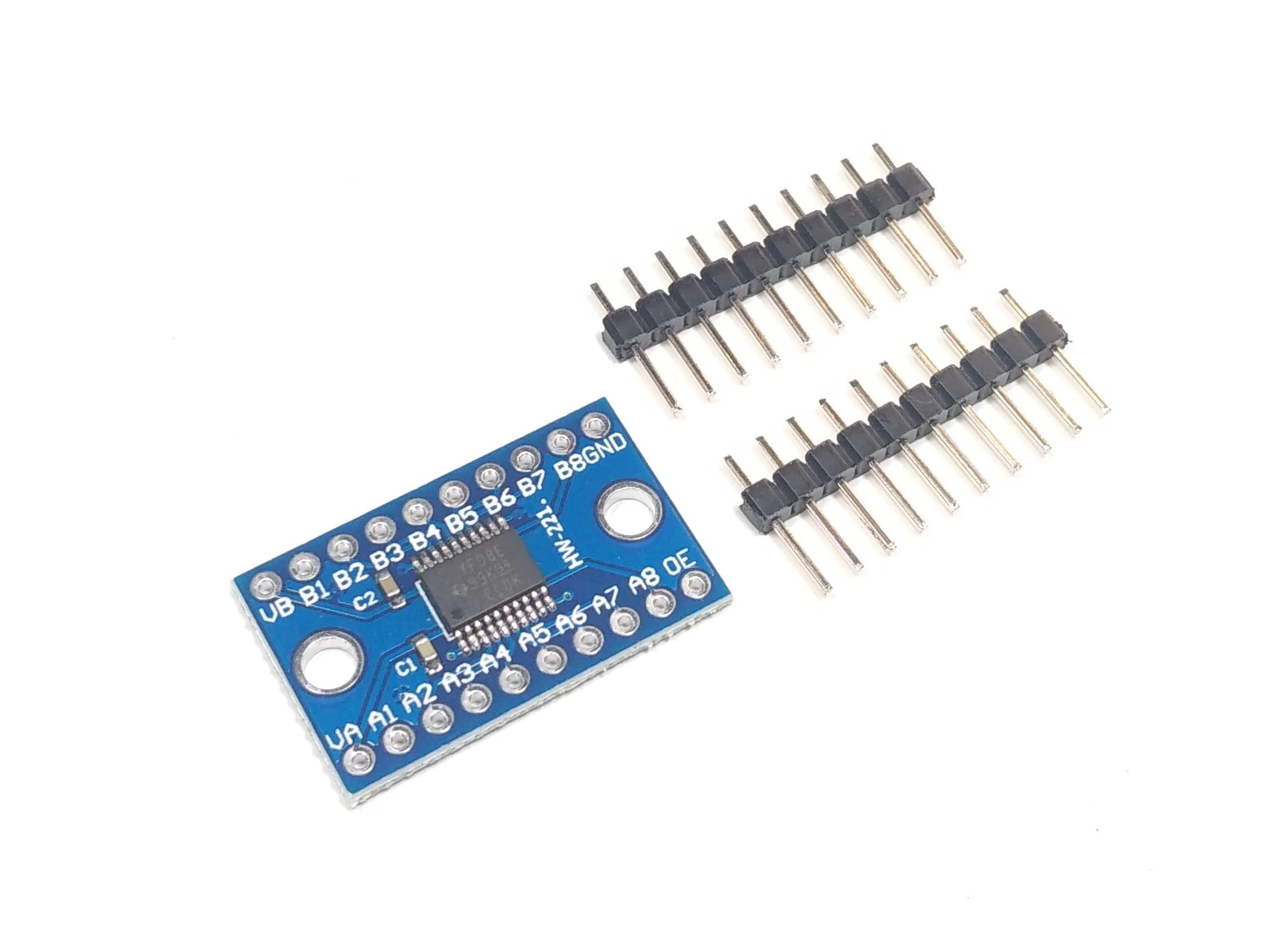

8 Channel Level Shifter

In Stock

SKU: R3-C-3-1

8 Channel Level Shifter

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹82.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description: This High-Speed Full-Duplex 8 Channel Logic Level Converter allows you to safely convert 1.8 V, 3.3 V, and 5 V logic levels between high and low voltages. It supports bidirectional voltage translation for UART, IIC, and SPI interfaces, making it ideal for communication between devices with different voltage requirements.

2. Features:

Provides level conversion between 3.3V, 5V, and 1.8V logic.
8-bit bi-directional conversion with separate configurable power-supply rails.
Compatible with UART/IIC/SPI communication interfaces.
Small and compact, easy to integrate into various systems.
PCB color: Blue.
Two input supply pins for voltage translation.
Supports devices with VCC A voltage from 1.2V to 3.6V and VCC B from 1.65V to 5.5V.

3. Product Specification:

VCC A side support voltage: 1.2 ~ 3.6 V
VCC B side support voltage: 1.65 ~ 5.5 V
Communication Interface: Compatible with UART/IIC/SPI
Number of Bits: 8
Length: 27 mm
Width: 17 mm
Height: 3 mm
Weight: 4 gm

4. Application:

Widely used for communication between MCU and SD card, serial devices, and 5V/3V modules.
Ideal for projects requiring voltage level shifting, like connecting 3.3V sensors to 5V microcontrollers.
Used in embedded systems for bidirectional data transfer between different voltage logic devices.

5. Disclaimer: Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
