4 Channel Level Shifter

In Stock

SKU: R3-C-3-2

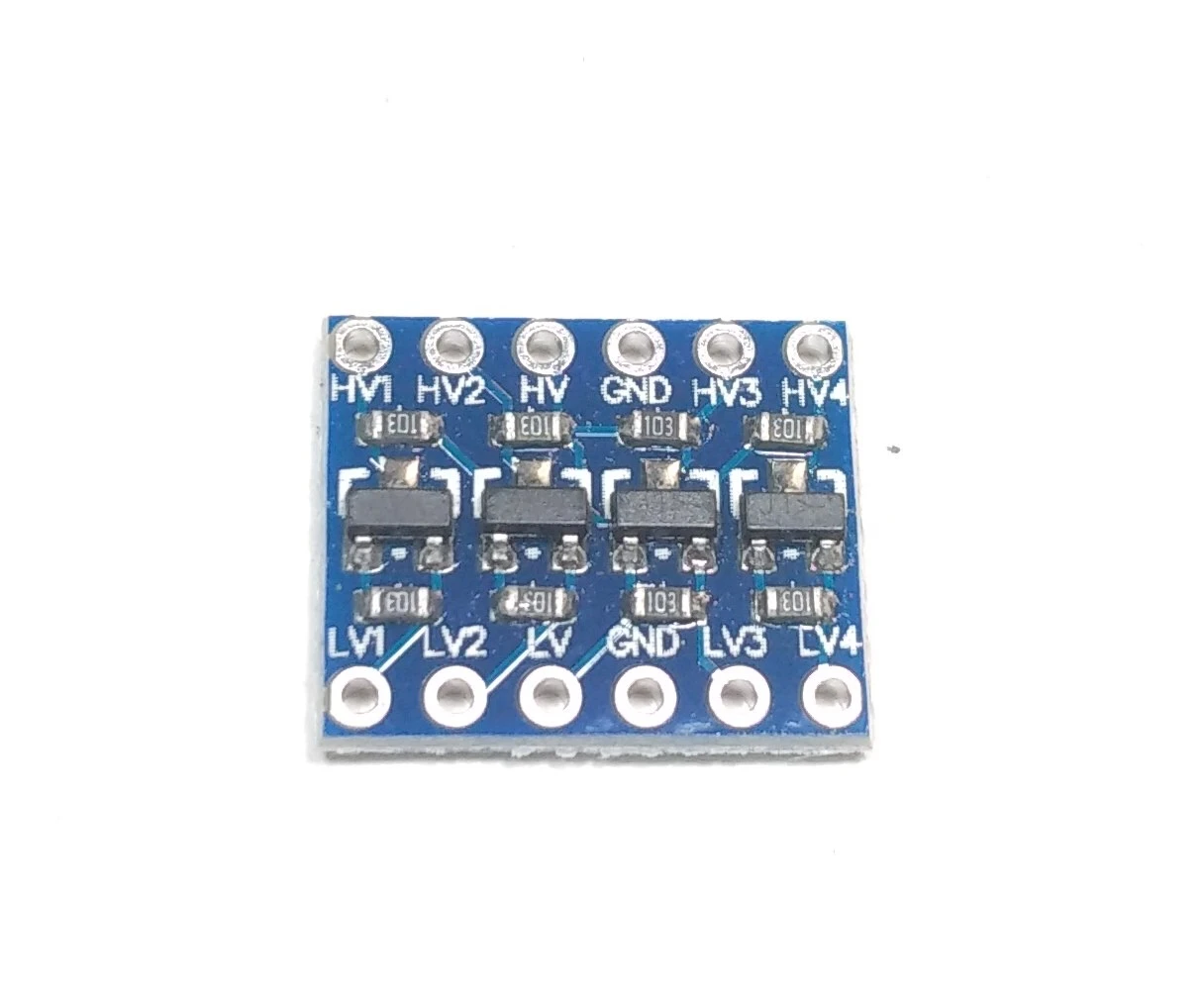

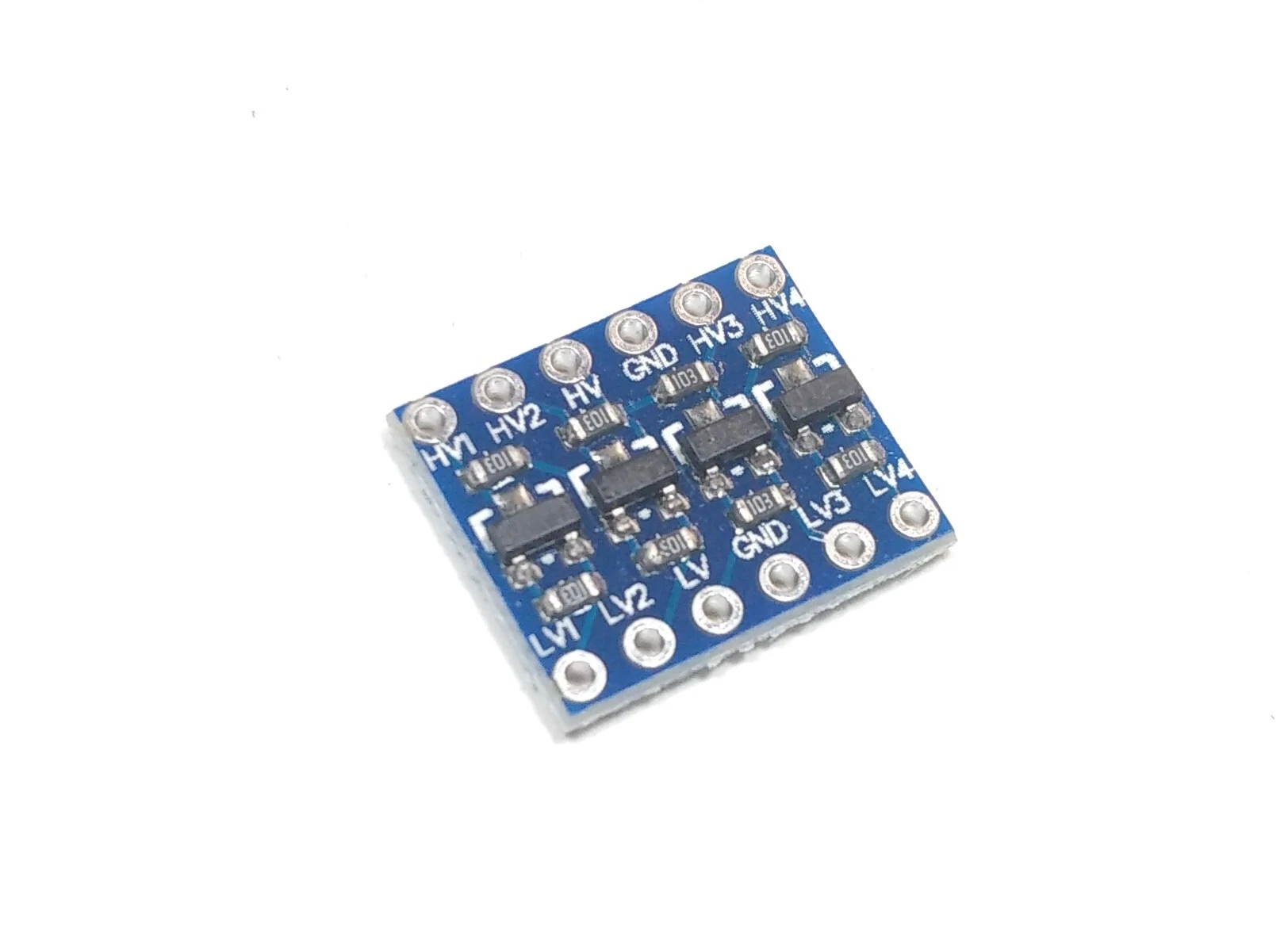

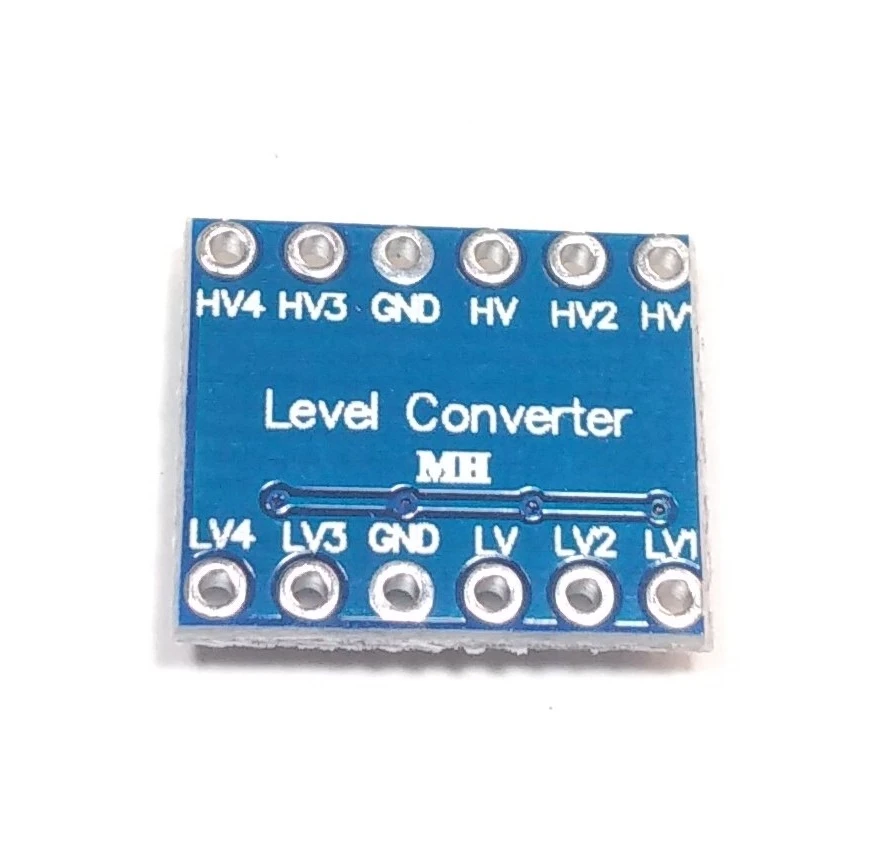

4 Channel Level Shifter

(0) | 0 Reviews | 1 Orders | 0 Wish Listed

₹25.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

Description: This Level Converter-4 Channel allows for seamless communication between devices operating at different logic levels. With four high-speed bi-directional channels, it efficiently converts signals between 1.8V and 5V, making it ideal for connecting devices with different voltage requirements, such as IC, SPI, and TTL serial interfaces.

2. Features:

Converts logic levels between 5V TTL and 3.3V TTL.
Four bi-directional channels for both step-up and step-down voltage conversion.

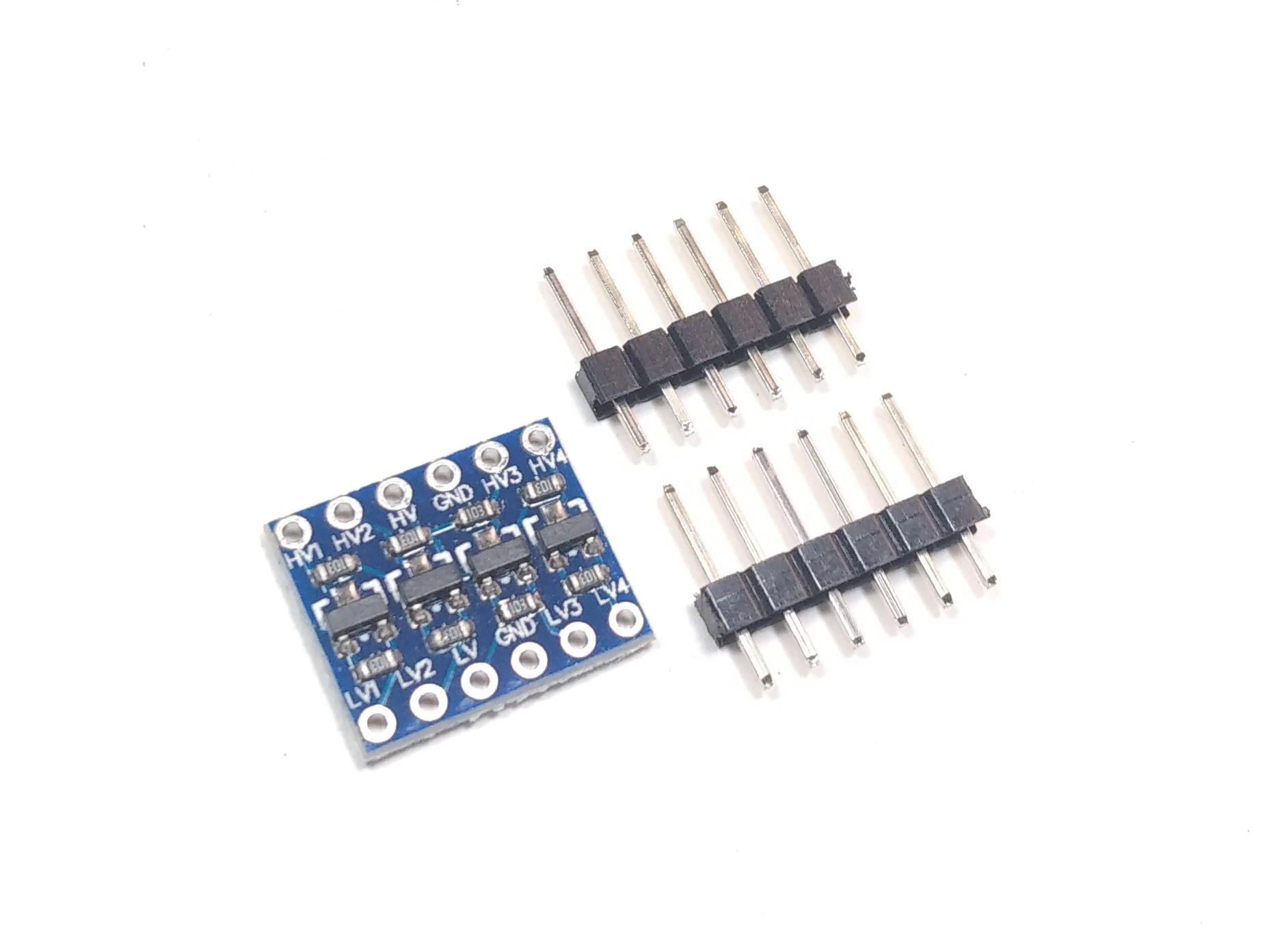

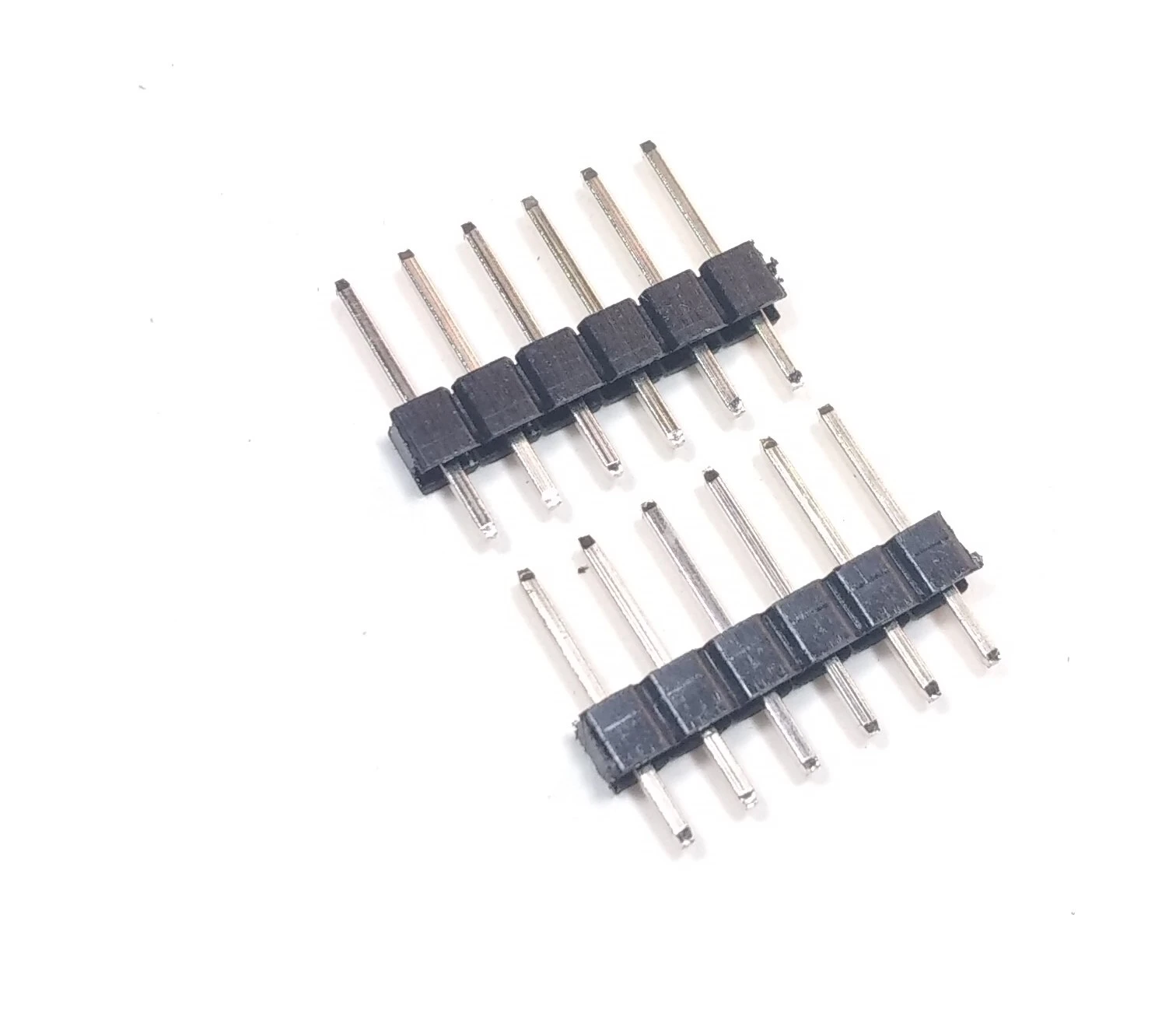

Compact and portable, with 2 rows of 6-pin contact pins for easy integration.
Compatible with breadboards for convenient use in prototypes.
Ideal for microcontrollers, Arduino, Raspberry Pi, Intel Edison, NXP Mbed, and other devices.

3. Product Specification:

Voltage on Lx Side: 1.8V to 5V
Voltage on Hx Side: 2.8V to 6V
Power: 2.8V to 6V
Number of Channels: 4
Length: 16 mm
Width: 13 mm
Height: 3 mm
Weight: 2 gm

4. Application:

Suitable for bidirectional communication between devices with different voltage logic, such as 3.3V to 5V systems.
Commonly used in I2C, SPI, and TTL serial interfaces for microcontroller and sensor communication.
Ideal for connecting microcontrollers like Arduino and Raspberry Pi with peripherals operating at different voltages.

5. Disclaimer: Product details, specifications, and colors may change from time to time without prior notice depending on batch updates or improvements.
