5V 2-Channel Relay Module

In Stock

SKU: R2-F-2

5V 2-Channel Relay Module

(0) | 0 Reviews | 8 Orders | 0 Wish Listed

₹65.00 (Excluded Tax)

Quantity:

Total price: (Tax : )

Overview
Reviews

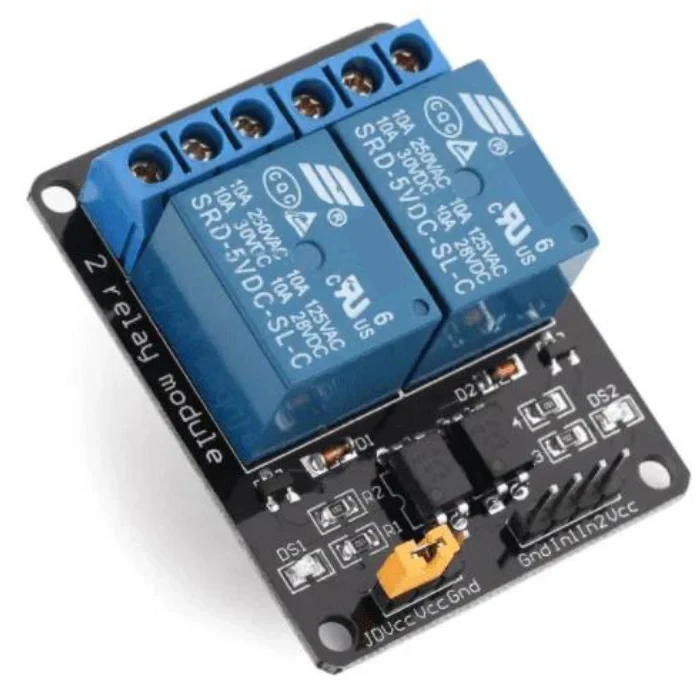

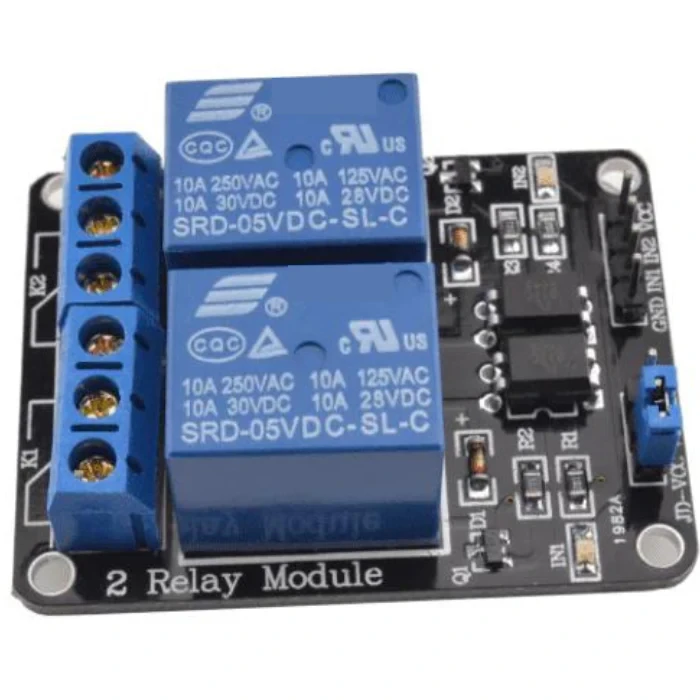

2 Channel 5V Relay Module with Optocoupler

This 2-channel 5V relay module is designed to control high-current AC or DC loads safely through low-voltage microcontroller signals. With a contact rating of 10A, it can handle appliances, motors, lights, and other devices directly.

The module is equipped with optocouplers to provide electrical isolation between the control logic and the relay outputs, ensuring stable and reliable operation. It can be directly controlled by 3.3V–5V logic signals from popular microcontrollers such as Arduino, AVR, PIC, DSP, ARM, MSP430, and 8051.

Each relay supports both Normally Open (NO) and Normally Closed (NC) connections, making it versatile for various automation and control applications.

Features

2-channel 5V relay module with optocoupler isolation
Compatible with Arduino, AVR, PIC, ARM, DSP, MSP430, 8051, and TTL logic
Controlled by low-level trigger (3.3–5V DC)
Supports both NO (Normally Open) and NC (Normally Closed) contacts
Contact capacity up to 10A for reliable high-load control
Stable, safe operation with electrical isolation

Product Specifications

Number of Channels: 2
Operating Voltage: 5V
Control Signal Voltage: 3.3V–5V (Active Low)
Compatibility: Arduino, AVR, PIC, ARM, MSP430, 8051, TTL logic
Contact Rating: 10A
Dimensions (L × W × H): 50.6 × 38.8 × 19.3 mm
Weight: ~5 g

Package Includes

1 × 2 Channel 5V Relay Module with Optocoupler

Applications

Home automation systems
Robotics control
Appliance switching
Motor and light control
Door and window automation systems
DIY electronics projects

Disclaimer

Product specifications, weight, and performance may vary depending on batch and usage conditions. Always use with proper safety precautions when working with high-voltage AC loads.
