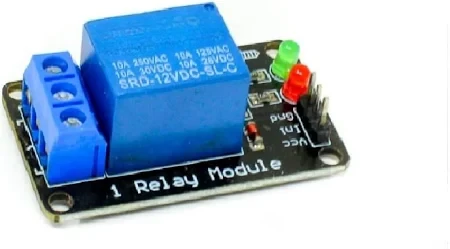

The 12V 1 Channel Relay Module is a compact and reliable solution for controlling 240V appliances directly from Arduino, Raspberry Pi, and other microcontrollers or low-voltage circuits. It is ideal for switching lights, fans, and even high-power motors at lower voltages.
This module features a high-quality relay capable of handling up to 10A at 250V AC or 15A at 125V AC. Each relay provides Common (COM), Normally Open (NO), and Normally Closed (NC) contacts via 3-pin screw terminals for secure and easy wiring.
It also includes power indication and a relay status LED for easy debugging, and supports wide-range control inputs from 4V to 12V. With standard interfacing pins, it can be easily connected to development boards using jumper wires.
Features:
1-Channel relay interface board
Equipped with high-current relay: 15A @ 125V AC or 10A @ 250V AC
Standard interface, directly controlled by microcontrollers (Arduino, 8051, AVR, PIC, DSP, ARM)
Power indicator and relay status LED for easy debugging
Durable design for long-term use
Package Includes:
1 × 12V 1 Channel Relay Module
Product Specifications:
Model Type: Relay Module
Number of Channels: 1
Trigger Current: 20 mA
Switching Voltage (AC): 250V @ 10A / 125V @ 15A
Switching Voltage (DC): 30V @ 10A
Operating Temperature: -40°C to 85°C
Storage Temperature: -65°C to 125°C
Relative Humidity: 20% ~ 85%
Dimensions (L × W × H): 43 × 27 × 17 mm
Weight: 15 g
Shipping Weight: 0.018 kg
Shipping Dimensions: 6 × 10 × 2 cm
Applications:
Home automation
Motor control
Lighting systems
DIY electronics projects
Industrial automation control
Disclaimer:
Product specifications, weight, and performance may vary depending on batch and usage conditions. Always use with a protection circuit board.
