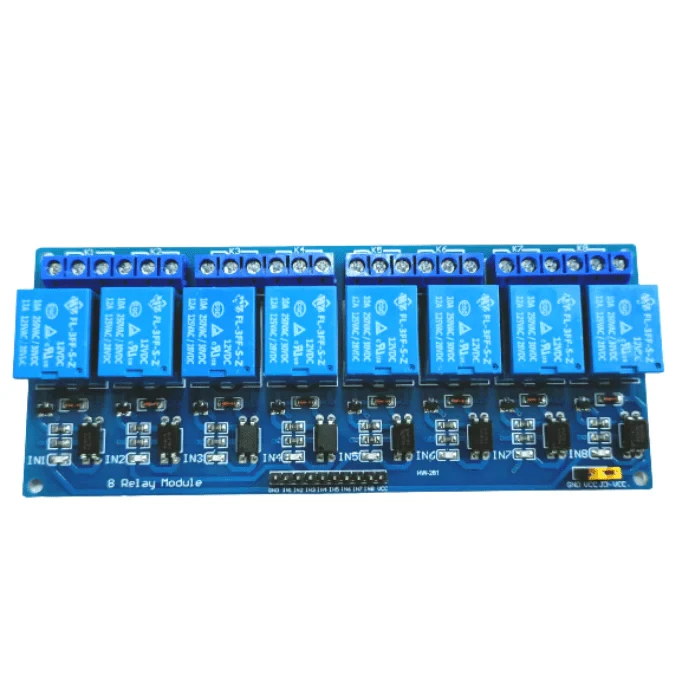

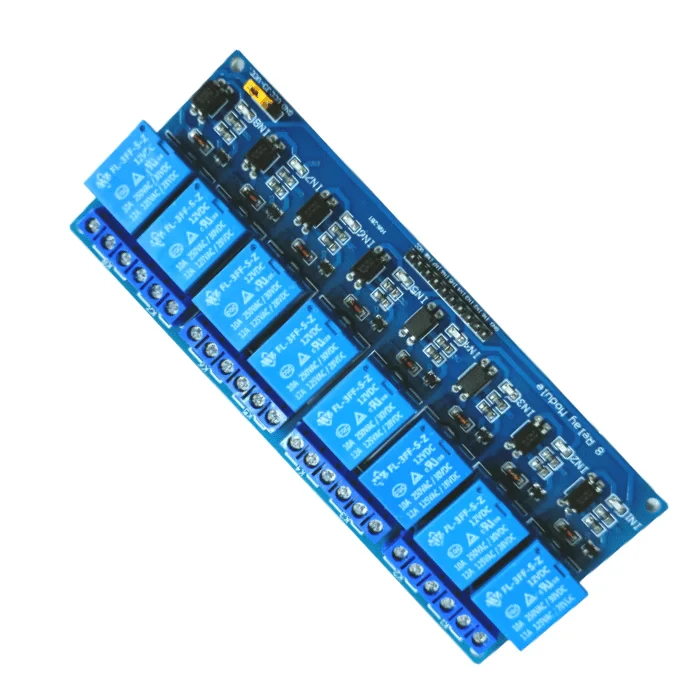

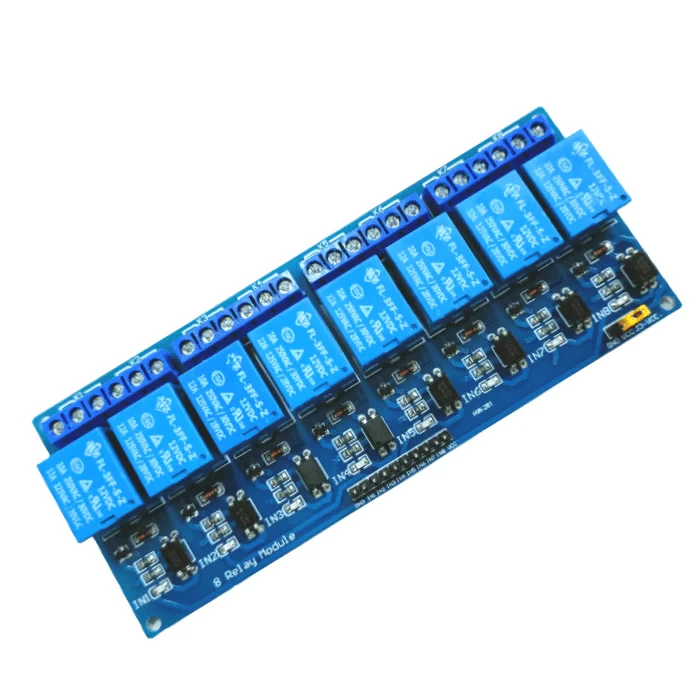

This 12V 8 Channel Relay board meets safety standards as control areas and load areas have isolation grooves. It features an optical coupling isolation module for reliable and stable triggering. The double FR4 circuit board design with high-end SMT process ensures durability and performance.
It has power and relay operation indicators. Relays terminals (C, NC, NO) are accessible through screw terminals, making wiring straightforward. The inputs are optically isolated to protect delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and more can control it.
The use of high-voltage relays reduces the risk of heating since electromechanical relays limit current consumption according to voltage ratings.
📘 Also read our blog: What is Relay in Electrical – explaining what relays are, how they work, their construction, types, and applications.
Control Solenoids
Motors
Bulbs and Lamps
Smart Home Control
Additional protection includes a freewheeling diode to safeguard your microcontroller.
🔎 Also check: 12V 16 Channel Relay Module with Light Coupling (LM2576 Power Supply), suitable for controlling various appliances with large current. It is directly compatible with microcontrollers (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic). Each relay requires 15–20mA driver current and features an LED indication for relay output status. Optocoupler isolation ensures safe operation.
1 x 12V 8 Channel Relay Board
Channel: 8
Operating Voltage (VDC): 12
Trigger Voltage (VDC): 5
Switching Voltage (VAC): 250V @ 10A
Switching Voltage (VDC): 30V @ 10A
PCB Hole Diameter (mm): 3.1
PCB Hole Pitch Distance (mm): 132 mm (x-pitch), 50.5 mm (y-pitch)
Dimensions (mm): 138 × 57 × 17
Weight: 50g
Disclaimer:
Product specifications, weight, and performance may vary depending on batch and usage conditions. Always use with a protection circuit board.
